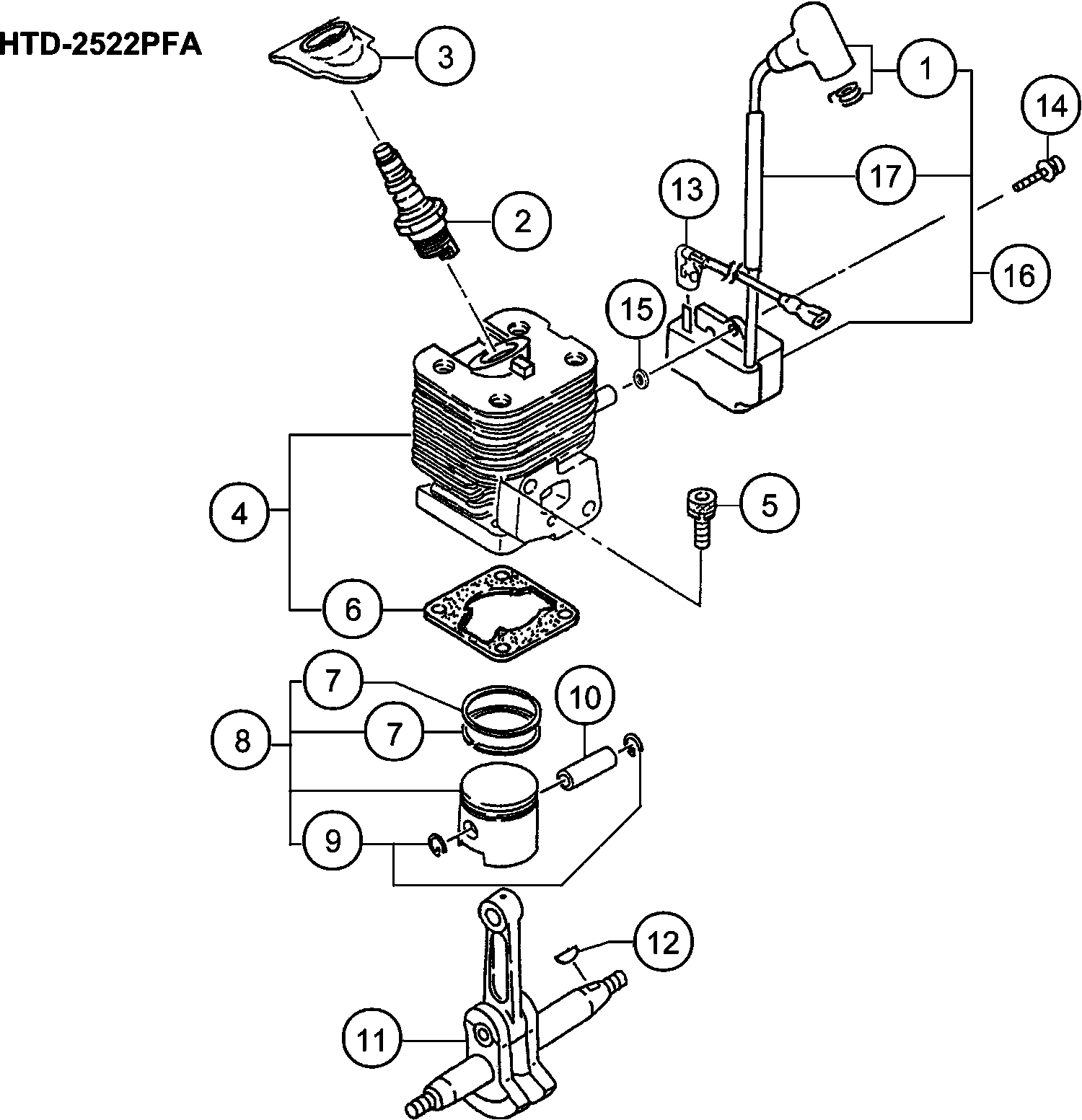

Technical drawing of model Hikoki HTD-2522PFA

Spare parts list of model Hikoki HTD-2522PFA

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Plug Cap
1 6684894 8.58 10.38
Spark Plug Ass'y Bpm6a
2 6699317 6.76 8.18
Spark Plug Rubber Cover
3 6688334 3.30 3.99
Cylinder Set
4 6685462 66.40 80.34
Hex.hole Bolt M5x18/s
5 6684586 2.15 2.60
Cylinder Gasket
6 6685728 1.15 1.39
Piston Ring
7 6684588 8.58 10.38
Piston Set (old 030-01680-90)
8 6685877 28.14 34.05
Circlip
9 6685078 1.15 1.39
Piston Pin
10 6686016 2.31 2.80
No longer available, no replacement
11 6686176
Woodruff Key 3x13x4.5 Till B023800
12 6684899 2.15 2.60
Cord, B 140m
13 6687840 3.30 3.99
Hex. Hole Bolt M4x18/ws Till H124040
14 6684599 2.15 2.60
Washer T1.6
15 6684600 2.15 2.60
No information available, not orderable
16 6687704
Insulator Tube
17 6688316 1.05 1.27
Gear Shaft Shim 0.20
31 6684604 2.15 2.60
Gear Shaft Shim 0.30
31 6684605 2.15 2.60
No longer available, no replacement
32 6688047
No longer available, no replacement
33 6686529
Oil Seal
34 6684607 4.29 5.19
Ball Bearing 6001 C3
35 6684608 3.80 4.60
No longer available, no replacement
36 6686705
Stud Bolt 6x22
37 6686771 1.15 1.39
Hex. Socket Hd. Bolt M5x30 S
38 6684786 2.15 2.60
Hex. Hole Bolt 5x45
39 6695055 1.15 1.39
Spring Washer 5
40 6684834 2.15 2.60
Magneto Rotor Comp.
41 6687418 28.14 34.05
Ring
42 6684971 1.04 1.26
Bolt Washer M8
43 6684611 2.15 2.60
Hex. Nut M8
44 6684612 2.15 2.60
Intake Manifold Gasket
51 6689874 2.31 2.80
Insulator Set,spare
52 6689937 6.60 7.99
Hex. Hole Bolt M5x25ws
53 6695515 1.15 1.39
Carburetor Gasket (old 402-0602K-21/6689836)
54 6684615 2.15 2.60
O-ring P-15
55 6698966 1.04 1.26
Cleaner Body Comp.
56 6690119 4.45 5.38
Collar 7.5
57 6690804 1.15 1.39
Choke Valve
58 6691261 3.30 3.99
No information available, not orderable
59 6684658
Blow Over Check Board
60 6690843 1.15 1.39
S.washer 5
61 6684662 2.15 2.60
Screw M5x60
62 6684660 2.15 2.60
Cleaner Sponge
63 6690364 1.15 1.39
Cleaner Cover
64 6690415 5.28 6.38
Special Screw
65 6689737 1.15 1.39
Carburetor Set Wyl139a
66 6690463 65.73 79.53
Shield Tube
67 6688174 2.31 2.80
Clip,6.3 Dia.
68 6684619 2.15 2.60
No information available, not orderable
69 6684620
Tank F T
70 6699335 15.28 18.48
Tank Cap D Ass'y Since K032881
71 6691748 7.59 9.18
Collar 5.8 Till G103930
73 6692244 1.15 1.39
Hex. Hole Bolt 5x18ps
75 6695505 1.15 1.39
Swivel Cap Since C026901
76 6691337 1.15 1.39
Priming Pump Comp.
77 6685139 5.94 7.18
Fuel Pipe 2.5x4x80
78 6692347 1.15 1.39
Fuel Pipe 2.5x4x70
79 6692346 1.15 1.39
Return Grommet Till 7.2014
80 6697846 1.04 1.26
Throttle Wire Fixing Plate
81 6684629 4.29 5.19
Carburetor Gasket
82 6689828 3.30 3.99
Muffler Protector
91 6692772 9.90 11.98
Muffler Ass'y
92A 6601160 72.45 87.66
Washer (b)
94A 6696547 1.05 1.27
Hex. Hole Screw 6x55
95 6695086 1.15 1.39
Fan Housing
97 6686957 16.79 20.31
Recoil Spring Till 7.2014
98 6684675 11.55 13.98
Starter Rope Reel
99 6693066 3.30 3.99
Set Screw Till 7.2014
100 6693633 1.15 1.39
Starter Pulley Assembly (old 798-06500-90 & 669340
101 6693405 4.45 5.38
Primary Cord Grommet
102 6688049 1.15 1.39
Rope Till 7.2014
103 6693168 2.31 2.80
Starter Handle
104 6693237 1.15 1.39
Hex. Hole Bolt 4x15/ps
105 6684682 2.15 2.60
No information available, not orderable
106 6692718
Ring
108 6684661 2.15 2.60
Screw 5x8/s (old 994-14050-081)
110 6695332 1.05 1.27
Clutch
111 6688494 9.74 11.78
Tapping Screw 4.5x10 (old 990-73045-104)
112 6695104 1.15 1.39
Bolt 4x12ps
113 6695441 1.15 1.39
Starter Pawl Spring
114 6684684 4.29 5.19
Starter Pawl (old 788-06500-20)
115 6693319 2.31 2.80
Throttle Set Screw
121 6684698 4.29 5.19
Swivel
122 6684697 6.44 7.79
Stop Ring
123 6684696 2.15 2.60
O-RING (old 550-25100-20)
124 6684695 4.29 5.19
Main Jet #35
125 6691873 6.28 7.59
Pump Gasket (old 577-25100-20)
126 6691457 7.10 8.59
Pump Diaphragm
127 6684693 8.58 10.38
Inlet Screen
128 6684700 4.29 5.19
Pump Body Comp.
129 6691435 15.26 18.47
No longer available, no replacement
130 6685220
Metering Diaphragm Comp.
131 6690830 11.88 14.37
Diaphragm Cover-metering
132 6685222 4.45 5.38
Set Screw
133 6691312 1.15 1.39
No information available, not orderable
151 6688829
Stop Ring C-15, Outer
152 6695285 1.15 1.39
No information available, not orderable
153 6697745
Clutch Drum Comp.
154 6688570 17.70 21.42
Gear Shaft
155 6688960 2.31 2.80
Guide Plate (old 075-33160-20)
156 6686612 1.15 1.39
Cam Rod
157 6686811 5.78 6.99
Gear 2 Till D175950 For Europe
158 6688974 26.16 31.66
Gear Case Gasket (old 303-33160-20)
159 6688909 1.15 1.39
No information available, not orderable
160 6692100
Cutter Guide 625.5l M6
161 6687137 24.20 29.28
Hex. Hole Flush Bolt 6x25
162 6695075 1.15 1.39
Cutter A (591.5l)
163 6687084 42.20 51.06
Seal Rubber
164 6686654 1.15 1.39
No longer available, no replacement
165 6687187
Bolt
166 6687158 1.15 1.39
Flange nut
167 6695170 1.15 1.39
Hex. Socket Hd. Bolt (w/sp.washer) M4x12
168 6684595 2.15 2.60
COMPLETE GREASE NIPPLE (OLD 300-32250-80)
169 6688643 1.15 1.39
Hex. Hole Bolt 6x18/s
170 6695495 1.15 1.39
Support Plate Since C192401
171 6690764 4.45 5.38
Ring
172 6684822 2.15 2.60
Lock Nut 6 Ups-p
173 6695175 1.15 1.39
Ring
174 6684639 2.15 2.60
Gear Case B
175 6688844 7.50 9.08
Cutter Cover
176 6687301 8.41 10.18
Spring Nut 6
177 6695475 1.15 1.39
Hex. Hole Bolt 4x10s
178 6695484 1.15 1.39
Handle B (old 051-73063-20)
191 6686316 5.11 6.19
Handle A
192 6686280 5.11 6.19
Throttle Trigger
193 6688231 1.15 1.39
Safety Lever Or
194 6688240 1.15 1.39
Throttle Lever Spring
195 6688244 1.15 1.39
Lock Lever
196 6688247 1.15 1.39
Tapping Screw D4.5x16
197 6684636 2.15 2.60
Throttle Wire
198 6693990 5.94 7.18
Button Stop
199 6688366 1.15 1.39
Screw 3x10
200 6684913 2.15 2.60
Protection Tube 130l
201 6687521 1.15 1.39
Stop Button Mark
202 6694588 1.15 1.39
Clip
203 6691123 1.15 1.39
Earth Terminal
204 6689130 2.31 2.80
Metal Plate
205 6688249 2.31 2.80
Tapping Screw D3x8
206 6685158 1.15 1.39
Cord Comp.
207 6687922 13.86 16.77
Cord Clamp
208 6688015 1.15 1.39
Handle
209 6688097 9.90 11.98
Ring
210 6689680 1.15 1.39
Spring Washer 5
211 6684834 2.15 2.60
Hex. Hole Bolt 5x40
212 6695054 1.15 1.39
Combi. Box Spanner 10x19 ,plus
501 6685997 4.45 5.38
No information available, not orderable
502 6684813
