Here you will find all available parts and drawings of the 'Hikoki HTD-2520PFA'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

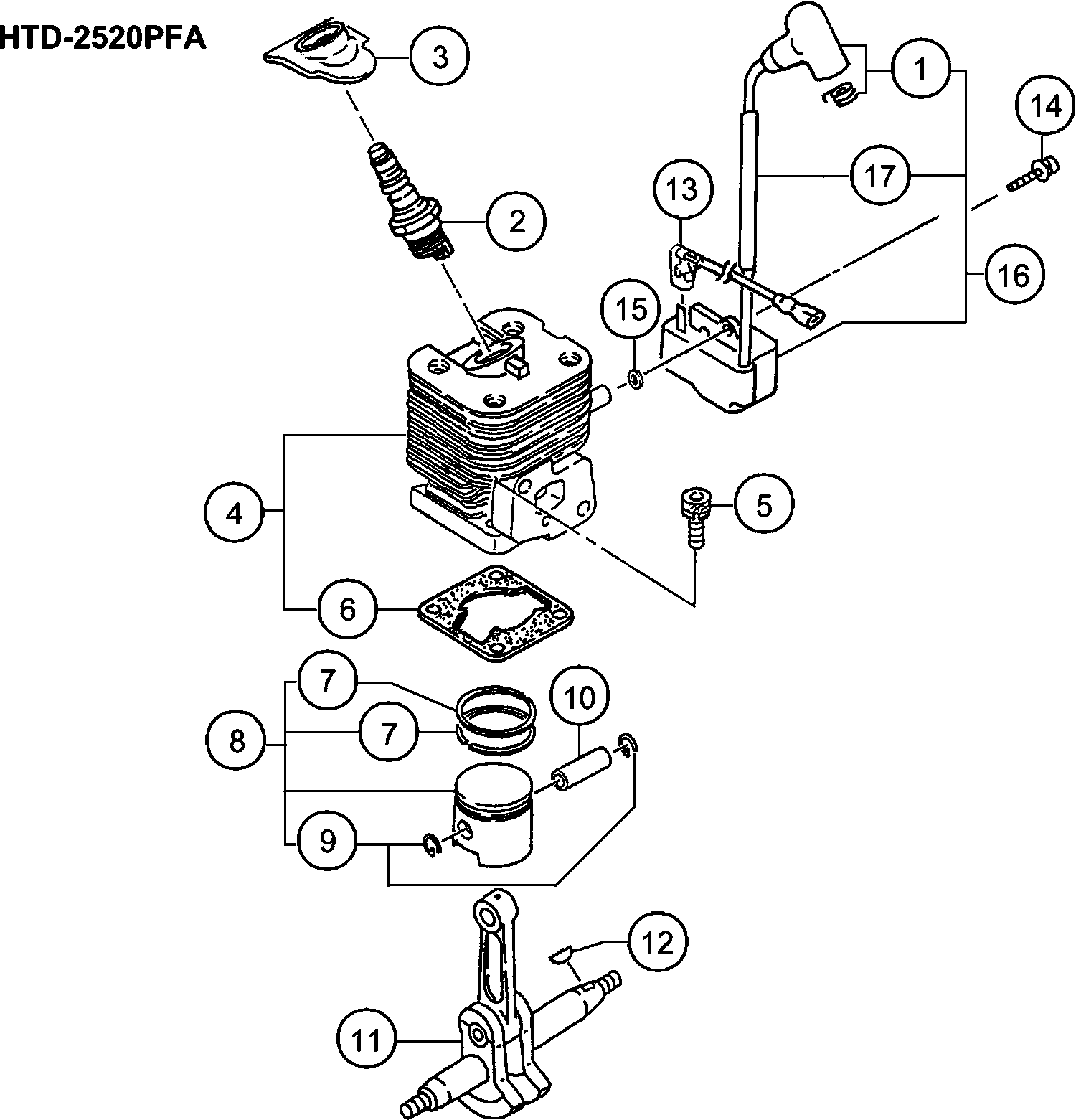

Technical drawing of model Hikoki HTD-2520PFA
Spare parts list of model Hikoki HTD-2520PFA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Plug Cap | ||||
| 1 | 6684894 | 8.58 | 10.38 | |
| Spark Plug Ass'y Bpm6a | ||||
| 2 | 6699317 | 6.76 | 8.18 | |
| No information available, not orderable | ||||
| 3 | 6688334 | |||
| Cylinder Set | ||||
| 4 | 6685462 | 66.40 | 80.34 | |
| Hex.hole Bolt M5x18/s | ||||
| 5 | 6684586 | 2.15 | 2.60 | |
| Cylinder Gasket | ||||
| 6 | 6685728 | 1.15 | 1.39 | |
| Piston Ring | ||||
| 7 | 6684588 | 8.58 | 10.38 | |
| Piston Set (old 030-01680-90) | ||||
| 8 | 6685877 | 28.14 | 34.05 | |
| Circlip | ||||
| 9 | 6685078 | 1.15 | 1.39 | |
| Piston Pin | ||||
| 10 | 6686016 | 2.31 | 2.80 | |
| No longer available, no replacement | ||||
| 11 | 6686176 | |||
| Woodruff Key 3x13x4.5 Till B023800 | ||||
| 12 | 6684899 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 13 | 6687840 | |||
| Hex. Hole Bolt M4x18/ws Till H124040 | ||||
| 14 | 6684599 | 2.15 | 2.60 | |
| Washer T1.6 | ||||
| 15 | 6684600 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 16 | 6687704 | |||
| No information available, not orderable | ||||
| 17 | 6688316 | |||
| Gear Shaft Shim 0.20 | ||||
| 31 | 6684604 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.30 | ||||
| 31 | 6684605 | 2.15 | 2.60 | |
| No longer available, no replacement | ||||
| 32 | 6688047 | |||
| No longer available, no replacement | ||||
| 33 | 6686529 | |||
| Oil Seal | ||||
| 34 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 35 | 6684608 | 3.80 | 4.60 | |
| No longer available, no replacement | ||||
| 36 | 6686705 | |||
| Stud Bolt 6x22 | ||||
| 37 | 6686771 | 1.15 | 1.39 | |
| Hex. Socket Hd. Bolt M5x30 S | ||||
| 38 | 6684786 | 2.15 | 2.60 | |
| Hex. Hole Bolt 5x45 | ||||
| 39 | 6695055 | 1.15 | 1.39 | |
| Spring Washer 5 | ||||
| 40 | 6684834 | 2.15 | 2.60 | |
| Magneto Rotor Comp. | ||||
| 41 | 6687418 | 28.14 | 34.05 | |
| Ring | ||||
| 42 | 6684971 | 1.04 | 1.26 | |
| Bolt Washer M8 | ||||
| 43 | 6684611 | 2.15 | 2.60 | |
| Hex. Nut M8 | ||||
| 44 | 6684612 | 2.15 | 2.60 | |
| Intake Manifold Gasket | ||||
| 51 | 6689874 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 52 | 6689937 | |||
| Hex. Hole Bolt M5x25ws | ||||
| 53 | 6695515 | 1.15 | 1.39 | |
| Carburetor Gasket (old 402-0602K-21/6689836) | ||||
| 54 | 6684615 | 2.15 | 2.60 | |
| O-ring P-15 | ||||
| 55 | 6698966 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 56 | 6690122 | |||
| Collar 7.5 | ||||
| 57 | 6690804 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 58 | 6691261 | |||
| No information available, not orderable | ||||
| 59 | 6684658 | |||
| Blow Over Check Board | ||||
| 60 | 6690843 | 1.15 | 1.39 | |
| S.washer 5 | ||||
| 61 | 6684662 | 2.15 | 2.60 | |
| Screw M5x60 | ||||
| 62 | 6684660 | 2.15 | 2.60 | |
| Cleaner Sponge | ||||
| 63 | 6690364 | 1.15 | 1.39 | |
| Cleaner Cover | ||||
| 64 | 6690415 | 5.28 | 6.38 | |
| Special Screw | ||||
| 65 | 6689737 | 1.15 | 1.39 | |
| Carburetor Set Wyl139a | ||||
| 66 | 6690463 | 65.73 | 79.53 | |
| No longer available, no replacement | ||||
| 67 | 6688174 | |||
| Clip,6.3 Dia. | ||||
| 68 | 6684619 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 69 | 6684620 | |||
| Tank F T | ||||
| 70 | 6699335 | 15.28 | 18.48 | |
| Tank Cap D Ass'y Since K032881 | ||||
| 71 | 6691748 | 7.59 | 9.18 | |
| Collar 5.8 Till G103930 | ||||
| 73 | 6692244 | 1.15 | 1.39 | |
| Hex. Hole Bolt 5x18ps | ||||
| 75 | 6695505 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 76 | 6691337 | |||
| Priming Pump Comp. | ||||
| 77 | 6685139 | 5.94 | 7.18 | |
| Fuel Pipe 2.5x4x80 | ||||
| 78 | 6692347 | 1.15 | 1.39 | |
| Fuel Pipe 2.5x4x70 | ||||
| 79 | 6692346 | 1.15 | 1.39 | |
| Return Grommet Till 7.2014 | ||||
| 80 | 6697846 | 1.04 | 1.26 | |
| Throttle Wire Fixing Plate | ||||
| 81 | 6684629 | 4.29 | 5.19 | |
| Carburetor Gasket | ||||
| 82 | 6689828 | 3.30 | 3.99 | |
| Muffler Protector | ||||
| 91 | 6692772 | 9.90 | 11.98 | |
| Muffler Ass'y | ||||
| 92A | 6601160 | 72.45 | 87.66 | |
| Washer (b) | ||||
| 94A | 6696547 | 1.05 | 1.27 | |
| Hex. Hole Screw 6x55 | ||||
| 95 | 6695086 | 1.15 | 1.39 | |
| Fan Housing | ||||
| 97 | 6686957 | 16.79 | 20.31 | |
| Recoil Spring Till 7.2014 | ||||
| 98 | 6684675 | 11.55 | 13.98 | |
| Starter Rope Reel | ||||
| 99 | 6693066 | 3.30 | 3.99 | |
| Set Screw Till 7.2014 | ||||
| 100 | 6693633 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 101 | 6693405 | |||
| Primary Cord Grommet | ||||
| 102 | 6688049 | 1.15 | 1.39 | |
| Rope Till 7.2014 | ||||
| 103 | 6693168 | 2.31 | 2.80 | |
| Starter Handle | ||||
| 104 | 6693237 | 1.15 | 1.39 | |
| Hex. Hole Bolt 4x15/ps | ||||
| 105 | 6684682 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 106 | 6692718 | |||
| Ring | ||||
| 108 | 6684661 | 2.15 | 2.60 | |
| Screw 5x8/s (old 994-14050-081) | ||||
| 110 | 6695332 | 1.05 | 1.27 | |
| Clutch | ||||
| 111 | 6688494 | 9.74 | 11.78 | |
| Tapping Screw 4.5x10 (old 990-73045-104) | ||||
| 112 | 6695104 | 1.15 | 1.39 | |
| Bolt 4x12ps | ||||
| 113 | 6695441 | 1.15 | 1.39 | |
| Starter Pawl Spring | ||||
| 114 | 6684684 | 4.29 | 5.19 | |
| Starter Pawl (old 788-06500-20) | ||||
| 115 | 6693319 | 2.31 | 2.80 | |
| Throttle Set Screw | ||||
| 121 | 6684698 | 4.29 | 5.19 | |
| Swivel | ||||
| 122 | 6684697 | 6.44 | 7.79 | |
| Stop Ring | ||||
| 123 | 6684696 | 2.15 | 2.60 | |
| O-RING (old 550-25100-20) | ||||
| 124 | 6684695 | 4.29 | 5.19 | |
| Main Jet #35 | ||||
| 125 | 6691873 | 6.28 | 7.59 | |
| Pump Gasket (old 577-25100-20) | ||||
| 126 | 6691457 | 7.10 | 8.59 | |
| Pump Diaphragm | ||||
| 127 | 6684693 | 8.58 | 10.38 | |
| Inlet Screen | ||||
| 128 | 6684700 | 4.29 | 5.19 | |
| Pump Body Comp. | ||||
| 129 | 6691435 | 15.26 | 18.47 | |
| No longer available, no replacement | ||||
| 130 | 6685220 | |||
| Metering Diaphragm Comp. | ||||
| 131 | 6690830 | 11.88 | 14.37 | |
| Diaphragm Cover-metering | ||||
| 132 | 6685222 | 4.45 | 5.38 | |
| Set Screw | ||||
| 133 | 6691312 | 1.15 | 1.39 | |
| Gear Case Comp | ||||
| 151 | 6688826 | 22.24 | 26.91 | |
| Stop Ring C-15, Outer | ||||
| 152 | 6695285 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 153 | 6697745 | |||
| No longer available, no replacement | ||||
| 154 | 6688570 | |||
| Gear Shaft | ||||
| 155 | 6688960 | 2.31 | 2.80 | |
| Guide Plate | ||||
| 156 | 6686614 | 4.45 | 5.38 | |
| Gear 2 | ||||
| 157 | 6688979 | 26.16 | 31.66 | |
| Gear Case Gasket (old 303-33160-20) | ||||
| 158 | 6688909 | 1.15 | 1.39 | |
| Gear Case Cover | ||||
| 159 | 6692102 | 5.78 | 6.99 | |
| Cutter Guide 590 | ||||
| 160 | 6697700 | 11.23 | 13.58 | |
| Ring | ||||
| 161 | 6684639 | 2.15 | 2.60 | |
| Lock Nut 6 Ups-p | ||||
| 162 | 6695175 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 163 | 6697674 | |||
| Grease Stop | ||||
| 164 | 6686658 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 165 | 6687187 | |||
| Bolt | ||||
| 166 | 6687158 | 1.15 | 1.39 | |
| Flange nut | ||||
| 167 | 6695170 | 1.15 | 1.39 | |
| Hex. Hole Bolt 4x10s | ||||
| 168 | 6695484 | 1.15 | 1.39 | |
| COMPLETE GREASE NIPPLE (OLD 300-32250-80) | ||||
| 169 | 6688643 | 1.15 | 1.39 | |
| Hex. Hole Bolt 6x18/s | ||||
| 170 | 6695495 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 171 | 6687162 | |||
| Cutter A | ||||
| 172 | 6697675 | 33.58 | 40.63 | |
| Support Plate | ||||
| 173 | 6690761 | 3.30 | 3.99 | |
| Small Washer 5 | ||||
| 174 | 6684864 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 175 | 6696987 | |||
| Cutter Cover Till D106450 | ||||
| 176 | 6687311 | 7.59 | 9.18 | |
| Spring Nut 6 | ||||
| 177 | 6695475 | 1.15 | 1.39 | |
| Holding Plate | ||||
| 178 | 6686468 | 1.15 | 1.39 | |
| Handle B (old 051-73063-20) | ||||
| 191 | 6686316 | 5.11 | 6.19 | |
| Handle A | ||||
| 192 | 6686280 | 5.11 | 6.19 | |
| Throttle Trigger | ||||
| 193 | 6688231 | 1.15 | 1.39 | |
| Safety Lever Or | ||||
| 194 | 6688240 | 1.15 | 1.39 | |
| Throttle Lever Spring | ||||
| 195 | 6688244 | 1.15 | 1.39 | |
| Lock Lever | ||||
| 196 | 6688247 | 1.15 | 1.39 | |
| Tapping Screw D4.5x16 | ||||
| 197 | 6684636 | 2.15 | 2.60 | |
| Throttle Wire | ||||
| 198 | 6693990 | 5.94 | 7.18 | |
| Button Stop | ||||
| 199 | 6688366 | 1.15 | 1.39 | |
| Screw 3x10 | ||||
| 200 | 6684913 | 2.15 | 2.60 | |
| Protection Tube 130l | ||||
| 201 | 6687521 | 1.15 | 1.39 | |
| Stop Button Mark | ||||
| 202 | 6694588 | 1.15 | 1.39 | |
| Clip | ||||
| 203 | 6691123 | 1.15 | 1.39 | |
| Earth Terminal | ||||
| 204 | 6689130 | 2.31 | 2.80 | |
| Metal Plate | ||||
| 205 | 6688249 | 2.31 | 2.80 | |
| Tapping Screw D3x8 | ||||
| 206 | 6685158 | 1.15 | 1.39 | |
| Cord Comp. | ||||
| 207 | 6687922 | 13.86 | 16.77 | |
| Cord Clamp | ||||
| 208 | 6688015 | 1.15 | 1.39 | |
| Handle | ||||
| 209 | 6688097 | 9.90 | 11.98 | |
| Ring | ||||
| 210 | 6689680 | 1.15 | 1.39 | |
| Spring Washer 5 | ||||
| 211 | 6684834 | 2.15 | 2.60 | |
| Hex. Hole Bolt 5x40 | ||||
| 212 | 6695054 | 1.15 | 1.39 | |
| Combi. Box Spanner 10x19 ,plus | ||||
| 501 | 6685997 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 502 | 6684813 | |||
