Here you will find all available parts and drawings of the 'Hikoki H90SB'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

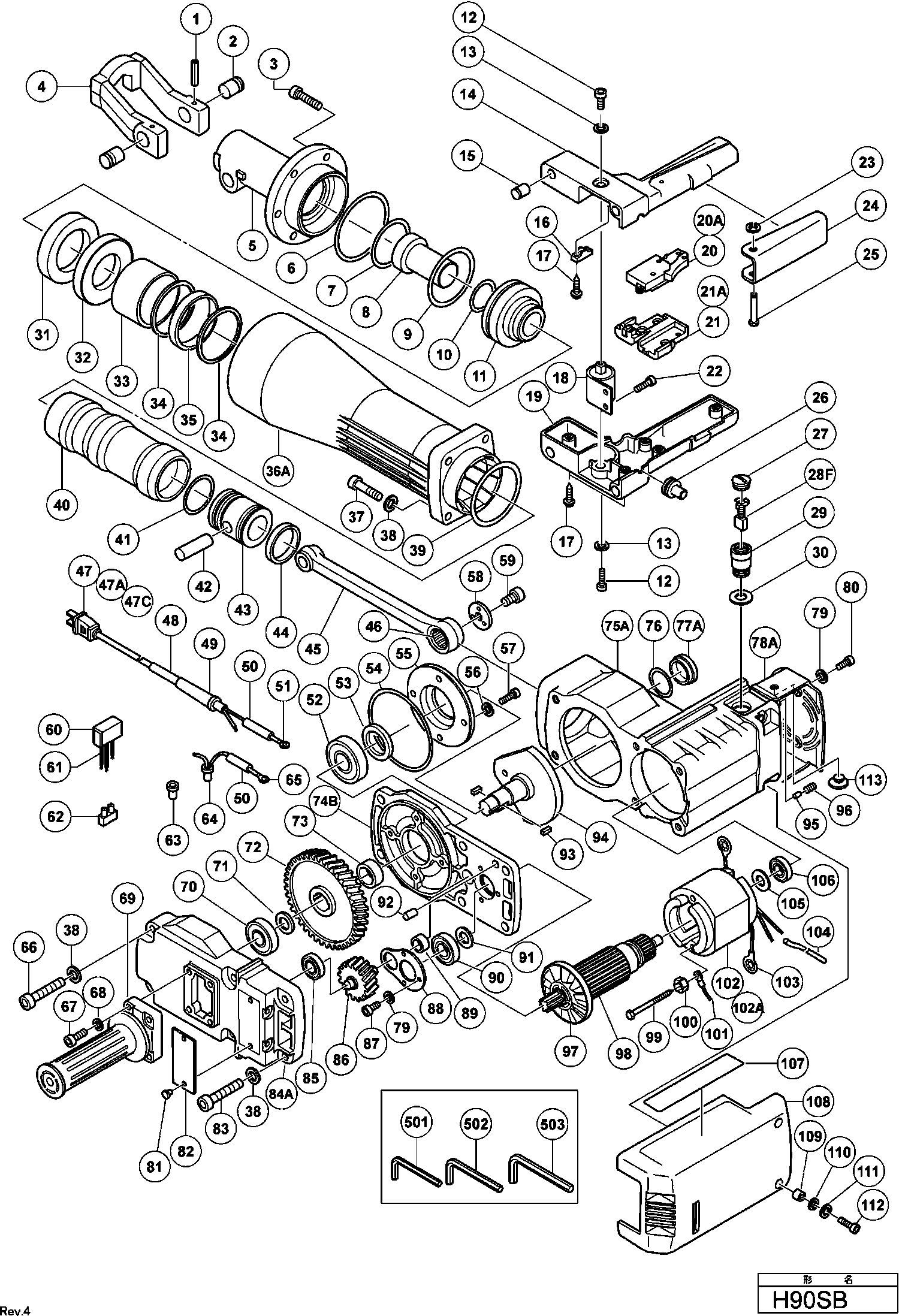

Technical drawing of model Hikoki H90SB
Spare parts list of model Hikoki H90SB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Roll Pin D6x36 (10 Pcs.) | ||||
| 1 | 949874 | 5.85 | 7.08 | |
| Pin | ||||
| 2 | 985224 | 14.70 | 17.79 | |
| No information available, not orderable | ||||
| 3 | 992889 | |||
| Retainer (1) | ||||
| 4 | 985225 | 166.24 | 201.15 | |
| Front Cover | ||||
| 5 | 996434 | 379.09 | 458.70 | |
| O-ring (s-90) | ||||
| 6 | 877316 | 2.55 | 3.09 | |
| O-ring | ||||
| 7 | 993188 | 14.71 | 17.80 | |
| Second Hammer | ||||
| 8 | 992878 | 55.41 | 67.05 | |
| O-ring (d) | ||||
| 9 | 992865 | 8.70 | 10.53 | |
| O-ring (a) | ||||
| 10 | 956503 | 5.85 | 7.08 | |
| SLAGSTUKHOUDER | ||||
| 11 | 992860 | 76.72 | 92.83 | |
| Seal Lock Hex Socket Bolt M6x16 | ||||
| 12 | 990935 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 13 | 982001Z | |||
| Handle | ||||
| 14 | 993190 | 28.60 | 34.61 | |
| Rubber Leg | ||||
| 15 | 993191 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 16 | 960266 | 1.04 | 1.26 | |
| Tapping Screw (w/washer) D4x20 | ||||
| 17 | 982095 | 1.04 | 1.26 | |
| HANDLE RUBBER | ||||
| 18 | 993192 | 26.46 | 32.02 | |
| Handle | ||||
| 19 | 993194 | 28.05 | 33.94 | |
| No information available, not orderable | ||||
| 20 | 981533Z | |||
| Switch (a) (1p Screw Type) W/o Lock | ||||
| 20A | 992891 | 22.83 | 27.62 | |
| Support Till 7.1988 | ||||
| 21 | 981869 | 6.30 | 7.62 | |
| No information available, not orderable | ||||
| 21A | 990082 | |||
| SEAL LOCK HD. INBUSBOUT M6X16 | ||||
| 22 | 993199 | 1.74 | 2.11 | |
| Retaining Ring (e-type) For D4 Shaft | ||||
| 23 | 968643 | 1.95 | 2.36 | |
| Switch Lever | ||||
| 24 | 992869 | 8.70 | 10.53 | |
| Pin | ||||
| 25 | 992870 | 5.25 | 6.35 | |
| Internal Wire Holder | ||||
| 26 | 993193 | 1.04 | 1.26 | |
| Brush Cap | ||||
| 27 | 937949 | 1.35 | 1.63 | |
| Auto-stop Carbon Brushes (2 Pieces) | ||||
| 28F | 999086 | 15.26 | 18.47 | |
| KOOLBORSTELHOUDER | ||||
| 29 | 993742 | 7.92 | 9.58 | |
| Stop Plate | ||||
| 30 | 956683 | 1.05 | 1.27 | |
| Damper | ||||
| 31 | 992859 | 25.99 | 31.44 | |
| Damper Plate | ||||
| 32 | 992858 | 35.06 | 42.43 | |
| MOND | ||||
| 33 | 992857 | 44.99 | 54.44 | |
| Mouth Washer | ||||
| 34 | 992855 | 2.40 | 2.90 | |
| Urethane Ring | ||||
| 35 | 992856 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 36A | 336333 | |||
| No information available, not orderable | ||||
| 37 | 993198 | |||
| Washer M10 (10 Pcs.) | ||||
| 38 | 949445 | 1.35 | 1.63 | |
| O-ring | ||||
| 39 | 993195 | 2.40 | 2.90 | |
| SLAGSTUK | ||||
| 40 | 993187 | 220.50 | 266.80 | |
| O-ring (b) | ||||
| 41 | 992853 | 9.60 | 11.62 | |
| PIN | ||||
| 42 | 956491 | 9.36 | 11.33 | |
| Piston | ||||
| 43 | 992852 | 38.36 | 46.42 | |
| Oil Seal | ||||
| 44 | 992877 | 9.60 | 11.62 | |
| DRIJFSTANG | ||||
| 45 | 956484 | 86.35 | 104.48 | |
| Bearing | ||||
| 46 | 956485 | 16.36 | 19.80 | |
| Cord (cord Armor D8.8) For Saf | ||||
| 47 | 500237Z | 11.40 | 13.79 | |
| No longer available, no replacement | ||||
| 47A | 500423Z | |||
| No information available, not orderable | ||||
| 48 | 992866 | |||
| Cord Armor D12.3 | ||||
| 49 | 930217 | 3.00 | 3.63 | |
| Vinyl Tube (a) (i.d.7xt0.5x50) | ||||
| 50 | 996438 | 1.05 | 1.27 | |
| Terminal M4.0 (10 Pcs.) | ||||
| 51 | 930804 | 3.00 | 3.63 | |
| Ball Bearing 6305vvcmps2s | ||||
| 52 | 6305VV | 13.89 | 16.80 | |
| Oil Seal | ||||
| 53 | 992846 | 2.40 | 2.90 | |
| O-ring (a) | ||||
| 54 | 992847 | 3.60 | 4.36 | |
| LAGERBUS | ||||
| 55 | 992845 | 25.63 | 31.01 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 56 | 949455 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M6x20 | ||||
| 57 | 992803 | 1.05 | 1.27 | |
| AFSLUITRING | ||||
| 58 | 956486 | 2.94 | 3.56 | |
| SEAL LOCK HD. INBUSBOUT M10X16 | ||||
| 59 | 992850 | 1.00 | 1.21 | |
| Rubber | ||||
| 60 | 930153 | 1.04 | 1.26 | |
| Noise Suppressor | ||||
| 61 | 994273 | 4.29 | 5.19 | |
| Connector 50091 (10 Pcs.) | ||||
| 63 | 959140 | 3.30 | 3.99 | |
| Connector 50092 (10 Pcs.) | ||||
| 64 | 959141 | 3.75 | 4.54 | |
| Internal wire | ||||
| 65 | 981974 | 1.65 | 2.00 | |
| Seal Lock Hex. Socket Hd. Bolt M10x60 | ||||
| 66 | 992851 | 2.40 | 2.90 | |
| Seal Lock Hex. Socket Hd. Bolt M8x30 | ||||
| 67 | 986894 | 1.05 | 1.27 | |
| Spring Washer M8 (10 Pcs.) | ||||
| 68 | 949457 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 69 | 956527 | |||
| Ball Bearing 6204vvcmps2l | ||||
| 70 | 6204VV | 9.15 | 11.07 | |
| VERLOOPRING | ||||
| 71 | 956482 | 1.00 | 1.21 | |
| LAATSTE TANDWIEL | ||||
| 72 | 992848 | 58.52 | 70.81 | |
| RING | ||||
| 73 | 956480 | 2.46 | 2.98 | |
| Inner Cover (metallic Silver Green) | ||||
| 74B | 336331 | 116.05 | 140.42 | |
| No information available, not orderable | ||||
| 75A | 336336 | |||
| O-ring (s-38) | ||||
| 76 | 980717 | 1.35 | 1.63 | |
| Oil Cap Ass'y Includ.13 | ||||
| 77A | 990945 | 3.90 | 4.72 | |
| Tail Cover Ass'y Includ.113 | ||||
| 78A | 992893 | 18.98 | 22.96 | |
| Spring Washer M5 (10 pieces) | ||||
| 79 | 949454 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Hd. Bolt M5x10 | ||||
| 80 | 877839 | 1.05 | 1.27 | |
| Rivet D2.5x4.8 (10 Pcs.) Three-phase | ||||
| 81 | 949510 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Hd. Bolt M10x55 | ||||
| 83 | 996433 | 2.10 | 2.54 | |
| Gear Cover (metallic Silver Green) | ||||
| 84A | 336335 | 139.15 | 168.37 | |
| Ball Bearing 6201vv | ||||
| 85 | 6201VV | 6.45 | 7.80 | |
| No longer available, no replacement | ||||
| 86 | 992843 | |||
| Seal Lock Hex. Socket Hd. Bolt M5x14 | ||||
| 87 | 984509 | 1.05 | 1.27 | |
| LAGERPLAAT | ||||
| 88 | 992842 | 2.58 | 3.12 | |
| NAALDLAGER BK1312V1 | ||||
| 89 | 992844 | 6.78 | 8.20 | |
| Ball Bearing 6203vvcmps2l | ||||
| 90 | 6203VV | 7.80 | 9.44 | |
| Bearing Washer | ||||
| 91 | 992841 | 1.05 | 1.27 | |
| Pin D8x14 (10 Pcs.) | ||||
| 92 | 949480 | 3.30 | 3.99 | |
| Feather Key 4x4x15 Till 9.1981 | ||||
| 93 | 948919 | 1.05 | 1.27 | |
| KRUKAS | ||||
| 94 | 992849 | 48.12 | 58.23 | |
| FRICTION PIECE | ||||
| 95 | 931857 | 1.00 | 1.21 | |
| Hex Adjustment Screw M5x8 | ||||
| 96 | 938477 | 1.05 | 1.27 | |
| Fan | ||||
| 97 | 996370 | 14.03 | 16.97 | |
| ARMATURE 115 VOLT | ||||
| 98 | 360073U | 213.13 | 257.88 | |
| No information available, not orderable | ||||
| 99 | 993185 | |||
| Washer | ||||
| 100 | 956764 | 1.04 | 1.26 | |
| Internal wire | ||||
| 101 | 990861 | 1.05 | 1.27 | |
| Stator Assembly 115v Including.103 | ||||
| 102 | 340110C | 89.51 | 108.31 | |
| Stator 220v-230v | ||||
| 102 | 340014E | 87.59 | 105.98 | |
| No information available, not orderable | ||||
| 102A | 340014F | |||
| Brush Terminal | ||||
| 103 | 945932 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 104 | 996439 | |||
| Bearing Washer | ||||
| 105 | 944954 | 1.05 | 1.27 | |
| Ball Bearing 6201vv | ||||
| 106 | 6201VV | 6.45 | 7.80 | |
| No information available, not orderable | ||||
| 107 | 996435 | |||
| No information available, not orderable | ||||
| 108 | 996436 | |||
| Collar | ||||
| 109 | 996437 | 1.05 | 1.27 | |
| Bolt Washer M6 (10 Pcs.) | ||||
| 110 | 949432 | 1.05 | 1.27 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 111 | 949455 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M6x20 | ||||
| 112 | 992803 | 1.05 | 1.27 | |
| Cap Rubber | ||||
| 113 | 992894 | 4.20 | 5.08 | |
| No information available, not orderable | ||||
| 501 | 944458 | |||
| No information available, not orderable | ||||
| 502 | 872422 | |||
| No information available, not orderable | ||||
| 503 | 993740 | |||
| No information available, not orderable | ||||
| 601 | 985230 | |||
| No information available, not orderable | ||||
| 602 | 985231 | |||
| No information available, not orderable | ||||
| 603 | 985232 | |||
| No information available, not orderable | ||||
| 604 | 985233 | |||
| No information available, not orderable | ||||
| 605 | 936728 | |||
| Grease For Hammer.hammer Drill (500g) | ||||
| 606 | 980927 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 608 | 996440 | |||
| No information available, not orderable | ||||
| 609 | 305880 | |||
| No information available, not orderable | ||||
| 610 | 308092 | |||
