Here you will find all available parts and drawings of the 'Hikoki H65SD3'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

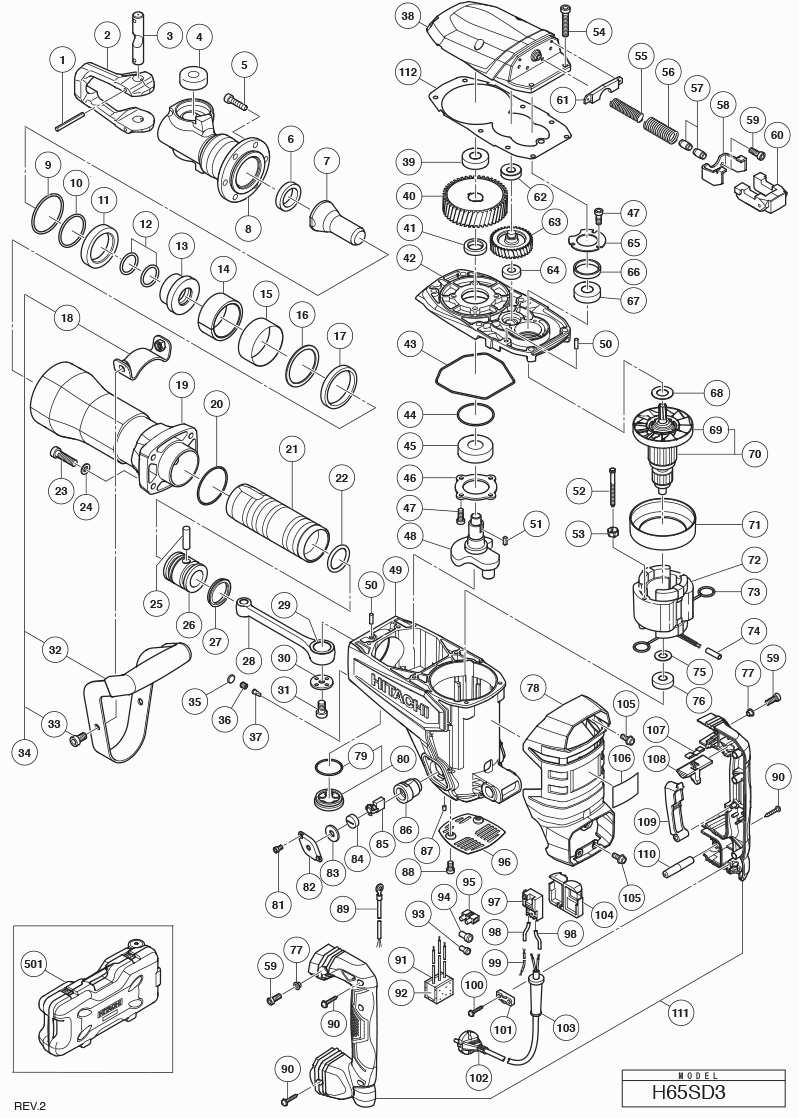

Technical drawing of model Hikoki H65SD3
Spare parts list of model Hikoki H65SD3
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *102 | 500487Z | |||
| Cord Armor D10.7 | ||||
| *103 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| *103 | 958049 | 1.04 | 1.26 | |
| ARMATURE ASS'Y 110 VOLT | ||||
| *70 | 361024C | 121.82 | 147.40 | |
| Stator 220v-230v | ||||
| *72 | 340928E | 71.50 | 86.52 | |
| VELD 110 VOLT | ||||
| *72 | 340928C | 66.82 | 80.85 | |
| Roll Pin D6x55 | ||||
| 1 | 994416 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 2 | 337040 | |||
| Retainer for H65SD3 (Old 337040) | ||||
| 2A | 375988 | 93.50 | 113.14 | |
| Lever Pin | ||||
| 3 | 337041 | 23.79 | 28.78 | |
| Retainer Damper (a) | ||||
| 4 | 337039 | 2.25 | 2.72 | |
| Nylock Hex Socket Head Bolt M8x30 since 6.1981 | ||||
| 5 | 306437 | 1.35 | 1.63 | |
| Damper (b) | ||||
| 6 | 996369 | 14.70 | 17.79 | |
| Second Hammer | ||||
| 7 | 339702 | 53.90 | 65.22 | |
| Front Cover | ||||
| 8 | 339701 | 178.48 | 215.95 | |
| O-ring (c) | ||||
| 9 | 998428 | 2.40 | 2.90 | |
| O-ring (b) | ||||
| 10 | 339684 | 1.04 | 1.26 | |
| Damper (a) | ||||
| 11 | 998433 | 14.70 | 17.79 | |
| O-ring | ||||
| 12 | 339681 | 1.04 | 1.26 | |
| Shank Sleeve | ||||
| 13 | 339680 | 13.50 | 16.34 | |
| Mouth | ||||
| 14 | 339679 | 8.25 | 9.98 | |
| Mouth cover | ||||
| 15 | 956962 | 2.40 | 2.90 | |
| Mouth Washer (a) | ||||
| 16 | 370894 | 9.00 | 10.89 | |
| Urethane Ring (a) | ||||
| 17 | 370893 | 8.55 | 10.35 | |
| Handle Stay (w/nut) | ||||
| 18 | 320374 | 5.85 | 7.08 | |
| No information available, not orderable | ||||
| 19 | 339678 | |||
| CYLINDER CASE (OLD 339678) | ||||
| 19A | 376179 | 105.88 | 128.11 | |
| O-ring (1as-60) Since 9.1979 | ||||
| 20 | 956996 | 3.00 | 3.63 | |
| Striker | ||||
| 21 | 339677 | 97.63 | 118.13 | |
| O-ring (a) | ||||
| 22 | 998414 | 11.85 | 14.34 | |
| Nylock Hex. Socket Hd. Bolt M8x40 Since 7.2005 | ||||
| 23 | 323734 | 1.65 | 2.00 | |
| Bolt Washer M8 (black) | ||||
| 24 | 323212 | 1.05 | 1.27 | |
| Pin | ||||
| 25 | 944928 | 13.80 | 16.70 | |
| Piston | ||||
| 26 | 339676 | 15.68 | 18.97 | |
| Oil Seal | ||||
| 27 | 998415 | 7.35 | 8.89 | |
| Connecting Rod | ||||
| 28 | 998434 | 46.75 | 56.57 | |
| Needle Roller | ||||
| 29 | 944921 | 19.39 | 23.46 | |
| Connecting rod washer | ||||
| 30 | 956955 | 3.30 | 3.99 | |
| Seal Lock Hex. Socket Hd. Bolt M8x16 | ||||
| 31 | 996364 | 1.05 | 1.27 | |
| Handle | ||||
| 32 | 306166 | 75.90 | 91.84 | |
| Nylock Hex. Socket Hd. Bolt M8x16 | ||||
| 33 | 320375 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 34 | 306165 | |||
| Felt Packing | ||||
| 35 | 324544 | 1.65 | 2.00 | |
| Cap Screw | ||||
| 36 | 338313 | 4.50 | 5.44 | |
| Valve | ||||
| 37 | 995396 | 1.80 | 2.18 | |
| Gear Cover | ||||
| 38 | 339674 | 25.99 | 31.44 | |
| Ball Bearing 6302vvcmps2l | ||||
| 39 | 6302VV | 9.30 | 11.25 | |
| Final Gear | ||||
| 40 | 339672 | 17.88 | 21.63 | |
| Distance Ring (b) | ||||
| 41 | 944915 | 3.60 | 4.36 | |
| Inner Cover | ||||
| 42 | 339669 | 29.70 | 35.94 | |
| Seal Ring | ||||
| 43 | 323725 | 4.80 | 5.81 | |
| O-ring | ||||
| 44 | 331244 | 1.05 | 1.27 | |
| Ball Bearing 6205ddcmps2l | ||||
| 45 | 6205DD | 10.35 | 12.52 | |
| Bearing Holder | ||||
| 46 | 956949 | 1.65 | 2.00 | |
| Seal Lock Hex. Socket Hd. Bolt M5x16 | ||||
| 47 | 990079 | 1.05 | 1.27 | |
| Crank Shaft | ||||
| 48 | 339671 | 34.38 | 41.59 | |
| Crank Shaft | ||||
| 48A | 339671 | 34.38 | 41.59 | |
| Housing Ass'y Includ.86,87 | ||||
| 49 | 339665 | 140.25 | 169.70 | |
| Housing Ass'y Includ.86,87 | ||||
| 49A | 339665 | 140.25 | 169.70 | |
| Pin D5x15.8 | ||||
| 50 | 944918 | 1.05 | 1.27 | |
| Feather Key 4x4x12 | ||||
| 51 | 931008 | 1.05 | 1.27 | |
| Hex. Hd. Tapping Screw D5x65 | ||||
| 52 | 960251 | 1.05 | 1.27 | |
| Washer | ||||
| 53 | 956764 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Hd. Bolt M6x40 | ||||
| 54 | 322494 | 1.80 | 2.18 | |
| Handle Spring (b) | ||||
| 55 | 339697 | 1.80 | 2.18 | |
| Handle Spring (a) | ||||
| 56 | 339696 | 1.80 | 2.18 | |
| Handle Damper | ||||
| 57 | 310124 | 4.20 | 5.08 | |
| Handle Guide | ||||
| 58 | 339695 | 4.50 | 5.44 | |
| Seal Lock Hex. Socket Hd. Bolt M5x16 | ||||
| 59 | 990079 | 1.05 | 1.27 | |
| Handle Weight | ||||
| 60 | 339698 | 51.43 | 62.22 | |
| Handle Stopper | ||||
| 61 | 339694 | 1.04 | 1.26 | |
| Ball Bearing 6201vv | ||||
| 62 | 6201VV | 6.45 | 7.80 | |
| Counter Gear | ||||
| 63 | 339673 | 42.35 | 51.24 | |
| Ball Bearing 6001vv | ||||
| 64 | 6001VV | 6.60 | 7.99 | |
| Bearing Cap | ||||
| 65 | 944911 | 1.05 | 1.27 | |
| Distance Ring (a) | ||||
| 66 | 339670 | 2.55 | 3.09 | |
| Ball Bearing 6203ddcmps2l | ||||
| 67 | 6203DD | 7.65 | 9.26 | |
| Bearing Ring | ||||
| 68 | 333222 | 1.05 | 1.27 | |
| Fan | ||||
| 69 | 333196 | 6.75 | 8.17 | |
| ARMATURE ASS'Y 110 VOLT | ||||
| 70 | 361024C | 121.82 | 147.40 | |
| Fan Guide | ||||
| 71 | 339668 | 1.95 | 2.36 | |
| Stator 220v-230v | ||||
| 72 | 340928E | 71.50 | 86.52 | |
| VELD 110 VOLT | ||||
| 72 | 340928C | 66.82 | 80.85 | |
| Brush Terminal | ||||
| 73 | 945932 | 1.05 | 1.27 | |
| Vinyl Tube L55 | ||||
| 74 | 322530 | 1.65 | 2.00 | |
| Bearing Washer | ||||
| 75 | 944954 | 1.05 | 1.27 | |
| Ball Bearing 6201ddcmps2l | ||||
| 76 | 6201DD | 6.30 | 7.62 | |
| Spacer bushing | ||||
| 77 | 991711 | 1.05 | 1.27 | |
| Back Cover | ||||
| 78 | 339692 | 6.75 | 8.17 | |
| O-ring (s-38) | ||||
| 79 | 980717 | 1.35 | 1.63 | |
| Oil Cap Ass'y Includ.13 | ||||
| 80 | 990945 | 3.90 | 4.72 | |
| Seal Lock Hex. Socket Hd. Bolt M4x8 | ||||
| 81 | 877838 | 1.05 | 1.27 | |
| Cap Cover | ||||
| 82 | 323727 | 1.65 | 2.00 | |
| Cap Rubber | ||||
| 83 | 944960 | 1.05 | 1.27 | |
| Brush Cap | ||||
| 84 | 940540 | 1.04 | 1.26 | |
| Auto-stop Carbon Brushes (2 Pieces) | ||||
| 85 | 999086 | 15.26 | 18.47 | |
| Brush Holder | ||||
| 86 | 956984 | 9.60 | 11.62 | |
| Hex Adjustment Screw M5x8 | ||||
| 87 | 938477 | 1.05 | 1.27 | |
| Seal Lock Hd. Allen bolt M5x12 | ||||
| 88 | 991690 | 1.05 | 1.27 | |
| Internal wire | ||||
| 89 | 994190 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 90 | 307028 | 1.05 | 1.27 | |
| Rubber | ||||
| 91 | 930153 | 1.04 | 1.26 | |
| Noise Suppressor W/noise Suppressor Band | ||||
| 92 | 370895 | 2.10 | 2.54 | |
| Connector 50091 (10 Pcs.) | ||||
| 93 | 959140 | 3.30 | 3.99 | |
| Connector 50092 (10 Pcs.) | ||||
| 94 | 959141 | 3.75 | 4.54 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 95 | 938307 | 2.13 | 2.57 | |
| Tail Cover | ||||
| 96 | 339675 | 2.70 | 3.27 | |
| Switch | ||||
| 97 | 337051 | 14.40 | 17.42 | |
| Vinyl Tube (a) (i.d.7xt0.5x50) | ||||
| 98 | 996438 | 1.05 | 1.27 | |
| White Wiring | ||||
| 99 | 337054 | 1.04 | 1.26 | |
| Internal Wire (black) | ||||
| 99 | 337055 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 100 | 984750 | |||
| Cord Clip | ||||
| 101 | 960266 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 102 | 500446Z | |||
| Cord Armor D10.7 | ||||
| 103 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| 103 | 958049 | 1.04 | 1.26 | |
| Support | ||||
| 104 | 337052 | 3.45 | 4.17 | |
| Nylock Bolt (w/flange) M5 | ||||
| 105 | 339693 | 1.04 | 1.26 | |
| Leaf Spring | ||||
| 107 | 339691 | 1.04 | 1.26 | |
| Pushing Button | ||||
| 108 | 339690 | 1.04 | 1.26 | |
| Switch Lever (1) | ||||
| 109 | 337058 | 1.35 | 1.63 | |
| Handle Shaft | ||||
| 110 | 338175 | 1.04 | 1.26 | |
| Handle (a).(b) Set | ||||
| 111 | 339699 | 11.85 | 14.34 | |
| Seal Packing | ||||
| 112 | 370913 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 501 | 339664 | |||
| No information available, not orderable | ||||
| 601 | 985231 | |||
| No information available, not orderable | ||||
| 602 | 985232 | |||
| No information available, not orderable | ||||
| 603 | 985233 | |||
| No information available, not orderable | ||||
| 604 | 996372 | |||
| No information available, not orderable | ||||
| 605 | 996373 | |||
| No information available, not orderable | ||||
| 606 | 996374 | |||
| No information available, not orderable | ||||
| 607 | 336375 | |||
| Wheel Shaft Set | ||||
| 608 | 337337 | 14.70 | 17.79 | |
| Latch Set (2 Pcs.) | ||||
| 609 | 337338 | 3.45 | 4.17 | |
| No information available, not orderable | ||||
| 610 | 402616 | |||
| Grease For Hammer.hammer Drill (500g) | ||||
| 611 | 980927 | 73.01 | 88.35 | |
| Grease (a) For Hammer.hammer Drill (30g) | ||||
| 612 | 981840 | 8.40 | 10.16 | |
| Grease For Hammer.hammer Drill (70g) | ||||
| 613 | 308471 | 12.75 | 15.43 | |
