Here you will find all available parts and drawings of the 'Hikoki H65SC'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

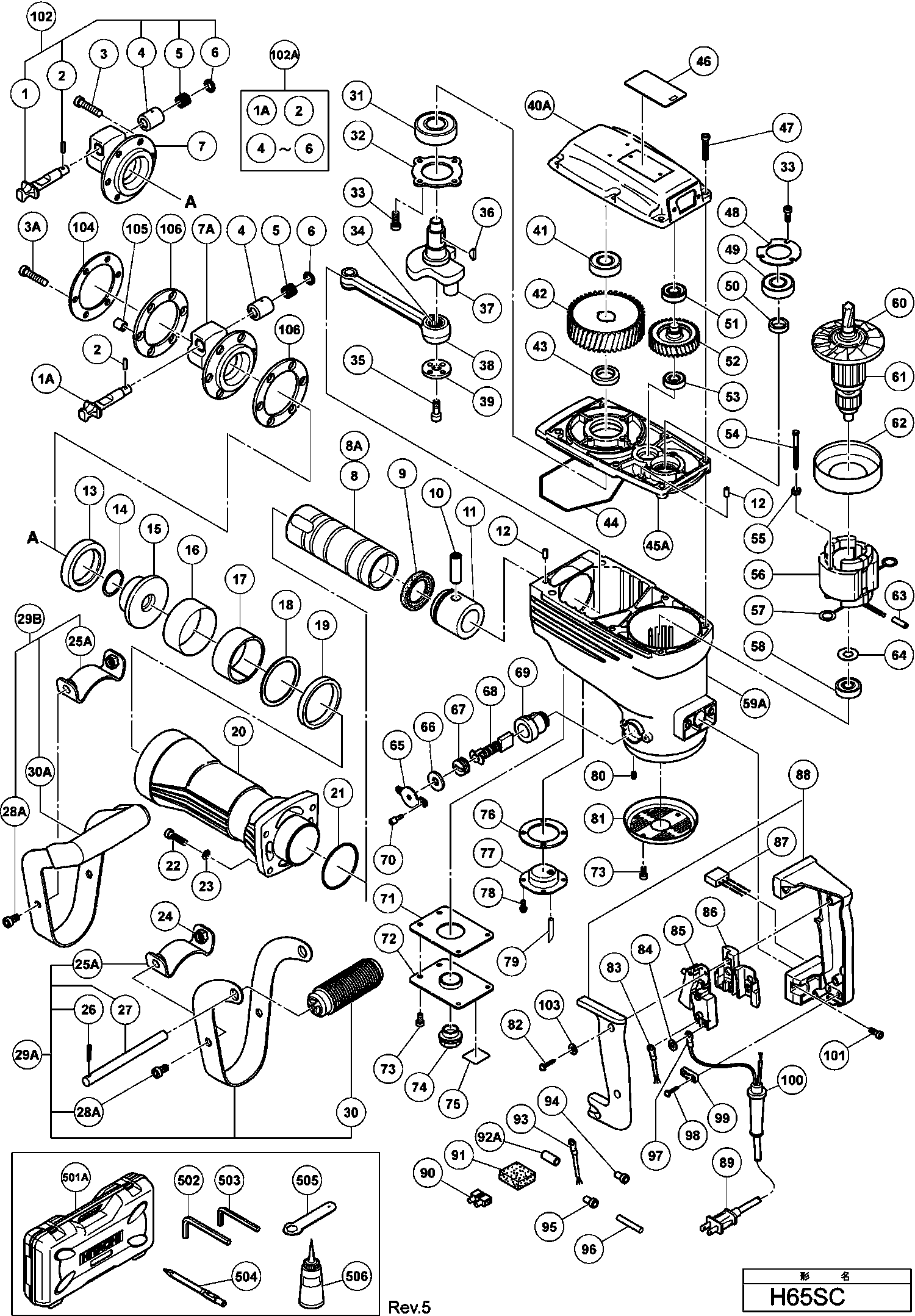

Technical drawing of model Hikoki H65SC
Spare parts list of model Hikoki H65SC
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cable gland D8.2 (old 958049z) | ||||
| *100 | 958049 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| *56A | 340259N | |||
| Service Kit (h 65sc) Includ.3a,9,14,19,21,44,68,7 | ||||
| *606 | 324727 | 98.59 | 119.29 | |
| No information available, not orderable | ||||
| *89 | 500502Z | |||
| Lever Pin | ||||
| 1 | 998423 | 40.84 | 49.41 | |
| Stop Lever Since 7.2005 | ||||
| 1A | 323748 | 43.86 | 53.07 | |
| Needle Roller | ||||
| 2 | 998426 | 1.05 | 1.27 | |
| Nylock Hex Socket Head Bolt M8x30 since 6.1981 | ||||
| 3 | 306437 | 1.35 | 1.63 | |
| Nylock Hex. Socket Hd. Bolt M8x40 Since 7.2005 | ||||
| 3A | 323734 | 1.65 | 2.00 | |
| Spring Holder | ||||
| 4 | 998424 | 13.05 | 15.79 | |
| Lever Spring | ||||
| 5 | 956975 | 1.65 | 2.00 | |
| Sealing cap | ||||
| 6 | 998425 | 4.50 | 5.44 | |
| Front Cover | ||||
| 7 | 957152 | 116.74 | 141.25 | |
| Front Case | ||||
| 7A | 324730 | 135.58 | 164.05 | |
| No information available, not orderable | ||||
| 8A | 323724 | |||
| Striker | ||||
| 8C | 956958 | 93.36 | 112.97 | |
| L-ring | ||||
| 9 | 944927 | 12.15 | 14.70 | |
| Pin | ||||
| 10 | 944928 | 13.80 | 16.70 | |
| Piston | ||||
| 11 | 956957 | 40.84 | 49.41 | |
| Pin D5x15.8 | ||||
| 12 | 944918 | 1.05 | 1.27 | |
| Damper | ||||
| 13 | 956965 | 14.70 | 17.79 | |
| O-ring | ||||
| 14 | 944936 | 10.95 | 13.25 | |
| Shank Sleeve | ||||
| 15 | 956964 | 17.88 | 21.63 | |
| Mouth cover | ||||
| 16 | 956962 | 2.40 | 2.90 | |
| Mouth | ||||
| 17 | 956963 | 32.18 | 38.93 | |
| Mouth Washer | ||||
| 18 | 956961 | 2.40 | 2.90 | |
| Urethane Ring | ||||
| 19 | 956960 | 9.30 | 11.25 | |
| Cylinder Case | ||||
| 20 | 306164 | 204.19 | 247.07 | |
| O-ring (1as-60) Since 9.1979 | ||||
| 21 | 956996 | 3.00 | 3.63 | |
| Nylock Hex. Socket Hd. Bolt M8x35 Since 9.1979 | ||||
| 22 | 306163 | 1.35 | 1.63 | |
| Bolt Washer M8 (10 Pcs.) | ||||
| 23 | 949433 | 1.05 | 1.27 | |
| U-nut (b) M8 Till 9.2001 | ||||
| 24 | 944950 | 1.35 | 1.63 | |
| Handle Stay (w/nut) | ||||
| 25A | 320374 | 5.85 | 7.08 | |
| Split Pin D4x25 (10 Pcs.) | ||||
| 26 | 949895 | 1.65 | 2.00 | |
| Chute | ||||
| 27 | 944952 | 2.55 | 3.09 | |
| Nylock Hex. Socket Hd. Bolt M8x16 | ||||
| 28A | 320375 | 1.65 | 2.00 | |
| Side Handle | ||||
| 29A | 956852 | 24.89 | 30.11 | |
| No information available, not orderable | ||||
| 29B | 306165 | |||
| Grip | ||||
| 30 | 944951 | 8.40 | 10.16 | |
| Handle | ||||
| 30A | 306166 | 75.90 | 91.84 | |
| Ball Bearing 6205ddcmps2l | ||||
| 31 | 6205DD | 10.35 | 12.52 | |
| Bearing Holder | ||||
| 32 | 956949 | 1.65 | 2.00 | |
| Seal Lock Hex. Socket Hd. Bolt M5x16 | ||||
| 33 | 990079 | 1.05 | 1.27 | |
| Needle Roller | ||||
| 34 | 944921 | 19.39 | 23.46 | |
| Seal Lock Hex. Socket Hd. Bolt M8x16 | ||||
| 35 | 996364 | 1.05 | 1.27 | |
| Woodruff Key 4x16 Since 10.1981 | ||||
| 36 | 956850 | 1.05 | 1.27 | |
| Crank Shaft | ||||
| 37 | 957142 | 47.71 | 57.73 | |
| Connecting Rod | ||||
| 38 | 998434 | 46.75 | 56.57 | |
| Connecting rod washer | ||||
| 39 | 956955 | 3.30 | 3.99 | |
| Gear Cover (metallic Silver Green) Since 7.2009 | ||||
| 40A | 332166 | 24.61 | 29.78 | |
| Ball Bearing 6302vvcmps2l | ||||
| 41 | 6302VV | 9.30 | 11.25 | |
| Final Gear | ||||
| 42 | 944916 | 49.64 | 60.06 | |
| Final Gear | ||||
| 42A | 339672 | 17.88 | 21.63 | |
| Distance Ring (b) | ||||
| 43 | 944915 | 3.60 | 4.36 | |
| Seal Ring (a) Since 4.1984 | ||||
| 44 | 957143 | 3.30 | 3.99 | |
| Inner Cover (metallic Silver Green) | ||||
| 45A | 332181 | 33.41 | 40.43 | |
| Seal Lock Hex. Socket Hd. Bolt M6x45 | ||||
| 47 | 986940 | 1.05 | 1.27 | |
| Bearing Cap | ||||
| 48 | 944911 | 1.05 | 1.27 | |
| Ball Bearing 6203ddcmps2l | ||||
| 49 | 6203DD | 7.65 | 9.26 | |
| Distance Ring (a) | ||||
| 50 | 944907 | 2.40 | 2.90 | |
| Ball Bearing 6201vv | ||||
| 51 | 6201VV | 6.45 | 7.80 | |
| Gear | ||||
| 52 | 956948 | 28.88 | 34.94 | |
| Ball Bearing 6001vv | ||||
| 53 | 6001VV | 6.60 | 7.99 | |
| Hex. Hd. Tapping Screw D5x65 | ||||
| 54 | 960251 | 1.05 | 1.27 | |
| Washer | ||||
| 55 | 956764 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 56 | 340259E | 75.90 | 91.84 | |
| FIELD 110-115 VOLT | ||||
| 56 | 340259C | 70.84 | 85.72 | |
| Brush Terminal | ||||
| 57 | 945932 | 1.05 | 1.27 | |
| Ball Bearing 6201ddcmps2l | ||||
| 58 | 6201DD | 6.30 | 7.62 | |
| H65SC housing, metallic silver-green | ||||
| 59A | 332167 | 100.10 | 121.12 | |
| Fan | ||||
| 60 | 996370 | 14.03 | 16.97 | |
| Fan | ||||
| 60A | 333196 | 6.75 | 8.17 | |
| ARMATURE 115 VOLT | ||||
| 61 | 360286U | 207.21 | 250.73 | |
| Armature 230v | ||||
| 61 | 360286E | 196.90 | 238.25 | |
| ARMATURE ASS'Y 220-230 VOLT (OLD 360286E) | ||||
| 61A | 360286D | 105.44 | 127.58 | |
| Air-deflector Ring | ||||
| 62 | 306098 | 5.85 | 7.08 | |
| Bearing Washer | ||||
| 64 | 944954 | 1.05 | 1.27 | |
| Cap Cover | ||||
| 65 | 956972 | 1.05 | 1.27 | |
| Cap Rubber | ||||
| 66 | 944960 | 1.05 | 1.27 | |
| Brush Cap | ||||
| 67 | 940540 | 1.04 | 1.26 | |
| Auto-stop Carbon Brushes (2 Pieces) | ||||
| 68 | 999086 | 15.26 | 18.47 | |
| Brush Holder | ||||
| 69 | 956984 | 9.60 | 11.62 | |
| Seal Lock Hex. Socket Hd. Bolt M4x12 For Switch H | ||||
| 70 | 983162 | 1.05 | 1.27 | |
| Gasket | ||||
| 71 | 956971 | 1.05 | 1.27 | |
| Cover Plate | ||||
| 72 | 956970 | 4.05 | 4.90 | |
| Seal Lock Hd. Allen bolt M5x12 | ||||
| 73 | 991690 | 1.05 | 1.27 | |
| Oil Gauge | ||||
| 74 | 955011 | 10.95 | 13.25 | |
| OIL GAUGE (OLD 955011) | ||||
| 74A | 375619 | 5.52 | 6.68 | |
| Gasket | ||||
| 76 | 956969 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 77 | 318206 | |||
| Seal Lock Screw (w/sp. Washer) M4x12 | ||||
| 78 | 987203 | 1.05 | 1.27 | |
| Oil Felt | ||||
| 79 | 998534 | 1.65 | 2.00 | |
| Hex Adjustment Screw M5x8 | ||||
| 80 | 938477 | 1.05 | 1.27 | |
| Tail Cover | ||||
| 81 | 306099 | 11.55 | 13.98 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 82 | 307028 | 1.05 | 1.27 | |
| Internal wire | ||||
| 83 | 981974 | 1.65 | 2.00 | |
| Washer M4 (10 Pcs.) | ||||
| 84 | 949423 | 1.05 | 1.27 | |
| Switch (w/lock) | ||||
| 85 | 995398 | 26.40 | 31.94 | |
| Support (f) Since 11.1995 | ||||
| 86 | 312408 | 7.05 | 8.53 | |
| Noise Suppressor | ||||
| 87 | 994273 | 4.29 | 5.19 | |
| Handle And Handle Cover Set | ||||
| 88 | 971168 | 25.71 | 31.11 | |
| Cord (cord Armor D8.2) For Sin,mal | ||||
| 89 | 500440Z | 20.49 | 24.79 | |
| No information available, not orderable | ||||
| 92A | 319134 | |||
| No information available, not orderable | ||||
| 93 | 305798 | |||
| Connector 50091 (10 Pcs.) | ||||
| 94 | 959140 | 3.30 | 3.99 | |
| Connector 50092 (10 Pcs.) | ||||
| 95 | 959141 | 3.75 | 4.54 | |
| Vinyl Tube (a) (i.d.7xt0.5x50) | ||||
| 96 | 996438 | 1.05 | 1.27 | |
| connecting terminal | ||||
| 97 | 980063 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 98 | 984750 | |||
| Cord Clip | ||||
| 99 | 960266 | 1.04 | 1.26 | |
| Cord Armor D10.7 | ||||
| 100 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| 100 | 958049 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Hd. Bolt M6x25 For Kor | ||||
| 101 | 987707 | 1.05 | 1.27 | |
| Stop Lever Ass'y Includ.73a,74,75a,77a,135 | ||||
| 102 | 318656 | 73.01 | 88.35 | |
| Stop Lever Ass'y Includ.2a-6 Since 7.2005 | ||||
| 102A | 323747 | 64.21 | 77.70 | |
| Bolt Washer M4 (10 Pcs.) | ||||
| 103 | 949429 | 1.05 | 1.27 | |
| Damper Plate Since 7.2005 | ||||
| 104 | 323736 | 17.88 | 21.63 | |
| Ring | ||||
| 105 | 323737 | 4.80 | 5.81 | |
| Front Damper Since 7.2005 | ||||
| 106 | 323735 | 9.60 | 11.62 | |
| No information available, not orderable | ||||
| 501A | 333146 | |||
| No information available, not orderable | ||||
| 502 | 872422 | |||
| No information available, not orderable | ||||
| 503 | 944459 | |||
| No information available, not orderable | ||||
| 504 | 944961 | |||
| No information available, not orderable | ||||
| 505 | 971109 | |||
| Lubricant Oiler (120cc) | ||||
| 506 | 931848 | 8.40 | 10.16 | |
| Lubricant Oiler (120cc) | ||||
| 506A | 931848 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 601 | 944962 | |||
| No information available, not orderable | ||||
| 602 | 944964 | |||
| No information available, not orderable | ||||
| 603 | 944966 | |||
| No information available, not orderable | ||||
| 604 | 944965 | |||
| No information available, not orderable | ||||
| 605 | 957154 | |||
| Service Kit (h 65sc) Includ.3a,9,14,19,21,44,68,7 | ||||
| 606 | 324727 | 98.59 | 119.29 | |
| Service Kit (h 65sc) Includ.3,9,14,19,21,44,68,71 | ||||
| 606 | 323711 | 84.84 | 102.65 | |
| No information available, not orderable | ||||
| 607 | 930035 | |||
| Oil Felt | ||||
| 608 | 324896 | 3.75 | 4.54 | |
