Here you will find all available parts and drawings of the 'Hikoki H65SB2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

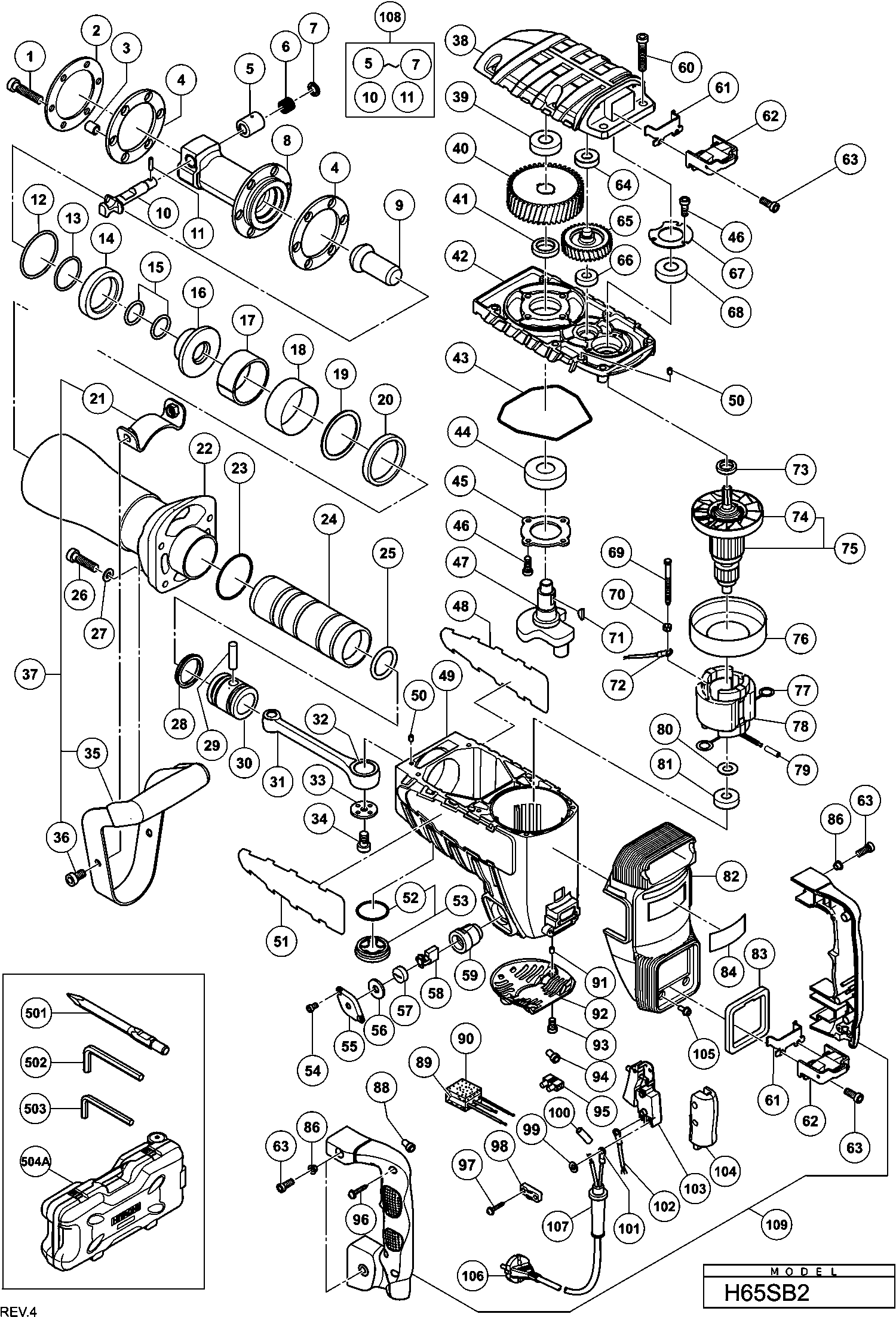

Technical drawing of model Hikoki H65SB2
Spare parts list of model Hikoki H65SB2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Nylock Hex. Socket Hd. Bolt M8x40 Since 7.2005 | ||||
| 1 | 323734 | 1.65 | 2.00 | |
| Damper Plate Since 7.2005 | ||||
| 2 | 323736 | 17.88 | 21.63 | |
| Ring | ||||
| 3 | 323737 | 4.80 | 5.81 | |
| Front Damper Since 7.2005 | ||||
| 4 | 323735 | 9.60 | 11.62 | |
| Spring Holder | ||||
| 5 | 998424 | 13.05 | 15.79 | |
| Lever Spring | ||||
| 6 | 956975 | 1.65 | 2.00 | |
| Sealing cap | ||||
| 7 | 998425 | 4.50 | 5.44 | |
| Front Cover Since 7.2005 | ||||
| 8 | 323733 | 335.36 | 405.79 | |
| Second Hammer | ||||
| 9 | 323732 | 64.21 | 77.70 | |
| Stop Lever Since 7.2005 | ||||
| 10 | 323748 | 43.86 | 53.07 | |
| Needle Roller | ||||
| 11 | 998426 | 1.05 | 1.27 | |
| O-ring (c) | ||||
| 12 | 998428 | 2.40 | 2.90 | |
| O-ring (b) | ||||
| 13 | 998427 | 1.65 | 2.00 | |
| Damper (a) | ||||
| 14 | 998433 | 14.70 | 17.79 | |
| O-Ring (I.D.26.5) | ||||
| 15 | 323731 | 1.65 | 2.00 | |
| ASBUS | ||||
| 16 | 323730 | 35.06 | 42.43 | |
| Mouth | ||||
| 17 | 956963 | 32.18 | 38.93 | |
| Mouth cover | ||||
| 18 | 956962 | 2.40 | 2.90 | |
| Moon closing ring | ||||
| 19 | 323729 | 6.75 | 8.17 | |
| Urethane Ring | ||||
| 20 | 956960 | 9.30 | 11.25 | |
| Handle Stay (w/nut) | ||||
| 21 | 320374 | 5.85 | 7.08 | |
| Cylinder Case | ||||
| 22 | 323728 | 212.85 | 257.55 | |
| O-ring (1as-60) Since 9.1979 | ||||
| 23 | 956996 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 24 | 323724 | |||
| O-ring (a) | ||||
| 25 | 998414 | 11.85 | 14.34 | |
| Nylock Hex. Socket Hd. Bolt M8x35 Since 9.1979 | ||||
| 26 | 306163 | 1.35 | 1.63 | |
| Bolt Washer M8 (10 Pcs.) | ||||
| 27 | 949433 | 1.05 | 1.27 | |
| Oil Seal | ||||
| 28 | 998415 | 7.35 | 8.89 | |
| Pin | ||||
| 29 | 944928 | 13.80 | 16.70 | |
| Piston | ||||
| 30 | 998413 | 67.10 | 81.19 | |
| Connecting Rod | ||||
| 31 | 998434 | 46.75 | 56.57 | |
| Needle Roller | ||||
| 32 | 944921 | 19.39 | 23.46 | |
| Connecting rod washer | ||||
| 33 | 956955 | 3.30 | 3.99 | |
| Seal Lock Hex. Socket Hd. Bolt M8x16 | ||||
| 34 | 996364 | 1.05 | 1.27 | |
| Handle | ||||
| 35 | 306166 | 75.90 | 91.84 | |
| Nylock Hex. Socket Hd. Bolt M8x16 | ||||
| 36 | 320375 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 37 | 306165 | |||
| Gear Cover | ||||
| 38 | 323723 | 61.33 | 74.20 | |
| Ball Bearing 6302vvcmps2l | ||||
| 39 | 6302VV | 9.30 | 11.25 | |
| Final Gear | ||||
| 40 | 944916 | 49.64 | 60.06 | |
| Distance Ring (b) | ||||
| 41 | 944915 | 3.60 | 4.36 | |
| Inner Cover | ||||
| 42 | 323722 | 55.41 | 67.05 | |
| Seal Ring | ||||
| 43 | 323725 | 4.80 | 5.81 | |
| Ball Bearing 6205ddcmps2l | ||||
| 44 | 6205DD | 10.35 | 12.52 | |
| Bearing Holder | ||||
| 45 | 956949 | 1.65 | 2.00 | |
| Seal Lock Hex. Socket Hd. Bolt M5x16 | ||||
| 46 | 990079 | 1.05 | 1.27 | |
| Crank Shaft | ||||
| 47 | 998430 | 73.01 | 88.35 | |
| Housing | ||||
| 49 | 323721 | 177.93 | 215.29 | |
| Pin D5x15.8 | ||||
| 50 | 944918 | 1.05 | 1.27 | |
| O-ring (s-38) | ||||
| 52 | 980717 | 1.35 | 1.63 | |
| Oil Cap Ass'y Includ.13 | ||||
| 53 | 990945 | 3.90 | 4.72 | |
| Seal Lock Hex. Socket Hd. Bolt M4x8 | ||||
| 54 | 877838 | 1.05 | 1.27 | |
| Cap Cover | ||||
| 55 | 323727 | 1.65 | 2.00 | |
| Cap Rubber | ||||
| 56 | 944960 | 1.05 | 1.27 | |
| Brush Cap | ||||
| 57 | 940540 | 1.04 | 1.26 | |
| Auto-stop Carbon Brushes (2 Pieces) | ||||
| 58 | 999086 | 15.26 | 18.47 | |
| Brush Holder | ||||
| 59 | 956984 | 9.60 | 11.62 | |
| Seal Lock Hex. Socket Hd. Bolt M6x45 | ||||
| 60 | 986940 | 1.05 | 1.27 | |
| Plate | ||||
| 61 | 980750 | 17.05 | 20.63 | |
| Handle Rubber | ||||
| 62 | 980727 | 14.10 | 17.06 | |
| Seal Lock Hex. Socket Hd. Bolt M5x16 | ||||
| 63 | 990079 | 1.05 | 1.27 | |
| Ball Bearing 6201vv | ||||
| 64 | 6201VV | 6.45 | 7.80 | |
| Gear | ||||
| 65 | 956948 | 28.88 | 34.94 | |
| Ball Bearing 6001vv | ||||
| 66 | 6001VV | 6.60 | 7.99 | |
| Bearing Cap | ||||
| 67 | 944911 | 1.05 | 1.27 | |
| Ball Bearing 6203ddcmps2l | ||||
| 68 | 6203DD | 7.65 | 9.26 | |
| Hex. Hd. Tapping Screw D5x65 | ||||
| 69 | 960251 | 1.05 | 1.27 | |
| Washer | ||||
| 70 | 956764 | 1.04 | 1.26 | |
| Woodruff Key 4x16 Since 10.1981 | ||||
| 71 | 956850 | 1.05 | 1.27 | |
| Internal wire | ||||
| 72 | 994190 | 1.05 | 1.27 | |
| Distance Ring (a) | ||||
| 73 | 944907 | 2.40 | 2.90 | |
| Fan | ||||
| 74 | 996370 | 14.03 | 16.97 | |
| Armature Ass'y 240v | ||||
| 75 | 360286F | 233.34 | 282.34 | |
| ARMATURE 110-115 VOLT | ||||
| 75 | 360286C | 198.00 | 239.58 | |
| Armature 230v | ||||
| 75 | 360286E | 196.90 | 238.25 | |
| Air-deflector Ring | ||||
| 76 | 306098 | 5.85 | 7.08 | |
| Brush Terminal | ||||
| 77 | 945932 | 1.05 | 1.27 | |
| Stator 220v-230v | ||||
| 78 | 340259E | 75.90 | 91.84 | |
| FIELD 110-115 VOLT | ||||
| 78 | 340259C | 70.84 | 85.72 | |
| Vinyl Tube L55 | ||||
| 79 | 322530 | 1.65 | 2.00 | |
| Bearing Washer | ||||
| 80 | 944954 | 1.05 | 1.27 | |
| Ball Bearing 6201ddcmps2l | ||||
| 81 | 6201DD | 6.30 | 7.62 | |
| Tail Cover | ||||
| 82 | 323740 | 28.33 | 34.27 | |
| HANDLE GRIP SEAL | ||||
| 83 | 323741 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 85 | 323743 | |||
| Spacer bushing | ||||
| 86 | 991711 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 87 | 323744 | |||
| Connector 50092 (10 Pcs.) | ||||
| 88 | 959141 | 3.75 | 4.54 | |
| Interference Suppressor | ||||
| 89 | 317491 | 7.35 | 8.89 | |
| Noise Suppressor | ||||
| 89 | 994273 | 4.29 | 5.19 | |
| Rubber | ||||
| 90 | 930153 | 1.04 | 1.26 | |
| Hex Adjustment Screw M5x8 | ||||
| 91 | 938477 | 1.05 | 1.27 | |
| Tail Cover | ||||
| 92 | 323726 | 4.80 | 5.81 | |
| Seal Lock Hd. Allen bolt M5x12 | ||||
| 93 | 991690 | 1.05 | 1.27 | |
| Connector 50091 (10 Pcs.) | ||||
| 94 | 959140 | 3.30 | 3.99 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 95 | 938307 | 2.13 | 2.57 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 96 | 307028 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 97 | 984750 | |||
| Cord Clip | ||||
| 98 | 960266 | 1.04 | 1.26 | |
| Washer M4 (10 Pcs.) | ||||
| 99 | 949423 | 1.05 | 1.27 | |
| Vinyl Tube (a) (i.d.7xt0.5x50) | ||||
| 100 | 996438 | 1.05 | 1.27 | |
| Terminal M4.0 (10 Pcs.) | ||||
| 101 | 930804 | 3.00 | 3.63 | |
| connecting terminal | ||||
| 101 | 980063 | 1.04 | 1.26 | |
| Internal wire | ||||
| 102 | 981974 | 1.65 | 2.00 | |
| Switch (b) (1p Screw Type) With Lock | ||||
| 103 | 306143 | 17.05 | 20.63 | |
| ANGLE PLATE | ||||
| 104 | 323742 | 6.75 | 8.17 | |
| Nylock Bolt (w/flange) M5x12 | ||||
| 105 | 322142 | 1.65 | 2.00 | |
| Cord 3m 2 X 1.5 H07rn-f W/plug 16a Cee Form 2p+e F | ||||
| 106 | 500466Z | 38.50 | 46.58 | |
| Cord (cord Armor D8.8) | ||||
| 106 | 500450Z | 31.63 | 38.27 | |
| Cord 10.7 (USE 714500=2X1 5M) | ||||
| 106 | 500247Z | 6.18 | 7.48 | |
| Cord Armor D10.7 | ||||
| 107 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| 107 | 958049 | 1.04 | 1.26 | |
| Stop Lever Ass'y Includ.2a-6 Since 7.2005 | ||||
| 108 | 323747 | 64.21 | 77.70 | |
| Handle (a).(b) Set | ||||
| 109 | 339262 | 17.46 | 21.13 | |
| No information available, not orderable | ||||
| 501 | 944961 | |||
| No information available, not orderable | ||||
| 502 | 872422 | |||
| No information available, not orderable | ||||
| 503 | 943277 | |||
| No information available, not orderable | ||||
| 504A | 333356 | |||
| No information available, not orderable | ||||
| 601 | 944962 | |||
| No information available, not orderable | ||||
| 602 | 944964 | |||
| No information available, not orderable | ||||
| 603 | 944966 | |||
| No information available, not orderable | ||||
| 604 | 944965 | |||
| No information available, not orderable | ||||
| 605 | 957154 | |||
| Grease (a) For Hammer.hammer Drill (30g) | ||||
| 606 | 981840 | 8.40 | 10.16 | |
| Grease For Hammer.hammer Drill (70g) | ||||
| 607 | 308471 | 12.75 | 15.43 | |
| No information available, not orderable | ||||
| 608 | 930035 | |||
| Grease For Hammer.hammer Drill (500g) | ||||
| 609 | 980927 | 73.01 | 88.35 | |
| Service Kit H65sb2 Includ. 1,12,13,15,20,23,25 | ||||
| 610 | 323745 | 93.36 | 112.97 | |
| No information available, not orderable | ||||
| 611 | 336375 | |||
| Wheel Shaft Set | ||||
| 612 | 337337 | 14.70 | 17.79 | |
| Latch Set (2 Pcs.) | ||||
| 613 | 337338 | 3.45 | 4.17 | |
