Here you will find all available parts and drawings of the 'Hikoki H60MRV'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

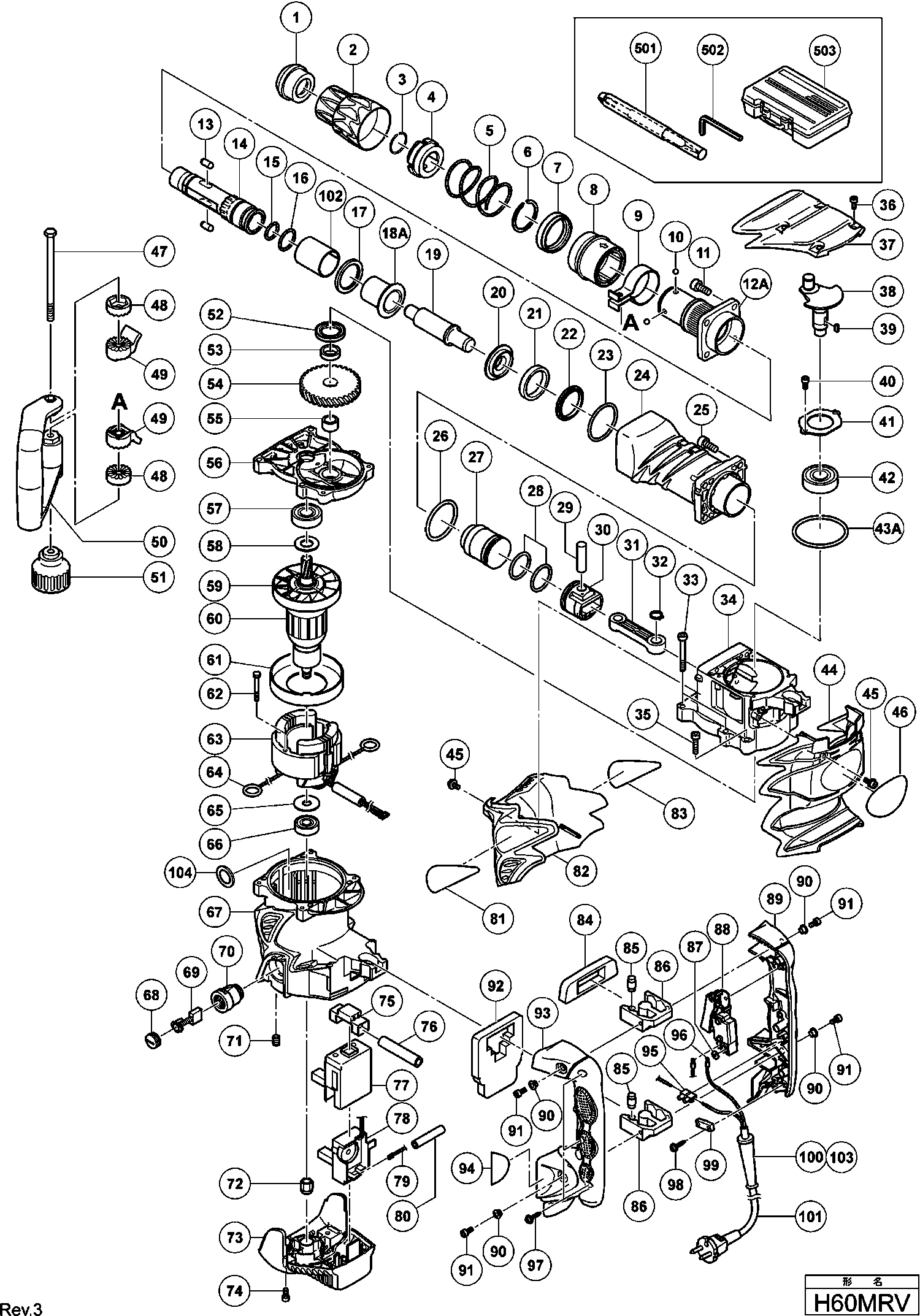

Technical drawing of model Hikoki H60MRV
Spare parts list of model Hikoki H60MRV
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Front Cap | ||||
| 1 | 315529 | 3.30 | 3.99 | |
| Grip (a) | ||||
| 2 | 324025 | 8.40 | 10.16 | |
| Ring | ||||
| 3 | 320803 | 1.65 | 2.00 | |
| Needle Holder | ||||
| 4 | 320804 | 27.78 | 33.61 | |
| Spring (a) | ||||
| 5 | 324027 | 6.45 | 7.80 | |
| Retaining Ring D42 | ||||
| 6 | 317088 | 3.30 | 3.99 | |
| Ball Holder | ||||
| 7 | 320810 | 12.15 | 14.70 | |
| Grip (b) | ||||
| 8 | 324028 | 6.45 | 7.80 | |
| Clamp Band | ||||
| 9 | 320635 | 6.75 | 8.17 | |
| Steel Ball D6.35 (10 pieces) | ||||
| 10 | 959150 | 1.35 | 1.63 | |
| Seal Lock Hex. Socket Hd. Bolt M8x25 | ||||
| 11 | 985479 | 2.55 | 3.09 | |
| Front Case | ||||
| 12A | 324029 | 169.13 | 204.64 | |
| Needle Roller D8x20 | ||||
| 13 | 313421 | 5.25 | 6.35 | |
| Retainer Sleeve | ||||
| 14 | 324026 | 134.20 | 162.38 | |
| O-RING (S-26) | ||||
| 15 | 872470 | 1.65 | 2.00 | |
| O-ring (s-32) | ||||
| 16 | 872767 | 1.65 | 2.00 | |
| Damper (b) | ||||
| 17 | 317094 | 6.45 | 7.80 | |
| Hammer Holder (b) | ||||
| 18A | 324030 | 49.64 | 60.06 | |
| Second Hammer | ||||
| 19 | 324031 | 49.64 | 60.06 | |
| Hammer Holder (a) | ||||
| 20 | 317091 | 20.49 | 24.79 | |
| Damper (a) | ||||
| 21 | 324032 | 4.80 | 5.81 | |
| Damper Washer | ||||
| 22 | 317095 | 13.50 | 16.34 | |
| O-RING (S-56) | ||||
| 23 | 317119 | 1.65 | 2.00 | |
| Cylinder Case | ||||
| 24 | 324034 | 183.70 | 222.28 | |
| Hex. Socket Hd. Bolt (w/flange) M8x30 | ||||
| 25 | 995400 | 1.05 | 1.27 | |
| O-ring (1as-60) Since 9.1979 | ||||
| 26 | 956996 | 3.00 | 3.63 | |
| Striker | ||||
| 27 | 324033 | 37.95 | 45.92 | |
| O-ring (a) (fpm810) | ||||
| 28 | 985454 | 7.95 | 9.62 | |
| Piston Pin | ||||
| 29 | 301509 | 5.25 | 6.35 | |
| Piston | ||||
| 30 | 317084 | 14.10 | 17.06 | |
| Connecting Rod | ||||
| 31 | 317082 | 9.30 | 11.25 | |
| Spring Washer D14 (10 Pieces) | ||||
| 32 | 939543 | 2.55 | 3.09 | |
| Seal Lock Hex. Socket Hd. Bolt M6x55 | ||||
| 33 | 301567 | 2.55 | 3.09 | |
| Crank Case | ||||
| 34 | 324035 | 67.10 | 81.19 | |
| Seal Lock Hex. Socket Hd. Bolt M6x35 | ||||
| 35 | 324056 | 1.65 | 2.00 | |
| Seal Lock Hex. Socket Hd. Bolt M5x16 | ||||
| 36 | 990079 | 1.05 | 1.27 | |
| Crank Cover | ||||
| 37 | 324037 | 14.30 | 17.30 | |
| Crank Shaft | ||||
| 38 | 317078 | 58.44 | 70.71 | |
| Feather Key 3x3x10 | ||||
| 39 | 940533 | 1.20 | 1.45 | |
| Seal Lock Hex. Socket Hd. Bolt M5x14 | ||||
| 40 | 984509 | 1.05 | 1.27 | |
| Bearing Cover (1) | ||||
| 41 | 985443 | 4.50 | 5.44 | |
| Ball Bearing 6204dd | ||||
| 42 | 6204DD | 9.00 | 10.89 | |
| O-ring (i.d 74.5) | ||||
| 43A | 326257 | 3.30 | 3.99 | |
| Back Cover | ||||
| 44 | 324038 | 22.83 | 27.62 | |
| Hex. Socket Hd. Bolt (w/flange) M5x12 | ||||
| 45 | 998471 | 1.05 | 1.27 | |
| Bolt M8 | ||||
| 47 | 317107 | 3.30 | 3.99 | |
| Handle Holder (b) | ||||
| 48 | 317106 | 3.30 | 3.99 | |
| Handle Holder (a) | ||||
| 49 | 317105 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 50 | 317103 | |||
| Grip | ||||
| 51 | 317108 | 9.90 | 11.98 | |
| Oil Seal | ||||
| 52 | 995403 | 2.40 | 2.90 | |
| Distance Ring (c) | ||||
| 53 | 995402 | 10.20 | 12.34 | |
| First Gear | ||||
| 54 | 317080 | 43.86 | 53.07 | |
| Needle Bearing (a) (bk1512) | ||||
| 55 | 985442 | 7.65 | 9.26 | |
| Gear Cover | ||||
| 56 | 324048 | 58.44 | 70.71 | |
| Ball Bearing 6203ddcmps2l | ||||
| 57 | 6203DD | 7.65 | 9.26 | |
| Bearing Washer | ||||
| 58 | 992841 | 1.05 | 1.27 | |
| Fan | ||||
| 59 | 996370 | 14.03 | 16.97 | |
| Armature 230v | ||||
| 60 | 360691E | 242.00 | 292.82 | |
| Fan Guide | ||||
| 61 | 305610 | 12.75 | 15.43 | |
| Hex. Hd. Tapping Screw D5x50 | ||||
| 62 | 953121 | 1.04 | 1.26 | |
| Stator Ass'y (b) 230v Includ.64 | ||||
| 63 | 340610E | 116.74 | 141.25 | |
| Brush Terminal | ||||
| 64 | 945932 | 1.05 | 1.27 | |
| Bearing Washer | ||||
| 65 | 944954 | 1.05 | 1.27 | |
| Ball Bearing 6201ddcmps2l | ||||
| 66 | 6201DD | 6.30 | 7.62 | |
| Housing | ||||
| 67 | 324040 | 151.66 | 183.51 | |
| Brush Cap | ||||
| 68 | 940540 | 1.04 | 1.26 | |
| Carbon Brush (auto Stop Type) (1 Pair) For Sin,ma | ||||
| 69 | 999074 | 14.40 | 17.42 | |
| Brush Holder | ||||
| 70 | 956984 | 9.60 | 11.62 | |
| Hex Adjustment Screw M5x8 | ||||
| 71 | 938477 | 1.05 | 1.27 | |
| Magnet (1) | ||||
| 72 | 317087 | 19.53 | 23.63 | |
| Tail Cover | ||||
| 73 | 324041 | 15.26 | 18.47 | |
| Seal Lock Hex. Socket Hd. Bolt M5x22 | ||||
| 74 | 317245 | 1.65 | 2.00 | |
| Socket | ||||
| 75 | 324045 | 3.30 | 3.99 | |
| Vinyl Tube L55 | ||||
| 76 | 322530 | 1.65 | 2.00 | |
| Case (b) | ||||
| 77 | 317100 | 6.75 | 8.17 | |
| Controller Circuit 230v-240v | ||||
| 78 | 324052 | 183.70 | 222.28 | |
| Crank Case Cover | ||||
| 82 | 324036 | 22.83 | 27.62 | |
| Handle Packing (a) | ||||
| 84 | 324046 | 4.80 | 5.81 | |
| Handle Damper | ||||
| 85 | 310124 | 4.20 | 5.08 | |
| Holder | ||||
| 86 | 310123 | 11.85 | 14.34 | |
| Switch (b) (1p Screw Type) With Lock | ||||
| 88 | 306143 | 17.05 | 20.63 | |
| Handle (a) | ||||
| 89 | 324042 | 25.16 | 30.45 | |
| Spacer bushing | ||||
| 90 | 991711 | 1.05 | 1.27 | |
| Seal Lock Hd. Allen bolt M5x12 | ||||
| 91 | 991690 | 1.05 | 1.27 | |
| Handle Packing (b) | ||||
| 92 | 324047 | 11.85 | 14.34 | |
| Handle (b) | ||||
| 93 | 324043 | 24.34 | 29.45 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 95 | 938307 | 2.13 | 2.57 | |
| connecting terminal | ||||
| 96 | 980063 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 97 | 307028 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 98 | 984750 | |||
| Cord Clip For Sui | ||||
| 99 | 981987Z | 1.05 | 1.27 | |
| Cord Clip | ||||
| 99 | 960266 | 1.04 | 1.26 | |
| Cord Armor D8.8 | ||||
| 100 | 380090 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 101 | 500391Z | |||
| Damper | ||||
| 102 | 324130 | 6.45 | 7.80 | |
| Cord Armor D10.1 | ||||
| 103 | 938051 | 1.04 | 1.26 | |
| Stop Plate | ||||
| 104 | 956683 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 501 | 313471 | |||
| No information available, not orderable | ||||
| 502 | 872422 | |||
| No information available, not orderable | ||||
| 503 | 324049 | |||
| Grease (a) For Hammer.hammer Drill (30g) | ||||
| 601 | 981840 | 8.40 | 10.16 | |
| Grease For Hammer.hammer Drill (70g) | ||||
| 602 | 308471 | 12.75 | 15.43 | |
| No information available, not orderable | ||||
| 604 | 313471 | |||
| No information available, not orderable | ||||
| 605 | 313472 | |||
| No information available, not orderable | ||||
| 606 | 313473 | |||
| No information available, not orderable | ||||
| 607 | 313474 | |||
| No information available, not orderable | ||||
| 608 | 313475 | |||
| No information available, not orderable | ||||
| 609 | 313476 | |||
| No information available, not orderable | ||||
| 610 | 313477 | |||
| No information available, not orderable | ||||
| 611 | 313478 | |||
| No information available, not orderable | ||||
| 612 | 313479 | |||
