Here you will find all available parts and drawings of the 'Hikoki H60MEY'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

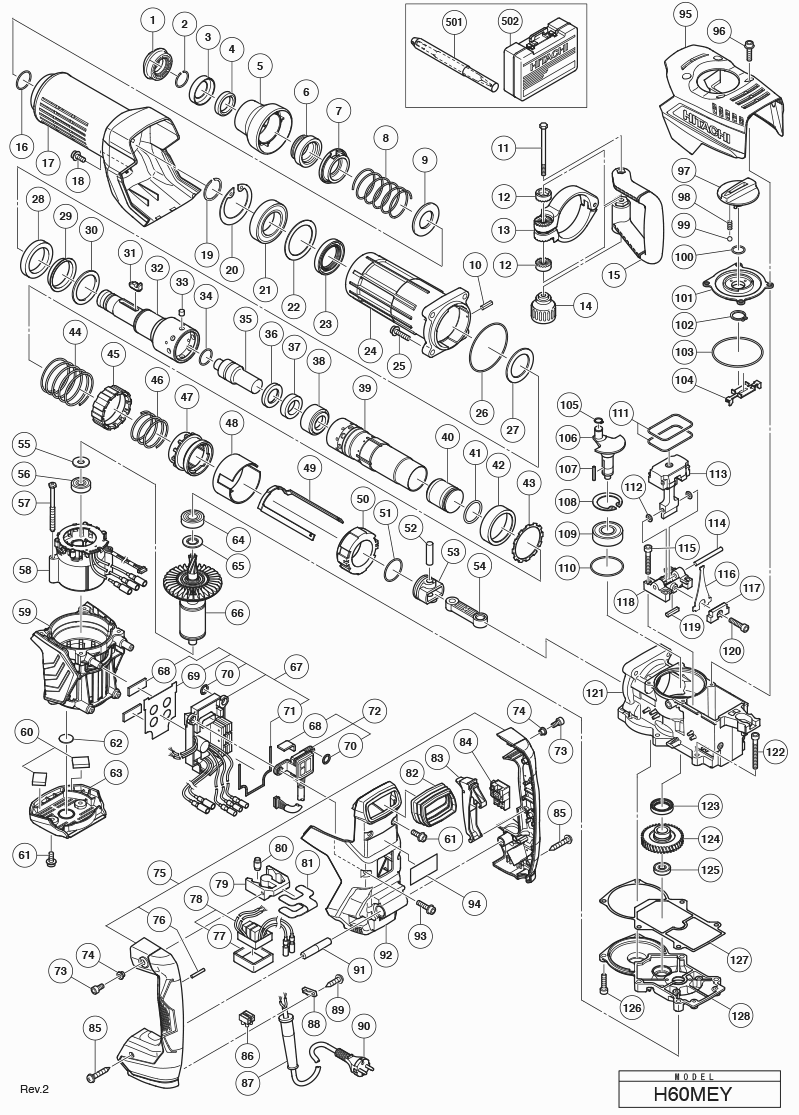

Technical drawing of model Hikoki H60MEY
Spare parts list of model Hikoki H60MEY
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Stator Sensor Pcb Set 100v-120v | ||||
| *58 | 340947 | 44.28 | 53.57 | |
| Stator Sensor Pcb Set 220v-240v | ||||
| *58 | 340899 | 41.39 | 50.08 | |
| Controller Ass'y 110v-120v Includ.68-71 | ||||
| *67 | 370386 | 111.24 | 134.60 | |
| Controller Ass'y 220v-240v Includ.68-71 | ||||
| *67 | 370387 | 111.24 | 134.60 | |
| Filter Pcb Ass'y 100v-127v Includ.77 | ||||
| *78 | 338180 | 12.45 | 15.06 | |
| Filter Pcb Ass'y 220v-240v Includ.77 | ||||
| *78 | 338181 | 12.45 | 15.06 | |
| Cord Armor D10.7 | ||||
| *87 | 940778 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| *90 | 500503Z | |||
| Front Cap | ||||
| 1 | 337562 | 2.85 | 3.45 | |
| Spring retaining ring | ||||
| 2 | 318590 | 1.65 | 2.00 | |
| Retainer Washer | ||||
| 3 | 338155 | 4.80 | 5.81 | |
| Retainer Damper (a) | ||||
| 4 | 339053 | 9.75 | 11.80 | |
| Grip | ||||
| 5 | 338154 | 1.80 | 2.18 | |
| Bit Lock Holder | ||||
| 6 | 370669 | 9.15 | 11.07 | |
| Thrust Plate | ||||
| 7 | 370668 | 11.85 | 14.34 | |
| Retainer Spring | ||||
| 8 | 339052 | 1.95 | 2.36 | |
| Spring Holder (a) | ||||
| 9 | 337557 | 1.20 | 1.45 | |
| Spring Holder (a) | ||||
| 9A | 371145 | 1.04 | 1.26 | |
| Roll Pin D2X10 (10 pieces) | ||||
| 10 | 949860 | 1.05 | 1.27 | |
| Bolt M8 | ||||
| 11 | 333228 | 4.35 | 5.26 | |
| Handle Holder (b) | ||||
| 12 | 333202 | 1.05 | 1.27 | |
| Handle Holder | ||||
| 13 | 370393 | 14.44 | 17.47 | |
| Grip | ||||
| 14 | 333201 | 1.95 | 2.36 | |
| Side Handle | ||||
| 15 | 333199 | 7.80 | 9.44 | |
| O-RING (S-26) | ||||
| 16 | 872470 | 1.65 | 2.00 | |
| Cylinder Case Cover | ||||
| 17 | 338198 | 14.25 | 17.24 | |
| Hex. Socket Hd. Bolt (w/flange) M5x12 | ||||
| 18 | 998471 | 1.05 | 1.27 | |
| Retaining Ring D40 | ||||
| 19 | 318582 | 5.10 | 6.17 | |
| Retaining Ring D68 | ||||
| 20 | 338200 | 4.95 | 5.99 | |
| Ball Bearing 6008ddu | ||||
| 21 | 339063 | 14.93 | 18.06 | |
| Bearing Ring | ||||
| 22 | 338201 | 1.35 | 1.63 | |
| Oil Seal | ||||
| 23 | 318588 | 6.45 | 7.80 | |
| Cylinder Case | ||||
| 24 | 338199 | 21.45 | 25.95 | |
| Hex. Socket Hd. Bolt (w/flange) M8x35 | ||||
| 25 | 990083 | 1.05 | 1.27 | |
| O-ring (c) | ||||
| 26 | 338222 | 1.05 | 1.27 | |
| Retainer Damper Holder | ||||
| 27 | 338204 | 5.55 | 6.72 | |
| Retainer Damper (b) | ||||
| 28 | 338203 | 4.20 | 5.08 | |
| Damper Sleeve | ||||
| 29 | 339064 | 1.05 | 1.27 | |
| Retainer Damper Washer | ||||
| 30 | 338202 | 5.40 | 6.53 | |
| Bit Lock | ||||
| 31 | 370654 | 4.95 | 5.99 | |
| Retainer Sleeve | ||||
| 32 | 338205 | 45.10 | 54.57 | |
| Needle Pin D8 | ||||
| 33 | 338210 | 1.95 | 2.36 | |
| O-ring | ||||
| 34 | 986104 | 1.05 | 1.27 | |
| Second Hammer | ||||
| 35 | 370657 | 19.66 | 23.79 | |
| Damper Washer | ||||
| 36 | 370659 | 7.95 | 9.62 | |
| Damper | ||||
| 37 | 328887 | 3.30 | 3.99 | |
| Damper Holder | ||||
| 38 | 370658 | 2.85 | 3.45 | |
| Cylinder | ||||
| 39 | 338209 | 44.69 | 54.07 | |
| Striker | ||||
| 40 | 370391 | 17.05 | 20.63 | |
| O-ring | ||||
| 41 | 328880 | 4.80 | 5.81 | |
| Spring Holder (b) | ||||
| 42 | 338211 | 15.54 | 18.80 | |
| Lock Spring Washer | ||||
| 43 | 338216 | 1.20 | 1.45 | |
| Lock Spring | ||||
| 44 | 338217 | 1.50 | 1.82 | |
| Lock Sleeve | ||||
| 45 | 338215 | 1.20 | 1.45 | |
| Lock Sleeve | ||||
| 45A | 338215 | 1.20 | 1.45 | |
| Clutch Spring | ||||
| 46 | 338212 | 1.50 | 1.82 | |
| Clutch | ||||
| 47 | 370392 | 41.66 | 50.41 | |
| Sleeve | ||||
| 48 | 338218 | 1.04 | 1.26 | |
| Slider (1) | ||||
| 49 | 338235 | 3.45 | 4.17 | |
| Metal (a) | ||||
| 50 | 370384 | 16.36 | 19.80 | |
| O-ring | ||||
| 51 | 328880 | 4.80 | 5.81 | |
| Piston Pin | ||||
| 52 | 338228 | 4.35 | 5.26 | |
| Piston | ||||
| 53 | 328877 | 7.05 | 8.53 | |
| Connecting Rod | ||||
| 54 | 328878 | 7.05 | 8.53 | |
| Bearing Washer | ||||
| 55 | 944954 | 1.05 | 1.27 | |
| Ball Bearing 6201vv | ||||
| 56 | 6201VV | 6.45 | 7.80 | |
| Hex. Hd. Tapping Screw D5x60 | ||||
| 57 | 961501 | 1.04 | 1.26 | |
| Stator Sensor Pcb Set 100v-120v | ||||
| 58 | 340947 | 44.28 | 53.57 | |
| Stator Sensor Pcb Set 220v-240v | ||||
| 58 | 340899 | 41.39 | 50.08 | |
| Housing | ||||
| 59 | 338168 | 22.96 | 27.78 | |
| Packing (b) | ||||
| 60 | 339065 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt (w/flange) M5x14 | ||||
| 61 | 998485 | 1.05 | 1.27 | |
| Dust Seal | ||||
| 62 | 333225 | 1.05 | 1.27 | |
| Tail Cover | ||||
| 63 | 338170 | 2.40 | 2.90 | |
| Ball Bearing 6202dd | ||||
| 64 | 6202DD | 6.75 | 8.17 | |
| Washer | ||||
| 65 | 980700 | 1.04 | 1.26 | |
| Rotor | ||||
| 66 | 360992 | 149.19 | 180.52 | |
| Controller Ass'y 220v-240v Includ.68-71 | ||||
| 67 | 370387 | 111.24 | 134.60 | |
| Controller Ass'y 110v-120v Includ.68-71 | ||||
| 67 | 370386 | 111.24 | 134.60 | |
| Case Packing | ||||
| 68 | 370655 | 1.04 | 1.26 | |
| Rubber Sheet (c) | ||||
| 69 | 339056 | 2.25 | 2.72 | |
| Rubber Sheet (a) | ||||
| 70 | 339055 | 1.04 | 1.26 | |
| Rubber Sheet (d) | ||||
| 71 | 339057 | 1.65 | 2.00 | |
| Panel Ass'y Includ.68,70 | ||||
| 72 | 370656 | 15.40 | 18.63 | |
| Seal Lock Hd. Allen bolt M5x12 | ||||
| 73 | 991690 | 1.05 | 1.27 | |
| Spacer bushing | ||||
| 74 | 991711 | 1.05 | 1.27 | |
| Handle (a).(b) Ass'y Includ.76 | ||||
| 75 | 370394 | 13.95 | 16.88 | |
| Pin D3x20 (10 Pcs.) | ||||
| 76 | 949890 | 1.80 | 2.18 | |
| Filter Packing | ||||
| 77 | 339058 | 1.20 | 1.45 | |
| Filter Pcb Ass'y 100v-127v Includ.77 | ||||
| 78 | 338180 | 12.45 | 15.06 | |
| Filter Pcb Ass'y 220v-240v Includ.77 | ||||
| 78 | 338181 | 12.45 | 15.06 | |
| Holder | ||||
| 79 | 310123 | 11.85 | 14.34 | |
| Handle Damper | ||||
| 80 | 310124 | 4.20 | 5.08 | |
| Handle Damper Holder | ||||
| 81 | 338162 | 1.04 | 1.26 | |
| Bellows | ||||
| 82 | 338176 | 4.80 | 5.81 | |
| Trigger (1) | ||||
| 83 | 370254 | 2.10 | 2.54 | |
| Switch | ||||
| 84 | 337587 | 13.95 | 16.88 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 85 | 307028 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 86 | 958308Z | |||
| Cord Armor D10.7 | ||||
| 87 | 940778 | 2.10 | 2.54 | |
| Cord Armor D11.2 | ||||
| 87 | 331335 | 1.20 | 1.45 | |
| Cord Clip | ||||
| 88 | 960266 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 89 | 984750 | |||
| No longer available, no replacement | ||||
| 90 | 337366 | |||
| Handle Shaft | ||||
| 91 | 338175 | 1.04 | 1.26 | |
| Back Cover | ||||
| 92 | 338197 | 7.35 | 8.89 | |
| Hex. Socket Hd. Bolt (w/flange) M5x16 | ||||
| 93 | 994192 | 1.04 | 1.26 | |
| Crank Cover | ||||
| 95 | 370390 | 6.90 | 8.35 | |
| Crank Cover | ||||
| 95B | 370390 | 6.90 | 8.35 | |
| Hex. Socket Hd. Bolt (w/flange) M5x18 | ||||
| 96 | 338177 | 1.04 | 1.26 | |
| Change Lever | ||||
| 97 | 370383 | 2.55 | 3.09 | |
| Lever Spring | ||||
| 98 | 337567 | 1.04 | 1.26 | |
| Steel Ball D4.76 (10 pieces) | ||||
| 99 | 959149 | 1.04 | 1.26 | |
| O-ring (s-18) | ||||
| 100 | 878885 | 1.05 | 1.27 | |
| Lever Holder | ||||
| 101 | 370382 | 13.65 | 16.52 | |
| Retaining Ring D20 (10 Pcs.) | ||||
| 102 | 939547 | 3.90 | 4.72 | |
| O-ring (a) | ||||
| 103 | 338160 | 1.05 | 1.27 | |
| Change Plate | ||||
| 104 | 338234 | 1.05 | 1.27 | |
| Spring Washer D12 (10 pieces) | ||||
| 105 | 939542 | 1.50 | 1.82 | |
| Crank Shaft | ||||
| 106 | 338224 | 26.68 | 32.28 | |
| Feather Key 3x3x25 | ||||
| 107 | 328869 | 1.65 | 2.00 | |
| Retaining Ring For D47 Hole | ||||
| 108 | 948227 | 1.35 | 1.63 | |
| Ball Bearing 6204dd | ||||
| 109 | 6204DD | 9.00 | 10.89 | |
| O-ring (f) | ||||
| 110 | 338227 | 1.05 | 1.27 | |
| Cylinder O-ring (b) | ||||
| 111 | 878713 | 2.10 | 2.54 | |
| Ring | ||||
| 112 | 338191 | 1.04 | 1.26 | |
| WEIGHT | ||||
| 113 | 370653 | 24.42 | 29.55 | |
| Weight Pin | ||||
| 114 | 338192 | 3.90 | 4.72 | |
| Seal Lock Hex. Socket Hd. Bolt M5x30 | ||||
| 115 | 306061 | 1.05 | 1.27 | |
| Leaf Spring | ||||
| 116 | 370389 | 7.20 | 8.71 | |
| Spring Holder | ||||
| 117 | 328906 | 6.45 | 7.80 | |
| Base Plate | ||||
| 118 | 338190 | 10.35 | 12.52 | |
| Weight Bumper | ||||
| 119 | 338194 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Hd. Bolt M5x16 | ||||
| 120 | 990079 | 1.05 | 1.27 | |
| Crank Case | ||||
| 121 | 370380 | 48.26 | 58.40 | |
| Seal Lock Hex. Socket Hd. Bolt M6x45 | ||||
| 122 | 986940 | 1.05 | 1.27 | |
| Oil Seal | ||||
| 123 | 328867 | 4.80 | 5.81 | |
| First Gear | ||||
| 124 | 338225 | 31.08 | 37.60 | |
| Ball Bearing 629vv | ||||
| 125 | 629VVM | 5.85 | 7.08 | |
| Seal Lock Hex. Socket Hd. Bolt M6x22 | ||||
| 126 | 321313 | 1.65 | 2.00 | |
| Seal Packing | ||||
| 127 | 370388 | 1.20 | 1.45 | |
| Gear Cover | ||||
| 128 | 370381 | 26.26 | 31.78 | |
| No information available, not orderable | ||||
| 501 | 313471 | |||
| No information available, not orderable | ||||
| 502 | 370395 | |||
| Clamp | ||||
| 503 | 372113 | 1.80 | 2.18 | |
| Grease (a) For Hammer.hammer Drill (30g) | ||||
| 601 | 981840 | 8.40 | 10.16 | |
| Grease For Hammer.hammer Drill (70g) | ||||
| 602 | 308471 | 12.75 | 15.43 | |
| Grease For Hammer.hammer Drill (500g) | ||||
| 603 | 980927 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 604 | 313472 | |||
| No information available, not orderable | ||||
| 605 | 313473 | |||
| No information available, not orderable | ||||
| 606 | 313474 | |||
| No information available, not orderable | ||||
| 607 | 313475 | |||
| No information available, not orderable | ||||
| 608 | 313476 | |||
| No information available, not orderable | ||||
| 609 | 313477 | |||
| No information available, not orderable | ||||
| 610 | 313478 | |||
| No information available, not orderable | ||||
| 611 | 313479 | |||
