Here you will find all available parts and drawings of the 'Hikoki H60ME'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

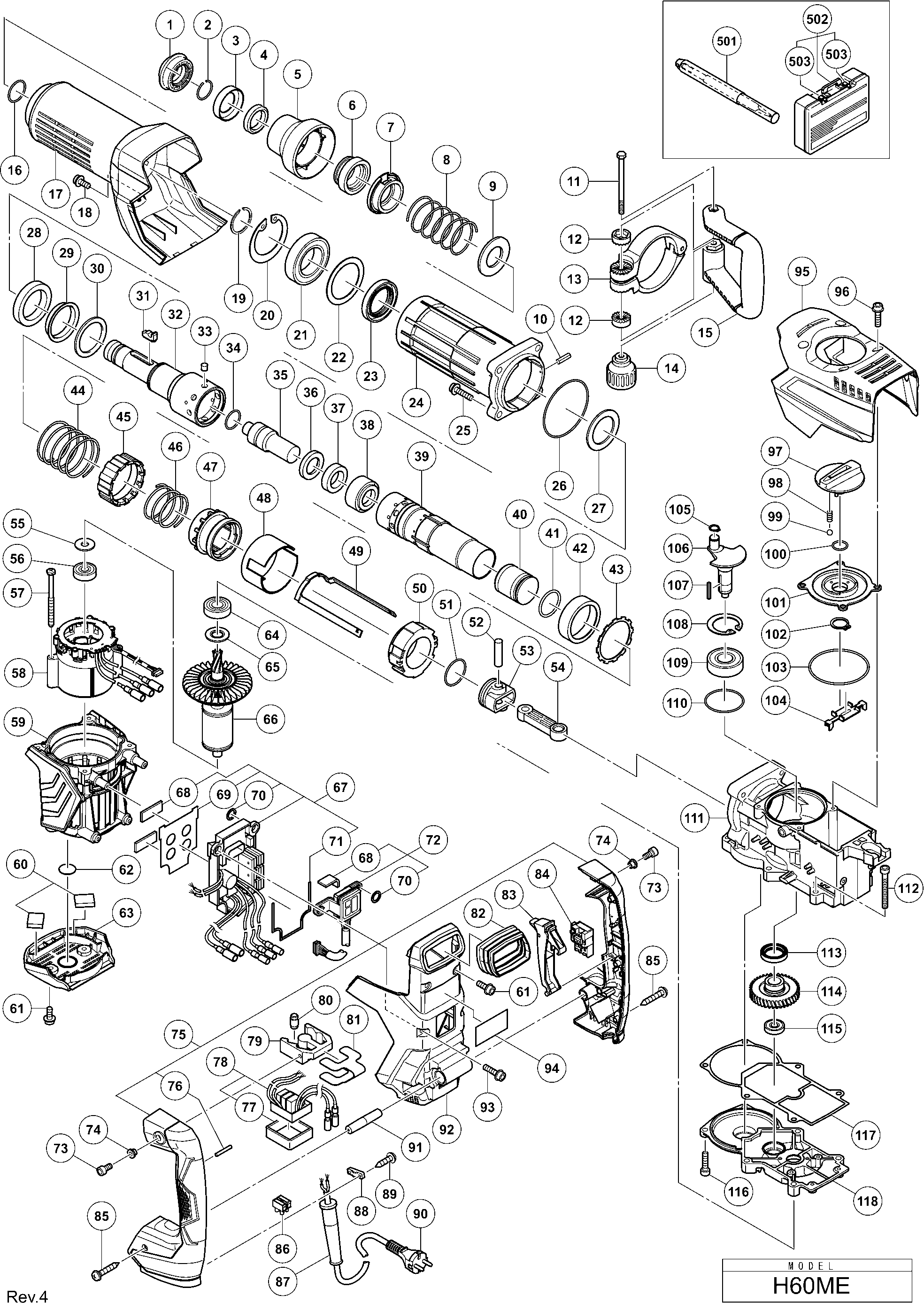

Technical drawing of model Hikoki H60ME

Spare parts list of model Hikoki H60ME

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Front Cap
1 337562 2.85 3.45
Spring retaining ring
2 318590 1.65 2.00
Retainer Washer
3 338155 4.80 5.81
Retainer Damper (a)
4 339053 9.75 11.80
Grip
5 338154 1.80 2.18
Bit Lock Holder
6 370669 9.15 11.07
Thrust Plate
7 370668 11.85 14.34
Retainer Spring
8 339052 1.95 2.36
Spring Holder (a)
9 337557 1.20 1.45
Roll Pin D2X10 (10 pieces)
10 949860 1.05 1.27
Bolt M8
11 333228 4.35 5.26
Handle Holder (b)
12 333202 1.05 1.27
Handle Holder
13 370393 14.44 17.47
Grip
14 333201 1.95 2.36
Side Handle
15 333199 7.80 9.44
O-RING (S-26)
16 872470 1.65 2.00
Cylinder Case Cover
17 338198 14.25 17.24
Hex. Socket Hd. Bolt (w/flange) M5x12
18 998471 1.05 1.27
Retaining Ring D40
19 318582 5.10 6.17
Retaining Ring D68
20 338200 4.95 5.99
Ball Bearing 6008ddu
21 339063 14.93 18.06
Bearing Ring
22 338201 1.35 1.63
Oil Seal
23 318588 6.45 7.80
Cylinder Case
24 338199 21.45 25.95
Hex. Socket Hd. Bolt (w/flange) M8x35
25 990083 1.05 1.27
O-ring (c)
26 338222 1.05 1.27
Retainer Damper Holder
27 338204 5.55 6.72
Retainer Damper (b)
28 338203 4.20 5.08
Damper Sleeve
29 339064 1.05 1.27
Retainer Damper Washer
30 338202 5.40 6.53
Bit Lock
31 370654 4.95 5.99
Retainer Sleeve
32 338205 45.10 54.57
Needle Pin D8
33 338210 1.95 2.36
O-ring
34 986104 1.05 1.27
Second Hammer
35 370657 19.66 23.79
Damper Washer
36 370659 7.95 9.62
Damper
37 328887 3.30 3.99
Damper Holder
38 370658 2.85 3.45
Cylinder
39 338209 44.69 54.07
Striker
40 370391 17.05 20.63
O-ring
41 328880 4.80 5.81
Spring Holder (b)
42 338211 15.54 18.80
Lock Spring Washer
43 338216 1.20 1.45
Lock Spring
44 338217 1.50 1.82
Lock Sleeve
45 338215 1.20 1.45
Clutch Spring
46 338212 1.50 1.82
Clutch
47 370392 41.66 50.41
Sleeve
48 338218 1.04 1.26
Slider (1)
49 338235 3.45 4.17
Metal (a)
50 370384 16.36 19.80
O-ring
51 328880 4.80 5.81
Piston Pin
52 338228 4.35 5.26
Piston
53 328877 7.05 8.53
Connecting Rod
54 328878 7.05 8.53
Bearing Washer
55 944954 1.05 1.27
Ball Bearing 6201vv
56 6201VV 6.45 7.80
Hex. Hd. Tapping Screw D5x60
57 961501 1.04 1.26
Stator Sensor Pcb Set 100v-120v
58 340947 44.28 53.57
Stator Sensor Pcb Set 220v-240v
58 340899 41.39 50.08
Housing
59 338168 22.96 27.78
Packing (b)
60 339065 1.04 1.26
Hex. Socket Hd. Bolt (w/flange) M5x14
61 998485 1.05 1.27
Dust Seal
62 333225 1.05 1.27
Tail Cover
63 338170 2.40 2.90
Ball Bearing 6202dd
64 6202DD 6.75 8.17
Washer
65 980700 1.04 1.26
Rotor
66 360992 149.19 180.52
Controller Ass'y 110v-120v Includ.68-71
67 370386 111.24 134.60
Controller Ass'y 220v-240v Includ.68-71
67 370387 111.24 134.60
Case Packing
68 370655 1.04 1.26
Rubber Sheet (c)
69 339056 2.25 2.72
Rubber Sheet (a)
70 339055 1.04 1.26
Rubber Sheet (d)
71 339057 1.65 2.00
Panel Ass'y Includ.68,70
72 370656 15.40 18.63
Seal Lock Hd. Allen bolt M5x12
73 991690 1.05 1.27
Spacer bushing
74 991711 1.05 1.27
Handle (a).(b) Ass'y Includ.76
75 370394 13.95 16.88
Pin D3x20 (10 Pcs.)
76 949890 1.80 2.18
Filter Packing
77 339058 1.20 1.45
Filter Pcb Ass'y 100v-127v Includ.77
78 338180 12.45 15.06
Filter Pcb Ass'y 220v-240v Includ.77
78 338181 12.45 15.06
Holder
79 310123 11.85 14.34
Handle Damper
80 310124 4.20 5.08
Handle Damper Holder
81 338162 1.04 1.26
Bellows
82 338176 4.80 5.81
Trigger (1)
83 370254 2.10 2.54
Switch
84 337587 13.95 16.88
Tapping Screw (w/flange) D4x25 (black)
85 307028 1.05 1.27
Pillar Terminal (a)
86 958308Z 5.55 6.72
Cord Armor D10.7
87 940778 2.10 2.54
Cord Armor D11.2
87 331335 1.20 1.45
Cord Clip
88 960266 1.04 1.26
No information available, not orderable
89 984750
No information available, not orderable
90 500469Z
Handle Shaft
91 338175 1.04 1.26
Back Cover
92 338164 7.35 8.89
Hex. Socket Hd. Bolt (w/flange) M5x16
93 994192 1.04 1.26
Crank Cover
95 370390 6.90 8.35
Hex. Socket Hd. Bolt (w/flange) M5x18
96 338177 1.04 1.26
Change Lever
97 370383 2.55 3.09
Lever Spring
98 337567 1.04 1.26
Steel Ball D4.76 (10 pieces)
99 959149 1.04 1.26
O-ring (s-18)
100 878885 1.05 1.27
Lever Holder
101 370382 13.65 16.52
Retaining Ring D20 (10 Pcs.)
102 939547 3.90 4.72
O-ring (a)
103 338160 1.05 1.27
Change Plate
104 338234 1.05 1.27
Spring Washer D12 (10 pieces)
105 939542 1.50 1.82
Crank Shaft
106 338224 26.68 32.28
Feather Key 3x3x25
107 328869 1.65 2.00
Retaining Ring For D47 Hole
108 948227 1.35 1.63
Ball Bearing 6204dd
109 6204DD 9.00 10.89
O-ring (f)
110 338227 1.05 1.27
Crank Case
111 370380 48.26 58.40
Seal Lock Hex. Socket Hd. Bolt M6x45
112 986940 1.05 1.27
Oil Seal
113 328867 4.80 5.81
First Gear
114 338225 31.08 37.60
Ball Bearing 629vv
115 629VVM 5.85 7.08
Seal Lock Hex. Socket Hd. Bolt M6x22
116 321313 1.65 2.00
Seal Packing
117 370388 1.20 1.45
Gear Cover
118 370381 26.26 31.78
No information available, not orderable
501 313472
No information available, not orderable
502 370395
Clamp
503 372113 1.80 2.18
Grease (a) For Hammer.hammer Drill (30g)
601 981840 8.40 10.16
Grease For Hammer.hammer Drill (70g)
602 308471 12.75 15.43
Grease For Hammer.hammer Drill (500g)
603 980927 73.01 88.35
No information available, not orderable
604 313471
No information available, not orderable
605 313472
No information available, not orderable
606 313473
No information available, not orderable
607 313474
No information available, not orderable
608 313475
No information available, not orderable
609 313476
No information available, not orderable
610 313477
No information available, not orderable
611 313478
No information available, not orderable
612 313479
