Here you will find all available parts and drawings of the 'Hikoki H60MC'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

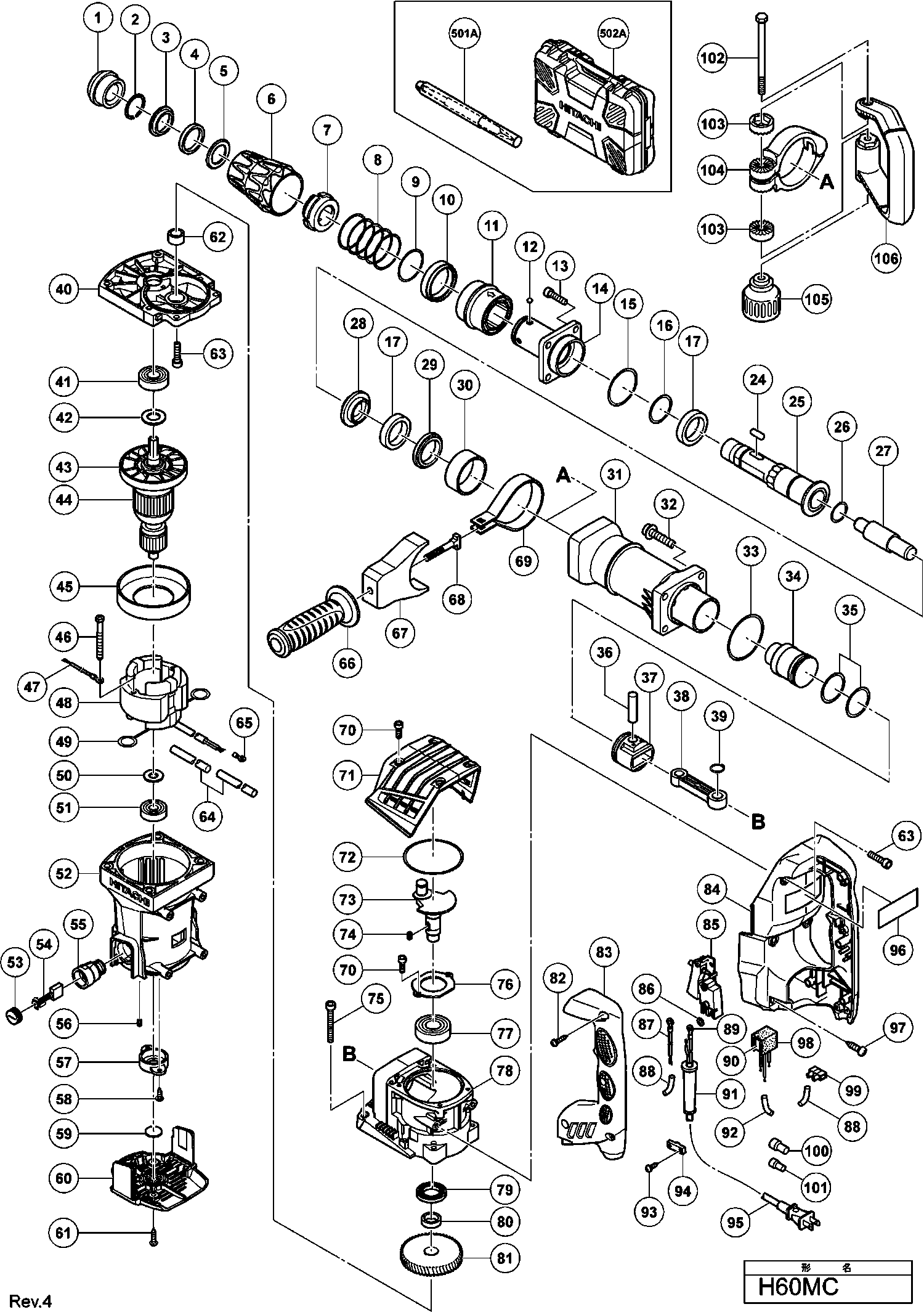

Technical drawing of model Hikoki H60MC
Spare parts list of model Hikoki H60MC
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Armature 230v | ||||
| *44 | 360899E | 115.78 | 140.09 | |
| No information available, not orderable | ||||
| *48 | 340780J | |||
| Carbon Brush (auto Stop Type) (1 Pair) For Sin,ma | ||||
| *54 | 999074 | 14.40 | 17.42 | |
| Carbon Brush (1 Pair) | ||||
| *54 | 999044 | 4.50 | 5.44 | |
| Vinyl Tube (i.d.9.5xt0.56x85) | ||||
| *64 | 326541 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| *83 | 378378 | |||
| No information available, not orderable | ||||
| *84 | 378377 | |||
| Terminal M4.0 (10 Pcs.) | ||||
| *89 | 930804 | 3.00 | 3.63 | |
| Cord Armor D10.1 | ||||
| *91 | 938051 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| *95 | 500487Z | |||
| Front Cap | ||||
| 1 | 333211 | 3.90 | 4.72 | |
| Retaining Ring D28 | ||||
| 2 | 320846 | 1.65 | 2.00 | |
| Damper Holder | ||||
| 3 | 333685 | 9.90 | 11.98 | |
| Damper (a) | ||||
| 4 | 330175 | 3.75 | 4.54 | |
| Damper Holder (b) | ||||
| 5 | 333686 | 7.35 | 8.89 | |
| Grip (a) | ||||
| 6 | 333192 | 3.90 | 4.72 | |
| Needle Holder | ||||
| 7 | 320804 | 27.78 | 33.61 | |
| Spring | ||||
| 8 | 333221 | 1.95 | 2.36 | |
| Spring retaining ring | ||||
| 9 | 333255 | 1.04 | 1.26 | |
| Ball Holder | ||||
| 10 | 333687 | 9.45 | 11.43 | |
| Grip (b) | ||||
| 11 | 333197 | 1.95 | 2.36 | |
| Steel Ball D6.35 (10 pieces) | ||||
| 12 | 959150 | 1.35 | 1.63 | |
| Seal Lock Hex. Socket Hd. Bolt M8x25 | ||||
| 13 | 985479 | 2.55 | 3.09 | |
| Front Cap | ||||
| 14 | 333195 | 51.01 | 61.73 | |
| O-RING (S-56) | ||||
| 15 | 317119 | 1.65 | 2.00 | |
| O-ring (s-32) | ||||
| 16 | 872767 | 1.65 | 2.00 | |
| Damper | ||||
| 17 | 333217 | 3.00 | 3.63 | |
| Needle Roller D8x20 | ||||
| 24 | 331536 | 1.88 | 2.27 | |
| Retainer Sleeve | ||||
| 25 | 333191 | 58.03 | 70.21 | |
| O-RING (S-26) | ||||
| 26 | 872470 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 27 | 333206 | |||
| No information available, not orderable | ||||
| 27A | 378376 | |||
| Hammer Holder | ||||
| 28 | 333216 | 11.55 | 13.98 | |
| Damper | ||||
| 29 | 333218 | 3.90 | 4.72 | |
| Socket | ||||
| 30 | 333219 | 10.65 | 12.89 | |
| Cylinder Case | ||||
| 31 | 333209 | 77.28 | 93.50 | |
| Hex. Socket Hd. Bolt (w/flange) M8x35 | ||||
| 32 | 990083 | 1.05 | 1.27 | |
| O-ring (1as-60) Since 9.1979 | ||||
| 33 | 956996 | 3.00 | 3.63 | |
| Striker | ||||
| 34 | 333205 | 14.40 | 17.42 | |
| O-ring (a) (fpm810) | ||||
| 35 | 985454 | 7.95 | 9.62 | |
| Piston Pin | ||||
| 36 | 301509 | 5.25 | 6.35 | |
| Piston | ||||
| 37 | 317084 | 14.10 | 17.06 | |
| Connecting Rod | ||||
| 38 | 317082 | 9.30 | 11.25 | |
| Spring Washer D14 (10 Pieces) | ||||
| 39 | 939543 | 2.55 | 3.09 | |
| Gear Cover | ||||
| 40 | 333229 | 36.99 | 44.75 | |
| Ball Bearing 6203ddcmps2l | ||||
| 41 | 6203DD | 7.65 | 9.26 | |
| Bearing Ring | ||||
| 42 | 333222 | 1.05 | 1.27 | |
| Fan | ||||
| 43 | 333196 | 6.75 | 8.17 | |
| Armature 230v | ||||
| 44 | 360899E | 115.78 | 140.09 | |
| ANKER 110 VOLT | ||||
| 44 | 360899C | 108.13 | 130.84 | |
| Fan Guide | ||||
| 45 | 333210 | 3.00 | 3.63 | |
| Hex. Hd. Tapping Screw D5x50 | ||||
| 46 | 953121 | 1.04 | 1.26 | |
| Internal Wiring 235l | ||||
| 47 | 324122 | 1.50 | 1.82 | |
| Stator 220v-230v | ||||
| 48 | 340790E | 86.08 | 104.15 | |
| VELD 110 VOLT | ||||
| 48 | 340780C | 44.33 | 53.64 | |
| Brush Terminal | ||||
| 49 | 945932 | 1.05 | 1.27 | |
| Bearing Washer | ||||
| 50 | 944954 | 1.05 | 1.27 | |
| Ball Bearing 6201ddcmps2l | ||||
| 51 | 6201DD | 6.30 | 7.62 | |
| Housing | ||||
| 52 | 333213 | 31.63 | 38.27 | |
| Housing | ||||
| 52A | 333213 | 31.63 | 38.27 | |
| Brush Cap | ||||
| 53 | 940540 | 1.04 | 1.26 | |
| Carbon Brush (auto Stop Type) (1 Pair) For Sin,ma | ||||
| 54 | 999074 | 14.40 | 17.42 | |
| Carbon Brush (1 Pair) | ||||
| 54 | 999044 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 55 | 980487 | 5.68 | 6.87 | |
| Hex Adjustment Screw M5x8 | ||||
| 56 | 938477 | 1.05 | 1.27 | |
| Bearing Holder | ||||
| 57 | 328918 | 9.30 | 11.25 | |
| No information available, not orderable | ||||
| 58 | 984750 | |||
| Dust Seal | ||||
| 59 | 333225 | 1.05 | 1.27 | |
| Tail Cover | ||||
| 60 | 333193 | 3.90 | 4.72 | |
| Tapping Screw (w/flange) D5x20 (black) | ||||
| 61 | 302089 | 1.05 | 1.27 | |
| Needle Bearing (a) (bk1512) | ||||
| 62 | 985442 | 7.65 | 9.26 | |
| Seal Lock Hex. Socket Hd. Bolt M6x25 For Kor | ||||
| 63 | 987707 | 1.05 | 1.27 | |
| Vinyl Tube (i.d.9.5xt0.56x85) | ||||
| 64 | 326541 | 1.65 | 2.00 | |
| Terminal M4.0 (10 Pcs.) | ||||
| 65 | 930804 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 66 | 330209 | |||
| Mount | ||||
| 67 | 333198 | 5.25 | 6.35 | |
| Handle Bolt Except For Esp,ind,ina | ||||
| 68 | 333227 | 13.58 | 16.43 | |
| Band | ||||
| 69 | 333226 | 6.00 | 7.26 | |
| Seal Lock Hex. Socket Hd. Bolt M5x16 | ||||
| 70 | 990079 | 1.05 | 1.27 | |
| Crank Cover | ||||
| 71 | 333194 | 7.80 | 9.44 | |
| O-ring (i.d 74.5) | ||||
| 72 | 326257 | 3.30 | 3.99 | |
| Crank Shaft | ||||
| 73 | 333204 | 29.84 | 36.10 | |
| Feather Key 3x3x10 | ||||
| 74 | 940533 | 1.20 | 1.45 | |
| Seal Lock Hex. Socket Hd. Bolt M6x50 | ||||
| 75 | 986491 | 1.04 | 1.26 | |
| Bearing Cover | ||||
| 76 | 333220 | 3.00 | 3.63 | |
| Ball Bearing 6204dd | ||||
| 77 | 6204DD | 9.00 | 10.89 | |
| Crank Case | ||||
| 78 | 333186 | 47.44 | 57.40 | |
| Oil Seal | ||||
| 79 | 995403 | 2.40 | 2.90 | |
| Distance Ring (c) | ||||
| 80 | 995402 | 10.20 | 12.34 | |
| First Gear | ||||
| 81 | 333207 | 14.10 | 17.06 | |
| Tapping Screw (w/flange) D4x30 (black) | ||||
| 82 | 305490 | 1.04 | 1.26 | |
| Handle Cover | ||||
| 83 | 333189 | 5.25 | 6.35 | |
| Handle | ||||
| 84 | 333187 | 14.44 | 17.47 | |
| Switch (b) (1p Screw Type) With Lock | ||||
| 85 | 306143 | 17.05 | 20.63 | |
| Washer M4 (10 Pcs.) | ||||
| 86 | 949423 | 1.05 | 1.27 | |
| Internal wire | ||||
| 87 | 981974 | 1.65 | 2.00 | |
| Terminal M4.0 (10 Pcs.) | ||||
| 89 | 930804 | 3.00 | 3.63 | |
| connecting terminal | ||||
| 89 | 980063 | 1.04 | 1.26 | |
| Capacitor | ||||
| 90 | 325566 | 9.00 | 10.89 | |
| Cord Armor D10.1 | ||||
| 91 | 938051 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 93 | 984750 | |||
| Cord Clip | ||||
| 94 | 960266 | 1.04 | 1.26 | |
| Cord (cord Armor D8.2) For Sin,mal | ||||
| 95 | 500440Z | 20.49 | 24.79 | |
| Tapping Screw D6x30 | ||||
| 97 | 333364 | 1.05 | 1.27 | |
| Support (b) For Tpe,aus,saf,yem,europe | ||||
| 98 | 317492 | 1.65 | 2.00 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 99 | 938307 | 2.13 | 2.57 | |
| Connector 50092 (10 Pcs.) | ||||
| 100 | 959141 | 3.75 | 4.54 | |
| Connector 50091 (10 Pcs.) | ||||
| 101 | 959140 | 3.30 | 3.99 | |
| Bolt M8 | ||||
| 102 | 333228 | 4.35 | 5.26 | |
| Handle Holder (b) | ||||
| 103 | 333202 | 1.05 | 1.27 | |
| Handle Holder For Esp,ind,ina | ||||
| 104 | 334578 | 14.16 | 17.14 | |
| Grip | ||||
| 105 | 333201 | 1.95 | 2.36 | |
| Side Handle | ||||
| 106 | 333199 | 7.80 | 9.44 | |
| No information available, not orderable | ||||
| 108 | 378657 | |||
| PACKING (A) NEW | ||||
| 109 | 378701 | 1.00 | 1.21 | |
| RUBBER CUSHION NEW | ||||
| 110 | 378697 | 2.04 | 2.47 | |
| DOUBLE FACED TAPE NEW | ||||
| 111 | 378698 | 1.00 | 1.21 | |
| TAPE NEW | ||||
| 112 | 378702 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 501A | 313472 | |||
| No information available, not orderable | ||||
| 502A | 333190 | |||
| Latch Set (2 pcs) | ||||
| 503 | 375043 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 601 | 333214 | |||
| Side Handle Ass'y Includ.102-106 | ||||
| 602 | 334579 | 32.86 | 39.76 | |
| Grease (a) For Hammer.hammer Drill (30g) | ||||
| 603 | 981840 | 8.40 | 10.16 | |
| Grease For Hammer.hammer Drill (70g) | ||||
| 604 | 308471 | 12.75 | 15.43 | |
| Grease For Hammer.hammer Drill (500g) | ||||
| 605 | 980927 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 606 | 313471 | |||
| No information available, not orderable | ||||
| 607 | 313472 | |||
| No information available, not orderable | ||||
| 608 | 313473 | |||
| No information available, not orderable | ||||
| 609 | 313474 | |||
| No information available, not orderable | ||||
| 610 | 313475 | |||
| No information available, not orderable | ||||
| 611 | 313476 | |||
| No information available, not orderable | ||||
| 612 | 313477 | |||
| No information available, not orderable | ||||
| 613 | 313478 | |||
| No information available, not orderable | ||||
| 614 | 313479 | |||
