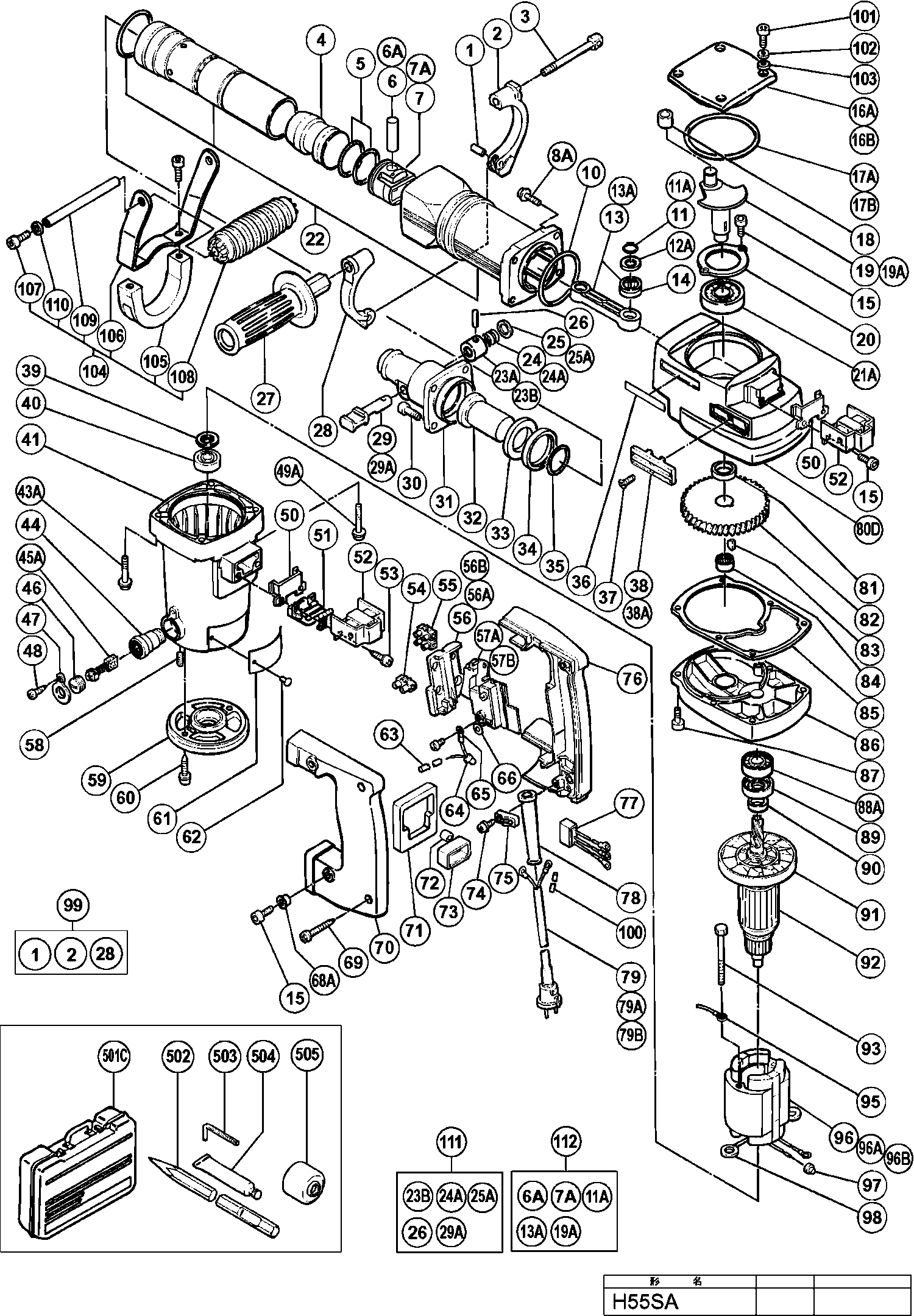

Technical drawing of model Hikoki H55SA
Spare parts list of model Hikoki H55SA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| ROLL PIN D6X25 (10 PIECES) | ||||
| 1 | 949747 | 4.50 | 5.44 | |
| Handgreephouder | ||||
| 2 | 985475 | 10.95 | 13.25 | |
| No information available, not orderable | ||||
| 3 | 985465 | |||
| Striker | ||||
| 4 | 985455 | 29.29 | 35.44 | |
| O-ring (a) (fpm810) | ||||
| 5 | 985454 | 7.95 | 9.62 | |
| Pin | ||||
| 6 | 985451 | 3.60 | 4.36 | |
| Piston Pin | ||||
| 6A | 301509 | 5.25 | 6.35 | |
| Piston | ||||
| 7 | 985452 | 23.38 | 28.28 | |
| Piston | ||||
| 7A | 317084 | 14.10 | 17.06 | |
| Hex. Socket Hd. Bolt (w/flange) M8x35 | ||||
| 8A | 990083 | 1.05 | 1.27 | |
| O-ring (1as-60) Since 9.1979 | ||||
| 10 | 956996 | 3.00 | 3.63 | |
| Spring Washer D12 (10 pieces) | ||||
| 11 | 939542 | 1.50 | 1.82 | |
| Spring Washer D14 (10 Pieces) | ||||
| 11A | 939543 | 2.55 | 3.09 | |
| Washer | ||||
| 12A | 985453 | 1.65 | 2.00 | |
| Connecting Rod | ||||
| 13 | 985450 | 61.33 | 74.20 | |
| Connecting Rod | ||||
| 13A | 317082 | 9.30 | 11.25 | |
| Needle Bearing (b) (rna4901v1) Till 3.2002 | ||||
| 14 | 985470 | 23.65 | 28.62 | |
| Hex. Socket Hd. Bolt M5x14 (10 Pcs.) | ||||
| 15 | 949665 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 16A | 985449 | |||
| Crank Cover | ||||
| 16B | 986957 | 35.06 | 42.43 | |
| O-ring (b) (s-80) Till 3.1984 | ||||
| 17A | 985448 | 2.40 | 2.90 | |
| O-ring (s-90) | ||||
| 17B | 877316 | 2.55 | 3.09 | |
| Inner Race Till 3.2002 | ||||
| 18 | 985467 | 11.85 | 14.34 | |
| Crank Shaft | ||||
| 19 | 985444 | 58.44 | 70.71 | |
| Crank Shaft | ||||
| 19A | 319502 | 64.21 | 77.70 | |
| Bearing Cover (1) | ||||
| 20 | 985443 | 4.50 | 5.44 | |
| Ball Bearing 6204dd | ||||
| 21A | 6204DD | 9.00 | 10.89 | |
| Cylinder Case | ||||
| 22 | 986941 | 349.94 | 423.42 | |
| Spring Holder | ||||
| 23A | 985466 | 8.70 | 10.53 | |
| Spring Case | ||||
| 23B | 993241 | 18.70 | 22.63 | |
| Stopper Spring Till 3.1995 | ||||
| 24 | 981937 | 1.05 | 1.27 | |
| Spring | ||||
| 24A | 302096 | 3.00 | 3.63 | |
| Stopper Washer Till 3.1995 | ||||
| 25 | 985463 | 5.25 | 6.35 | |
| Stopper Sleeve | ||||
| 25A | 993243 | 7.95 | 9.62 | |
| Needle Roller D4x20 Till 10.1987 (till 9.1987 For | ||||
| 26 | 943364 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 27 | 985477 | |||
| Handgreephouder | ||||
| 28 | 985476 | 10.20 | 12.34 | |
| Stop Lever Till 3.1995 | ||||
| 29 | 985462 | 40.84 | 49.41 | |
| Stop Lever | ||||
| 29A | 302095 | 40.84 | 49.41 | |
| Seal Lock Hex. Socket Hd. Bolt M8x25 | ||||
| 30 | 985479 | 2.55 | 3.09 | |
| Front Cover | ||||
| 31 | 986945 | 180.81 | 218.78 | |
| Second Hammer | ||||
| 32 | 986944 | 102.16 | 123.62 | |
| Damper Washer | ||||
| 33 | 986943 | 14.71 | 17.80 | |
| Damper | ||||
| 34 | 986942 | 5.85 | 7.08 | |
| O-ring (c) (fpm810) | ||||
| 35 | 986946 | 11.85 | 14.34 | |
| No information available, not orderable | ||||
| 36 | 957561 | |||
| Flat Hd. Screw M4x12 (10 Pcs.) | ||||
| 37 | 949323 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 38 | 980735 | |||
| No information available, not orderable | ||||
| 38A | 991713 | |||
| Dust Washer | ||||
| 39 | 985436 | 1.05 | 1.27 | |
| Ball Bearing 6200vvcmps2l | ||||
| 40 | 6200VV | 6.15 | 7.44 | |
| Housing | ||||
| 41 | 985435 | 107.94 | 130.60 | |
| Bolt Hd M6x40 | ||||
| 43A | 994084 | 1.05 | 1.27 | |
| Brush Holder | ||||
| 44 | 983362 | 6.45 | 7.80 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 45A | 999071 | 14.40 | 17.42 | |
| Brush Cap | ||||
| 46 | 961781 | 2.55 | 3.09 | |
| Cap Cover | ||||
| 47 | 981959 | 2.40 | 2.90 | |
| Screw | ||||
| 48 | 958715 | 1.04 | 1.26 | |
| Bolt Hd M6x60 | ||||
| 49A | 994085 | 1.65 | 2.00 | |
| Plate | ||||
| 50 | 980750 | 17.05 | 20.63 | |
| Internal Wire Holder | ||||
| 51 | 985469 | 8.70 | 10.53 | |
| Handle Rubber | ||||
| 52 | 980727 | 14.10 | 17.06 | |
| Tapping Screw (w/washer) D5x25 | ||||
| 53 | 985605 | 1.04 | 1.26 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 54 | 938307 | 2.13 | 2.57 | |
| Pillar Terminal (a) | ||||
| 55 | 958308Z | 5.55 | 6.72 | |
| SUPPORT (A) | ||||
| 56 | 981986Z | 21.45 | 25.95 | |
| Support Till 7.1988 | ||||
| 56 | 981869 | 6.30 | 7.62 | |
| No information available, not orderable | ||||
| 56B | 990082 | |||
| Switch (w/lock) | ||||
| 57A | 995398 | 26.40 | 31.94 | |
| Switch (2p Pillar Type) W/o Lock Since 12.1982 Fo | ||||
| 57A | 981533Z | 21.04 | 25.46 | |
| Switch (a) (1p Screw Type) W/o Lock | ||||
| 57B | 992891 | 22.83 | 27.62 | |
| No information available, not orderable | ||||
| 58 | 982169 | |||
| Tail Cover | ||||
| 59 | 985437 | 24.61 | 29.78 | |
| Tapping Screw (w/washer) D5x20 | ||||
| 60 | 985480 | 1.05 | 1.27 | |
| Rivet D2.5x4.8 (10 Pcs.) Three-phase | ||||
| 62 | 949510 | 1.04 | 1.26 | |
| Connector 50092 (10 Pcs.) | ||||
| 64 | 959141 | 3.75 | 4.54 | |
| No information available, not orderable | ||||
| 65 | 983276Z | |||
| Washer M4 (10 Pcs.) | ||||
| 66 | 949423 | 1.05 | 1.27 | |
| Spacer bushing | ||||
| 68A | 991711 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 69 | 956636 | |||
| Handle (b) | ||||
| 70 | 983273 | 15.26 | 18.47 | |
| Gasket | ||||
| 71 | 980751 | 1.35 | 1.63 | |
| Wire Support | ||||
| 73 | 985474 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 74 | 984750 | |||
| Cord Clip For Sui | ||||
| 75 | 981987Z | 1.05 | 1.27 | |
| Cord Clip | ||||
| 75 | 960266 | 1.04 | 1.26 | |
| Handle (a) | ||||
| 76 | 983272 | 16.64 | 20.13 | |
| Noise Suppressor | ||||
| 77 | 994273 | 4.29 | 5.19 | |
| Cord Armor D10.7 | ||||
| 78 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| 78 | 958049 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 79 | 500391Z | |||
| Cord 5m 2 X 1,5 H07rn-f (w/o plug) | ||||
| 79A | 500460Z | 37.26 | 45.09 | |
| No longer available, no replacement | ||||
| 79B | 500446Z | |||
| Crank Case Ass'y Includ.38 | ||||
| 80D | 986968 | 172.15 | 208.30 | |
| Ring | ||||
| 81 | 985445 | 2.55 | 3.09 | |
| First Gear | ||||
| 82 | 985446 | 49.64 | 60.06 | |
| KEY PIN 3X13 | ||||
| 83 | 932815 | 1.35 | 1.63 | |
| Needle Bearing (a) (bk1512) | ||||
| 84 | 985442 | 7.65 | 9.26 | |
| Gasket | ||||
| 85 | 985447 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 86 | 985440 | |||
| Hex. Socket Hd. Bolt M6x20 (10 Pcs.) | ||||
| 87 | 949660 | 3.30 | 3.99 | |
| Ball Bearing 6202vvcmps2l | ||||
| 88A | 6202VV | 7.05 | 8.53 | |
| Oil Seal | ||||
| 89 | 985439 | 10.95 | 13.25 | |
| Sleeve | ||||
| 90 | 985438 | 20.76 | 25.12 | |
| Fan | ||||
| 91 | 985482 | 7.35 | 8.89 | |
| ARMATURE 115 VOLT (OLD 985472J) | ||||
| 92 | 985472U | 180.81 | 218.78 | |
| ARMATURE 220-230 VOLT (OLD 985472G) | ||||
| 92 | 985472E | 160.46 | 194.16 | |
| Armature Ass'y 240v | ||||
| 92 | 985472F | 160.46 | 194.16 | |
| Hex. Hd. Tapping Screw D5x70 | ||||
| 93 | 961400 | 1.04 | 1.26 | |
| Internal Wire | ||||
| 95 | 986277 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 96 | 985471E | 78.79 | 95.33 | |
| Stator Ass'y 240v Includ.98 Till 3.1998 For Aus | ||||
| 96A | 985471H | 78.79 | 95.33 | |
| Fin,sui,since 4.1998 For Aus | ||||
| 96B | 985471F | 78.79 | 95.33 | |
| Connector 50091 (10 Pcs.) | ||||
| 97 | 959140 | 3.30 | 3.99 | |
| Brush Terminal | ||||
| 98 | 937623 | 1.04 | 1.26 | |
| Handgreephouder | ||||
| 99 | 985464 | 20.76 | 25.12 | |
| Seal Lock Hex. Socket Hd. Bolt M5x16 | ||||
| 101 | 990079 | 1.05 | 1.27 | |
| Spring Washer M5 (10 pieces) | ||||
| 102 | 949454 | 1.04 | 1.26 | |
| Washer M5 (10 Pcs.) | ||||
| 103 | 949424 | 1.05 | 1.27 | |
| Beugelhandgreep | ||||
| 104 | 986959 | 78.79 | 95.33 | |
| No information available, not orderable | ||||
| 105 | 986960 | |||
| Holder (b) | ||||
| 106 | 986961 | 14.70 | 17.79 | |
| Hex. Socket Hd. Bolt M8x20 (10 Pcs.) | ||||
| 107 | 949656 | 5.55 | 6.72 | |
| Grip | ||||
| 108 | 944951 | 8.40 | 10.16 | |
| Shaft | ||||
| 109 | 986962 | 14.03 | 16.97 | |
| No information available, not orderable | ||||
| 110 | 986963 | |||
| Stop Lever Ass'y Includ.23b,24a,25a,26,29a | ||||
| 111 | 310891 | 73.01 | 88.35 | |
| Crank Shaft Set Includ.3a,4a,11a,13a,19a | ||||
| 112 | 319842 | 93.36 | 112.97 | |
| No information available, not orderable | ||||
| 501C | 319783 | |||
| No information available, not orderable | ||||
| 502 | 986947 | |||
| No information available, not orderable | ||||
| 503 | 872422 | |||
| Grease (a) For Hammer.hammer Drill (30g) | ||||
| 504 | 981840 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 505 | 985468 | |||
| Grease For Hammer.hammer Drill (500g) | ||||
| 601 | 980927 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 602 | 986948 | |||
| No information available, not orderable | ||||
| 603 | 986949 | |||
| No information available, not orderable | ||||
| 604 | 986950 | |||
| No information available, not orderable | ||||
| 605 | 986951 | |||
| No information available, not orderable | ||||
| 606 | 986952 | |||
| No information available, not orderable | ||||
| 607 | 986953 | |||
| No information available, not orderable | ||||
| 608 | 986954 | |||
| No information available, not orderable | ||||
| 609 | 944457 | |||
| Service Kit (h 55sa Etc.) Includ.2,6,11,17,30,34, | ||||
| 610 | 986966 | 107.94 | 130.60 | |
