Here you will find all available parts and drawings of the 'Hikoki H50SA'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

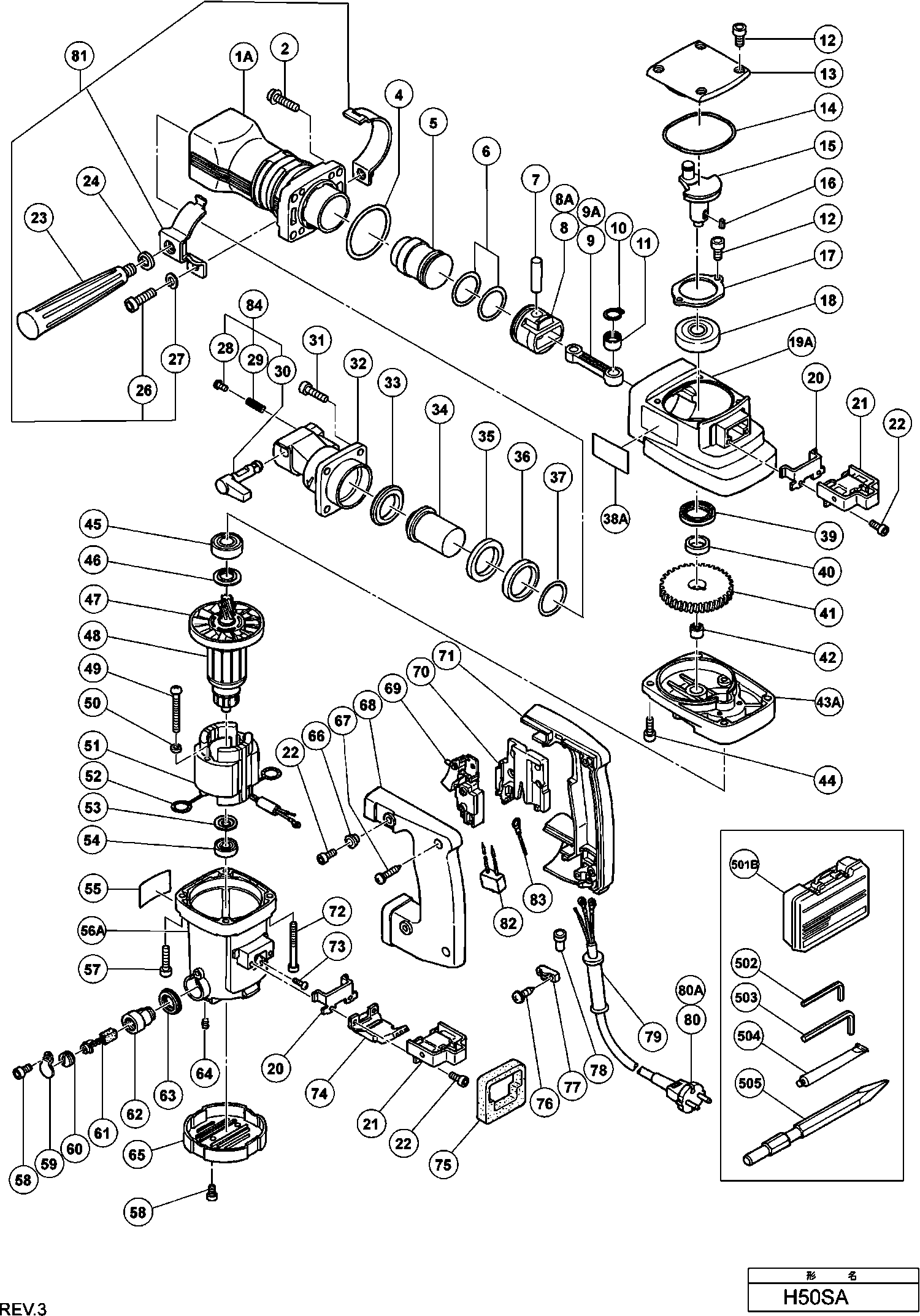

Technical drawing of model Hikoki H50SA
Spare parts list of model Hikoki H50SA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *51 | 340162F | |||
| Cord Armor D10.7 | ||||
| *79 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| *79 | 958049 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| *80 | 500449Z | |||
| No information available, not orderable | ||||
| 1A | 332153 | |||
| Hex. Socket Hd. Bolt (w/flange) M8x30 | ||||
| 2 | 995400 | 1.05 | 1.27 | |
| O-ring (1as-60) Since 9.1979 | ||||
| 4 | 956996 | 3.00 | 3.63 | |
| Striker | ||||
| 5 | 301510 | 28.60 | 34.61 | |
| O-ring (a) (fpm810) | ||||
| 6 | 985454 | 7.95 | 9.62 | |
| Piston Pin | ||||
| 7 | 301509 | 5.25 | 6.35 | |
| Piston | ||||
| 8 | 985452 | 23.38 | 28.28 | |
| Piston | ||||
| 8A | 317084 | 14.10 | 17.06 | |
| No information available, not orderable | ||||
| 9 | 301508 | |||
| No information available, not orderable | ||||
| 9A | 322020 | |||
| Spring Washer D12 (10 pieces) | ||||
| 10 | 939542 | 1.50 | 1.82 | |
| Needle Bearing (nsk Aj50 1203) | ||||
| 11 | 980756 | 10.65 | 12.89 | |
| Seal Lock Hex. Socket Hd. Bolt M5x16 | ||||
| 12 | 990079 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 13 | 301507 | |||
| O-ring (s-75) | ||||
| 14 | 301506 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 15 | 301504 | |||
| Feather Key 3x3x10 | ||||
| 16 | 940533 | 1.20 | 1.45 | |
| Bearing Cover (1) | ||||
| 17 | 985443 | 4.50 | 5.44 | |
| Ball Bearing 6204dd | ||||
| 18 | 6204DD | 9.00 | 10.89 | |
| No information available, not orderable | ||||
| 19A | 332152 | |||
| Plate | ||||
| 20 | 980750 | 17.05 | 20.63 | |
| Handle Rubber | ||||
| 21 | 980727 | 14.10 | 17.06 | |
| Seal Lock Hex. Socket Hd. Bolt M5x14 | ||||
| 22 | 984509 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 23 | 980020 | |||
| Spring Washer M12 (10 Pcs.) | ||||
| 24 | 949463 | 1.65 | 2.00 | |
| Hex. Socket Hd. Bolt M8x25 (10 Pcs.) | ||||
| 26 | 949760 | 5.55 | 6.72 | |
| Spring Washer M8 (10 Pcs.) | ||||
| 27 | 949457 | 1.05 | 1.27 | |
| Stopper Pin | ||||
| 28 | 980121 | 7.95 | 9.62 | |
| No information available, not orderable | ||||
| 29 | 301558 | |||
| Chisel latch | ||||
| 30 | 995395 | 12.65 | 15.31 | |
| Seal Lock Hex. Socket Hd. Bolt M8x25 | ||||
| 31 | 985479 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 32 | 301514 | |||
| No information available, not orderable | ||||
| 33 | 301513 | |||
| Second Hammer | ||||
| 34 | 301512 | 35.61 | 43.09 | |
| Damper Washer | ||||
| 35 | 986943 | 14.71 | 17.80 | |
| Damper | ||||
| 36 | 986942 | 5.85 | 7.08 | |
| O-ring (c) (fpm810) | ||||
| 37 | 986946 | 11.85 | 14.34 | |
| No information available, not orderable | ||||
| 38A | 301517 | |||
| Oil Seal | ||||
| 39 | 995403 | 2.40 | 2.90 | |
| Distance Ring (c) | ||||
| 40 | 995402 | 10.20 | 12.34 | |
| No information available, not orderable | ||||
| 41 | 301505 | |||
| Needle-roller Bearing | ||||
| 42 | 939299 | 10.65 | 12.89 | |
| No information available, not orderable | ||||
| 43A | 332154 | |||
| Seal Lock Hex. Socket Hd. Bolt M6x20 | ||||
| 44 | 992803 | 1.05 | 1.27 | |
| Ball Bearing 6202vvcmps2l | ||||
| 45 | 6202VV | 7.05 | 8.53 | |
| Washer | ||||
| 46 | 980700 | 1.04 | 1.26 | |
| Fan Guide | ||||
| 47 | 980740 | 6.45 | 7.80 | |
| No information available, not orderable | ||||
| 48 | 360129F | |||
| MACHINE SCREW M5X55 (10 PCS.) | ||||
| 49 | 949233 | 1.62 | 1.96 | |
| Spring Washer M5 (10 pieces) | ||||
| 50 | 949454 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 51 | 340162F | |||
| Brush Terminal | ||||
| 52 | 930703 | 2.40 | 2.90 | |
| DUST WASHER (A) | ||||
| 53 | 998550 | 1.00 | 1.21 | |
| Ball Bearing 6000vvcmps2l | ||||
| 54 | 6000VV | 6.15 | 7.44 | |
| No information available, not orderable | ||||
| 56A | 332151 | |||
| Seal Lock Hex Socket Bolt M6x30 | ||||
| 57 | 993496 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M5x10 | ||||
| 58 | 877839 | 1.05 | 1.27 | |
| Cap Cover | ||||
| 59 | 980733 | 1.05 | 1.27 | |
| Brush Cap | ||||
| 60 | 935829 | 1.05 | 1.27 | |
| Carbon Brush (1 Pair) | ||||
| 61 | 999043 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 62 | 971001 | 6.45 | 7.80 | |
| No information available, not orderable | ||||
| 63 | 956127 | |||
| Hex Adjustment Screw M5x8 | ||||
| 64 | 938477 | 1.05 | 1.27 | |
| Tail Cover | ||||
| 65 | 980732 | 2.85 | 3.45 | |
| Spacer bushing | ||||
| 66 | 991711 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 67 | 956636 | |||
| Handle (b) | ||||
| 68 | 983273 | 15.26 | 18.47 | |
| Switch (w/lock) | ||||
| 69 | 995398 | 26.40 | 31.94 | |
| No information available, not orderable | ||||
| 70 | 990082 | |||
| Handle (a) | ||||
| 71 | 983272 | 16.64 | 20.13 | |
| Seal Lock Hex. Socket Hd. Bolt M6x55 | ||||
| 72 | 301567 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 73 | 949292 | |||
| Internal Wire Holder | ||||
| 74 | 980754 | 7.65 | 9.26 | |
| Gasket | ||||
| 75 | 980751 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 76 | 984750 | |||
| Cord Clip | ||||
| 77 | 960266 | 1.04 | 1.26 | |
| Connector 50092 (10 Pcs.) | ||||
| 78 | 959141 | 3.75 | 4.54 | |
| Cord Armor D10.7 | ||||
| 79 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| 79 | 958049 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 80 | 500393Z | |||
| No information available, not orderable | ||||
| 80A | 500428Z | |||
| No information available, not orderable | ||||
| 81 | 308064 | |||
| Noise Suppressor | ||||
| 82 | 930039 | 1.95 | 2.36 | |
| Terminal 50051 (10 Pcs.) For Noise Suppressor Ass | ||||
| 83 | 959144 | 3.00 | 3.63 | |
| Stop Lever Ass'y Includ.28-30 | ||||
| 84 | 995399 | 23.38 | 28.28 | |
| No information available, not orderable | ||||
| 501B | 319782 | |||
| No information available, not orderable | ||||
| 502 | 944458 | |||
| No information available, not orderable | ||||
| 503 | 872422 | |||
| No information available, not orderable | ||||
| 504 | 955613 | |||
| Grease (a) For Hammer.hammer Drill (30g) | ||||
| 505 | 981840 | 8.40 | 10.16 | |
| Grease For Hammer.hammer Drill (500g) | ||||
| 601 | 980927 | 73.01 | 88.35 | |
| Grease (a) For Hammer.hammer Drill (30g) | ||||
| 602 | 981840 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 603 | 955614 | |||
| No information available, not orderable | ||||
| 604 | 980029 | |||
| No information available, not orderable | ||||
| 605 | 980030 | |||
| No information available, not orderable | ||||
| 606 | 980031 | |||
| No information available, not orderable | ||||
| 607 | 980032 | |||
| No information available, not orderable | ||||
| 608 | 980033 | |||
| No information available, not orderable | ||||
| 610 | 944574 | |||
| No information available, not orderable | ||||
| 611A | 318085 | |||
| No information available, not orderable | ||||
| 612 | 955623 | |||
| No information available, not orderable | ||||
| 613 | 955624 | |||
| No information available, not orderable | ||||
| 614 | 955625 | |||
| No information available, not orderable | ||||
| 615 | 955183 | |||
| No information available, not orderable | ||||
| 616 | 955181 | |||
| No information available, not orderable | ||||
| 617 | 980034 | |||
| No information available, not orderable | ||||
| 618 | 955629 | |||
| Grease For Hammer.hammer Drill (70g) | ||||
| 619 | 308471 | 12.75 | 15.43 | |
| No information available, not orderable | ||||
| 620 | 320859 | |||
