Here you will find all available parts and drawings of the 'Hikoki H45MRY'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

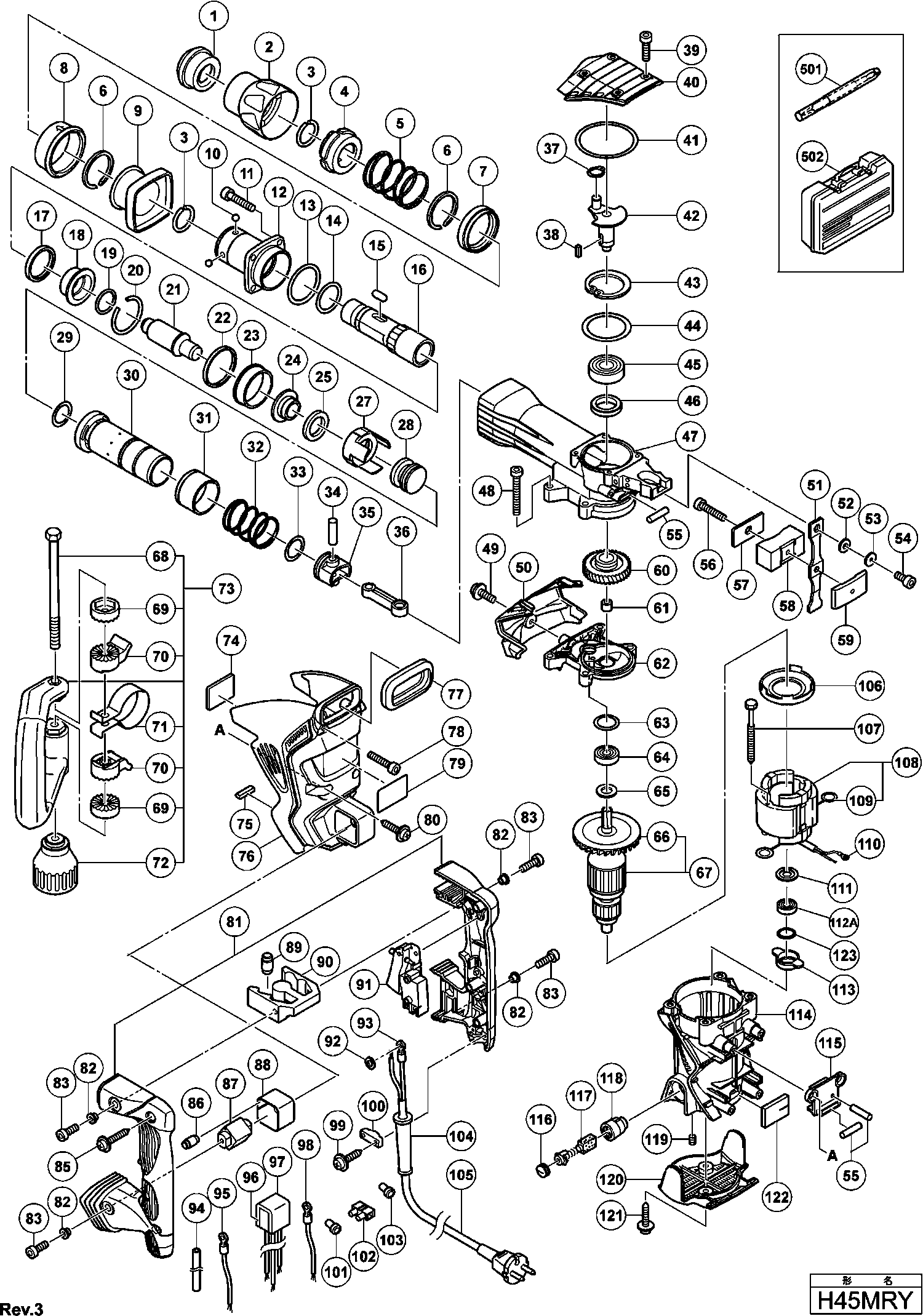

Technical drawing of model Hikoki H45MRY
Spare parts list of model Hikoki H45MRY
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Front Cap | ||||
| 1 | 315529 | 3.30 | 3.99 | |
| Grip | ||||
| 2 | 320802 | 6.45 | 7.80 | |
| Ring | ||||
| 3 | 320803 | 1.65 | 2.00 | |
| Needle Holder | ||||
| 4 | 320804 | 27.78 | 33.61 | |
| Spring | ||||
| 5 | 320806 | 6.45 | 7.80 | |
| Retaining Ring D42 | ||||
| 6 | 317088 | 3.30 | 3.99 | |
| Ball Holder | ||||
| 7 | 320810 | 12.15 | 14.70 | |
| Grip | ||||
| 8 | 320807 | 3.30 | 3.99 | |
| Grip | ||||
| 9 | 320808 | 4.80 | 5.81 | |
| Steel Ball D6.35 (10 pieces) | ||||
| 10 | 959150 | 1.35 | 1.63 | |
| Seal Lock Hex. Socket Hd. Bolt M6x25 | ||||
| 11 | 981942 | 1.65 | 2.00 | |
| Front Case | ||||
| 12 | 326494 | 64.21 | 77.70 | |
| O-ring (1as-50) | ||||
| 13 | 990067 | 1.65 | 2.00 | |
| O-ring (s-34) | ||||
| 14 | 980879 | 1.05 | 1.27 | |
| Needle Roller D8x20 | ||||
| 15 | 313421 | 5.25 | 6.35 | |
| Retainer Sleeve | ||||
| 16 | 320805 | 96.25 | 116.46 | |
| Damper (a) | ||||
| 17 | 322528 | 1.65 | 2.00 | |
| Hammer Holder (a) | ||||
| 18 | 326379 | 26.40 | 31.94 | |
| O-ring (s-25) | ||||
| 19 | 319572 | 1.65 | 2.00 | |
| Washer (b) | ||||
| 20 | 326380 | 1.65 | 2.00 | |
| Second Hammer | ||||
| 21 | 326381 | 32.18 | 38.93 | |
| Damper | ||||
| 22 | 326662 | 3.30 | 3.99 | |
| Sleeve (a) | ||||
| 23 | 326495 | 3.30 | 3.99 | |
| Hammer Holder (b) | ||||
| 24 | 320814 | 10.65 | 12.89 | |
| Damper | ||||
| 25 | 320815 | 3.30 | 3.99 | |
| Hammer Holder (c) | ||||
| 27 | 326382 | 14.03 | 16.97 | |
| Striker | ||||
| 28 | 326383 | 14.03 | 16.97 | |
| O-ring | ||||
| 29 | 325297 | 3.30 | 3.99 | |
| Cylinder | ||||
| 30 | 326496 | 69.99 | 84.68 | |
| Slide Sleeve | ||||
| 31 | 326497 | 24.61 | 29.78 | |
| Spring | ||||
| 32 | 326498 | 6.45 | 7.80 | |
| O-ring | ||||
| 33 | 325297 | 3.30 | 3.99 | |
| Piston Pin | ||||
| 34 | 324917 | 4.80 | 5.81 | |
| Piston | ||||
| 35 | 326384 | 6.45 | 7.80 | |
| Connecting Rod | ||||
| 36 | 326385 | 4.80 | 5.81 | |
| Spring Washer D10 (10 pieces) | ||||
| 37 | 939540 | 1.95 | 2.36 | |
| Feather Key 4x4x10 | ||||
| 38 | 930511 | 2.40 | 2.90 | |
| Seal Lock Hex. Socket Hd. Bolt M5x16 | ||||
| 39 | 990079 | 1.05 | 1.27 | |
| Crank Cover | ||||
| 40 | 326500 | 7.05 | 8.53 | |
| O-ring | ||||
| 41 | 326501 | 1.65 | 2.00 | |
| Crank Shaft | ||||
| 42 | 326499 | 35.06 | 42.43 | |
| Retaining Ring For D40 Hole | ||||
| 43 | 948391 | 1.65 | 2.00 | |
| O-ring (s-40) | ||||
| 44 | 996363 | 1.65 | 2.00 | |
| Ball Bearing 6203ddcmps2l | ||||
| 45 | 6203DD | 7.65 | 9.26 | |
| Oil Seal | ||||
| 46 | 310119 | 3.60 | 4.36 | |
| Cylinder Crank Case | ||||
| 47 | 326502 | 58.44 | 70.71 | |
| Seal Lock Hex. Socket Hd. Bolt M6x45 | ||||
| 48 | 986940 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt (w/flange) M5x12 | ||||
| 49 | 998471 | 1.05 | 1.27 | |
| Hood | ||||
| 50 | 326503 | 4.80 | 5.81 | |
| Leaf Spring | ||||
| 51 | 326386 | 4.80 | 5.81 | |
| Intermediate Ring | ||||
| 52 | 326375 | 1.65 | 2.00 | |
| Ring | ||||
| 53 | 326477 | 1.65 | 2.00 | |
| Seal Lock Hex. Socket Hd. Bolt M4x10 | ||||
| 54 | 878356 | 1.05 | 1.27 | |
| Needle Roller | ||||
| 55 | 878418 | 1.65 | 2.00 | |
| Seal Lock Hex. Socket Hd. Bolt M5x22 | ||||
| 56 | 317245 | 1.65 | 2.00 | |
| Rubber Sheet (c) | ||||
| 57 | 326515 | 1.65 | 2.00 | |
| Weight (b) | ||||
| 58 | 326508 | 12.75 | 15.43 | |
| Weight (a) | ||||
| 59 | 326507 | 6.45 | 7.80 | |
| First Gear | ||||
| 60 | 320830 | 26.40 | 31.94 | |
| Needle-roller Bearing | ||||
| 61 | 939299 | 10.65 | 12.89 | |
| Gear Cover | ||||
| 62 | 326510 | 24.61 | 29.78 | |
| O-ring (s-32) | ||||
| 63 | 872767 | 1.65 | 2.00 | |
| Ball Bearing 6201ddcmps2l | ||||
| 64 | 6201DD | 6.30 | 7.62 | |
| Dust Washer (b) | ||||
| 65 | 302429 | 1.05 | 1.27 | |
| Fan | ||||
| 66 | 321640 | 6.45 | 7.80 | |
| Armature 230v | ||||
| 67 | 360571E | 84.56 | 102.32 | |
| ANKER 110-115 VOLT | ||||
| 67 | 360571C | 78.92 | 95.49 | |
| Bolt M8 | ||||
| 68 | 317107 | 3.30 | 3.99 | |
| Handle Holder (b) | ||||
| 69 | 317106 | 3.30 | 3.99 | |
| Handle Holder (a) | ||||
| 70 | 317105 | 4.80 | 5.81 | |
| Clamp Band | ||||
| 71 | 320635 | 6.75 | 8.17 | |
| Grip | ||||
| 72 | 317108 | 9.90 | 11.98 | |
| No information available, not orderable | ||||
| 73 | 317103 | |||
| Rubber Sheet (a) | ||||
| 74 | 326487 | 1.65 | 2.00 | |
| Intermediate Ring | ||||
| 75 | 326376 | 1.65 | 2.00 | |
| Back Cover | ||||
| 76 | 326505 | 15.26 | 18.47 | |
| Bellows | ||||
| 77 | 326378 | 3.30 | 3.99 | |
| Seal Lock Hex. Socket Hd. Bolt M5x30 | ||||
| 78 | 306061 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D5x20 (black) | ||||
| 80 | 302089 | 1.05 | 1.27 | |
| Handle (a).(b) Set | ||||
| 81 | 326485 | 18.70 | 22.63 | |
| Spacer bushing | ||||
| 82 | 991711 | 1.05 | 1.27 | |
| Seal Lock Hd. Allen bolt M5x12 | ||||
| 83 | 991690 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 85 | 307028 | 1.05 | 1.27 | |
| Handle Damper | ||||
| 86 | 310124 | 4.20 | 5.08 | |
| Chute | ||||
| 87 | 326377 | 4.80 | 5.81 | |
| Holder | ||||
| 88 | 326479 | 3.30 | 3.99 | |
| Handle Damper | ||||
| 89 | 310124 | 4.20 | 5.08 | |
| Holder | ||||
| 90 | 310123 | 11.85 | 14.34 | |
| Switch (b) (1p Screw Type) With Lock | ||||
| 91 | 306143 | 17.05 | 20.63 | |
| Washer M4 (10 Pcs.) | ||||
| 92 | 949423 | 1.05 | 1.27 | |
| connecting terminal | ||||
| 93 | 980063 | 1.04 | 1.26 | |
| Vinyl Tube (i.d.9.5xt0.56x85) | ||||
| 94 | 326541 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 95 | 326509 | |||
| Capacitor | ||||
| 96 | 325566 | 9.00 | 10.89 | |
| Support (b) For Tpe,aus,saf,yem,europe | ||||
| 97 | 317492 | 1.65 | 2.00 | |
| Internal wire | ||||
| 98 | 994190 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 99 | 984750 | |||
| Cord Clip | ||||
| 100 | 960266 | 1.04 | 1.26 | |
| Connector 50091 (10 Pcs.) | ||||
| 101 | 959140 | 3.30 | 3.99 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 102 | 938307 | 2.13 | 2.57 | |
| Connector 50092 (10 Pcs.) | ||||
| 103 | 959141 | 3.75 | 4.54 | |
| No information available, not orderable | ||||
| 104 | 953327 | |||
| Cord (cord Armor D10.7) For Saf | ||||
| 105 | 500454Z | 15.54 | 18.80 | |
| Fan Guide | ||||
| 106 | 321320 | 3.30 | 3.99 | |
| Hex. Hd. Tapping Screw D5x55 | ||||
| 107 | 953174 | 1.04 | 1.26 | |
| VELD 110 VOLT | ||||
| 108 | 340681C | 51.76 | 62.63 | |
| Brush Terminal | ||||
| 109 | 930703 | 2.40 | 2.90 | |
| Terminal M4.0 (10 Pcs.) | ||||
| 110 | 930804 | 3.00 | 3.63 | |
| Washer (a) | ||||
| 111 | 982631 | 1.04 | 1.26 | |
| Ball Bearing 608dd | ||||
| 112A | 608DDM | 5.55 | 6.72 | |
| Bearing Holder | ||||
| 113 | 326484 | 4.80 | 5.81 | |
| Housing | ||||
| 114 | 326481 | 37.95 | 45.92 | |
| Base Plate | ||||
| 115 | 326506 | 3.30 | 3.99 | |
| Brush Cap | ||||
| 116 | 935829 | 1.05 | 1.27 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 117 | 999073 | 14.40 | 17.42 | |
| Brush Holder | ||||
| 118 | 971001 | 6.45 | 7.80 | |
| Hex Adjustment Screw M5x8 | ||||
| 119 | 938477 | 1.05 | 1.27 | |
| Tail Cover | ||||
| 120 | 326504 | 6.45 | 7.80 | |
| Tapping Screw (w/flange) D5x20 (black) | ||||
| 121 | 302089 | 1.05 | 1.27 | |
| Cover (a) | ||||
| 122 | 326488 | 1.65 | 2.00 | |
| Dust Seal | ||||
| 123 | 333142 | 3.45 | 4.17 | |
| No information available, not orderable | ||||
| 501 | 313471 | |||
| No information available, not orderable | ||||
| 502 | 326511 | |||
| Grease (a) For Hammer.hammer Drill (30g) | ||||
| 601 | 981840 | 8.40 | 10.16 | |
| Grease For Hammer.hammer Drill (70g) | ||||
| 602 | 308471 | 12.75 | 15.43 | |
| Grease For Hammer.hammer Drill (500g) | ||||
| 603 | 980927 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 604 | 313472 | |||
| No information available, not orderable | ||||
| 605 | 313473 | |||
| No information available, not orderable | ||||
| 606 | 313474 | |||
| No information available, not orderable | ||||
| 607 | 313475 | |||
| No information available, not orderable | ||||
| 608 | 313476 | |||
| No information available, not orderable | ||||
| 609 | 313478 | |||
| No information available, not orderable | ||||
| 610 | 313477 | |||
| No information available, not orderable | ||||
| 611 | 313479 | |||
