Here you will find all available parts and drawings of the 'Hikoki H45ME'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

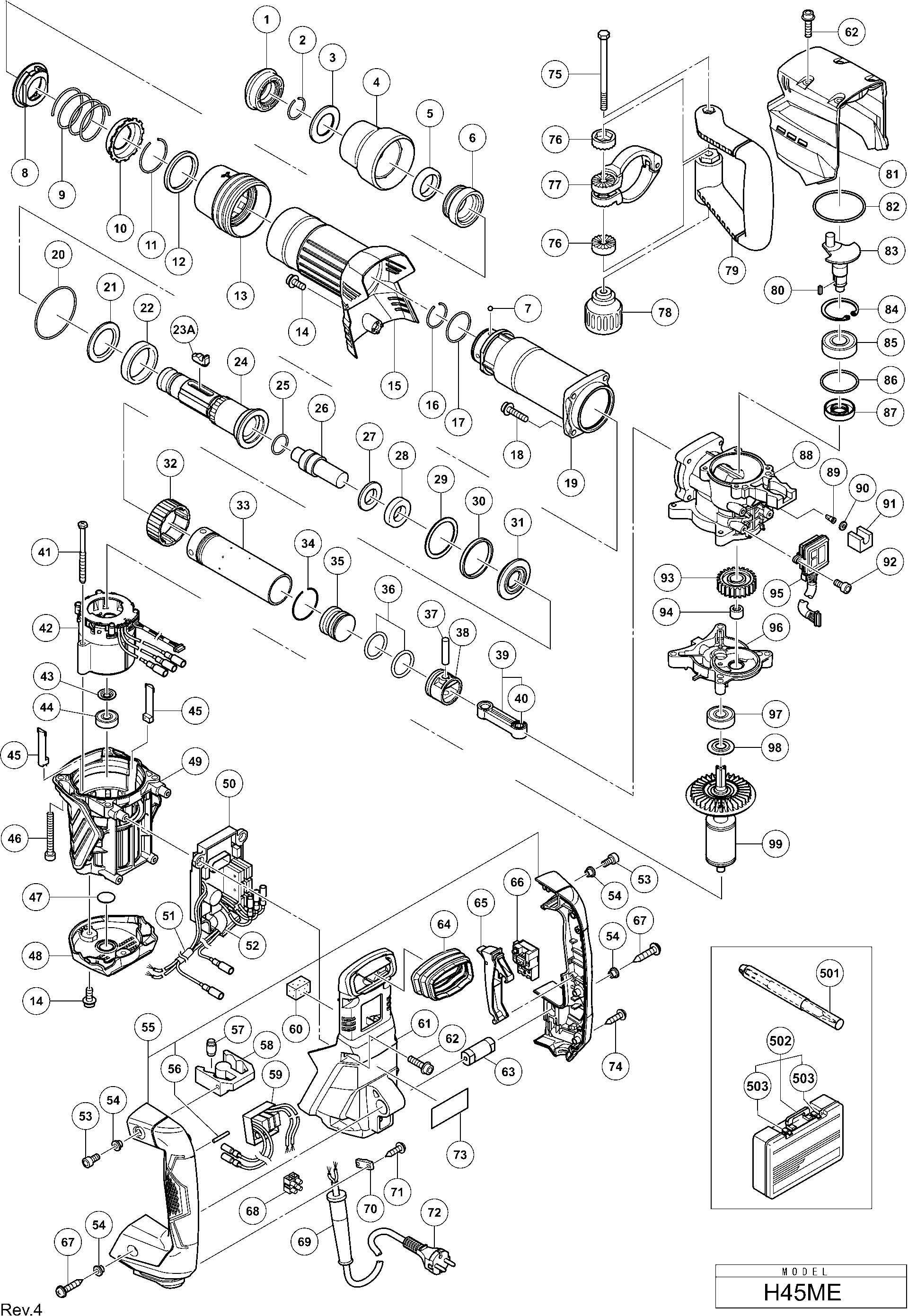

Technical drawing of model Hikoki H45ME
Spare parts list of model Hikoki H45ME
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Stator Sensor Pcb Set 100v-127v | ||||
| *42 | 340934 | 53.35 | 64.55 | |
| Stator Sensor Pcb Set 220v-240v | ||||
| *42 | 340885E | 38.50 | 46.58 | |
| Controller 220v-240v | ||||
| *50 | 370250 | 101.20 | 122.45 | |
| CONTROLLER 110-127 VOLT | ||||
| *50 | 370249 | 94.49 | 114.33 | |
| Filter Pcb Set 100v-127v | ||||
| *59 | 337585 | 10.35 | 12.52 | |
| Filter Pcb Set 220v-240v | ||||
| *59 | 337586 | 10.35 | 12.52 | |
| Cord Armor D10.7 | ||||
| *69 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| *69 | 958049 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| *72 | 500487Z | |||
| Front Cap | ||||
| 1 | 337562 | 2.85 | 3.45 | |
| Spring retaining ring | ||||
| 2 | 318590 | 1.65 | 2.00 | |
| Retainer Washer | ||||
| 3 | 370172 | 1.95 | 2.36 | |
| Grip | ||||
| 4 | 370173 | 3.00 | 3.63 | |
| Retainer Damper (a) | ||||
| 5 | 339053 | 9.75 | 11.80 | |
| Bit Lock Holder | ||||
| 6 | 337558 | 7.35 | 8.89 | |
| Steel Ball D5 | ||||
| 7 | 370239 | 1.04 | 1.26 | |
| Spring Holder (a) | ||||
| 8 | 370242 | 10.35 | 12.52 | |
| Retainer Spring | ||||
| 9 | 370243 | 3.00 | 3.63 | |
| Spring Holder (b) | ||||
| 10 | 370244 | 1.95 | 2.36 | |
| Spring retaining ring | ||||
| 11 | 333255 | 1.04 | 1.26 | |
| Ball Holder | ||||
| 12 | 370240 | 3.00 | 3.63 | |
| Grip (b) | ||||
| 13 | 370241 | 2.40 | 2.90 | |
| Hex. Socket Hd. Bolt (w/flange) M5x12 | ||||
| 14 | 998471 | 1.05 | 1.27 | |
| Cylinder Case Cover | ||||
| 15 | 370238 | 7.80 | 9.44 | |
| Ring | ||||
| 16 | 320803 | 1.65 | 2.00 | |
| O-ring (s-35) | ||||
| 17 | 337664 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt (w/flange) M6x25 | ||||
| 18 | 991712 | 1.05 | 1.27 | |
| Cylinder Case | ||||
| 19 | 370226 | 34.24 | 41.43 | |
| O-ring (1as-60) Since 9.1979 | ||||
| 20 | 956996 | 3.00 | 3.63 | |
| Retainer Damper Holder | ||||
| 21 | 337549 | 3.90 | 4.72 | |
| Retainer Damper (b) | ||||
| 22 | 337548 | 1.80 | 2.18 | |
| Bit Lock | ||||
| 23A | 370654 | 4.95 | 5.99 | |
| Retainer Sleeve | ||||
| 24 | 370227 | 43.45 | 52.57 | |
| O-ring (c) | ||||
| 25 | 324921 | 3.30 | 3.99 | |
| Second Hammer | ||||
| 26 | 370228 | 13.20 | 15.97 | |
| Damper Washer | ||||
| 27 | 370229 | 4.35 | 5.26 | |
| Damper | ||||
| 28 | 370259 | 9.15 | 11.07 | |
| Weight Washer | ||||
| 29 | 370230 | 1.20 | 1.45 | |
| Damper | ||||
| 30 | 326662 | 3.30 | 3.99 | |
| Damper Holder | ||||
| 31 | 370231 | 4.80 | 5.81 | |
| Cylinder Holder | ||||
| 32 | 370232 | 1.50 | 1.82 | |
| Cylinder | ||||
| 33 | 370233 | 16.50 | 19.96 | |
| Stopper Ring | ||||
| 34 | 370235 | 1.35 | 1.63 | |
| Striker | ||||
| 35 | 370234 | 6.15 | 7.44 | |
| O-ring | ||||
| 36 | 325297 | 3.30 | 3.99 | |
| Piston Pin | ||||
| 37 | 324917 | 4.80 | 5.81 | |
| Piston | ||||
| 38 | 324915 | 6.45 | 7.80 | |
| Connecting Rod Ass'y Includ.43 | ||||
| 39 | 339049 | 11.70 | 14.16 | |
| Needle-roller Bearing | ||||
| 40 | 335303 | 4.35 | 5.26 | |
| Hex. Hd. Tapping Screw D5x55 | ||||
| 41 | 953174 | 1.04 | 1.26 | |
| Stator Sensor Pcb Set 100v-127v | ||||
| 42 | 340934 | 53.35 | 64.55 | |
| Stator Sensor Pcb Set 220v-240v | ||||
| 42 | 340885E | 38.50 | 46.58 | |
| Bearing Ring | ||||
| 43 | 958915 | 1.04 | 1.26 | |
| Ball Bearing 629vv | ||||
| 44 | 629VVM | 5.85 | 7.08 | |
| Spacer (1) | ||||
| 45 | 339910 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Hd. Bolt M6x45 | ||||
| 46 | 986940 | 1.05 | 1.27 | |
| Dust Seal | ||||
| 47 | 333263 | 1.04 | 1.26 | |
| Dust Seal | ||||
| 47A | 333263 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 48 | 370002 | |||
| Tail Cover (Old 370002) | ||||
| 48A | 376434 | 2.55 | 3.09 | |
| Housing (1) | ||||
| 49 | 370251 | 46.48 | 56.23 | |
| Controller 220v-240v | ||||
| 50 | 370250 | 101.20 | 122.45 | |
| CONTROLLER 110-127 VOLT | ||||
| 50 | 370249 | 94.49 | 114.33 | |
| Vinyl Tube L50 | ||||
| 51 | 370074 | 1.04 | 1.26 | |
| Vinyl Tube L35 | ||||
| 52 | 370073 | 1.04 | 1.26 | |
| Seal Lock Hd. Allen bolt M5x12 | ||||
| 53 | 991690 | 1.05 | 1.27 | |
| Spacer bushing | ||||
| 54 | 991711 | 1.05 | 1.27 | |
| Handle (a).(b) Set Includ.59 | ||||
| 55 | 370258 | 21.18 | 25.62 | |
| Pin D3x20 (10 Pcs.) | ||||
| 56 | 949890 | 1.80 | 2.18 | |
| Handle Damper | ||||
| 57 | 310124 | 4.20 | 5.08 | |
| Holder | ||||
| 58 | 310123 | 11.85 | 14.34 | |
| Filter Pcb Set 220v-240v | ||||
| 59 | 337586 | 10.35 | 12.52 | |
| Filter Pcb Set 100v-127v | ||||
| 59 | 337585 | 10.35 | 12.52 | |
| Sponge (b) | ||||
| 60 | 338447 | 1.04 | 1.26 | |
| Back Cover | ||||
| 61 | 370246 | 8.70 | 10.53 | |
| Hex. Socket Hd. Bolt (w/flange) M5x16 | ||||
| 62 | 994192 | 1.04 | 1.26 | |
| Handle Shaft | ||||
| 63 | 370253 | 1.04 | 1.26 | |
| Bellows | ||||
| 64 | 337591 | 3.00 | 3.63 | |
| Trigger (1) | ||||
| 65 | 370254 | 2.10 | 2.54 | |
| Switch | ||||
| 66 | 337587 | 13.95 | 16.88 | |
| Tapping Screw (w/flange) D5x25 (black) | ||||
| 67 | 305558 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 68 | 958308Z | |||
| Cord Armor D10.7 | ||||
| 69 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| 69 | 958049 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 70 | 960266 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 71 | 984750 | |||
| No information available, not orderable | ||||
| 72 | 500487Z | |||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 74 | 301653 | 1.04 | 1.26 | |
| Bolt M8 | ||||
| 75 | 333228 | 4.35 | 5.26 | |
| Handle Holder (b) | ||||
| 76 | 333202 | 1.05 | 1.27 | |
| Handle Holder | ||||
| 77 | 370247 | 14.16 | 17.14 | |
| Grip | ||||
| 78 | 333201 | 1.95 | 2.36 | |
| Side Handle | ||||
| 79 | 333199 | 7.80 | 9.44 | |
| Feather Key 3x3x10 | ||||
| 80 | 940533 | 1.20 | 1.45 | |
| Crank Cover | ||||
| 81 | 370248 | 9.45 | 11.43 | |
| Cylinder O-ring (b) I.d 55.9 | ||||
| 82 | 876433 | 11.25 | 13.61 | |
| Crank Shaft | ||||
| 83 | 370225 | 22.69 | 27.45 | |
| Retaining Ring For D40 Hole | ||||
| 84 | 948391 | 1.65 | 2.00 | |
| Ball Bearing 6203ddcmps2l | ||||
| 85 | 6203DD | 7.65 | 9.26 | |
| O-ring (s-40) | ||||
| 86 | 996363 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 87 | 321274 | |||
| OIL SEAL (B) (OLD 321274) | ||||
| 87A | 373199 | 1.00 | 1.21 | |
| Crank Case | ||||
| 88 | 370224 | 32.59 | 39.43 | |
| Valve | ||||
| 89 | 995396 | 1.80 | 2.18 | |
| Washer M3 (10 Pcs.) | ||||
| 90 | 949422 | 1.04 | 1.26 | |
| Felt | ||||
| 91 | 370245 | 1.35 | 1.63 | |
| Seal Lock Hex. Socket Hd. Bolt M4x12 For Switch H | ||||
| 92 | 983162 | 1.05 | 1.27 | |
| First Gear | ||||
| 93 | 337532 | 13.05 | 15.79 | |
| Needle-roller Bearing | ||||
| 94 | 939299 | 10.65 | 12.89 | |
| Panel | ||||
| 95 | 337581 | 8.85 | 10.71 | |
| Gear Cover | ||||
| 96 | 370252 | 17.33 | 20.96 | |
| Ball Bearing 6201ddcmps2l | ||||
| 97 | 6201DD | 6.30 | 7.62 | |
| Dust Washer (b) | ||||
| 98 | 302429 | 1.05 | 1.27 | |
| Rotor | ||||
| 99 | 337578 | 115.78 | 140.09 | |
| No information available, not orderable | ||||
| 501 | 313471 | |||
| No information available, not orderable | ||||
| 502 | 337594 | |||
| Clamp | ||||
| 503 | 372113 | 1.80 | 2.18 | |
| Grease (a) For Hammer.hammer Drill (30g) | ||||
| 601 | 981840 | 8.40 | 10.16 | |
| Grease For Hammer.hammer Drill (70g) | ||||
| 602 | 308471 | 12.75 | 15.43 | |
| Grease For Hammer.hammer Drill (500g) | ||||
| 603 | 980927 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 604 | 313471 | |||
| No information available, not orderable | ||||
| 605 | 313472 | |||
| No information available, not orderable | ||||
| 606 | 313473 | |||
| No information available, not orderable | ||||
| 607 | 313474 | |||
| No information available, not orderable | ||||
| 608 | 313475 | |||
| No information available, not orderable | ||||
| 609 | 313476 | |||
| No information available, not orderable | ||||
| 610 | 313477 | |||
| No information available, not orderable | ||||
| 611 | 313478 | |||
| No information available, not orderable | ||||
| 612 | 313479 | |||
