Here you will find all available parts and drawings of the 'Hikoki H45FRV'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

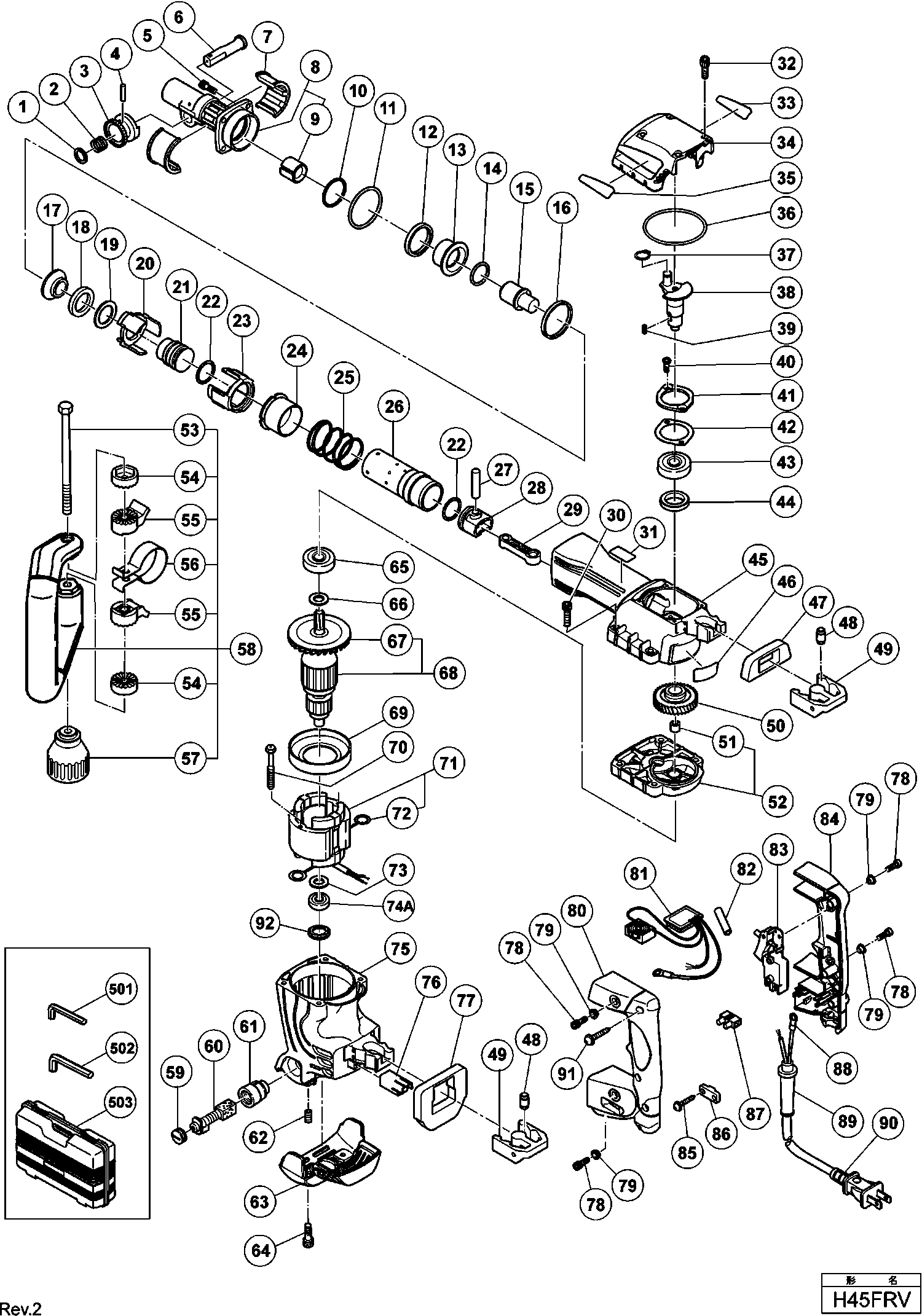

Technical drawing of model Hikoki H45FRV
Spare parts list of model Hikoki H45FRV
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Ring (old 983280z) | ||||
| 1 | 983277 | 5.25 | 6.35 | |
| Stopper Spring Till 3.1995 | ||||
| 2 | 981937 | 1.05 | 1.27 | |
| Knob | ||||
| 3 | 983241 | 35.06 | 42.43 | |
| Needle Roller D4x20 Till 10.1987 (till 9.1987 For | ||||
| 4 | 943364 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M6x25 | ||||
| 5 | 981942 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 6 | 322347 | |||
| No information available, not orderable | ||||
| 7 | 322344 | |||
| No information available, not orderable | ||||
| 8 | 322345 | |||
| No information available, not orderable | ||||
| 9 | 322346 | |||
| O-ring (s-34) | ||||
| 10 | 980879 | 1.05 | 1.27 | |
| O-ring (1as-50) | ||||
| 11 | 990067 | 1.65 | 2.00 | |
| Damper (a) | ||||
| 12 | 322528 | 1.65 | 2.00 | |
| Hammer Holder (a) | ||||
| 13 | 320811 | 32.18 | 38.93 | |
| O-ring (s-25) | ||||
| 14 | 319572 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 15 | 322371 | |||
| Damper | ||||
| 16 | 320817 | 3.30 | 3.99 | |
| Hammer Holder (b) | ||||
| 17 | 320814 | 10.65 | 12.89 | |
| Damper | ||||
| 18 | 320815 | 3.30 | 3.99 | |
| Ring | ||||
| 19 | 322412 | 1.65 | 2.00 | |
| Hammer Holder (c) | ||||
| 20 | 320816 | 1.65 | 2.00 | |
| Striker | ||||
| 21 | 320822 | 14.99 | 18.13 | |
| O-ring | ||||
| 22 | 320823 | 3.30 | 3.99 | |
| Cylinder Holder | ||||
| 23 | 320818 | 6.45 | 7.80 | |
| No information available, not orderable | ||||
| 24 | 322372 | |||
| Spring | ||||
| 25 | 320821 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 26 | 322336 | |||
| Piston Pin | ||||
| 27 | 320826 | 4.80 | 5.81 | |
| Piston | ||||
| 28 | 320824 | 4.80 | 5.81 | |
| Connecting Rod | ||||
| 29 | 320825 | 3.30 | 3.99 | |
| Seal Lock Hex. Socket Hd. Bolt M6x45 | ||||
| 30 | 986940 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M4x12 For Switch H | ||||
| 32 | 983162 | 1.05 | 1.27 | |
| Crank Cover | ||||
| 34 | 320831 | 7.65 | 9.26 | |
| O-ring (jaso2060) | ||||
| 36 | 878867 | 3.30 | 3.99 | |
| Spring Washer D10 (10 pieces) | ||||
| 37 | 939540 | 1.95 | 2.36 | |
| Crank Shaft | ||||
| 38 | 320829 | 37.95 | 45.92 | |
| Feather Key 4x4x10 | ||||
| 39 | 930511 | 2.40 | 2.90 | |
| Seal Lock Hex.socket Flat Hd. Bolt M5x12 | ||||
| 40 | 980760 | 1.05 | 1.27 | |
| Bearing Cover (a) | ||||
| 41 | 980761 | 7.65 | 9.26 | |
| No information available, not orderable | ||||
| 42 | 322529 | |||
| Ball Bearing 6203ddcmps2l | ||||
| 43 | 6203DD | 7.65 | 9.26 | |
| Oil Seal | ||||
| 44 | 310119 | 3.60 | 4.36 | |
| Cylinder Crank Case | ||||
| 45 | 320828 | 64.21 | 77.70 | |
| Handle Packing (a) | ||||
| 47 | 320837 | 3.30 | 3.99 | |
| Handle Damper | ||||
| 48 | 310124 | 4.20 | 5.08 | |
| Holder | ||||
| 49 | 310123 | 11.85 | 14.34 | |
| First Gear | ||||
| 50 | 320830 | 26.40 | 31.94 | |
| Needle-roller Bearing | ||||
| 51 | 939299 | 10.65 | 12.89 | |
| Gear Cover | ||||
| 52 | 320841 | 35.06 | 42.43 | |
| Bolt M8 | ||||
| 53 | 317107 | 3.30 | 3.99 | |
| Handle Holder (b) | ||||
| 54 | 317106 | 3.30 | 3.99 | |
| Handle Holder (a) | ||||
| 55 | 317105 | 4.80 | 5.81 | |
| Clamp Band | ||||
| 56 | 320635 | 6.75 | 8.17 | |
| Grip | ||||
| 57 | 317108 | 9.90 | 11.98 | |
| No information available, not orderable | ||||
| 58 | 317103 | |||
| Brush Cap | ||||
| 59 | 935829 | 1.05 | 1.27 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 60 | 999073 | 14.40 | 17.42 | |
| Brush Holder | ||||
| 61 | 971001 | 6.45 | 7.80 | |
| Hex Adjustment Screw M5x8 | ||||
| 62 | 938477 | 1.05 | 1.27 | |
| Tail Cover | ||||
| 63 | 320834 | 9.30 | 11.25 | |
| Seal Lock Hex. Socket Hd. Bolt M5x8 | ||||
| 64 | 321527 | 1.65 | 2.00 | |
| Ball Bearing 6201ddcmps2l | ||||
| 65 | 6201DD | 6.30 | 7.62 | |
| Dust Washer (b) | ||||
| 66 | 302429 | 1.05 | 1.27 | |
| Fan | ||||
| 67 | 321640 | 6.45 | 7.80 | |
| No information available, not orderable | ||||
| 68 | 360571U | |||
| Fan Guide | ||||
| 69 | 320832 | 1.65 | 2.00 | |
| Hex. Hd. Tapping Screw D5x55 | ||||
| 70 | 953174 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 71 | 340568G | |||
| Brush Terminal | ||||
| 72 | 930703 | 2.40 | 2.90 | |
| Washer (a) | ||||
| 73 | 982631 | 1.04 | 1.26 | |
| Ball Bearing 608dd | ||||
| 74A | 608DDM | 5.55 | 6.72 | |
| Housing | ||||
| 75 | 320833 | 90.48 | 109.47 | |
| Sleeve (b) | ||||
| 76 | 320836 | 1.65 | 2.00 | |
| Handle Packing (b) | ||||
| 77 | 320838 | 4.80 | 5.81 | |
| Seal Lock Hd. Allen bolt M5x12 | ||||
| 78 | 991690 | 1.05 | 1.27 | |
| Spacer bushing | ||||
| 79 | 991711 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 80 | 322350 | |||
| No information available, not orderable | ||||
| 81 | 322348 | |||
| Vinyl Tube L55 | ||||
| 82 | 322530 | 1.65 | 2.00 | |
| Switch (b) (1p Screw Type) With Lock | ||||
| 83 | 306143 | 17.05 | 20.63 | |
| No information available, not orderable | ||||
| 84 | 322349 | |||
| No information available, not orderable | ||||
| 85 | 984750 | |||
| Cord Clip | ||||
| 86 | 960266 | 1.04 | 1.26 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 87 | 938307 | 2.13 | 2.57 | |
| Terminal M4.0 (10 Pcs.) | ||||
| 88 | 930804 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 89 | 953327 | |||
| No information available, not orderable | ||||
| 90 | 500434Z | |||
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 91 | 307028 | 1.05 | 1.27 | |
| Dust Seal | ||||
| 92 | 333143 | 3.45 | 4.17 | |
| No information available, not orderable | ||||
| 501 | 944458 | |||
| No information available, not orderable | ||||
| 502 | 944459 | |||
| No information available, not orderable | ||||
| 503 | 320842 | |||
| No information available, not orderable | ||||
| 601 | 985383 | |||
| No information available, not orderable | ||||
| 602 | 985386 | |||
| No information available, not orderable | ||||
| 603 | 985384 | |||
| No information available, not orderable | ||||
| 604 | 985385 | |||
| No information available, not orderable | ||||
| 605 | 985381 | |||
| No information available, not orderable | ||||
| 606 | 985382 | |||
| Grease (a) For Hammer.hammer Drill (30g) | ||||
| 607 | 981840 | 8.40 | 10.16 | |
| Grease For Hammer.hammer Drill (70g) | ||||
| 608 | 308471 | 12.75 | 15.43 | |
| Dust Cover | ||||
| 609 | 993245 | 6.75 | 8.17 | |
| No longer available, no replacement | ||||
| 610 | 323131 | |||
| No longer available, no replacement | ||||
| 611 | 323131 | |||
