Here you will find all available parts and drawings of the 'Hikoki H41SA3'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

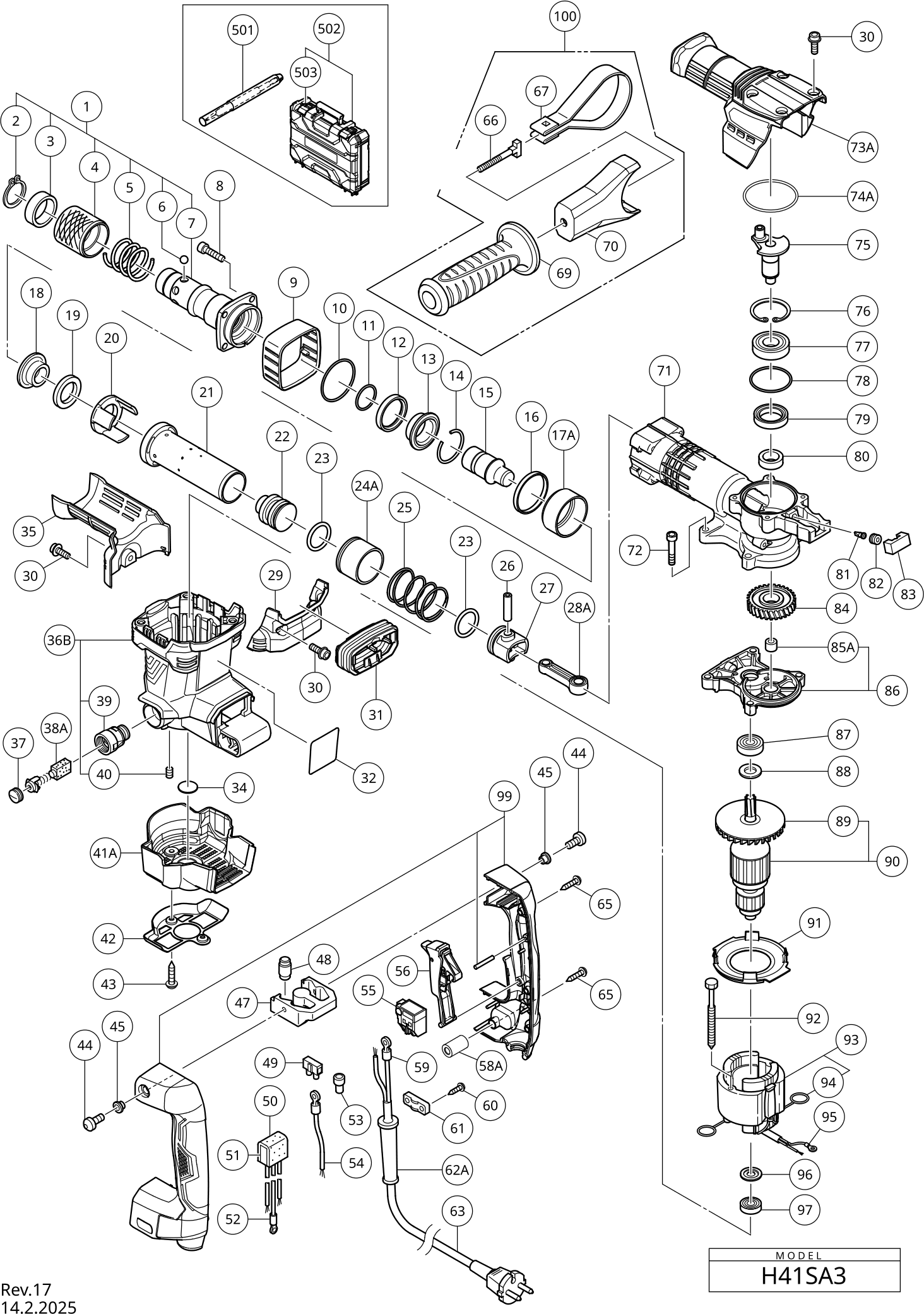

Technical drawing of model Hikoki H41SA3
Spare parts list of model Hikoki H41SA3
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Auto-stop Carbon Brushes (2 Pieces) | ||||
| *38A | 999094 | 7.05 | 8.53 | |
| Carbon Brushes (2 Pieces) | ||||
| *38A | 999108 | 4.35 | 5.26 | |
| Cord Armor D8.8 | ||||
| *62A | 380090 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| *62A | 938051 | 1.04 | 1.26 | |
| Cord (cord Armor D8.2) For Sin,mal | ||||
| *63 | 500440Z | 20.49 | 24.79 | |
| ARMATURE 110 VOLT | ||||
| *90 | 361080C | 42.40 | 51.30 | |
| ARMATURE 220-230 VOLT | ||||
| *90 | 361080E | 39.74 | 48.08 | |
| STATOR ASS'Y 110 VOLT | ||||
| *93 | 340995H | 32.72 | 39.59 | |
| No information available, not orderable | ||||
| 1 | 373264 | |||
| No information available, not orderable | ||||
| 2 | 373270 | |||
| No information available, not orderable | ||||
| 3 | 373269 | |||
| No information available, not orderable | ||||
| 4 | 373268 | |||
| No information available, not orderable | ||||
| 5 | 373267 | |||
| No information available, not orderable | ||||
| 6 | 373266 | |||
| No information available, not orderable | ||||
| 7 | 373265 | |||
| Nylock High Tension Bolt M7x25 | ||||
| 8 | 993040 | 2.40 | 2.90 | |
| TOP COVER | ||||
| 9 | 373236 | 1.20 | 1.45 | |
| O-RING (I.D 44.5) | ||||
| 10 | 373251 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 11 | 329061 | |||
| No information available, not orderable | ||||
| 12 | 373253 | |||
| No information available, not orderable | ||||
| 13 | 373261 | |||
| No information available, not orderable | ||||
| 14 | 322466 | |||
| No information available, not orderable | ||||
| 15 | 373247 | |||
| No information available, not orderable | ||||
| 16 | 322471 | |||
| No information available, not orderable | ||||
| 17A | 378375 | |||
| No information available, not orderable | ||||
| 18 | 373947 | |||
| No information available, not orderable | ||||
| 19 | 374459 | |||
| No information available, not orderable | ||||
| 20 | 373232 | |||
| CYLINDER | ||||
| 21 | 374460 | 24.20 | 29.28 | |
| No information available, not orderable | ||||
| 22 | 373258 | |||
| O-ring | ||||
| 23 | 320823 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 24A | 373259 | |||
| No information available, not orderable | ||||
| 25 | 373262 | |||
| Piston Pin | ||||
| 26 | 373256 | 1.80 | 2.18 | |
| Piston | ||||
| 27 | 320824 | 4.80 | 5.81 | |
| CONNECTING ROD | ||||
| 28A | 373275 | 6.00 | 7.26 | |
| Felt | ||||
| 29 | 373237 | 1.50 | 1.82 | |
| Hex. Socket Hd. Bolt (w/flange) M5x14 | ||||
| 30 | 998485 | 1.05 | 1.27 | |
| Bellows | ||||
| 31 | 373252 | 4.50 | 5.44 | |
| Dust Seal | ||||
| 34 | 333263 | 1.04 | 1.26 | |
| Hood | ||||
| 35 | 373234 | 2.40 | 2.90 | |
| Housing Ass'y Includ.86,87 | ||||
| 36B | 373276 | 20.21 | 24.46 | |
| Brush Cap | ||||
| 37 | 945161 | 1.20 | 1.45 | |
| Brush Holder | ||||
| 39 | 958900 | 6.45 | 7.80 | |
| Hex Adjustment Screw M5x8 | ||||
| 40 | 938477 | 1.05 | 1.27 | |
| TAIL COVER NEW | ||||
| 41A | 373239 | 2.40 | 2.90 | |
| Plate | ||||
| 42 | 373248 | 1.50 | 1.82 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 43 | 301653 | 1.04 | 1.26 | |
| SEAL LOCK BUTTON BOLT M5 | ||||
| 44 | 373263 | 1.04 | 1.26 | |
| Spacer bushing | ||||
| 45 | 991711 | 1.05 | 1.27 | |
| TRANSITORY UNIT | ||||
| 47 | 373231 | 2.25 | 2.72 | |
| Handle Damper | ||||
| 48 | 310124 | 4.20 | 5.08 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 49 | 938307 | 2.13 | 2.57 | |
| Support (b) For Tpe,aus,saf,yem,europe | ||||
| 50 | 317492 | 1.65 | 2.00 | |
| NOISE SUPPRESSOR (V) | ||||
| 51 | 374463 | 1.95 | 2.36 | |
| Terminal For Noise Suppressor For Hol | ||||
| 52 | 961419Z | 1.04 | 1.26 | |
| Connector 50092 (10 Pcs.) | ||||
| 53 | 959141 | 3.75 | 4.54 | |
| Internal wire | ||||
| 54 | 981974 | 1.65 | 2.00 | |
| Switch (1) | ||||
| 55 | 371171 | 8.55 | 10.35 | |
| TRIGGER ASS'Y | ||||
| 56 | 373241 | 4.95 | 5.99 | |
| DAMPER (D) | ||||
| 58A | 375357 | 1.65 | 2.00 | |
| connecting terminal | ||||
| 59 | 980063 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 60 | 984750 | |||
| Cord Clip | ||||
| 61 | 960266 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 65 | 301653 | 1.04 | 1.26 | |
| Handle Bolt | ||||
| 66 | 331247 | 4.20 | 5.08 | |
| BAND | ||||
| 67 | 373245 | 2.25 | 2.72 | |
| No information available, not orderable | ||||
| 69 | 330209 | |||
| MOUNT | ||||
| 70 | 373244 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 71 | 373274 | |||
| Seal Lock Hex. Socket Hd. Bolt M6x40 | ||||
| 72 | 322494 | 1.80 | 2.18 | |
| Crank Cover | ||||
| 73A | 374474 | 6.00 | 7.26 | |
| O-ring (i.d 52.6) | ||||
| 74A | 878372 | 3.60 | 4.36 | |
| CRANK SHAFT | ||||
| 75 | 373246 | 16.09 | 19.47 | |
| Retaining Ring For D40 Hole | ||||
| 76 | 948391 | 1.65 | 2.00 | |
| Ball Bearing 6203ddcmps2l | ||||
| 77 | 6203DD | 7.65 | 9.26 | |
| O-ring (s-40) | ||||
| 78 | 996363 | 1.65 | 2.00 | |
| Oil Seal | ||||
| 79 | 310119 | 3.60 | 4.36 | |
| DISTANCE RING | ||||
| 80 | 373254 | 2.25 | 2.72 | |
| Valve | ||||
| 81 | 995396 | 1.80 | 2.18 | |
| Cap Screw | ||||
| 82 | 338313 | 4.50 | 5.44 | |
| Felt (1) | ||||
| 83 | 374461 | 4.50 | 5.44 | |
| First Gear | ||||
| 84 | 373255 | 12.30 | 14.88 | |
| NEEDLE BEARING (OLD 373278) | ||||
| 85A | 378937 | 1.68 | 2.03 | |
| Gear Cover Ass'y Includ.3,17 | ||||
| 86 | 373271 | 17.60 | 21.30 | |
| Ball Bearing 6201ddcmps2l | ||||
| 87 | 6201DD | 6.30 | 7.62 | |
| Dust Washer (b) | ||||
| 88 | 302429 | 1.05 | 1.27 | |
| FAN | ||||
| 89 | 374464 | 3.15 | 3.81 | |
| Fan Guide | ||||
| 91 | 373238 | 1.05 | 1.27 | |
| Hex. Hd. Tapping Screw D5x50 | ||||
| 92 | 953121 | 1.04 | 1.26 | |
| Brush Terminal | ||||
| 94 | 930703 | 2.40 | 2.90 | |
| connecting terminal | ||||
| 95 | 980063 | 1.04 | 1.26 | |
| Washer (a) | ||||
| 96 | 982631 | 1.04 | 1.26 | |
| Ball Bearing 608vvc2ps2l | ||||
| 97 | 608VVM | 5.70 | 6.90 | |
| HANDLE SET (A+B) (OLD 373242 + 373243) | ||||
| 99 | 375358 | 10.35 | 12.52 | |
| SIDE HANDLE ASS'Y NEW AUG | ||||
| 100 | 375594 | 14.71 | 17.80 | |
| No information available, not orderable | ||||
| 501 | 980752 | |||
| No information available, not orderable | ||||
| 502 | 373404 | |||
| SET SLUITCLIPS VOOR KOFFER HAKHAMER | ||||
| 503 | 378621 | 1.00 | 1.21 | |
| Grease For Hammer.hammer Drill (500g) | ||||
| 601 | 980927 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 602 | 980753 | |||
