Here you will find all available parts and drawings of the 'Hikoki H25PV'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

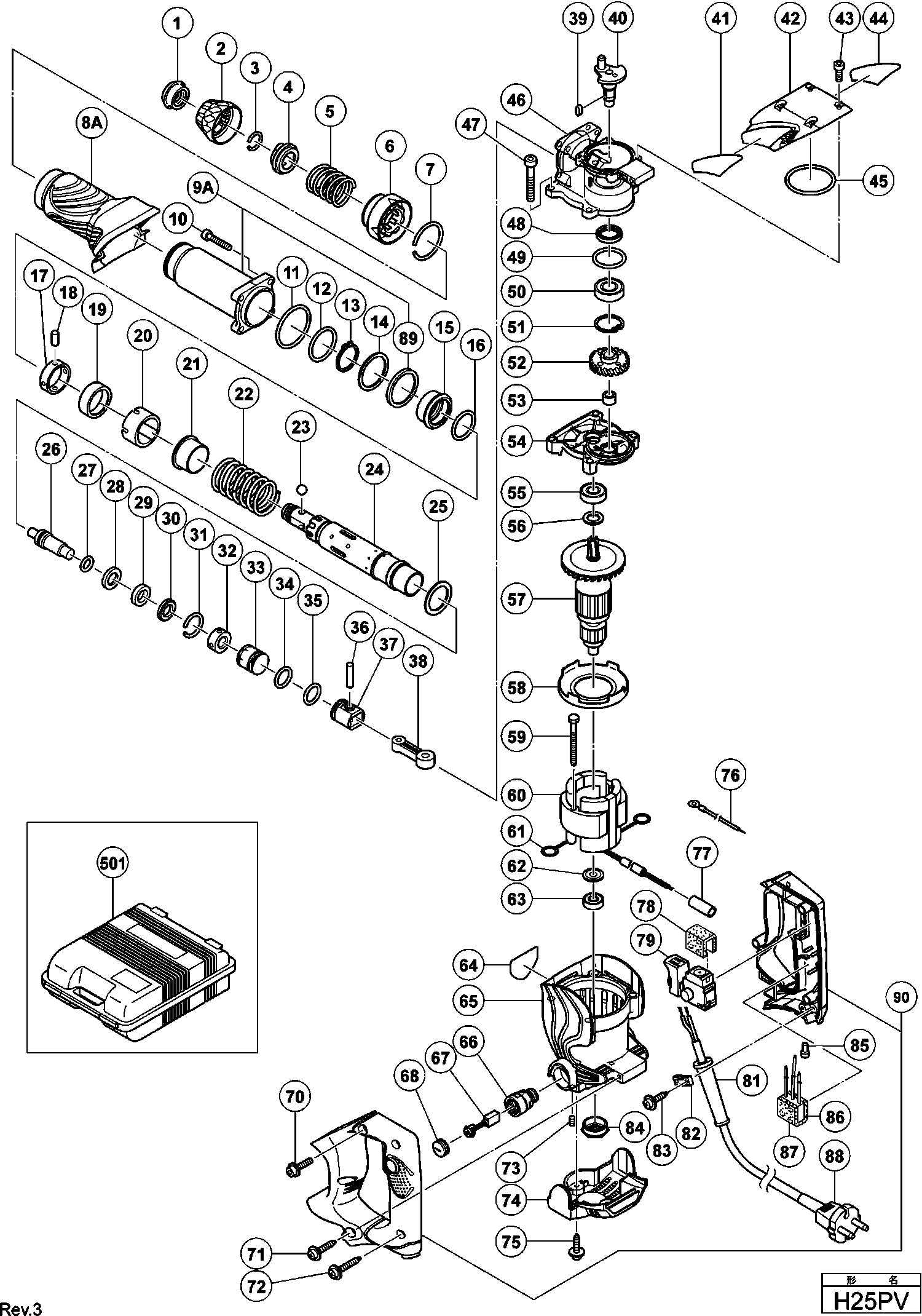

Technical drawing of model Hikoki H25PV
Spare parts list of model Hikoki H25PV
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Armature 230v | ||||
| *57 | 360660E | 110.83 | 134.10 | |
| Stator 220v-230v | ||||
| *60 | 340593E | 102.16 | 123.62 | |
| No information available, not orderable | ||||
| *88 | 500439Z | |||
| Front Cap | ||||
| 1 | 323078 | 3.30 | 3.99 | |
| Grip | ||||
| 2 | 323077 | 4.80 | 5.81 | |
| Spring retaining ring | ||||
| 3 | 306340 | 1.35 | 1.63 | |
| Ball Holder | ||||
| 4 | 323076 | 25.44 | 30.78 | |
| Washer Spring | ||||
| 5 | 323075 | 3.30 | 3.99 | |
| Lock Sleeve | ||||
| 6 | 323074 | 6.45 | 7.80 | |
| Washer (a) | ||||
| 7 | 323073 | 1.65 | 2.00 | |
| Cylinder Case Cover (Light Green) | ||||
| 8A | 335208 | 5.85 | 7.08 | |
| Cylinder Case | ||||
| 9A | 325256 | 32.18 | 38.93 | |
| Seal Lock Hex. Socket Hd. Bolt M6x22 | ||||
| 10 | 321313 | 1.65 | 2.00 | |
| O-ring (s-46) | ||||
| 11 | 882874 | 1.65 | 2.00 | |
| O-ring (s-36) | ||||
| 12 | 984483 | 1.65 | 2.00 | |
| Retaining Ring (1) | ||||
| 13 | 962553 | 1.05 | 1.27 | |
| Ring | ||||
| 14 | 323071 | 3.30 | 3.99 | |
| Cylinder Holder | ||||
| 15 | 323069 | 28.88 | 34.94 | |
| O-ring (a) | ||||
| 16 | 323070 | 1.65 | 2.00 | |
| Needle Holder | ||||
| 17 | 323080 | 28.05 | 33.94 | |
| Needle Roller | ||||
| 18 | 991449 | 1.05 | 1.27 | |
| Needle Cover | ||||
| 19 | 323081 | 4.80 | 5.81 | |
| Slide Sleeve (b) | ||||
| 20 | 323065 | 4.80 | 5.81 | |
| Slide Sleeve (a) | ||||
| 21 | 323064 | 29.29 | 35.44 | |
| Spring (a) | ||||
| 22 | 323067 | 3.00 | 3.63 | |
| Steel Ball D7.0 (10 Pcs.) | ||||
| 23 | 959156 | 1.65 | 2.00 | |
| Cylinder | ||||
| 24 | 323056 | 221.65 | 268.20 | |
| Spring retaining ring | ||||
| 25 | 323068 | 3.30 | 3.99 | |
| Second Hammer | ||||
| 26 | 323057 | 17.05 | 20.63 | |
| O-ring (c) | ||||
| 27 | 323058 | 3.30 | 3.99 | |
| Damper Washer | ||||
| 28 | 323059 | 9.30 | 11.25 | |
| Damper | ||||
| 29 | 323060 | 3.30 | 3.99 | |
| Damper Holder | ||||
| 30 | 323061 | 8.40 | 10.16 | |
| Stopper Ring | ||||
| 31 | 323062 | 1.65 | 2.00 | |
| Slide Ring | ||||
| 32 | 323063 | 16.09 | 19.47 | |
| Striker | ||||
| 33 | 323066 | 13.75 | 16.64 | |
| O-ring (i.d 19.2) | ||||
| 34 | 319577 | 3.30 | 3.99 | |
| O-ring (i.d 19.2) | ||||
| 35 | 319577 | 3.30 | 3.99 | |
| Piston Pin | ||||
| 36 | 319581 | 1.65 | 2.00 | |
| Piston | ||||
| 37 | 319580 | 3.30 | 3.99 | |
| Connecting Rod | ||||
| 38 | 319585 | 3.30 | 3.99 | |
| Feather Key 3x3x8 | ||||
| 39 | 944109 | 1.70 | 2.06 | |
| Crank Shaft | ||||
| 40 | 323054 | 39.88 | 48.25 | |
| Crank Case Cover | ||||
| 42 | 323079 | 11.10 | 13.43 | |
| Seal Lock Hex. Socket Hd. Bolt M4x12 For Switch H | ||||
| 43 | 983162 | 1.05 | 1.27 | |
| O-ring (s-48) | ||||
| 45 | 980715 | 2.40 | 2.90 | |
| Crank Case | ||||
| 46 | 323053 | 58.44 | 70.71 | |
| INBUSBOUT M6X35 (OUD 949692Z,10S) | ||||
| 47 | 949692 | 3.18 | 3.85 | |
| Oil Seal | ||||
| 48 | 981851 | 2.55 | 3.09 | |
| O-ring (s-32) | ||||
| 49 | 872767 | 1.65 | 2.00 | |
| Ball Bearing 6002ddcmps2l | ||||
| 50 | 6002DD | 7.05 | 8.53 | |
| Stop Ring D32 | ||||
| 51 | 948001 | 1.20 | 1.45 | |
| First Gear | ||||
| 52 | 323055 | 32.18 | 38.93 | |
| Needle-roller Bearing | ||||
| 53 | 939299 | 10.65 | 12.89 | |
| No information available, not orderable | ||||
| 54 | 323084 | |||
| Ball Bearing 6001dducmps2s (old 980925) | ||||
| 55 | 6001DD | 6.45 | 7.80 | |
| Washer | ||||
| 56 | 971736 | 1.05 | 1.27 | |
| Armature 230v | ||||
| 57 | 360660E | 110.83 | 134.10 | |
| Fan Guide | ||||
| 58 | 323083 | 3.30 | 3.99 | |
| HEX.HD. TAPSCHROEF D5X40 | ||||
| 59 | 980864 | 1.00 | 1.21 | |
| Stator 220v-230v | ||||
| 60 | 340593E | 102.16 | 123.62 | |
| Brush Terminal | ||||
| 61 | 930703 | 2.40 | 2.90 | |
| Washer (a) | ||||
| 62 | 982631 | 1.04 | 1.26 | |
| Ball Bearing 608vvc2ps2l | ||||
| 63 | 608VVM | 5.70 | 6.90 | |
| Housing | ||||
| 65 | 323082 | 64.21 | 77.70 | |
| Brush Holder | ||||
| 66 | 958900 | 6.45 | 7.80 | |
| Carbon Brush (1 Pair) | ||||
| 67 | 999056 | 6.45 | 7.80 | |
| Brush Cap | ||||
| 68 | 945161 | 1.20 | 1.45 | |
| Hex. Socket Hd. Bolt (w/flange) M5x16 | ||||
| 70 | 994192 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D5x20 (black) | ||||
| 71 | 302089 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 72 | 307028 | 1.05 | 1.27 | |
| Hex Adjustment Screw M5x8 | ||||
| 73 | 938477 | 1.05 | 1.27 | |
| Tail Cover | ||||
| 74 | 323085 | 16.09 | 19.47 | |
| No information available, not orderable | ||||
| 75 | 307811 | |||
| Internal wire | ||||
| 76 | 994190 | 1.05 | 1.27 | |
| Tube | ||||
| 77 | 321322 | 1.65 | 2.00 | |
| Support (b) For Tpe,aus,saf,yem,europe | ||||
| 78 | 317492 | 1.65 | 2.00 | |
| No longer available, no replacement | ||||
| 79 | 323086 | |||
| Switch (1p Pillar Type) | ||||
| 79A | 370379 | 18.84 | 22.79 | |
| No information available, not orderable | ||||
| 81 | 953327 | |||
| Cord Clip | ||||
| 82 | 960266 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 83 | 984750 | |||
| BEARING BUSH (B) | ||||
| 84 | 310111 | 8.40 | 10.16 | |
| Connector 50091 (10 Pcs.) | ||||
| 85 | 959140 | 3.30 | 3.99 | |
| Noise Suppressor | ||||
| 86 | 994273 | 4.29 | 5.19 | |
| Support (b) For Tpe,aus,saf,yem,europe | ||||
| 87 | 317492 | 1.65 | 2.00 | |
| Cord (cord Armor D10.7) For Saf | ||||
| 88 | 500454Z | 15.54 | 18.80 | |
| Damper (a) | ||||
| 89 | 325257 | 3.30 | 3.99 | |
| Handle (a).(b) Set | ||||
| 90 | 335207 | 11.55 | 13.98 | |
| No information available, not orderable | ||||
| 501 | 323090 | |||
| Grease (a) For Hammer.hammer Drill (30g) | ||||
| 601 | 981840 | 8.40 | 10.16 | |
| Grease For Hammer.hammer Drill (70g) | ||||
| 602 | 308471 | 12.75 | 15.43 | |
| Grease For Hammer.hammer Drill (500g) | ||||
| 603 | 980927 | 73.01 | 88.35 | |
| No information available, not orderable | ||||
| 604 | 303046 | |||
