Here you will find all available parts and drawings of the 'Hikoki GT15'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

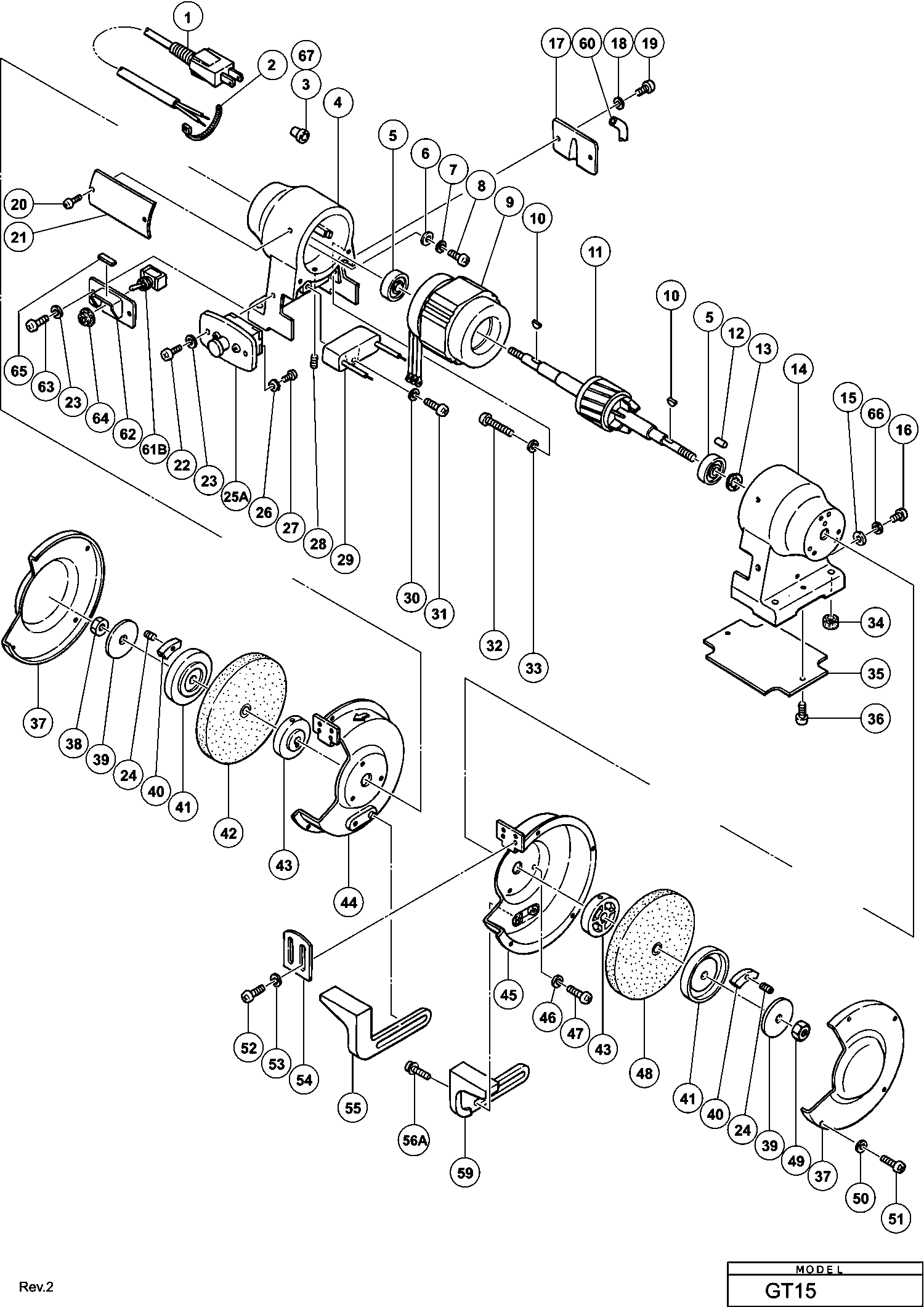

Technical drawing of model Hikoki GT15
Spare parts list of model Hikoki GT15
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cord | ||||
| *1 | 500243Z | 18.15 | 21.96 | |
| No information available, not orderable | ||||
| *17 | 934275 | |||
| No information available, not orderable | ||||
| *9 | 988272F | |||
| Cord | ||||
| 1 | 500243Z | 18.15 | 21.96 | |
| CORD CLAMP | ||||
| 2 | 975144 | 1.04 | 1.26 | |
| Connector 50091 (10 Pcs.) | ||||
| 3 | 959140 | 3.30 | 3.99 | |
| Housing (b) | ||||
| 4 | 988251 | 65.18 | 78.86 | |
| Ball Bearing 6203vvcmps2l | ||||
| 5 | 6203VV | 7.80 | 9.44 | |
| Ring | ||||
| 6 | 967329 | 1.05 | 1.27 | |
| Spring Washer M5 (10 pieces) | ||||
| 7 | 949454 | 1.04 | 1.26 | |
| Machine Screw M5x10 (10 Pcs.) For Irl | ||||
| 8 | 949236 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 9 | 988272F | |||
| INLEGSPIE 3X10 *TD5-1-2* | ||||
| 10 | 932819 | 1.26 | 1.52 | |
| Rotor | ||||
| 11 | 988270 | 68.06 | 82.36 | |
| RUBBER PIN (OLD 976441) | ||||
| 12 | 946362 | 1.05 | 1.27 | |
| Wave Washer | ||||
| 13 | 934061 | 1.05 | 1.27 | |
| Housing (a) | ||||
| 14 | 988250 | 51.84 | 62.72 | |
| BOLT WASHER (BRASS) M5 (10 PCS.) | ||||
| 15 | 949449 | 1.00 | 1.21 | |
| Machine Screw (brass) M5x10 (10 Pcs.) | ||||
| 16 | 949299 | 1.80 | 2.18 | |
| Cord Cover | ||||
| 17 | 934291 | 2.40 | 2.90 | |
| Spring Washer M4 (10 pieces) | ||||
| 18 | 949453 | 1.05 | 1.27 | |
| Machine screw M4x10 (10 pieces) (OLD 949216Z) | ||||
| 19 | 949216 | 1.05 | 1.27 | |
| Machine Screw M3x6 (10 Pcs.) | ||||
| 20 | 949202 | 1.04 | 1.26 | |
| Machine Screw M4x16 (10 Pcs.) | ||||
| 22 | 949219 | 1.20 | 1.45 | |
| Spring Washer M4 (10 pieces) | ||||
| 23 | 949453 | 1.05 | 1.27 | |
| SLOTTED HD SCREW M4X8(10P)TD5-5-2 | ||||
| 24 | 949367 | 1.00 | 1.21 | |
| TOOTHED LOCK WASHER M4 | ||||
| 26 | 934135 | 1.00 | 1.21 | |
| MACHINE SCREW (BRASS) M4X6 (10PCS | ||||
| 27 | 949601 | 1.98 | 2.40 | |
| Hex. Socket Set Screw M6x20 | ||||
| 28 | 950094 | 1.05 | 1.27 | |
| Noise Suppressor | ||||
| 29 | 952441 | 27.91 | 33.77 | |
| Spring Washer M4 (10 pieces) | ||||
| 30 | 949453 | 1.05 | 1.27 | |
| Machine screw M4x10 (10 pieces) (OLD 949216Z) | ||||
| 31 | 949216 | 1.05 | 1.27 | |
| Machine Screw M6x25 (10 Pcs.) | ||||
| 32 | 949260 | 1.35 | 1.63 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 33 | 949455 | 1.05 | 1.27 | |
| VOET RUBBER | ||||
| 34 | 934273 | 1.00 | 1.21 | |
| Cover | ||||
| 35 | 934212 | 3.00 | 3.63 | |
| Machine Screw M5x10 (10 Pcs.) For Irl | ||||
| 36 | 949236 | 1.05 | 1.27 | |
| BERSCHERMKAP | ||||
| 37 | 934070 | 8.16 | 9.87 | |
| Nut (left Hand) M12 | ||||
| 38 | 934067 | 1.05 | 1.27 | |
| WEIGHT HOLDER | ||||
| 39 | 934020 | 1.08 | 1.31 | |
| Weight | ||||
| 40 | 934021 | 1.05 | 1.27 | |
| BALANS SLUITRING | ||||
| 41 | 934078 | 6.54 | 7.91 | |
| No information available, not orderable | ||||
| 42 | 934375 | |||
| BINNENFLENS | ||||
| 43 | 934077 | 4.20 | 5.08 | |
| Guard | ||||
| 44 | 934063 | 18.70 | 22.63 | |
| Guard | ||||
| 45 | 934062 | 18.70 | 22.63 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 46 | 949455 | 1.05 | 1.27 | |
| Machine Screw M6x16 (10 Pcs.) | ||||
| 47 | 949256 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 48 | 934376 | |||
| MOER M12 | ||||
| 49 | 952440 | 1.00 | 1.21 | |
| Spring Washer M5 (10 pieces) | ||||
| 50 | 949454 | 1.04 | 1.26 | |
| Machine Screw M5x10 (10 Pcs.) For Irl | ||||
| 51 | 949236 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 52 | 949254 | |||
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 53 | 949455 | 1.05 | 1.27 | |
| Spark Breaker | ||||
| 54 | 934030 | 1.35 | 1.63 | |
| TOOL REST (B) | ||||
| 55 | 934069 | 4.44 | 5.37 | |
| No longer available, no replacement | ||||
| 56A | 323899 | |||
| TOOL REST (A) | ||||
| 59 | 934068 | 4.44 | 5.37 | |
| No information available, not orderable | ||||
| 60 | 988703 | |||
| No information available, not orderable | ||||
| 601 | 934216 | |||
| Eye Shield (acrylic Sheet) | ||||
| 603 | 934527 | 35.06 | 42.43 | |
