Here you will find all available parts and drawings of the 'Hikoki GP3V'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

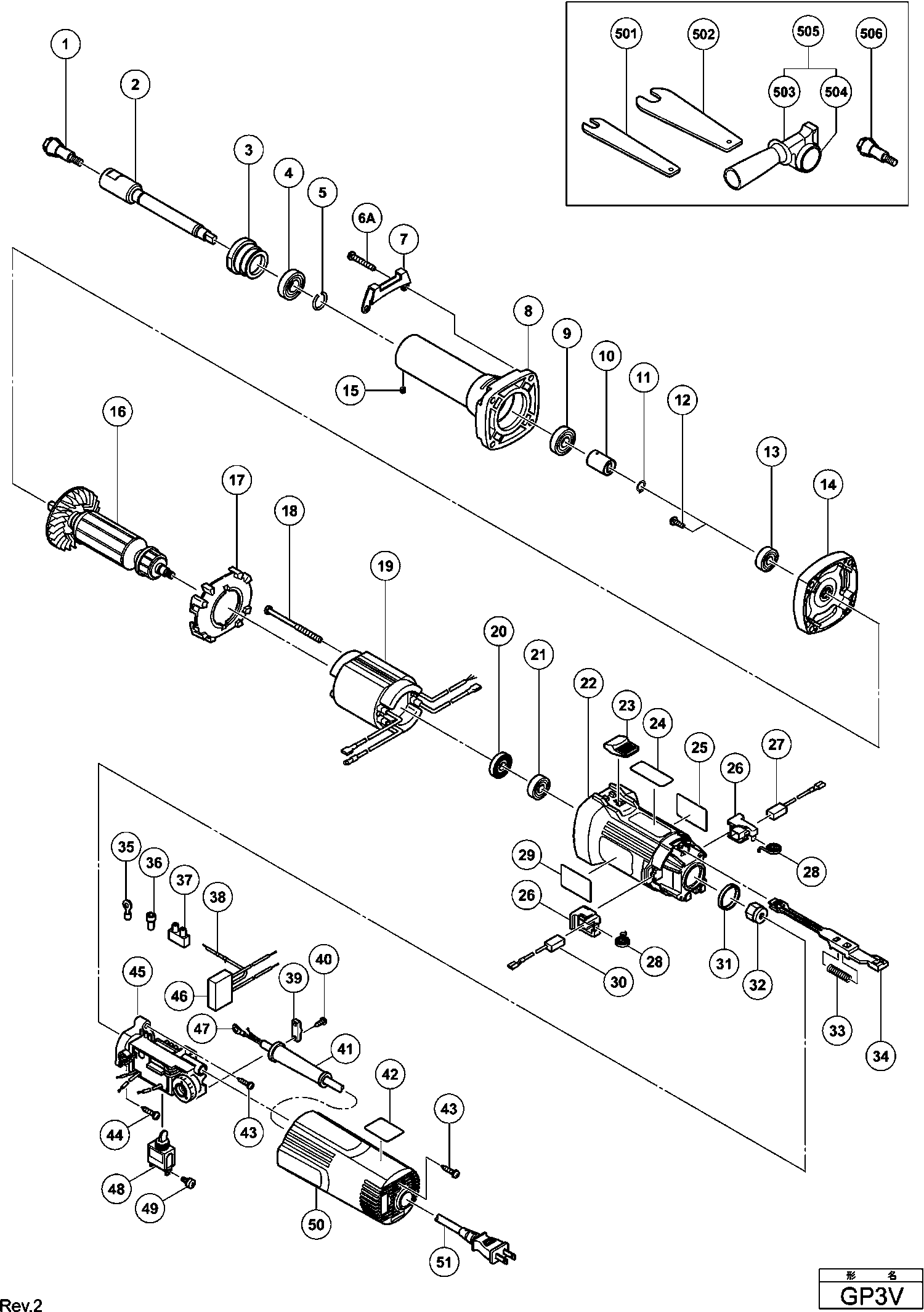

Technical drawing of model Hikoki GP3V
Spare parts list of model Hikoki GP3V
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Armature 220-230 Volt | ||||
| *16 | 360911E | 36.99 | 44.75 | |
| Field | ||||
| *19 | 340827F | 21.18 | 25.62 | |
| VELD 110 VOLT | ||||
| *19 | 340827C | 19.80 | 23.96 | |
| Cord Armor D10.1 | ||||
| *41 | 938051 | 1.04 | 1.26 | |
| Controller 220v-240v | ||||
| *45 | 333592 | 77.28 | 93.50 | |
| Controller 127v | ||||
| *45 | 333593 | 77.28 | 93.50 | |
| Controller 100v-120v | ||||
| *45 | 333591 | 77.28 | 93.50 | |
| Capacitor | ||||
| *46 | 325566 | 9.00 | 10.89 | |
| Cord (cord Armor D8.8) For Pan | ||||
| *51 | 500447Z | 6.60 | 7.99 | |
| No information available, not orderable | ||||
| 1 | 333936 | |||
| No information available, not orderable | ||||
| 1A | 377082 | |||
| Spindle Ass'y | ||||
| 2 | 332453 | 14.38 | 17.39 | |
| Bearing Cover | ||||
| 3 | 332452 | 4.28 | 5.17 | |
| Ball Bearing 6001vv | ||||
| 4 | 6001VV | 6.60 | 7.99 | |
| Washer | ||||
| 5 | 932617 | 1.05 | 1.27 | |
| Tapping Screw D5x35 (black) | ||||
| 6A | 334402 | 1.05 | 1.27 | |
| Guard Plate | ||||
| 7 | 317807 | 1.05 | 1.27 | |
| Nose Bracket | ||||
| 8 | 334280 | 14.10 | 17.06 | |
| Ball Bearing 6000vvcmps2l | ||||
| 9 | 6000VV | 6.15 | 7.44 | |
| No longer available, no replacement | ||||
| 10 | 334281 | |||
| KOPPELING (OUD 334281) | ||||
| 10A | 372999 | 16.09 | 19.47 | |
| Retaining Ring For D8 Shaft | ||||
| 11 | 940079 | 1.04 | 1.26 | |
| Slotted Hd. Screw (seal Lock) M4x8 | ||||
| 12 | 323556 | 1.05 | 1.27 | |
| Ball bearing 609vvmc2ps2s | ||||
| 13 | 609VVM | 6.00 | 7.26 | |
| Inner Cover | ||||
| 14 | 333643 | 8.55 | 10.35 | |
| HEXAGON SOCKET SET SCREW M4X4 | ||||
| 15 | 981478 | 1.05 | 1.27 | |
| Armature 220-230 Volt | ||||
| 16 | 360911E | 36.99 | 44.75 | |
| Fan Guide | ||||
| 17 | 319898 | 1.05 | 1.27 | |
| Hex. Hd. Tapping Screw D4x70 | ||||
| 18 | 982021 | 1.04 | 1.26 | |
| Field | ||||
| 19 | 340827F | 21.18 | 25.62 | |
| VELD 110 VOLT | ||||
| 19 | 340827C | 19.80 | 23.96 | |
| Dust Seal | ||||
| 20 | 315877 | 1.05 | 1.27 | |
| Ball Bearing 608vvc2ps2l | ||||
| 21 | 608VVM | 5.70 | 6.90 | |
| Housing | ||||
| 22 | 317802 | 12.00 | 14.52 | |
| Slide Knob | ||||
| 23 | 314428 | 1.04 | 1.26 | |
| Brush Holder | ||||
| 26 | 317810 | 4.80 | 5.81 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 27 | 999076 | 14.40 | 17.42 | |
| Spring | ||||
| 28 | 308536 | 1.65 | 2.00 | |
| Carbon Brush (1 Pair) | ||||
| 30 | 999088 | 4.50 | 5.44 | |
| Rubber Ring | ||||
| 31 | 995662 | 1.04 | 1.26 | |
| Magnet | ||||
| 32 | 318721 | 17.60 | 21.30 | |
| Spring | ||||
| 33 | 314429 | 1.04 | 1.26 | |
| Slide Bar | ||||
| 34 | 319370 | 1.05 | 1.27 | |
| Terminal M4.0 (10 Pcs.) | ||||
| 35 | 930804 | 3.00 | 3.63 | |
| Connector 50091 (10 Pcs.) | ||||
| 36 | 959140 | 3.30 | 3.99 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 37 | 938307 | 2.13 | 2.57 | |
| Earth Terminal For Tpe | ||||
| 38 | 314854 | 1.50 | 1.82 | |
| Cord Clip | ||||
| 39 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 40 | 984750 | |||
| Cord Armor D10.1 | ||||
| 41 | 938051 | 1.04 | 1.26 | |
| Setting Label (b) | ||||
| 42 | 333938 | 1.80 | 2.18 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 43 | 301653 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 44 | 307028 | 1.05 | 1.27 | |
| Controller 127v | ||||
| 45 | 333593 | 77.28 | 93.50 | |
| Controller 220v-240v | ||||
| 45 | 333592 | 77.28 | 93.50 | |
| Controller 100v-120v | ||||
| 45 | 333591 | 77.28 | 93.50 | |
| Capacitor | ||||
| 46 | 325566 | 9.00 | 10.89 | |
| connecting terminal | ||||
| 47 | 980063 | 1.04 | 1.26 | |
| Switch | ||||
| 48 | 314603 | 11.88 | 14.37 | |
| Machine Screw (w/washer) M3.5x6 | ||||
| 49 | 305499 | 1.05 | 1.27 | |
| Tail Cover | ||||
| 50 | 319376 | 3.90 | 4.72 | |
| Cord (cord Armor D8.8) For Mex | ||||
| 51 | 500240Z | 13.18 | 15.94 | |
| Cord (cord Armor D8.8) For Saf | ||||
| 51 | 500237Z | 11.40 | 13.79 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 51 | 500447Z | 6.60 | 7.99 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 51 | 500247Z | 6.18 | 7.48 | |
| CORD (CORD ARMOR D10.7) | ||||
| 51A | 500492Z | 6.45 | 7.80 | |
| No information available, not orderable | ||||
| 501 | 936553 | |||
| No information available, not orderable | ||||
| 502 | 936638 | |||
| No information available, not orderable | ||||
| 503 | 324548 | |||
| Sleeve | ||||
| 504 | 330061 | 3.45 | 4.17 | |
| No information available, not orderable | ||||
| 505 | 330060 | |||
| No information available, not orderable | ||||
| 505A | 371325 | |||
| No information available, not orderable | ||||
| 506 | 331477 | |||
| No information available, not orderable | ||||
| 601 | 939101 | |||
| No information available, not orderable | ||||
| 602 | 939102 | |||
| No information available, not orderable | ||||
| 603 | 939103 | |||
| No information available, not orderable | ||||
| 604 | 939104 | |||
| No information available, not orderable | ||||
| 605 | 939106 | |||
| No information available, not orderable | ||||
| 606 | 939107 | |||
| No information available, not orderable | ||||
| 607 | 939108 | |||
| No information available, not orderable | ||||
| 608 | 949023 | |||
| No information available, not orderable | ||||
| 609 | 949021 | |||
| No information available, not orderable | ||||
| 610 | 949022 | |||
| No information available, not orderable | ||||
| 611 | 939110 | |||
| No information available, not orderable | ||||
| 612 | 939111 | |||
| No information available, not orderable | ||||
| 613 | 939112 | |||
| No information available, not orderable | ||||
| 614 | 939113 | |||
| No information available, not orderable | ||||
| 615 | 939114 | |||
| No information available, not orderable | ||||
| 616 | 939115 | |||
| No information available, not orderable | ||||
| 617 | 939116 | |||
| No information available, not orderable | ||||
| 618 | 939117 | |||
| No information available, not orderable | ||||
| 619 | 939118 | |||
| No information available, not orderable | ||||
| 620 | 939119 | |||
| No information available, not orderable | ||||
| 621 | 939120 | |||
| No information available, not orderable | ||||
| 622 | 331477 | |||
| No information available, not orderable | ||||
| 623 | 932624 | |||
| No information available, not orderable | ||||
| 624 | 985136 | |||
| No information available, not orderable | ||||
| 625 | 332812 | |||
