Here you will find all available parts and drawings of the 'Hikoki GP36DA'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

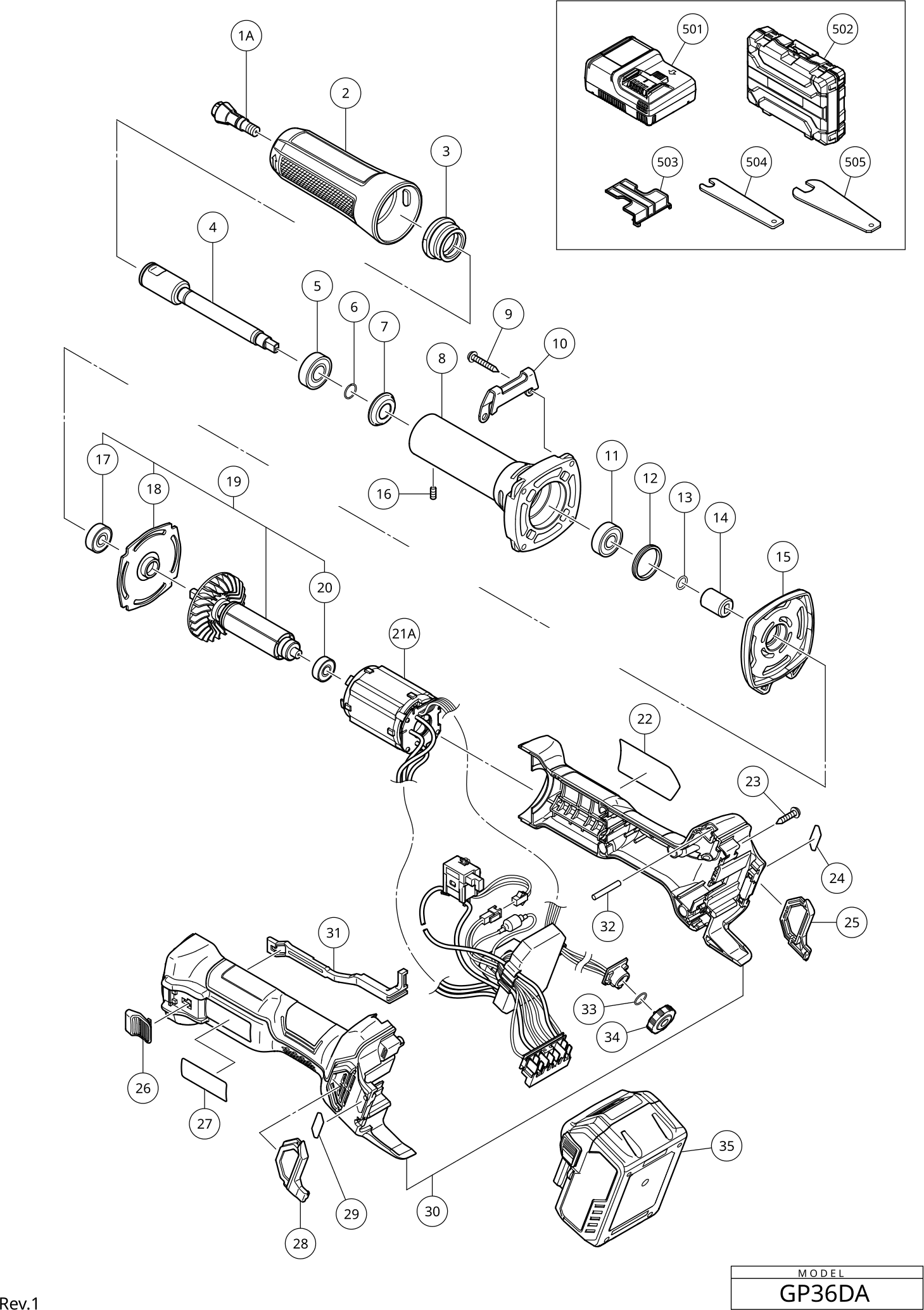

Technical drawing of model Hikoki GP36DA
Spare parts list of model Hikoki GP36DA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1A | 378250 | |||
| FRONT COVER | ||||
| 2 | 377342 | 3.48 | 4.21 | |
| LAGERDEKSEL | ||||
| 3 | 377340 | 2.70 | 3.27 | |
| No information available, not orderable | ||||
| 4 | 377347 | |||
| Ball Bearing 6001vv | ||||
| 5 | 6001VV | 6.60 | 7.99 | |
| RING | ||||
| 6 | 377351 | 1.00 | 1.21 | |
| WASHER (A) | ||||
| 7 | 377349 | 1.00 | 1.21 | |
| NOSE BRACKET | ||||
| 8 | 377341 | 10.98 | 13.29 | |
| Tapping Screw (w/flange) D4x30 (black) | ||||
| 9 | 305490 | 1.04 | 1.26 | |
| Guard Plate | ||||
| 10 | 317807 | 1.05 | 1.27 | |
| Ball Bearing 6000vvcmps2l | ||||
| 11 | 6000VV | 6.15 | 7.44 | |
| Rubber Ring | ||||
| 12 | 957754 | 1.20 | 1.45 | |
| O-ring (p-8) | ||||
| 13 | 315382 | 1.80 | 2.18 | |
| COUPLING | ||||
| 14 | 377350 | 5.22 | 6.32 | |
| INNER COVER | ||||
| 15 | 377399 | 4.02 | 4.86 | |
| HEXAGON SOCKET SET SCREW M4X4 | ||||
| 16 | 981478 | 1.05 | 1.27 | |
| Ball Bearing 608ss | ||||
| 17 | 338337 | 2.25 | 2.72 | |
| Bearing Holder | ||||
| 18 | 334940 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 19 | 361162 | |||
| Ball Bearing-r 607dd | ||||
| 20 | 376128 | 3.75 | 4.54 | |
| No information available, not orderable | ||||
| 21A | 341126 | |||
| Tapping Screw (w/flange) D4x23 (black) | ||||
| 23 | 328643 | 1.05 | 1.27 | |
| MV LABEL (B) | ||||
| 24 | 373914 | 1.04 | 1.26 | |
| Filter (B) | ||||
| 25 | 372108 | 1.20 | 1.45 | |
| SCHAKELAARSCHUIF | ||||
| 26 | 377766 | 1.00 | 1.21 | |
| FILTER (A) | ||||
| 28 | 372107 | 1.20 | 1.45 | |
| MV LABEL (A) | ||||
| 29 | 373913 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 30 | 377225 | |||
| Slide Bar | ||||
| 31 | 372106 | 1.04 | 1.26 | |
| Pin | ||||
| 32 | 338869 | 1.04 | 1.26 | |
| O-ring (s-10) | ||||
| 33 | 987105 | 1.05 | 1.27 | |
| Dial | ||||
| 34 | 372109 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 502 | 377352 | |||
| Battery Cover | ||||
| 503 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 504 | 936553 | |||
| No information available, not orderable | ||||
| 505 | 936638 | |||
