Here you will find all available parts and drawings of the 'Hikoki GP2S2'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

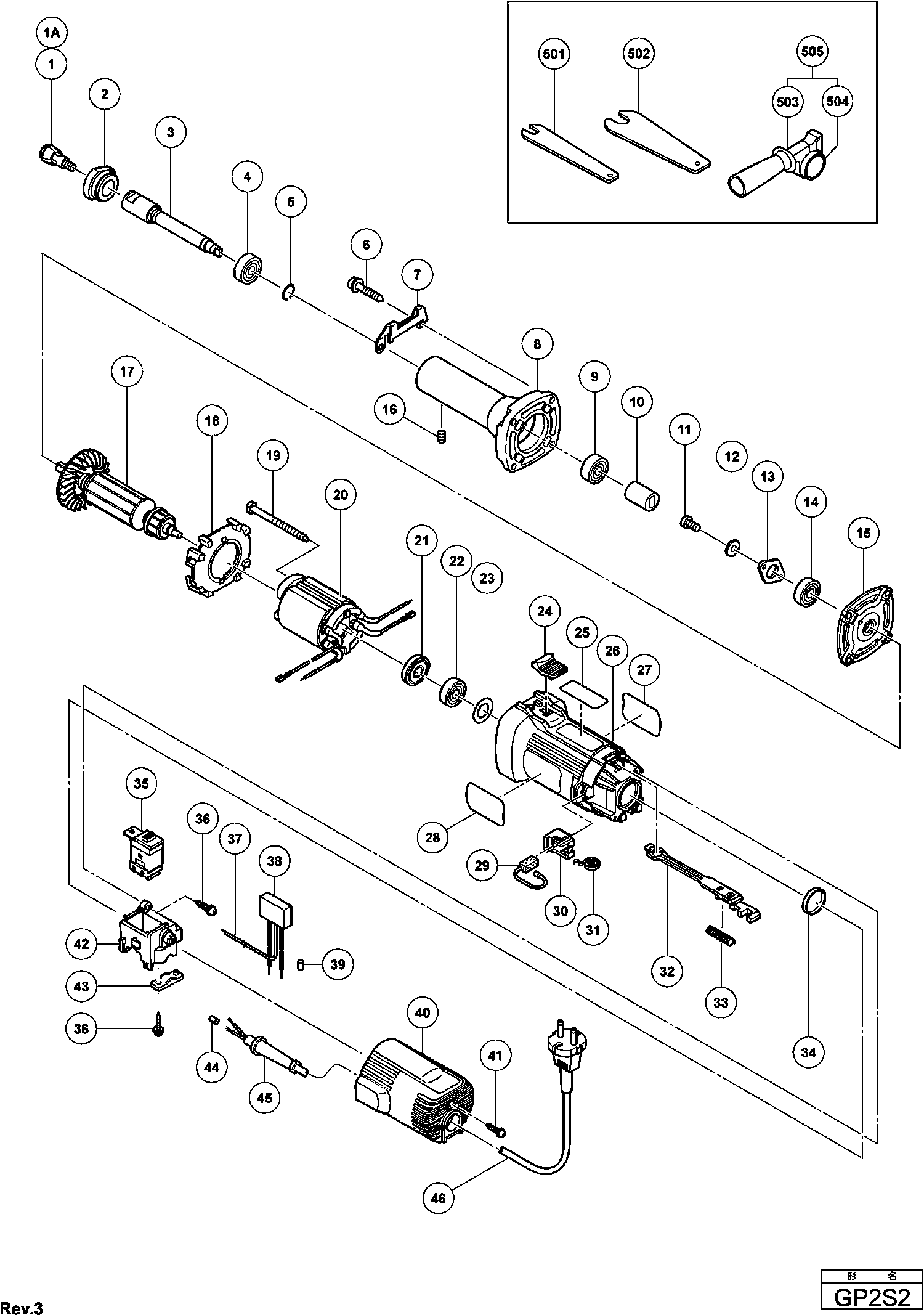

Technical drawing of model Hikoki GP2S2
Spare parts list of model Hikoki GP2S2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| ANKER 110-120 VOLT | ||||
| *17 | 360879U | 29.54 | 35.74 | |
| Armature 230v | ||||
| *17 | 360879E | 28.05 | 33.94 | |
| Stator 230v | ||||
| *20 | 340758H | 19.33 | 23.38 | |
| Switch | ||||
| *35 | 332805 | 10.80 | 13.07 | |
| Capacitor | ||||
| *38 | 325566 | 9.00 | 10.89 | |
| Cord Armor D8.8 | ||||
| *45 | 380090 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| *45 | 938051 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| *46 | 500489Z | |||
| No information available, not orderable | ||||
| 1 | 331422 | |||
| No information available, not orderable | ||||
| 1A | 332812 | |||
| No information available, not orderable | ||||
| 1B | 377082 | |||
| Bearing Cover | ||||
| 2 | 332452 | 4.28 | 5.17 | |
| Spindle Ass'y | ||||
| 3 | 332453 | 14.38 | 17.39 | |
| Ball Bearing 6001vv | ||||
| 4 | 6001VV | 6.60 | 7.99 | |
| Washer | ||||
| 5 | 932617 | 1.05 | 1.27 | |
| SCREW D5X30 | ||||
| 6 | 986011 | 1.04 | 1.26 | |
| Guard Plate | ||||
| 7 | 317807 | 1.05 | 1.27 | |
| Nose Bracket | ||||
| 8 | 331474 | 13.95 | 16.88 | |
| Ball Bearing 6000vvcmps2l | ||||
| 9 | 6000VV | 6.15 | 7.44 | |
| No longer available, no replacement | ||||
| 10 | 985140 | |||
| KOPPELING (OUD 985140) | ||||
| 10A | 372998 | 13.95 | 16.88 | |
| Seal Lock Screw (w/sp. Washer) M4x10 | ||||
| 11 | 987201 | 1.05 | 1.27 | |
| Spring Washer M4 (10 pieces) | ||||
| 12 | 949453 | 1.05 | 1.27 | |
| Bearing sheet | ||||
| 13 | 937876 | 1.05 | 1.27 | |
| Ball Bearing 608vvc2ps2l | ||||
| 14 | 608VVM | 5.70 | 6.90 | |
| Inner Cover | ||||
| 15 | 331475 | 5.18 | 6.26 | |
| HEXAGON SOCKET SET SCREW M4X4 | ||||
| 16 | 981478 | 1.05 | 1.27 | |
| ANKER 110-120 VOLT | ||||
| 17 | 360879U | 29.54 | 35.74 | |
| Armature 230v | ||||
| 17 | 360879E | 28.05 | 33.94 | |
| Fan Guide | ||||
| 18 | 319898 | 1.05 | 1.27 | |
| Hex. Hd. Tapping Screw D4x70 | ||||
| 19 | 982021 | 1.04 | 1.26 | |
| Stator 230v | ||||
| 20 | 340758H | 19.33 | 23.38 | |
| VELD 110 VOLT | ||||
| 20 | 340758G | 18.04 | 21.83 | |
| Dust Seal | ||||
| 21 | 315877 | 1.05 | 1.27 | |
| Ball Bearing 608vvc2ps2l | ||||
| 22 | 608VVM | 5.70 | 6.90 | |
| Washer M14 | ||||
| 23 | 332804 | 1.05 | 1.27 | |
| Slide Knob | ||||
| 24 | 314428 | 1.04 | 1.26 | |
| Housing | ||||
| 26 | 317802 | 12.00 | 14.52 | |
| Carbon Brush (1 Pair) | ||||
| 29 | 999088 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 30 | 317810 | 4.80 | 5.81 | |
| Spring | ||||
| 31 | 308536 | 1.65 | 2.00 | |
| Slide Bar | ||||
| 32 | 317806 | 1.05 | 1.27 | |
| Spring | ||||
| 33 | 314429 | 1.04 | 1.26 | |
| Rubber Ring | ||||
| 34 | 995662 | 1.04 | 1.26 | |
| SLIDE SWITCH (2P PILLAR TYPE) (OLD 980778) | ||||
| 35 | 321208 | 12.87 | 15.57 | |
| Switch | ||||
| 35 | 332805 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 36 | 984750 | |||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 36A | 301653 | 1.04 | 1.26 | |
| Earth Terminal For Tpe | ||||
| 37 | 314854 | 1.50 | 1.82 | |
| Capacitor | ||||
| 38 | 325566 | 9.00 | 10.89 | |
| Threaded cable sleeve | ||||
| 39 | 981373 | 1.05 | 1.27 | |
| Tail Cover | ||||
| 40 | 317808 | 5.85 | 7.08 | |
| No information available, not orderable | ||||
| 41 | 984750 | |||
| Switch Holder Ass'y (Old 317811) | ||||
| 42 | 376969 | 1.05 | 1.27 | |
| Switch Holder Ass'y (Old 317811) | ||||
| 42A | 376969 | 1.05 | 1.27 | |
| Cord Clip | ||||
| 43 | 937631 | 1.04 | 1.26 | |
| Threaded cable sleeve | ||||
| 44 | 981373 | 1.05 | 1.27 | |
| Cord Armor D8.8 | ||||
| 45 | 380090 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 45 | 938051 | 1.04 | 1.26 | |
| Cord (cord Armor D8.8) For Uae (240v) | ||||
| 46 | 500461Z | 17.88 | 21.63 | |
| Cord (cord Armor D8.8) For Mex | ||||
| 46 | 500240Z | 13.18 | 15.94 | |
| SNOER 2.5M 2 X 1.0 H05VV-F W/PLUG 13A/250V (OLD 50 | ||||
| 46 | 500423Z | 12.87 | 15.57 | |
| Cord (cord Armor D8.8) For Saf | ||||
| 46 | 500237Z | 11.40 | 13.79 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 46 | 500247Z | 6.18 | 7.48 | |
| CORD (CORD ARMOR D10.7) | ||||
| 46A | 500492Z | 6.45 | 7.80 | |
| No information available, not orderable | ||||
| 501 | 936553 | |||
| No information available, not orderable | ||||
| 502 | 936638 | |||
| No information available, not orderable | ||||
| 503 | 324548 | |||
| Sleeve | ||||
| 504 | 330061 | 3.45 | 4.17 | |
| No information available, not orderable | ||||
| 505 | 330060 | |||
| No information available, not orderable | ||||
| 505A | 371325 | |||
| No information available, not orderable | ||||
| 601 | 932624 | |||
| No information available, not orderable | ||||
| 602 | 985135 | |||
| No information available, not orderable | ||||
| 603 | 985136 | |||
| No information available, not orderable | ||||
| 604 | 939103 | |||
| No information available, not orderable | ||||
| 605 | 939104 | |||
| No information available, not orderable | ||||
| 606 | 939107 | |||
| No information available, not orderable | ||||
| 607 | 949021 | |||
| No information available, not orderable | ||||
| 608 | 949022 | |||
| No information available, not orderable | ||||
| 609 | 939110 | |||
| No information available, not orderable | ||||
| 610 | 939115 | |||
| No information available, not orderable | ||||
| 611 | 939117 | |||
| No information available, not orderable | ||||
| 612 | 939118 | |||
| No information available, not orderable | ||||
| 613 | 939119 | |||
| No information available, not orderable | ||||
| 614 | 939120 | |||
