Here you will find all available parts and drawings of the 'Hikoki GP10DL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

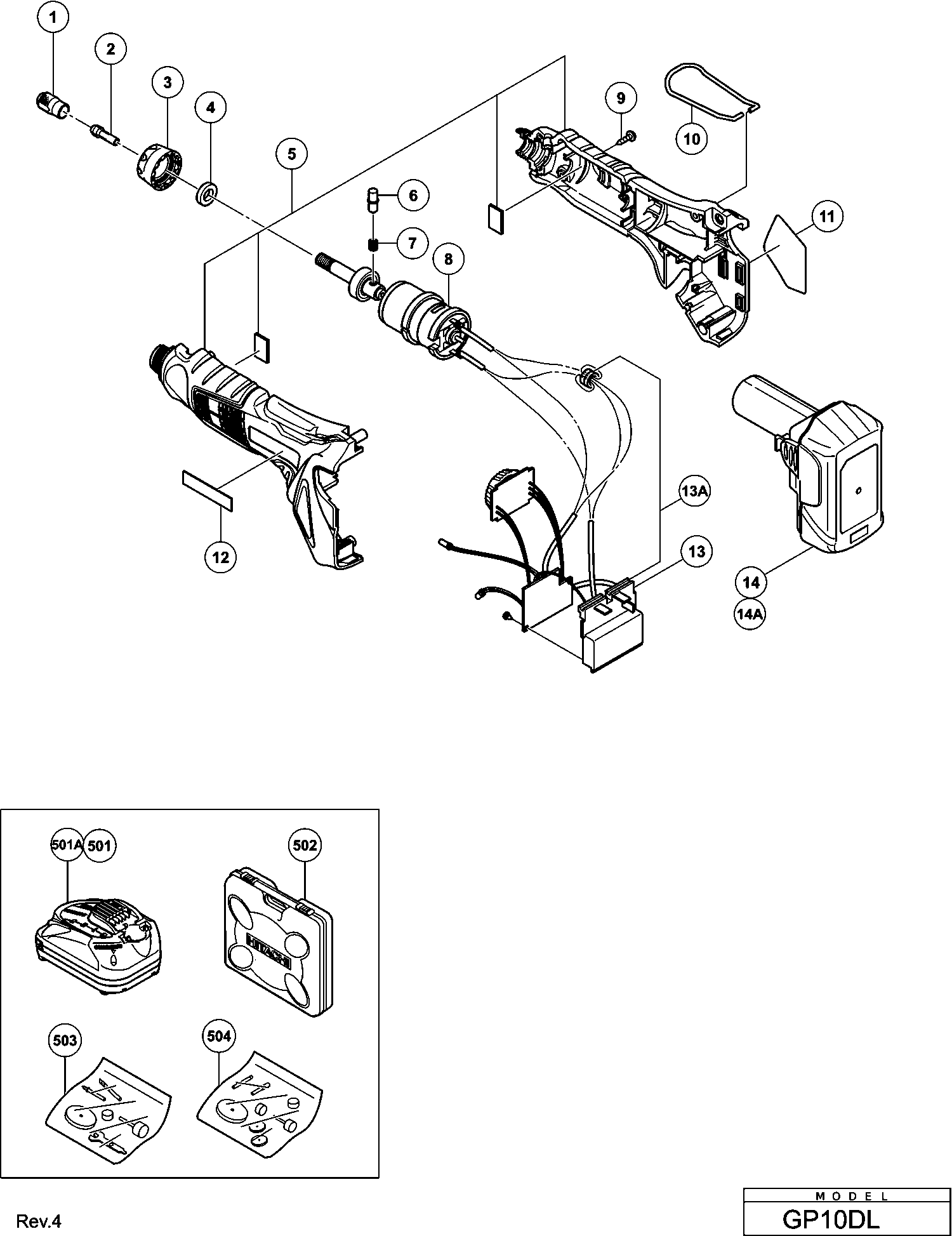

Technical drawing of model Hikoki GP10DL
Spare parts list of model Hikoki GP10DL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tool Holding Fixture | ||||
| 1 | 331978 | 4.65 | 5.63 | |
| Collet D3.2 | ||||
| 2 | 331969 | 4.20 | 5.08 | |
| Front Cap | ||||
| 3 | 331976 | 1.05 | 1.27 | |
| Felt | ||||
| 4 | 331970 | 1.05 | 1.27 | |
| Housing (a).(b) Set | ||||
| 5 | 332519 | 11.80 | 14.28 | |
| Lock Pin | ||||
| 6 | 331971 | 1.05 | 1.27 | |
| Spring | ||||
| 7 | 319267 | 1.50 | 1.82 | |
| Motor Dc 10.8v | ||||
| 8 | 331973 | 17.13 | 20.72 | |
| Tapping Screw (w/flange) D3x16 (black) | ||||
| 9 | 313687 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 10 | 331972 | |||
| Name Plate | ||||
| 12 | 330719 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 13 | 331977 | |||
| CONTROLLER SET (OLD 331977) | ||||
| 13A | 334850 | 31.63 | 38.27 | |
| CONTROLLER (OLD 331977) | ||||
| 13B | 375150 | 31.76 | 38.43 | |
| No information available, not orderable | ||||
| 14 | 331065 | |||
| No information available, not orderable | ||||
| 14A | 329371 | |||
| No information available, not orderable | ||||
| 14B | 371205 | |||
| No information available, not orderable | ||||
| 502 | 332491 | |||
| No information available, not orderable | ||||
| 503 | 332492 | |||
| No information available, not orderable | ||||
| 504 | 332493 | |||
