Here you will find all available parts and drawings of the 'Hikoki GL7'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

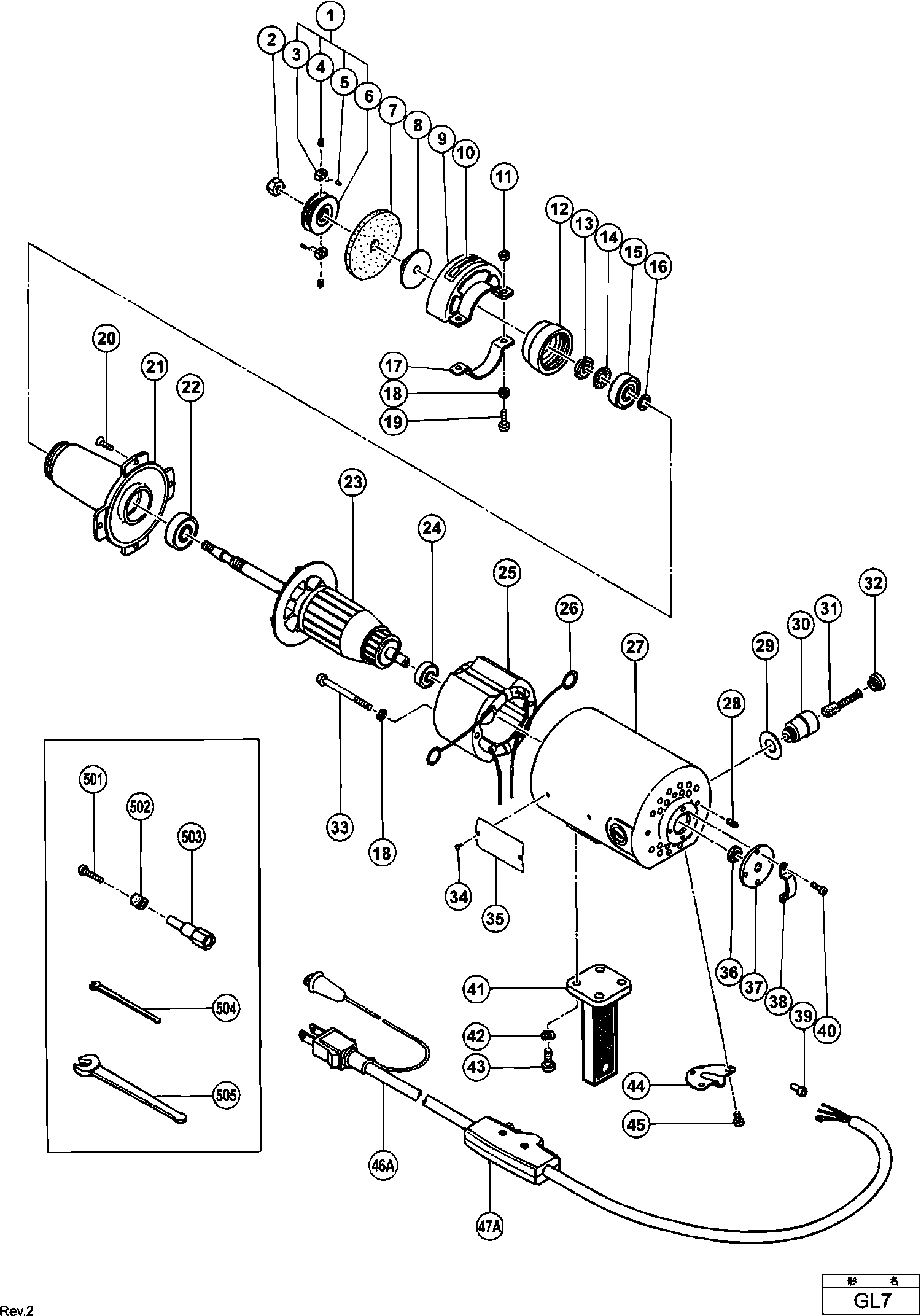

Technical drawing of model Hikoki GL7
Spare parts list of model Hikoki GL7
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 935022 | |||
| No information available, not orderable | ||||
| 2 | 935026 | |||
| No information available, not orderable | ||||
| 3 | 935024 | |||
| No information available, not orderable | ||||
| 4 | 949359 | |||
| No information available, not orderable | ||||
| 5 | 935025 | |||
| No information available, not orderable | ||||
| 6 | 935023 | |||
| No information available, not orderable | ||||
| 7 | 939123 | |||
| No information available, not orderable | ||||
| 8 | 935021 | |||
| No information available, not orderable | ||||
| 9 | 935033 | |||
| No information available, not orderable | ||||
| 10 | 934526 | |||
| Nut M5 (10 Pieces) (OLD 949555Z) | ||||
| 11 | 949555 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 12 | 935020 | |||
| No information available, not orderable | ||||
| 13 | 935019 | |||
| No information available, not orderable | ||||
| 14 | 935018 | |||
| Ball Bearing 6200vvcmps2l | ||||
| 15 | 6200VV | 6.15 | 7.44 | |
| No information available, not orderable | ||||
| 16 | 935017 | |||
| No information available, not orderable | ||||
| 17 | 935034 | |||
| Spring Washer M5 (10 pieces) | ||||
| 18 | 949454 | 1.04 | 1.26 | |
| Machine Screw M5X14 (10 pieces) | ||||
| 19 | 949238 | 1.05 | 1.27 | |
| Flat Hd. Screw M5x12 (10 Pcs.) | ||||
| 20 | 949332 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 21 | 935015 | |||
| Ball Bearing 6201vv | ||||
| 22 | 6201VV | 6.45 | 7.80 | |
| No information available, not orderable | ||||
| 23 | 935013F | |||
| Ball Bearing 608vvc2ps2l | ||||
| 24 | 608VVM | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 25 | 935002F | |||
| Brush Terminal For Aus | ||||
| 26 | 930630 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 27 | 983952 | |||
| SCHROEF M4X8 *TD5-5-4* | ||||
| 28 | 963383 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 29 | 930605 | |||
| No information available, not orderable | ||||
| 30 | 936904 | |||
| No longer available, no replacement | ||||
| 31 | 999021 | |||
| Brush Cap | ||||
| 32 | 936551 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 33 | 943430 | |||
| Rivet D2.5x4.8 (10 Pcs.) Three-phase | ||||
| 34 | 949510 | 1.04 | 1.26 | |
| PAKKING | ||||
| 36 | 935005 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 37 | 935004 | |||
| No information available, not orderable | ||||
| 38 | 935006 | |||
| Connector 50091 (10 Pcs.) | ||||
| 39 | 959140 | 3.30 | 3.99 | |
| Machine screw M4x10 (10 pieces) (OLD 949216Z) | ||||
| 40 | 949216 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 41 | 935003 | |||
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 42 | 949455 | 1.05 | 1.27 | |
| Machine Screw M6x16 (10 Pcs.) | ||||
| 43 | 949256 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 44 | 935011 | |||
| Machine Screw M5x8 (10 Pcs.) | ||||
| 45 | 949235 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 46A | 983953Z | |||
| No information available, not orderable | ||||
| 47A | 935008 | |||
| No information available, not orderable | ||||
| 501 | 935028 | |||
| No information available, not orderable | ||||
| 502 | 939121 | |||
| No information available, not orderable | ||||
| 503 | 935027 | |||
| No information available, not orderable | ||||
| 504 | 939306 | |||
| No information available, not orderable | ||||
| 505 | 672873 | |||
| No information available, not orderable | ||||
| 601 | 935029 | |||
| No information available, not orderable | ||||
| 602 | 939122 | |||
