Here you will find all available parts and drawings of the 'Hikoki GBT1850K'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

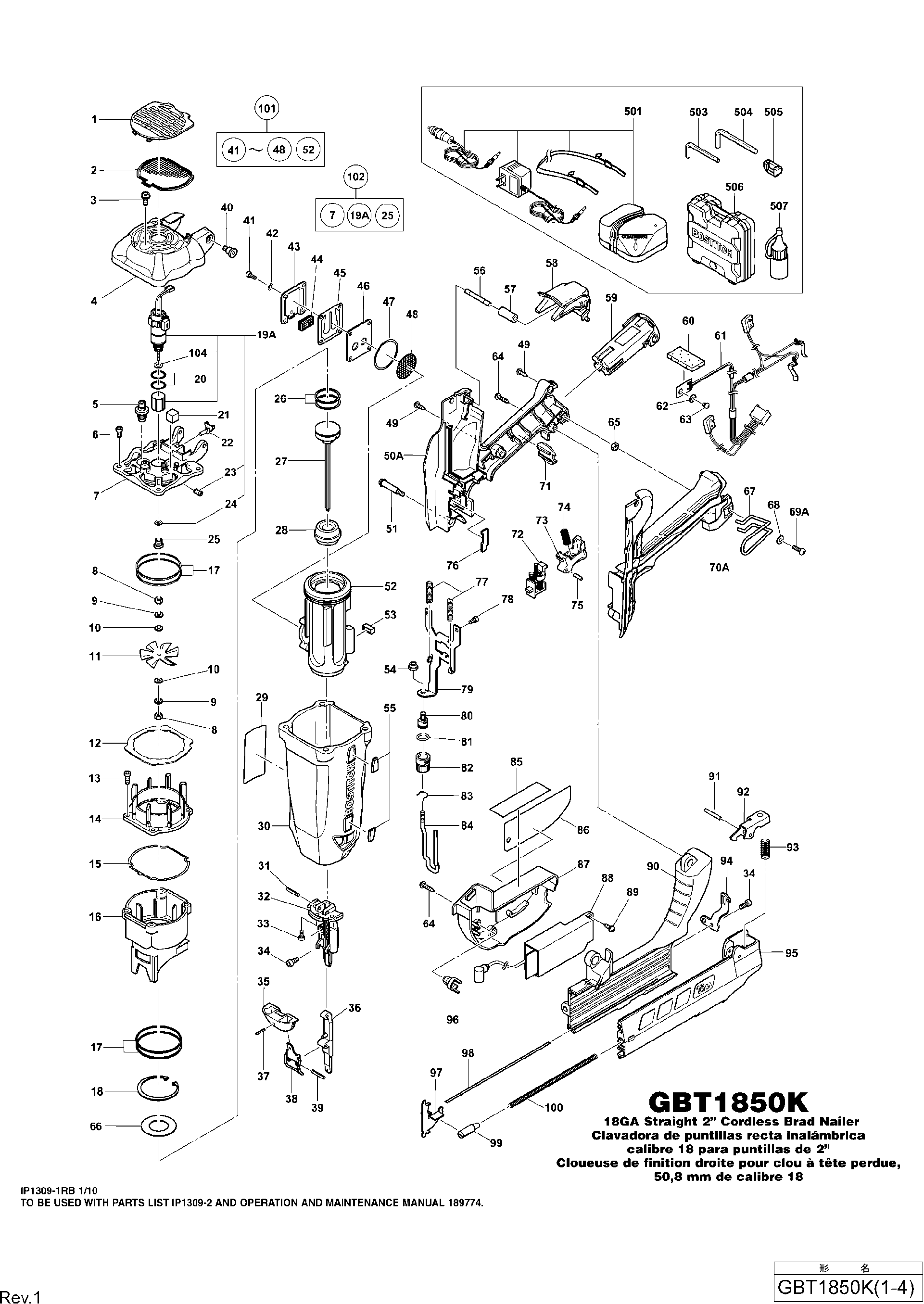

Technical drawing of model Hikoki GBT1850K
Spare parts list of model Hikoki GBT1850K
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *29 | 887641 | |||
| No information available, not orderable | ||||
| *501 | 887313 | |||
| No information available, not orderable | ||||
| *507 | 887487 | |||
| No information available, not orderable | ||||
| *508 | 887638 | |||
| No information available, not orderable | ||||
| *59 | 332414 | |||
| No information available, not orderable | ||||
| *86 | 887636 | |||
| Filter Cover B#9r192230 | ||||
| 1 | 886664 | 1.05 | 1.27 | |
| Filter | ||||
| 2 | 886344 | 10.20 | 12.34 | |
| Hex. Socket Hd. Bolt (w/flange) M5x10 B#9r192232 | ||||
| 3 | 886347 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 4 | 887389 | |||
| Spark Plug (a) | ||||
| 5 | 885333 | 3.30 | 3.99 | |
| Nylock Hex. Socket Hd. Bolt M4x12 | ||||
| 6 | 880630 | 1.05 | 1.27 | |
| Cylinder Head B#9r192236 | ||||
| 7 | 886661 | 20.90 | 25.29 | |
| Nut M3 (10 Pcs.) | ||||
| 8 | 949553 | 1.04 | 1.26 | |
| Spring Washer M3 (10 Pcs.) B#9r192238 | ||||
| 9 | 887376 | 1.20 | 1.45 | |
| Washer M3 (10 Pcs.) | ||||
| 10 | 949422 | 1.04 | 1.26 | |
| Fan | ||||
| 11 | 886309 | 2.10 | 2.54 | |
| Rubber Plate B#9r192241 | ||||
| 12 | 886568 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M4x16 (10 Pcs.) | ||||
| 13 | 949754 | 2.40 | 2.90 | |
| Cover | ||||
| 14 | 886295 | 9.15 | 11.07 | |
| Gasket B#9r192244 | ||||
| 15 | 886296 | 1.05 | 1.27 | |
| Chamber B#9r192245 | ||||
| 16 | 886297 | 10.65 | 12.89 | |
| Piston Ring | ||||
| 17 | 886312 | 2.10 | 2.54 | |
| Retaining Ring For D40 Hole B#9r192247 | ||||
| 18 | 886298 | 1.05 | 1.27 | |
| Motor | ||||
| 19A | 887446 | 104.50 | 126.44 | |
| O-ring (s-12) | ||||
| 20 | 875638 | 1.65 | 2.00 | |
| Gasket | ||||
| 21 | 886315 | 1.05 | 1.27 | |
| Adaptor | ||||
| 22 | 886313 | 1.05 | 1.27 | |
| Hex. Socket Set Screw M4x5 | ||||
| 23 | 886314 | 1.05 | 1.27 | |
| Rubber Ring | ||||
| 24 | 886567 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 25 | 886663 | |||
| Piston Ring | ||||
| 26 | 886848 | 5.63 | 6.81 | |
| Piston | ||||
| 27 | 886839 | 22.83 | 27.62 | |
| Piston Bumper | ||||
| 28 | 886851 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 29 | 887641 | |||
| No information available, not orderable | ||||
| 30 | 887357 | |||
| Pin | ||||
| 31 | 886310 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 32 | 887456 | |||
| Seal Lock Hex. Socket Hd. Bolt M4x12 B#9r192262 | ||||
| 33 | 886311 | 1.05 | 1.27 | |
| Nylock Hex. Socket Hd. Bolt M4x10 | ||||
| 34 | 880413 | 1.05 | 1.27 | |
| Lock Lever Cover B#9r192204 | ||||
| 35 | 886570 | 2.10 | 2.54 | |
| Guide Plate | ||||
| 36 | 886841 | 14.30 | 17.30 | |
| Roll Pin D3x10 (10 Pcs.) | ||||
| 37 | 887458 | 1.20 | 1.45 | |
| Locking Device | ||||
| 38 | 886843 | 3.15 | 3.81 | |
| Roll Pin D3x16 (10 Pcs.) B#9r192261 | ||||
| 39 | 887459 | 1.20 | 1.45 | |
| Hex. Shoulder Bolt M5 B#9r192253 | ||||
| 40 | 886566 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M4x8 | ||||
| 41 | 886307 | 1.05 | 1.27 | |
| Conical Spring H8 | ||||
| 42 | 886319 | 1.05 | 1.27 | |
| Buffer Cover B#9r192276 | ||||
| 43 | 886287 | 4.20 | 5.08 | |
| Muffler | ||||
| 44 | 886288 | 2.10 | 2.54 | |
| Gasket | ||||
| 45 | 886290 | 3.15 | 3.81 | |
| Buffer Plate B#9r192279 | ||||
| 46 | 886293 | 2.10 | 2.54 | |
| O-Ring | ||||
| 47 | 886294 | 1.05 | 1.27 | |
| Mesh B#9r192281 | ||||
| 48 | 886292 | 3.30 | 3.99 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 49 | 305812 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 50A | 887390 | |||
| Hex. Shoulder Bolt M4x32 B#9r192269 | ||||
| 51 | 886565 | 1.05 | 1.27 | |
| Cylinder | ||||
| 52 | 887356 | 36.10 | 43.68 | |
| Rubber | ||||
| 53 | 886285 | 1.05 | 1.27 | |
| Nylon Nut M5 | ||||
| 54 | 877371 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 55 | 887391 | |||
| Pin | ||||
| 56 | 886332 | 1.05 | 1.27 | |
| Rubber Bushing | ||||
| 57 | 886333 | 1.05 | 1.27 | |
| Actuator B#9r192284 | ||||
| 58 | 886326 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 59 | 332414 | |||
| Holder | ||||
| 60 | 886316 | 1.05 | 1.27 | |
| Internal wire (a) | ||||
| 61 | 887635 | 72.19 | 87.35 | |
| Washer M4 (10 Pcs.) | ||||
| 62 | 949423 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 63 | 887460 | |||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 64 | 302086 | 1.05 | 1.27 | |
| Lock Nut M4 (black) B#9r192290 | ||||
| 65 | 886330 | 1.05 | 1.27 | |
| Cylinder Plate | ||||
| 66 | 887032 | 1.05 | 1.27 | |
| Hook | ||||
| 67 | 886345 | 3.15 | 3.81 | |
| Ring | ||||
| 68 | 887036 | 1.05 | 1.27 | |
| Truss Hd. Screw M4x25 (black) B#9r192314 | ||||
| 69A | 887034 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 70A | 887392 | |||
| Terminal Support B#9r192292 | ||||
| 71 | 326316 | 1.05 | 1.27 | |
| Terminal Support B#9r192292 | ||||
| 71A | 326316 | 1.05 | 1.27 | |
| Trigger Stopper B#9r192298 | ||||
| 72 | 886552 | 3.15 | 3.81 | |
| Switch | ||||
| 73 | 886327 | 1.05 | 1.27 | |
| Trigger Spring B#9r192293 | ||||
| 74 | 886328 | 1.05 | 1.27 | |
| Pin D3x20 (10 Pcs.) | ||||
| 75 | 949890 | 1.80 | 2.18 | |
| Cover Plate | ||||
| 76 | 886324 | 1.05 | 1.27 | |
| Spring | ||||
| 77 | 886301 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M4x10 B#9r192299 | ||||
| 78 | 886308 | 1.05 | 1.27 | |
| Pushing Lever Arm B#9r192308 | ||||
| 79 | 886856 | 8.33 | 10.07 | |
| Pushing Lever Piece B#9r192301 | ||||
| 80 | 887035 | 3.15 | 3.81 | |
| O-ring (s-8) | ||||
| 81 | 992912 | 1.05 | 1.27 | |
| Adjuster | ||||
| 82 | 887358 | 2.10 | 2.54 | |
| Ratchet Spring | ||||
| 83 | 886331 | 1.05 | 1.27 | |
| Pushing Lever | ||||
| 84 | 886852 | 4.65 | 5.63 | |
| No information available, not orderable | ||||
| 85 | 887640 | |||
| No information available, not orderable | ||||
| 86 | 887636 | |||
| CONTROL COVER | ||||
| 87 | 886844 | 3.48 | 4.21 | |
| Controller | ||||
| 88 | 886320 | 72.33 | 87.51 | |
| Screw with flange D4x12 (black) | ||||
| 89 | 325083 | 1.65 | 2.00 | |
| Magazine | ||||
| 90 | 886845 | 22.83 | 27.62 | |
| ROLL PIN D3X20 (10 PCS.) | ||||
| 91 | 887461 | 1.20 | 1.45 | |
| Stop Lever B#9r192334 | ||||
| 92 | 885894 | 1.05 | 1.27 | |
| Spring | ||||
| 93 | 885895 | 1.05 | 1.27 | |
| PLATE | ||||
| 94 | 886842 | 1.74 | 2.11 | |
| No information available, not orderable | ||||
| 95 | 887355 | |||
| Prism B#9r192321 | ||||
| 96 | 886322 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 97 | 887457 | |||
| Nail Plate B#9r192345 | ||||
| 98 | 885898 | 1.05 | 1.27 | |
| Feeder Piece B#9r192346 | ||||
| 99 | 885899 | 1.05 | 1.27 | |
| Spring | ||||
| 100 | 885900 | 1.05 | 1.27 | |
| CYLINDER (A) | ||||
| 101 | 887387 | 77.77 | 94.10 | |
| Cylinder Head Ass'y B#9r192330 Includ.7a,19a,24a, | ||||
| 102 | 887451 | 222.61 | 269.36 | |
| No information available, not orderable | ||||
| 104 | 887411 | |||
| No information available, not orderable | ||||
| 501 | 887313 | |||
| No information available, not orderable | ||||
| 503 | 887462 | |||
| No information available, not orderable | ||||
| 504 | 887463 | |||
| Nose Cap (a) B#9r192394 | ||||
| 505 | 886846 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 506 | 887393 | |||
| No information available, not orderable | ||||
| 507 | 887487 | |||
| No information available, not orderable | ||||
| 508 | 887638 | |||
