Here you will find all available parts and drawings of the 'Hikoki G3613DB'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

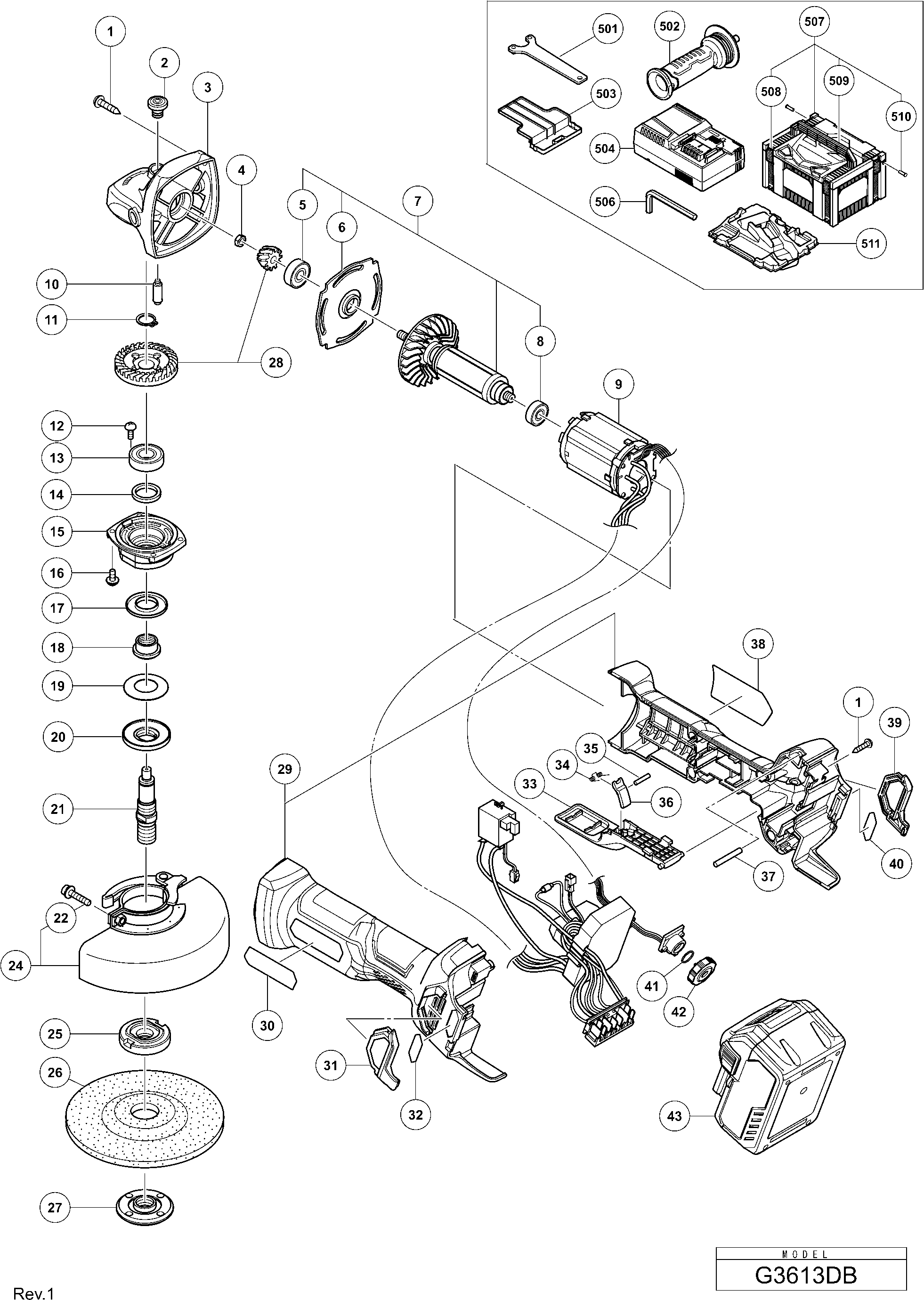

Technical drawing of model Hikoki G3613DB
Spare parts list of model Hikoki G3613DB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tapping Screw (w/flange) D4x23 (black) | ||||
| 1 | 328643 | 1.05 | 1.27 | |
| Pushing Button | ||||
| 2 | 301944 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 3 | 338332 | |||
| Special Nut M6 | ||||
| 4 | 309191 | 1.04 | 1.26 | |
| Ball Bearing 608ss | ||||
| 5 | 338337 | 2.25 | 2.72 | |
| Bearing Holder | ||||
| 6 | 334940 | 2.10 | 2.54 | |
| Rotor Ass'y Includ.23 | ||||
| 7 | 361075 | 75.08 | 90.84 | |
| Rotor Ass'y Includ.23 | ||||
| 7A | 361075 | 75.08 | 90.84 | |
| Ball Bearing 607vv | ||||
| 8 | 607VVC | 5.70 | 6.90 | |
| Ball Bearing-r 607dd | ||||
| 8A | 376128 | 3.75 | 4.54 | |
| No information available, not orderable | ||||
| 9 | 340987 | |||
| WIRING SET (OUD 340987) | ||||
| 9A | 341123 | 71.06 | 85.98 | |
| Lock Pin | ||||
| 10 | 301943 | 1.65 | 2.00 | |
| Spring Washer D12 (10 pieces) | ||||
| 11 | 939542 | 1.50 | 1.82 | |
| Slotted Hd. Screw (seal Lock) M4 | ||||
| 12 | 334942 | 1.20 | 1.45 | |
| Slotted Head Screw (seal Lock) M4 | ||||
| 12A | 371814 | 1.04 | 1.26 | |
| Ball Bearing 6001dducmps2s (old 980925) | ||||
| 13 | 6001DD | 6.45 | 7.80 | |
| Felt Packing | ||||
| 14 | 372126 | 1.04 | 1.26 | |
| PACKING GLAND NEW | ||||
| 15 | 372123 | 3.90 | 4.72 | |
| Seal Lock Screw (w/sp. Washer) M4x12 | ||||
| 16 | 307127 | 1.05 | 1.27 | |
| Fringer | ||||
| 17 | 372183 | 1.04 | 1.26 | |
| SLEEVE (B) | ||||
| 18 | 371672 | 3.45 | 4.17 | |
| BELLEVILLE SPRING (B) | ||||
| 19 | 371673 | 8.40 | 10.16 | |
| SUPPORT BODY (B) | ||||
| 20 | 371674 | 1.35 | 1.63 | |
| SPINDLE (C) | ||||
| 21 | 373074 | 5.70 | 6.90 | |
| Hex. Socket Hd. Bolt (w/washers) M5x20 | ||||
| 22 | 316107 | 1.80 | 2.18 | |
| Guard | ||||
| 24 | 337231 | 10.35 | 12.52 | |
| Wheel Washer (c) | ||||
| 25 | 371677 | 4.35 | 5.26 | |
| No information available, not orderable | ||||
| 26 | 316822 | |||
| No information available, not orderable | ||||
| 27 | 339579 | |||
| Gear And Pinion Set | ||||
| 28 | 338338 | 7.95 | 9.62 | |
| No information available, not orderable | ||||
| 29 | 372111 | |||
| BEHUIZING (OUD 372111) | ||||
| 29A | 377228 | 10.74 | 13.00 | |
| FILTER (A) | ||||
| 31 | 372107 | 1.20 | 1.45 | |
| Paddle Lever | ||||
| 33 | 372112 | 1.05 | 1.27 | |
| Spring | ||||
| 34 | 337874 | 1.95 | 2.36 | |
| Pin | ||||
| 35 | 339032 | 1.04 | 1.26 | |
| Lock Lever | ||||
| 36 | 337873 | 1.04 | 1.26 | |
| Pin | ||||
| 37 | 338869 | 1.04 | 1.26 | |
| Filter (B) | ||||
| 39 | 372108 | 1.20 | 1.45 | |
| O-ring (s-10) | ||||
| 41 | 987105 | 1.05 | 1.27 | |
| Dial | ||||
| 42 | 372109 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 43 | 371750 | |||
| No information available, not orderable | ||||
| 501 | 938332Z | |||
| No information available, not orderable | ||||
| 502 | 336865 | |||
| Battery Cover | ||||
| 503 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 506 | 944458 | |||
| No information available, not orderable | ||||
| 507 | 337108 | |||
| No information available, not orderable | ||||
| 507A | 336471 | |||
| No information available, not orderable | ||||
| 508 | 336472 | |||
| No information available, not orderable | ||||
| 509 | 336473 | |||
| No information available, not orderable | ||||
| 510 | 336474 | |||
| No information available, not orderable | ||||
| 511 | 373070 | |||
| No information available, not orderable | ||||
| 511A | 375802 | |||
