Here you will find all available parts and drawings of the 'Hikoki G23UAY'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

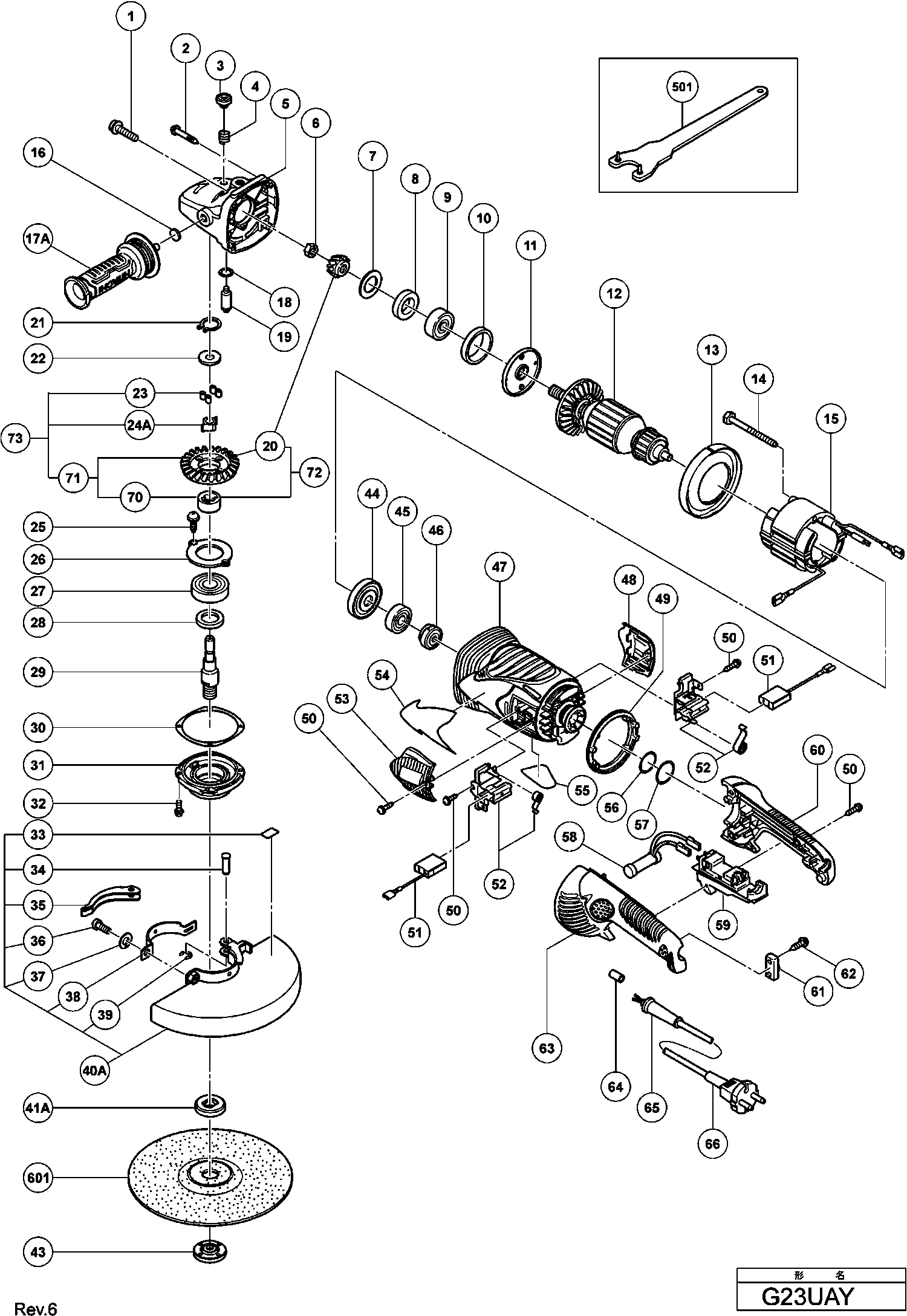

Technical drawing of model Hikoki G23UAY
Spare parts list of model Hikoki G23UAY
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Seal Lock Hex. Socket Hd. Bolt M5x14 | ||||
| 1 | 984509 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D5x35 (black) | ||||
| 2 | 323209 | 1.35 | 1.63 | |
| Pushing Button | ||||
| 3 | 306888 | 1.04 | 1.26 | |
| Spring | ||||
| 4 | 320219 | 1.35 | 1.63 | |
| Gear Cover | ||||
| 5 | 326717 | 25.58 | 30.95 | |
| Special Nut M10 | ||||
| 6 | 320226 | 1.35 | 1.63 | |
| Seal Washer | ||||
| 7 | 320221 | 1.35 | 1.63 | |
| Felt Packing | ||||
| 8 | 320222 | 1.35 | 1.63 | |
| Ball Bearing 6301ddcmps2l | ||||
| 9 | 6301DD | 6.75 | 8.17 | |
| Rubber Ring (b) | ||||
| 10 | 994208 | 1.04 | 1.26 | |
| Bearing Cover (a) | ||||
| 11 | 320220 | 2.55 | 3.09 | |
| ARMATURE 220 -230 VOLT | ||||
| 12 | 360777E | 82.64 | 99.99 | |
| Fan Guide | ||||
| 13 | 320215 | 1.35 | 1.63 | |
| Screw D5x75 (old 963454z) | ||||
| 14 | 984271 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 15 | 340682E | 48.81 | 59.06 | |
| Felt Washer | ||||
| 16 | 937033 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 17A | 336864 | |||
| O-ring | ||||
| 18 | 320218 | 1.20 | 1.45 | |
| Lock Pin | ||||
| 19 | 306890 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 20 | 326718 | |||
| Spring Washer D10 (10 pieces) | ||||
| 21 | 939540 | 1.95 | 2.36 | |
| Coupling Cover | ||||
| 22 | 326722 | 1.20 | 1.45 | |
| Damper | ||||
| 23 | 326721 | 7.43 | 8.98 | |
| Connector | ||||
| 24A | 333147 | 4.35 | 5.26 | |
| Seal Lock Screw (w/sp. Washer) M5x10 | ||||
| 25A | 992038 | 1.04 | 1.26 | |
| Bearing Cover (b) | ||||
| 26 | 326723 | 1.20 | 1.45 | |
| Ball Bearing 6302vvcmps2l | ||||
| 27 | 6302VV | 9.30 | 11.25 | |
| Felt Packing | ||||
| 28 | 990852 | 1.04 | 1.26 | |
| Spindle Ass'y | ||||
| 29 | 326727 | 9.90 | 11.98 | |
| Seal Plate | ||||
| 30 | 320228 | 1.35 | 1.63 | |
| Gear-box cover | ||||
| 31 | 320227 | 4.96 | 6.00 | |
| Hex. Socket Hd. Bolt (w/flange) M5x16 | ||||
| 32 | 994192 | 1.04 | 1.26 | |
| Label | ||||
| 33 | 311492 | 1.20 | 1.45 | |
| Set Pin | ||||
| 34 | 321546 | 3.00 | 3.63 | |
| Lever | ||||
| 35 | 321545 | 3.00 | 3.63 | |
| Bolt M8x22 | ||||
| 36 | 306887 | 1.05 | 1.27 | |
| Spring Washer M8 (10 Pcs.) | ||||
| 37 | 949457 | 1.05 | 1.27 | |
| Set Piece | ||||
| 38 | 321544 | 1.50 | 1.82 | |
| Ring | ||||
| 39 | 673489 | 1.04 | 1.26 | |
| Wheel Guard Ass'y Includ.32-38 For Europe | ||||
| 40A | 337225 | 14.03 | 16.97 | |
| No information available, not orderable | ||||
| 41A | 376202 | |||
| No information available, not orderable | ||||
| 43 | 937909Z | |||
| Dust Seal | ||||
| 44 | 320216 | 1.35 | 1.63 | |
| Ball Bearing 6000vvcmps2l | ||||
| 45 | 6000VV | 6.15 | 7.44 | |
| Bearing Bushing | ||||
| 46 | 321536 | 11.55 | 13.98 | |
| Housing | ||||
| 47 | 326712 | 41.39 | 50.08 | |
| Brush Cover | ||||
| 48 | 326715 | 2.25 | 2.72 | |
| Handle Damper | ||||
| 49 | 326726 | 4.35 | 5.26 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 50 | 305812 | 1.04 | 1.26 | |
| Auto-stop Carbon Brushes (2 Pieces) | ||||
| 51 | 999089 | 9.30 | 11.25 | |
| Carbon Brush (1 Pair) | ||||
| 51 | 999061 | 4.20 | 5.08 | |
| Brush Holder Set | ||||
| 52 | 322323 | 4.96 | 6.00 | |
| Brush Cover | ||||
| 53 | 326716 | 3.30 | 3.99 | |
| O-ring | ||||
| 56 | 326724 | 1.20 | 1.45 | |
| O-ring | ||||
| 57 | 326725 | 1.20 | 1.45 | |
| Resistor | ||||
| 58 | 320236 | 10.44 | 12.63 | |
| Switch (2p Pillar Type) W/safety Lock | ||||
| 59 | 320371 | 36.44 | 44.09 | |
| Handle (b) | ||||
| 60 | 326714 | 12.08 | 14.61 | |
| Cord Clip | ||||
| 61 | 960266 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 62 | 984750 | |||
| Handle (a) | ||||
| 63 | 326713 | 12.08 | 14.61 | |
| Threaded cable sleeve | ||||
| 64 | 981373 | 1.05 | 1.27 | |
| Cord Armor D10.7 | ||||
| 65 | 940778 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 66 | 321537 | |||
| Inner | ||||
| 70 | 328700 | 8.70 | 10.53 | |
| Inner Set (w/gear) Includ.70 | ||||
| 71 | 328694 | 32.04 | 38.77 | |
| GEAR SET G23 UVP (OLD 326718) | ||||
| 72 | 328697 | 37.54 | 45.42 | |
| No information available, not orderable | ||||
| 73 | 328698 | |||
| No information available, not orderable | ||||
| 501 | 325491 | |||
| No information available, not orderable | ||||
| 601 | 316825 | |||
| No information available, not orderable | ||||
| 602 | 310337 | |||
| Pipe Handle Set Includ.602 | ||||
| 603 | 323993 | 63.66 | 77.03 | |
| Bolt | ||||
| 604 | 985597 | 2.85 | 3.45 | |
| No information available, not orderable | ||||
| 605 | 332797 | |||
