Here you will find all available parts and drawings of the 'Hikoki G23U2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

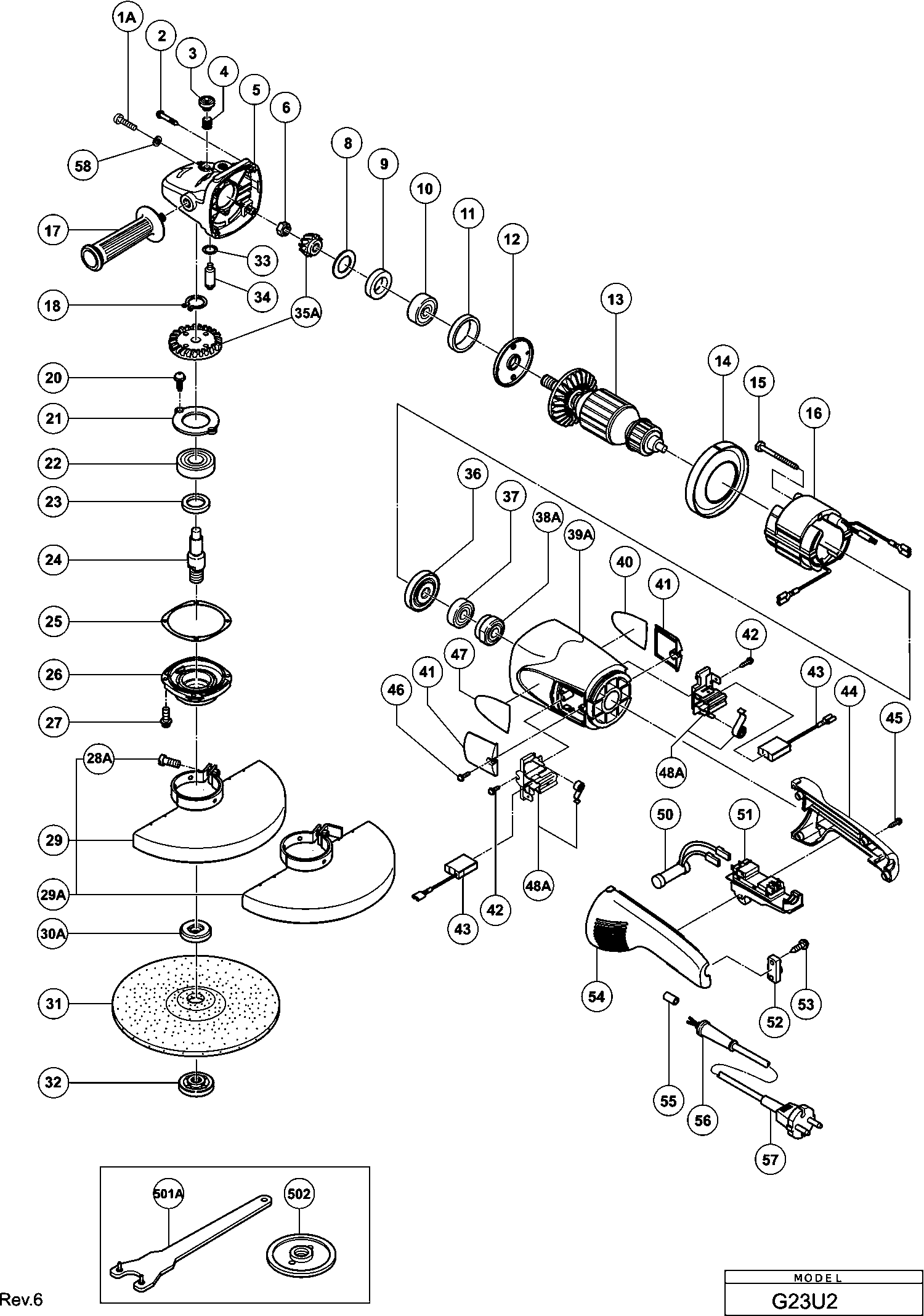

Technical drawing of model Hikoki G23U2
Spare parts list of model Hikoki G23U2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Seal Lock Hex. Socket Hd. Bolt M5x14 | ||||
| 1A | 984509 | 1.05 | 1.27 | |
| SCREW | ||||
| 2 | 301654 | 1.05 | 1.27 | |
| Pushing Button | ||||
| 3 | 306888 | 1.04 | 1.26 | |
| Spring | ||||
| 4 | 320219 | 1.35 | 1.63 | |
| Gear Cover Ass'y Includ.4,5,17,39,40 | ||||
| 5 | 320217 | 17.76 | 21.49 | |
| Special Nut M10 | ||||
| 6 | 320226 | 1.35 | 1.63 | |
| Seal Washer | ||||
| 8 | 320221 | 1.35 | 1.63 | |
| Felt Packing | ||||
| 9 | 320222 | 1.35 | 1.63 | |
| Ball Bearing 6301ddcmps2l | ||||
| 10 | 6301DD | 6.75 | 8.17 | |
| Rubber Ring (b) | ||||
| 11 | 994208 | 1.04 | 1.26 | |
| Bearing Cover (a) | ||||
| 12 | 320220 | 2.55 | 3.09 | |
| Armature 230v | ||||
| 13 | 360558E | 60.09 | 72.71 | |
| Fan Guide | ||||
| 14 | 320215 | 1.35 | 1.63 | |
| Hex. Hd. Tapping Screw D5x60 | ||||
| 15 | 961501 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 16 | 340501E | 48.54 | 58.73 | |
| No information available, not orderable | ||||
| 17 | 937981 | |||
| Spring Washer D12 (10 pieces) | ||||
| 18 | 939542 | 1.50 | 1.82 | |
| Seal Lock Screw (w/sp. Washer) M5x10 | ||||
| 20A | 992038 | 1.04 | 1.26 | |
| Bearing Cover (b) | ||||
| 21 | 320229 | 1.35 | 1.63 | |
| Ball Bearing 6302ddcmps2l | ||||
| 22 | 6302DD | 8.85 | 10.71 | |
| Felt Packing | ||||
| 23 | 990852 | 1.04 | 1.26 | |
| Spindle Ass'y | ||||
| 24 | 320234 | 6.96 | 8.42 | |
| Seal Plate | ||||
| 25 | 320228 | 1.35 | 1.63 | |
| Gear-box cover | ||||
| 26 | 320227 | 4.96 | 6.00 | |
| Hex. Socket Hd. Bolt (w/flange) M5x16 | ||||
| 27 | 994192 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt M8x25 (10 Pcs.) | ||||
| 28A | 949760 | 5.55 | 6.72 | |
| No information available, not orderable | ||||
| 29A | 330036 | |||
| No information available, not orderable | ||||
| 30 | 937908Z | |||
| No information available, not orderable | ||||
| 30A | 376202 | |||
| No information available, not orderable | ||||
| 31 | 316825 | |||
| No information available, not orderable | ||||
| 32 | 937909Z | |||
| O-ring | ||||
| 33 | 320218 | 1.20 | 1.45 | |
| Lock Pin | ||||
| 34 | 306890 | 1.80 | 2.18 | |
| Gear And Pinion Set | ||||
| 35A | 330032 | 20.90 | 25.29 | |
| Dust Seal | ||||
| 36 | 320216 | 1.35 | 1.63 | |
| Ball Bearing 6000vvcmps2l | ||||
| 37 | 6000VV | 6.15 | 7.44 | |
| Bearing Bushing | ||||
| 38A | 321536 | 11.55 | 13.98 | |
| Housing | ||||
| 39A | 320214 | 16.86 | 20.40 | |
| Brush Cover | ||||
| 41 | 320232 | 1.35 | 1.63 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 42 | 305812 | 1.04 | 1.26 | |
| Auto-stop Carbon Brushes (2 Pieces) | ||||
| 43 | 999089 | 9.30 | 11.25 | |
| Carbon Brush (1 Pair) | ||||
| 43 | 999061 | 4.20 | 5.08 | |
| Handle | ||||
| 44 | 320231 | 3.75 | 4.54 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 45 | 305812 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 46 | 305812 | 1.04 | 1.26 | |
| Brush Holder Set | ||||
| 48A | 322323 | 4.96 | 6.00 | |
| Resistor | ||||
| 50 | 320236 | 10.44 | 12.63 | |
| Switch (2p Pillar Type) W/safety Lock | ||||
| 51 | 320371 | 36.44 | 44.09 | |
| Switch | ||||
| 51 | 320235 | 30.60 | 37.03 | |
| Cord Clip | ||||
| 52 | 960266 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 53 | 984750 | |||
| Handle (a) | ||||
| 54 | 320230 | 4.96 | 6.00 | |
| Threaded cable sleeve | ||||
| 55 | 981373 | 1.05 | 1.27 | |
| Cord Armor D10.7 | ||||
| 56 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| 56 | 958049 | 1.04 | 1.26 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 57 | 500247Z | 6.18 | 7.48 | |
| Spring Washer M5 (10 pieces) | ||||
| 58 | 949454 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 501A | 325491 | |||
| No information available, not orderable | ||||
| 502 | 937917Z | |||
| No information available, not orderable | ||||
| 601 | 310337 | |||
| Pipe Handle Set Includ.602 | ||||
| 602A | 323993 | 63.66 | 77.03 | |
| Bolt | ||||
| 603 | 985597 | 2.85 | 3.45 | |
