Here you will find all available parts and drawings of the 'Hikoki G23SWU'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

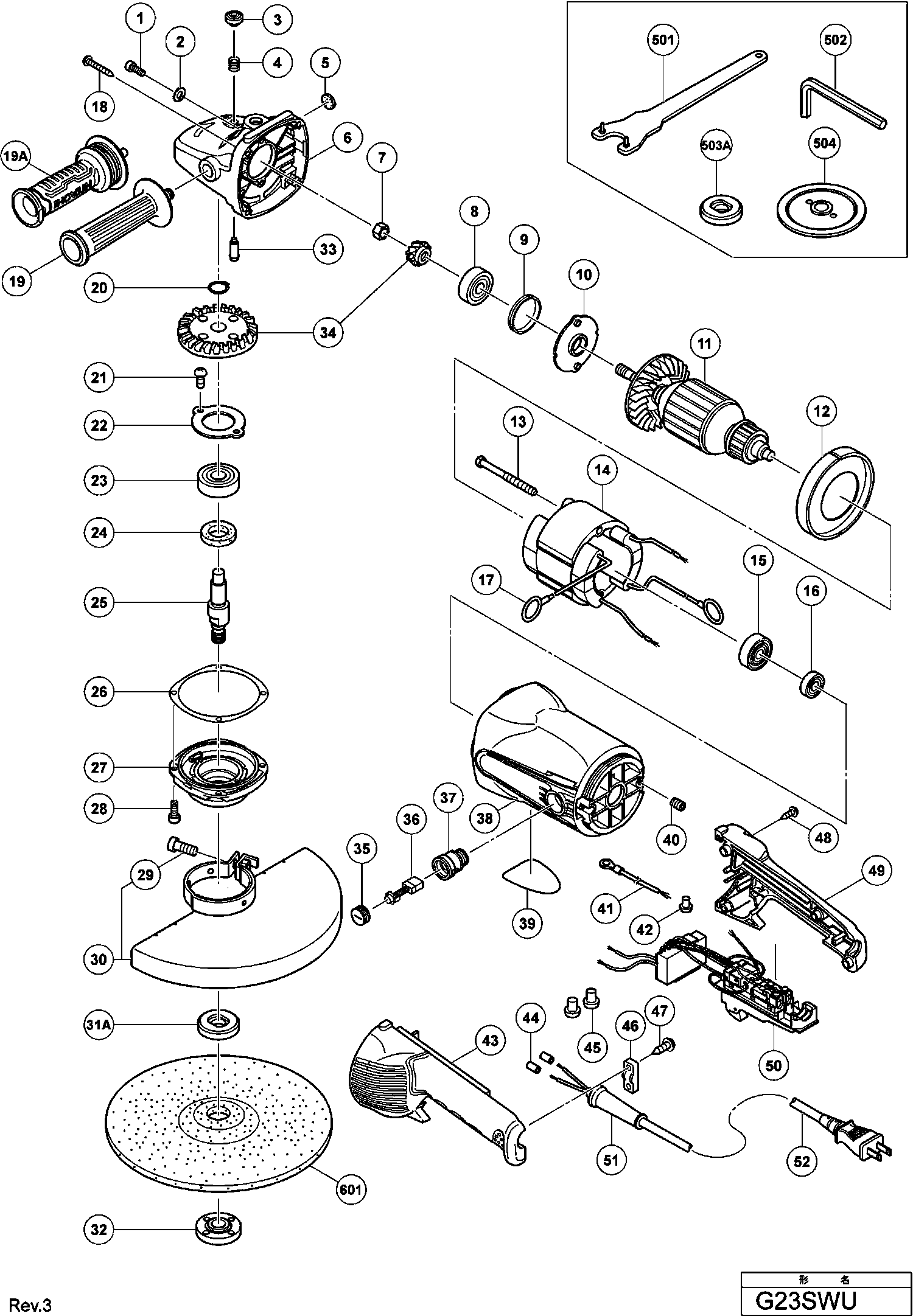

Technical drawing of model Hikoki G23SWU
Spare parts list of model Hikoki G23SWU
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Seal Lock Hex. Socket Hd. Bolt M5x14 | ||||
| 1 | 984509 | 1.05 | 1.27 | |
| Spring Washer M5 (10 pieces) | ||||
| 2 | 949454 | 1.04 | 1.26 | |
| Pushing Button | ||||
| 3 | 306888 | 1.04 | 1.26 | |
| Spring | ||||
| 4 | 320219 | 1.35 | 1.63 | |
| Felt Washer | ||||
| 5 | 937033 | 1.04 | 1.26 | |
| Inner Cover | ||||
| 6 | 330080 | 22.83 | 27.62 | |
| Special Nut M10 | ||||
| 7 | 320226 | 1.35 | 1.63 | |
| Ball Bearing 6301vvcmps2l | ||||
| 8 | 6301VV | 8.55 | 10.35 | |
| Rubber Ring | ||||
| 9 | 330031 | 1.20 | 1.45 | |
| Cover | ||||
| 10 | 330030 | 2.10 | 2.54 | |
| Armature 230v | ||||
| 11 | 360959E | 32.45 | 39.26 | |
| Fan Guide | ||||
| 12 | 330081 | 1.05 | 1.27 | |
| Hex. Hd. Tapping Screw D5x60 | ||||
| 13 | 961501 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 14 | 340844E | 33.83 | 40.93 | |
| Dust Seal | ||||
| 15 | 330029 | 1.80 | 2.18 | |
| Ball Bearing 6000vvcmps2l | ||||
| 16 | 6000VV | 6.15 | 7.44 | |
| Brush Terminal | ||||
| 17 | 937623 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D5x35 (black) | ||||
| 18 | 323209 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 19 | 937981 | |||
| No information available, not orderable | ||||
| 19A | 336864 | |||
| Spring Washer D12 (10 pieces) | ||||
| 20 | 939542 | 1.50 | 1.82 | |
| Machine Screw M5x10 (10 Pcs.) For Irl | ||||
| 21 | 949236 | 1.05 | 1.27 | |
| Bearing Cover (b) | ||||
| 22 | 320229 | 1.35 | 1.63 | |
| Ball Bearing 6302vvcmps2l | ||||
| 23 | 6302VV | 9.30 | 11.25 | |
| Felt Packing | ||||
| 24 | 990852 | 1.04 | 1.26 | |
| Spindle Ass'y | ||||
| 25 | 320234 | 6.96 | 8.42 | |
| Seal Plate | ||||
| 26 | 320228 | 1.35 | 1.63 | |
| Gear-box cover | ||||
| 27 | 320227 | 4.96 | 6.00 | |
| Hex. Socket Hd. Bolt (w/flange) M5x16 | ||||
| 28 | 994192 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt M8x25 (10 Pcs.) | ||||
| 29 | 949760 | 5.55 | 6.72 | |
| No information available, not orderable | ||||
| 30 | 330036 | |||
| No information available, not orderable | ||||
| 31 | 937908Z | |||
| No information available, not orderable | ||||
| 31A | 376202 | |||
| No information available, not orderable | ||||
| 32 | 937909Z | |||
| Lock Pin | ||||
| 33 | 306890 | 1.80 | 2.18 | |
| Gear And Pinion Set | ||||
| 34 | 330688 | 24.75 | 29.95 | |
| Brush Cap | ||||
| 35 | 945161 | 1.20 | 1.45 | |
| Carbon Brush (1 Pair) | ||||
| 36 | 999038 | 9.30 | 11.25 | |
| Brush Holder | ||||
| 37 | 938241 | 6.45 | 7.80 | |
| Housing | ||||
| 38 | 330028 | 17.19 | 20.80 | |
| Hex Adjustment Screw M5x8 | ||||
| 40 | 938477 | 1.05 | 1.27 | |
| Internal Wiring 270l | ||||
| 41 | 330216 | 1.05 | 1.27 | |
| Connector 50091 (10 Pcs.) | ||||
| 42 | 959140 | 3.30 | 3.99 | |
| Handle (a) | ||||
| 43 | 330033 | 4.20 | 5.08 | |
| Threaded cable sleeve | ||||
| 44 | 981373 | 1.05 | 1.27 | |
| Connector 50092 (10 Pcs.) | ||||
| 45 | 959141 | 3.75 | 4.54 | |
| Cord Clip | ||||
| 46 | 960266 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 47 | 984750 | |||
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 48 | 305812 | 1.04 | 1.26 | |
| Handle (b) | ||||
| 49 | 330034 | 4.20 | 5.08 | |
| Controller Switch 250v On Lock Type | ||||
| 50 | 335122 | 53.35 | 64.55 | |
| CONTROLLER SWITCH 250 VOLT OFF/LOCK | ||||
| 50 | 370378 | 51.84 | 62.72 | |
| Cord Armor D10.7 | ||||
| 51 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| 51 | 958049 | 1.04 | 1.26 | |
| Cord (cord Armor D8.8) | ||||
| 52 | 500450Z | 31.63 | 38.27 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 52 | 500247Z | 6.18 | 7.48 | |
| No information available, not orderable | ||||
| 501 | 325491 | |||
| No information available, not orderable | ||||
| 502 | 872422 | |||
| No information available, not orderable | ||||
| 503A | 376202 | |||
| No information available, not orderable | ||||
| 504 | 937917Z | |||
| No information available, not orderable | ||||
| 601 | 316825 | |||
| Pipe Handle Set Includ.602 | ||||
| 602 | 323993 | 63.66 | 77.03 | |
| Bolt | ||||
| 603 | 985597 | 2.85 | 3.45 | |
| No information available, not orderable | ||||
| 604 | 310337 | |||
| No information available, not orderable | ||||
| 605 | 332797 | |||
