Here you will find all available parts and drawings of the 'Hikoki G23SW2'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

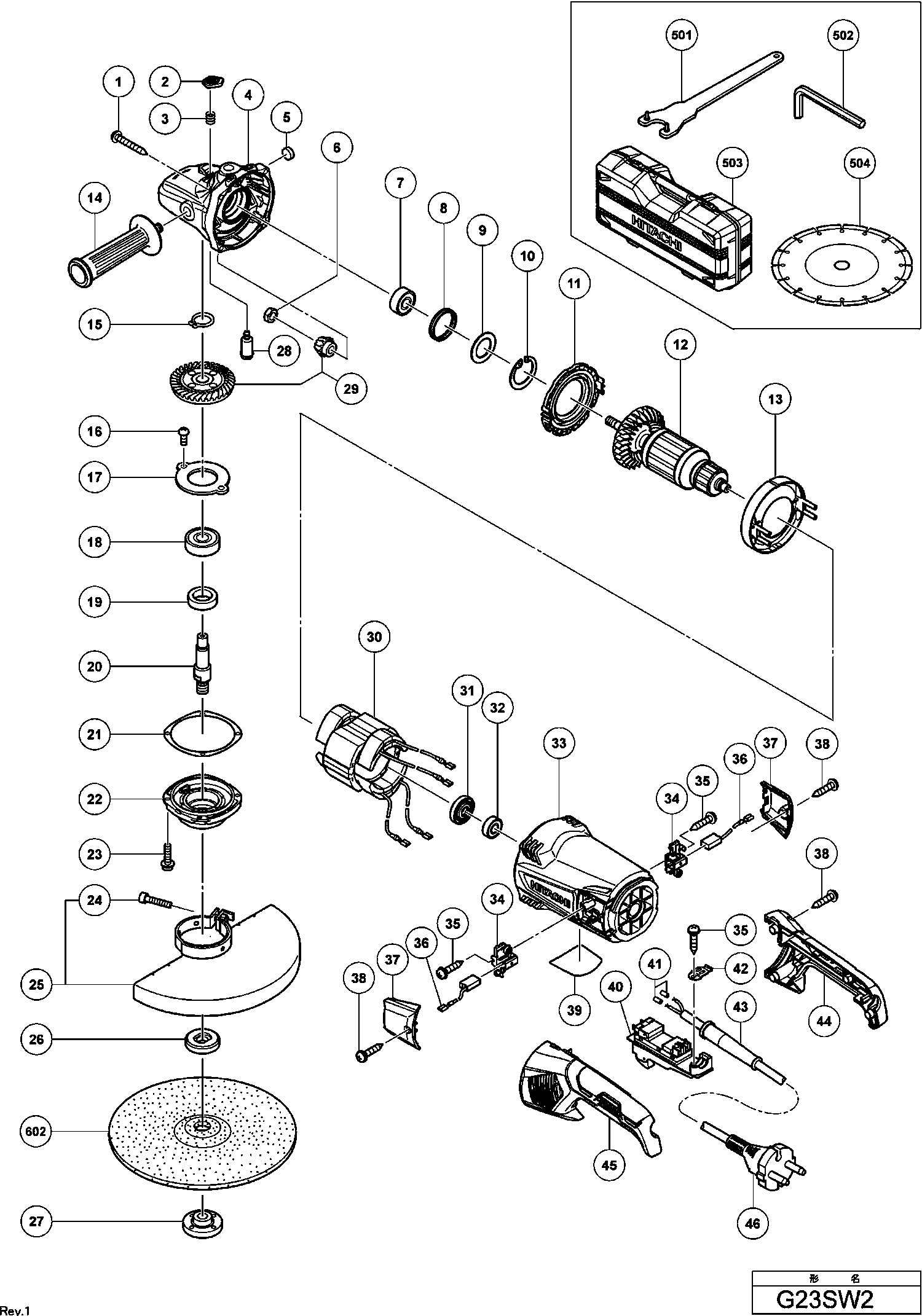

Technical drawing of model Hikoki G23SW2
Spare parts list of model Hikoki G23SW2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Armature 230v | ||||
| *12 | 360982E | 41.25 | 49.91 | |
| ANKER 110 VOLT | ||||
| *12 | 360982C | 38.56 | 46.66 | |
| ARMATURE 240 VOLT | ||||
| *12 | 360982F | 34.16 | 41.33 | |
| No information available, not orderable | ||||
| *20 | 321541 | |||
| Guard | ||||
| *25 | 338292 | 8.10 | 9.80 | |
| Wheel Washer (c) For Pan (120v) | ||||
| *26 | 334456 | 2.10 | 2.54 | |
| Outer Flange | ||||
| *27 | 937923P | 5.40 | 6.53 | |
| Stator 220v-230v | ||||
| *30 | 340888E | 30.25 | 36.60 | |
| VELD 110 VOLT | ||||
| *30 | 340888C | 28.27 | 34.21 | |
| Housing (1) | ||||
| *33B | 337643 | 11.10 | 13.43 | |
| Auto-stop Carbon Brushes (2 Pieces) | ||||
| *36 | 999093 | 6.75 | 8.17 | |
| Carbon Brush (1 Pair) | ||||
| *36 | 999059 | 3.30 | 3.99 | |
| Switch (on/off Lock Type) | ||||
| *40A | 337647 | 12.60 | 15.25 | |
| Switch (off Lock Type) | ||||
| *40A | 337648 | 12.60 | 15.25 | |
| Terminal M4.0 (10 Pcs.) | ||||
| *41 | 930804 | 3.00 | 3.63 | |
| Threaded cable sleeve | ||||
| *41 | 981373 | 1.05 | 1.27 | |
| Cord Clip | ||||
| *42 | 331336 | 1.20 | 1.45 | |
| Cord Armor D10.7 | ||||
| *43 | 940778 | 2.10 | 2.54 | |
| Cord Armor D11.6 | ||||
| *43 | 337918 | 1.05 | 1.27 | |
| Cable gland D8.2 (old 958049z) | ||||
| *43 | 958049 | 1.04 | 1.26 | |
| CORD (CORD ARMOR D10.7) | ||||
| *46 | 500492Z | 6.45 | 7.80 | |
| Tapping Screw (w/flange) D5x35 (black) | ||||
| 1 | 323209 | 1.35 | 1.63 | |
| Pushing Button | ||||
| 2 | 337641 | 1.04 | 1.26 | |
| Pushing Button | ||||
| 2A | 337641 | 1.04 | 1.26 | |
| Spring | ||||
| 3 | 320219 | 1.35 | 1.63 | |
| Gear Cover | ||||
| 4 | 337650 | 15.95 | 19.30 | |
| Felt Washer | ||||
| 5 | 937033 | 1.04 | 1.26 | |
| Special Nut M10 | ||||
| 6 | 320226 | 1.35 | 1.63 | |
| Ball Bearing 6301vvcmps2l | ||||
| 7 | 6301VV | 8.55 | 10.35 | |
| Rubber Ring | ||||
| 8 | 330031 | 1.20 | 1.45 | |
| Washer (1) | ||||
| 9 | 337642 | 1.04 | 1.26 | |
| Retaining Ring For D40 Hole | ||||
| 10 | 948391 | 1.65 | 2.00 | |
| Fan Guide (b) | ||||
| 11 | 337640 | 1.04 | 1.26 | |
| Armature 230v | ||||
| 12 | 360982E | 41.25 | 49.91 | |
| ANKER 110 VOLT | ||||
| 12 | 360982C | 38.56 | 46.66 | |
| ARMATURE 240 VOLT | ||||
| 12 | 360982F | 34.16 | 41.33 | |
| Fan Guide (a) | ||||
| 13 | 337639 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 14 | 937981 | |||
| Spring Washer D12 (10 pieces) | ||||
| 15 | 939542 | 1.50 | 1.82 | |
| Machine Screw M5x10 (10 Pcs.) For Irl | ||||
| 16 | 949236 | 1.05 | 1.27 | |
| Bearing Cover (b) | ||||
| 17 | 320229 | 1.35 | 1.63 | |
| Ball Bearing 6302vvcmps2l | ||||
| 18 | 6302VV | 9.30 | 11.25 | |
| Felt Packing | ||||
| 19 | 990852 | 1.04 | 1.26 | |
| Spindle Ass'y | ||||
| 20 | 320234 | 6.96 | 8.42 | |
| AS | ||||
| 20A | 378127 | 3.66 | 4.43 | |
| Seal Plate | ||||
| 21 | 320228 | 1.35 | 1.63 | |
| Gear-box cover | ||||
| 22 | 320227 | 4.96 | 6.00 | |
| PACKING GLAND | ||||
| 22 | 339726 | 4.50 | 5.44 | |
| Hex. Socket Hd. Bolt (w/flange) M5x16 | ||||
| 23 | 994192 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt M8x25 (10 Pcs.) | ||||
| 24 | 949760 | 5.55 | 6.72 | |
| Guard | ||||
| 25 | 338292 | 8.10 | 9.80 | |
| Wheel Washer (c) For Pan (120v) | ||||
| 26 | 334456 | 2.10 | 2.54 | |
| Outer Flange | ||||
| 27 | 937923P | 5.40 | 6.53 | |
| No information available, not orderable | ||||
| 27A | 373779 | |||
| Lock Pin | ||||
| 28 | 306890 | 1.80 | 2.18 | |
| Gear And Pinion Set | ||||
| 29 | 330688 | 24.75 | 29.95 | |
| Stator 220v-230v | ||||
| 30 | 340888E | 30.25 | 36.60 | |
| VELD 110 VOLT | ||||
| 30 | 340888C | 28.27 | 34.21 | |
| Dust Seal | ||||
| 31 | 330029 | 1.80 | 2.18 | |
| Ball Bearing 6000vvcmps2l | ||||
| 32 | 6000VV | 6.15 | 7.44 | |
| Housing (1) | ||||
| 33 | 337643 | 11.10 | 13.43 | |
| BRUSH HOLDER | ||||
| 34 | 337646 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 35 | 984750 | |||
| Auto-stop Carbon Brushes (2 Pieces) | ||||
| 36 | 999093 | 6.75 | 8.17 | |
| Carbon Brush (1 Pair) | ||||
| 36 | 999059 | 3.30 | 3.99 | |
| BRUSH COVER | ||||
| 37 | 337649 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 38 | 305812 | 1.04 | 1.26 | |
| Switch | ||||
| 40 | 320238 | 22.55 | 27.29 | |
| SCHAKELAAR 110 VOLT | ||||
| 40 | 338295 | 12.82 | 15.51 | |
| Switch (off Lock Type) | ||||
| 40A | 337648 | 12.60 | 15.25 | |
| Switch (on/off Lock Type) | ||||
| 40A | 337647 | 12.60 | 15.25 | |
| Threaded cable sleeve | ||||
| 41 | 981373 | 1.05 | 1.27 | |
| Tube (d) | ||||
| 41 | 961820 | 1.05 | 1.27 | |
| Cord Clip | ||||
| 42 | 331336 | 1.20 | 1.45 | |
| Cord Armor D10.7 | ||||
| 43 | 940778 | 2.10 | 2.54 | |
| Cord Armor D11.6 | ||||
| 43 | 337918 | 1.05 | 1.27 | |
| Cable gland D8.2 (old 958049z) | ||||
| 43 | 958049 | 1.04 | 1.26 | |
| Handle (d) | ||||
| 44 | 337654 | 4.35 | 5.26 | |
| Handle (c) | ||||
| 45 | 337653 | 4.35 | 5.26 | |
| CORD (CORD ARMOR D10.7) | ||||
| 46 | 500492Z | 6.45 | 7.80 | |
| PACKING GLAND GEAR ASS'Y NEW | ||||
| 47 | 381622 | 20.24 | 24.49 | |
| No information available, not orderable | ||||
| 501 | 325491 | |||
| No information available, not orderable | ||||
| 501A | 376127 | |||
| No information available, not orderable | ||||
| 502 | 872422 | |||
| No information available, not orderable | ||||
| 503 | 333932 | |||
| No information available, not orderable | ||||
| 505 | 378126 | |||
| No information available, not orderable | ||||
| 601 | 994275 | |||
| No information available, not orderable | ||||
| 602 | 316825 | |||
| No information available, not orderable | ||||
| 603 | 310337 | |||
| Pipe Handle Set Includ.602 | ||||
| 604 | 323993 | 63.66 | 77.03 | |
| Bolt | ||||
| 605 | 985597 | 2.85 | 3.45 | |
| No information available, not orderable | ||||
| 606 | 332797 | |||
