Here you will find all available parts and drawings of the 'Hikoki G23SCY2'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

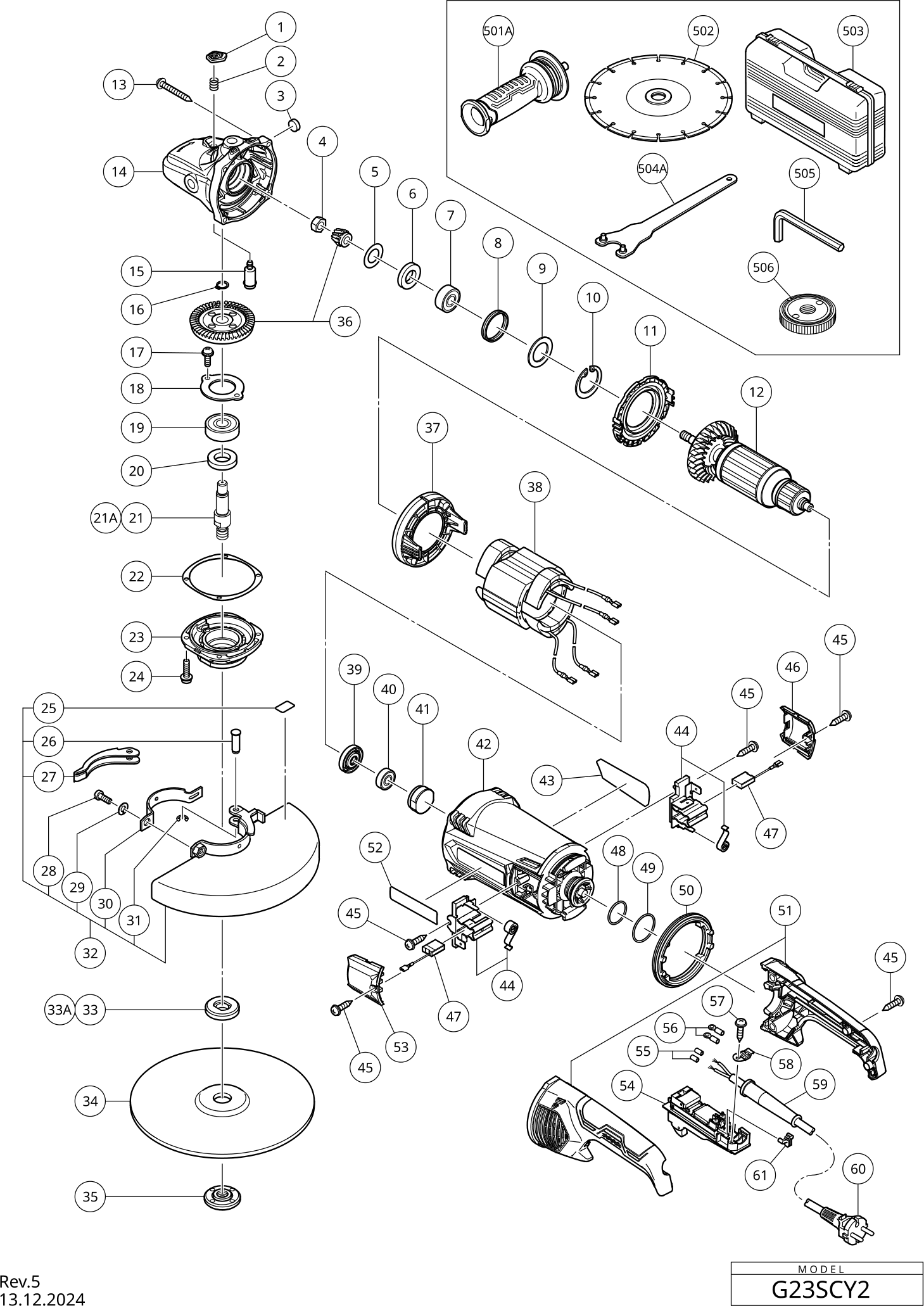

Technical drawing of model Hikoki G23SCY2
Spare parts list of model Hikoki G23SCY2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| ARMATURE ASS'Y 120 VOLT | ||||
| *12 | 361093U | 53.63 | 64.89 | |
| ARMATURE 220-230 VOLT | ||||
| *12 | 361093E | 50.33 | 60.89 | |
| ARMATURE 110 VOLT | ||||
| *12 | 361093C | 44.94 | 54.38 | |
| Hex. Socket Hd. Bolt M8x25 (10 Pcs.) | ||||
| *28 | 949760 | 5.55 | 6.72 | |
| Wheel Guard Ass'y Includ.32-38 For Europe | ||||
| *32 | 337225 | 14.03 | 16.97 | |
| No information available, not orderable | ||||
| *35 | 373779 | |||
| Stator 220v-230v | ||||
| *38 | 341007E | 45.24 | 54.74 | |
| FIELD 120 VOLT | ||||
| *38 | 341007D | 43.73 | 52.91 | |
| VELD 110 VOLT | ||||
| *38 | 341007C | 42.40 | 51.30 | |
| Auto-stop Carbon Brushes (2 Pieces) | ||||
| *47 | 999089 | 9.30 | 11.25 | |
| Carbon Brush (1 Pair) | ||||
| *47 | 999061 | 4.20 | 5.08 | |
| Switch | ||||
| *54 | 320238 | 22.55 | 27.29 | |
| Cord Armor D10.7 | ||||
| *59 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| *59 | 958049 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| *60 | 500435Z | |||
| Pushing Button | ||||
| 1 | 337641 | 1.04 | 1.26 | |
| Spring | ||||
| 2 | 320219 | 1.35 | 1.63 | |
| Felt Washer | ||||
| 3 | 937033 | 1.04 | 1.26 | |
| Special Nut M10 | ||||
| 4 | 320226 | 1.35 | 1.63 | |
| Seal Washer | ||||
| 5 | 320221 | 1.35 | 1.63 | |
| Felt Packing | ||||
| 6 | 320222 | 1.35 | 1.63 | |
| Ball Bearing 6301ddcmps2l | ||||
| 7 | 6301DD | 6.75 | 8.17 | |
| Rubber Ring | ||||
| 8 | 330031 | 1.20 | 1.45 | |
| Washer (1) | ||||
| 9 | 337642 | 1.04 | 1.26 | |
| Retaining Ring For D40 Hole | ||||
| 10 | 948391 | 1.65 | 2.00 | |
| Fan Guide (b) | ||||
| 11 | 337640 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D5x35 (black) | ||||
| 13 | 323209 | 1.35 | 1.63 | |
| GEAR COVER (A) ASS'Y | ||||
| 14 | 374598 | 19.53 | 23.63 | |
| Lock Pin | ||||
| 15 | 306890 | 1.80 | 2.18 | |
| Spring Washer D12 (10 pieces) | ||||
| 16 | 939542 | 1.50 | 1.82 | |
| Seal Lock Screw (w/sp. Washer) M5x10 | ||||
| 17 | 992038 | 1.04 | 1.26 | |
| Bearing Cover (b) | ||||
| 18 | 320229 | 1.35 | 1.63 | |
| Ball Bearing 6302vvcmps2l | ||||
| 19 | 6302VV | 9.30 | 11.25 | |
| Felt Packing | ||||
| 20 | 990852 | 1.04 | 1.26 | |
| AS | ||||
| 21A | 378127 | 3.66 | 4.43 | |
| Seal Plate | ||||
| 22 | 320228 | 1.35 | 1.63 | |
| Gear-box cover | ||||
| 23 | 320227 | 4.96 | 6.00 | |
| Hex. Socket Hd. Bolt (w/flange) M5x16 | ||||
| 24 | 994192 | 1.04 | 1.26 | |
| Label | ||||
| 25 | 311492 | 1.20 | 1.45 | |
| Set Pin | ||||
| 26 | 321546 | 3.00 | 3.63 | |
| Lever | ||||
| 27 | 321545 | 3.00 | 3.63 | |
| Set Piece | ||||
| 30 | 321544 | 1.50 | 1.82 | |
| Ring | ||||
| 31 | 673489 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 33A | 376202 | |||
| No information available, not orderable | ||||
| 34 | 316825 | |||
| Gear And Pinion Set | ||||
| 36 | 330688 | 24.75 | 29.95 | |
| FAN GUIDE (C) | ||||
| 37 | 373752 | 1.80 | 2.18 | |
| Dust Seal | ||||
| 39 | 330029 | 1.80 | 2.18 | |
| Ball Bearing 6000vvcmps2l | ||||
| 40 | 6000VV | 6.15 | 7.44 | |
| Bearing Bushing | ||||
| 41 | 321536 | 11.55 | 13.98 | |
| Casing Box DUO 110 - Set | ||||
| 42 | 373751 | 17.88 | 21.63 | |
| Brush Holder Set | ||||
| 44 | 322323 | 4.96 | 6.00 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 45 | 305812 | 1.04 | 1.26 | |
| CARBON BRUSH COVER PLATE | ||||
| 46 | 373754 | 1.04 | 1.26 | |
| O-ring | ||||
| 48 | 326724 | 1.20 | 1.45 | |
| O-ring | ||||
| 49 | 326725 | 1.20 | 1.45 | |
| HANDLE DAMPER | ||||
| 50 | 373753 | 2.70 | 3.27 | |
| Rear Grip Set | ||||
| 51 | 373921 | 11.55 | 13.98 | |
| CARBON BRUSH COVER PLATE | ||||
| 53 | 373755 | 1.04 | 1.26 | |
| Threaded cable sleeve | ||||
| 55 | 981373 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 57 | 984750 | |||
| Cord Clip | ||||
| 58 | 331336 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 501A | 381402 | |||
| No information available, not orderable | ||||
| 503 | 323713 | |||
| No information available, not orderable | ||||
| 504A | 376127 | |||
| No information available, not orderable | ||||
| 505 | 872422 | |||
| No information available, not orderable | ||||
| 506 | 378126 | |||
| No information available, not orderable | ||||
| 601 | 316825 | |||
| No information available, not orderable | ||||
| 602 | 310337 | |||
| Pipe Handle Set Includ.602 | ||||
| 603 | 323993 | 63.66 | 77.03 | |
| Bolt | ||||
| 604 | 985597 | 2.85 | 3.45 | |
| No information available, not orderable | ||||
| 605 | 332797 | |||
