Here you will find all available parts and drawings of the 'Hikoki G23SC4UDZ'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

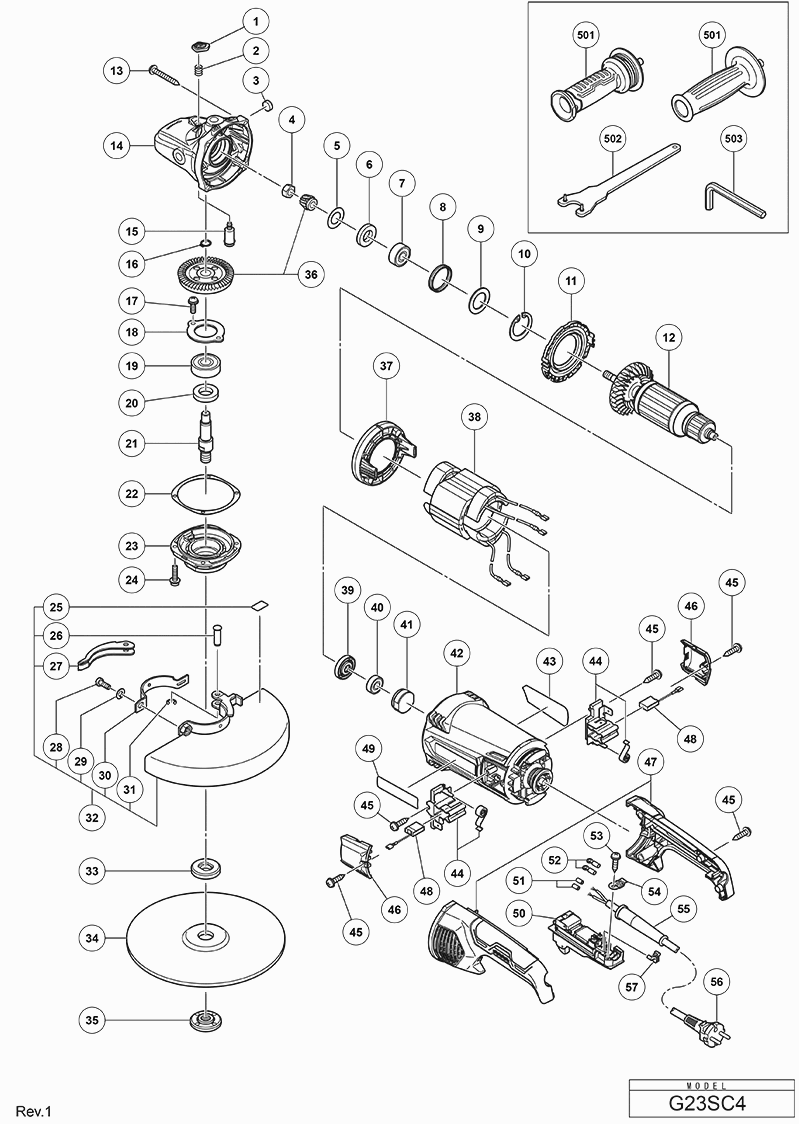

Technical drawing of model Hikoki G23SC4UDZ
Spare parts list of model Hikoki G23SC4UDZ
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Pushing Button | ||||
| 1 | 337641 | 1.04 | 1.26 | |
| Spring | ||||
| 2 | 320219 | 1.35 | 1.63 | |
| Felt Washer | ||||
| 3 | 937033 | 1.04 | 1.26 | |
| Special Nut M10 | ||||
| 4 | 320226 | 1.35 | 1.63 | |
| Seal Washer | ||||
| 5 | 320221 | 1.35 | 1.63 | |
| Felt Packing | ||||
| 6 | 320222 | 1.35 | 1.63 | |
| Ball Bearing 6301ddcmps2l | ||||
| 7 | 6301DD | 6.75 | 8.17 | |
| Rubber Ring | ||||
| 8 | 330031 | 1.20 | 1.45 | |
| Washer (1) | ||||
| 9 | 337642 | 1.04 | 1.26 | |
| Retaining Ring For D40 Hole | ||||
| 10 | 948391 | 1.65 | 2.00 | |
| Fan Guide (b) | ||||
| 11 | 337640 | 1.04 | 1.26 | |
| ARMATURE ASS'Y 120 VOLT | ||||
| 12 | 361093U | 53.63 | 64.89 | |
| ARMATURE 220-230 VOLT | ||||
| 12 | 361093E | 50.33 | 60.89 | |
| ARMATURE 240 VOLT | ||||
| 12 | 361093F | 50.33 | 60.89 | |
| ARMATURE 110 VOLT | ||||
| 12 | 361093C | 44.94 | 54.38 | |
| Tapping Screw (w/flange) D5x35 (black) | ||||
| 13 | 323209 | 1.35 | 1.63 | |
| GEAR COVER (A) ASS'Y | ||||
| 14 | 374598 | 19.53 | 23.63 | |
| Lock Pin | ||||
| 15 | 306890 | 1.80 | 2.18 | |
| Spring Washer D12 (10 pieces) | ||||
| 16 | 939542 | 1.50 | 1.82 | |
| Seal Lock Screw (w/sp. Washer) M5x10 | ||||
| 17 | 992038 | 1.04 | 1.26 | |
| Bearing Cover (b) | ||||
| 18 | 320229 | 1.35 | 1.63 | |
| Ball Bearing 6302vvcmps2l | ||||
| 19 | 6302VV | 9.30 | 11.25 | |
| Felt Packing | ||||
| 20 | 990852 | 1.04 | 1.26 | |
| Spindle Ass'y | ||||
| 21 | 320234 | 6.96 | 8.42 | |
| Seal Plate | ||||
| 22 | 320228 | 1.35 | 1.63 | |
| Gear-box cover | ||||
| 23 | 320227 | 4.96 | 6.00 | |
| Hex. Socket Hd. Bolt (w/flange) M5x16 | ||||
| 24 | 994192 | 1.04 | 1.26 | |
| Label | ||||
| 25 | 311492 | 1.20 | 1.45 | |
| Set Pin | ||||
| 26 | 321546 | 3.00 | 3.63 | |
| Lever | ||||
| 27 | 321545 | 3.00 | 3.63 | |
| Hex. Socket Hd. Bolt M8x25 (10 Pcs.) | ||||
| 28 | 949760 | 5.55 | 6.72 | |
| Bolt M8x22 | ||||
| 28 | 306887 | 1.05 | 1.27 | |
| Spring Washer M8 (10 Pcs.) | ||||
| 29 | 949457 | 1.05 | 1.27 | |
| Set Piece | ||||
| 30 | 321544 | 1.50 | 1.82 | |
| Ring | ||||
| 31 | 673489 | 1.04 | 1.26 | |
| Wheel Guard Ass'y Includ.32-38 For Europe | ||||
| 32 | 337225 | 14.03 | 16.97 | |
| Wheel Washer (c) For Pan (120v) | ||||
| 33 | 334456 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 35 | 937923P | |||
| Gear And Pinion Set | ||||
| 36 | 330688 | 24.75 | 29.95 | |
| FAN GUIDE (C) | ||||
| 37 | 373752 | 1.80 | 2.18 | |
| Stator 220v-230v | ||||
| 38 | 341007E | 45.24 | 54.74 | |
| Stator Ass'y 240v Includ.40 | ||||
| 38 | 341007F | 44.83 | 54.24 | |
| FIELD 120 VOLT | ||||
| 38 | 341007D | 43.73 | 52.91 | |
| FIELD 110 VOLT | ||||
| 38 | 341007C | 42.40 | 51.30 | |
| Dust Seal | ||||
| 39 | 330029 | 1.80 | 2.18 | |
| Ball Bearing 6000vvcmps2l | ||||
| 40 | 6000VV | 6.15 | 7.44 | |
| Bearing Bushing | ||||
| 41 | 321536 | 11.55 | 13.98 | |
| Casing Box DUO 110 - Set | ||||
| 42 | 373751 | 17.88 | 21.63 | |
| Brush Holder Set | ||||
| 44 | 322323 | 4.96 | 6.00 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 45 | 305812 | 1.04 | 1.26 | |
| CARBON BRUSH COVER PLATE | ||||
| 46 | 373754 | 1.04 | 1.26 | |
| Rear Grip Set | ||||
| 47 | 373922 | 8.25 | 9.98 | |
| Auto-stop Carbon Brushes (2 Pieces) | ||||
| 48 | 999089 | 9.30 | 11.25 | |
| Carbon Brush (1 Pair) | ||||
| 48 | 999061 | 4.20 | 5.08 | |
| Switch | ||||
| 50 | 320238 | 22.55 | 27.29 | |
| Threaded cable sleeve | ||||
| 51 | 981373 | 1.05 | 1.27 | |
| Terminal M4.0 (10 Pcs.) | ||||
| 52 | 930804 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 53 | 984750 | |||
| Cord Clip | ||||
| 54 | 331336 | 1.20 | 1.45 | |
| Cord Armor D10.7 | ||||
| 55 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| 55 | 958049 | 1.04 | 1.26 | |
| CORD FOR GBR 110 VOLT | ||||
| 56 | 321539 | 29.98 | 36.28 | |
| No information available, not orderable | ||||
| 57 | 322549 | |||
| No information available, not orderable | ||||
| 501 | 937981 | |||
| No information available, not orderable | ||||
| 502 | 325491 | |||
| No information available, not orderable | ||||
| 503 | 872422 | |||
| No information available, not orderable | ||||
| 602 | 310337 | |||
| Pipe Handle Set Includ.602 | ||||
| 603 | 323993 | 63.66 | 77.03 | |
| Bolt | ||||
| 604 | 985597 | 2.85 | 3.45 | |
| No information available, not orderable | ||||
| 605 | 332797 | |||
