Here you will find all available parts and drawings of the 'Hikoki G23SC2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

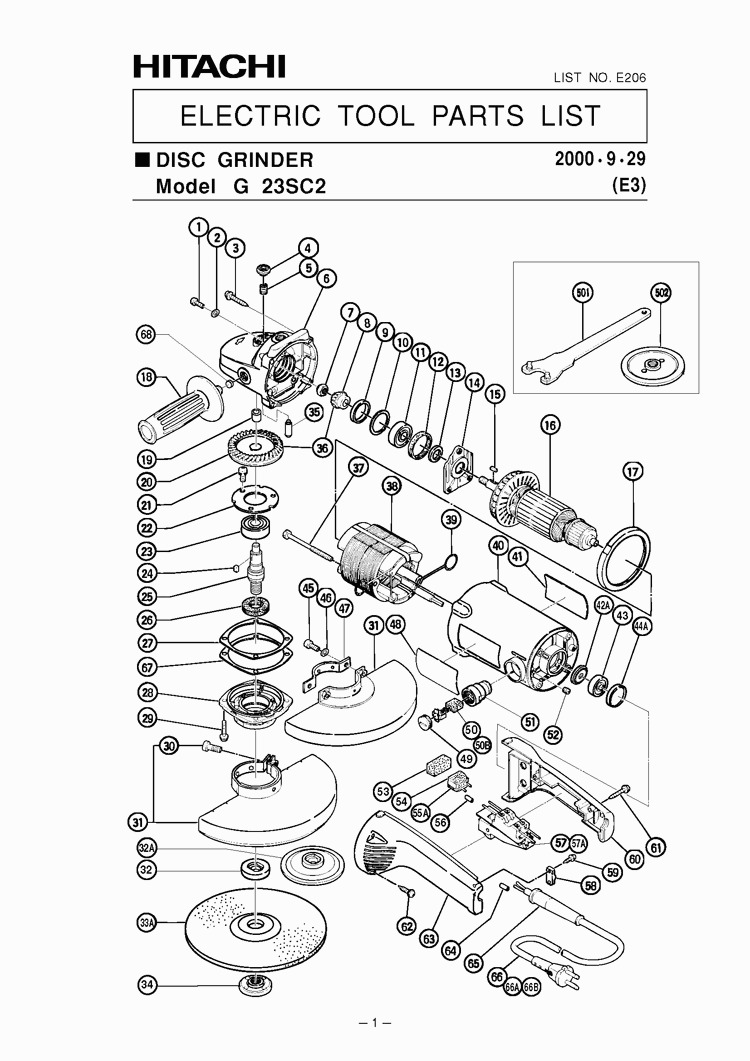

Technical drawing of model Hikoki G23SC2
Spare parts list of model Hikoki G23SC2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Machine Screw M5X14 (10 pieces) | ||||
| 1 | 949238 | 1.05 | 1.27 | |
| Spring Washer M5 (10 pieces) | ||||
| 2 | 949454 | 1.04 | 1.26 | |
| SCREW | ||||
| 3 | 301654 | 1.05 | 1.27 | |
| Pushing Button | ||||
| 4 | 306888 | 1.04 | 1.26 | |
| Spring | ||||
| 5 | 306889 | 1.04 | 1.26 | |
| Gear Cover Ass'y Includ.4,5,19a,36,64 | ||||
| 6 | 306105 | 21.04 | 25.46 | |
| U-nut M8 | ||||
| 7 | 946228 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 8 | 306110 | |||
| Seal Ring (a) | ||||
| 9 | 306107 | 1.05 | 1.27 | |
| Washer (a) | ||||
| 10 | 306113 | 1.04 | 1.26 | |
| Ball Bearing 6301ddcmps2l | ||||
| 11 | 6301DD | 6.75 | 8.17 | |
| Rubber Ring (b) | ||||
| 12 | 994208 | 1.04 | 1.26 | |
| Felt Packing | ||||
| 13 | 990864 | 1.04 | 1.26 | |
| Bearing Holder | ||||
| 14 | 306106 | 1.35 | 1.63 | |
| Feather Key 3x3x10 | ||||
| 15 | 940533 | 1.20 | 1.45 | |
| Armature 220-230 Volt | ||||
| 16 | 360287E | 91.30 | 110.47 | |
| Armature Ass'y 240v | ||||
| 16 | 360287F | 91.30 | 110.47 | |
| ARMATURE 110 VOLT | ||||
| 16 | 360287C | 85.14 | 103.02 | |
| Air-deflector Ring | ||||
| 17 | 306103 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 18 | 937981 | |||
| Needle Bearing Hk1212 | ||||
| 19 | 673002 | 4.35 | 5.26 | |
| No information available, not orderable | ||||
| 20 | 306109 | |||
| Seal Lock Screw (w/sp. Washer) M5x10 | ||||
| 21 | 992038 | 1.04 | 1.26 | |
| Bearing Cover | ||||
| 22 | 937035 | 1.04 | 1.26 | |
| Ball Bearing 6302ddcmps2l | ||||
| 23 | 6302DD | 8.85 | 10.71 | |
| Feather Key 4x4x8 Since 9.2000 | ||||
| 24 | 980809 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 25 | 994218 | |||
| Felt Packing | ||||
| 26 | 990852 | 1.04 | 1.26 | |
| Gasket | ||||
| 27 | 306112 | 1.35 | 1.63 | |
| Inner Cover | ||||
| 28 | 306111 | 6.90 | 8.35 | |
| Hex. Socket Hd. Bolt (w/flange) M5x16 | ||||
| 29 | 994192 | 1.04 | 1.26 | |
| Bolt M8x22 | ||||
| 30 | 306887 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 31 | 937984Z | |||
| No longer available, no replacement | ||||
| 32 | 937922P | |||
| No information available, not orderable | ||||
| 32A | 937908Z | |||
| No information available, not orderable | ||||
| 33A | 316825 | |||
| No information available, not orderable | ||||
| 34 | 937929Z | |||
| Lock Pin | ||||
| 35 | 306890 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 36 | 306108 | |||
| Screw D5x75 (old 963454z) | ||||
| 37 | 984271 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 38 | 340261J | |||
| Brush holder connector | ||||
| 39 | 958032 | 1.04 | 1.26 | |
| Housing Ass'y Including.76,77 | ||||
| 40 | 306102 | 19.39 | 23.46 | |
| Dust Seal | ||||
| 42A | 310998 | 1.05 | 1.27 | |
| Ball Bearing 6000vvcmps2l | ||||
| 43A | 6000VV | 6.15 | 7.44 | |
| Rubber Ring (a) | ||||
| 44C | 994202 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M8x20 (10 Pcs.) | ||||
| 45 | 949656 | 5.55 | 6.72 | |
| Spring Washer M8 (10 Pcs.) | ||||
| 46 | 949457 | 1.05 | 1.27 | |
| Washer (a) | ||||
| 47 | 937911 | 1.65 | 2.00 | |
| Brush Cap | ||||
| 49 | 940540 | 1.04 | 1.26 | |
| Carbon Brush (1 Pair) | ||||
| 50 | 999044 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 51 | 980487 | 5.68 | 6.87 | |
| Hex Adjustment Screw M5x8 | ||||
| 52 | 938477 | 1.05 | 1.27 | |
| Dust Packing | ||||
| 53 | 306117 | 1.04 | 1.26 | |
| Support (b) For Noise Suppressor | ||||
| 54 | 306114 | 1.04 | 1.26 | |
| Noise Suppressor | ||||
| 55A | 930039 | 1.95 | 2.36 | |
| Tube (d) | ||||
| 56 | 961820 | 1.05 | 1.27 | |
| Switch | ||||
| 57 | 306116 | 20.90 | 25.29 | |
| No information available, not orderable | ||||
| 57A | 306128 | |||
| Cord Clip | ||||
| 58 | 960266 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 59 | 984750 | |||
| Handle (b) | ||||
| 60 | 306119 | 5.10 | 6.17 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 61 | 304035 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D5x25 (black) | ||||
| 62 | 305558 | 1.04 | 1.26 | |
| Handle (a) | ||||
| 63 | 306118 | 5.40 | 6.53 | |
| Threaded cable sleeve | ||||
| 64 | 981373 | 1.05 | 1.27 | |
| Cord Armor D10.7 | ||||
| 65 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| 65 | 958049 | 1.04 | 1.26 | |
| Cord 10.7 (USE 714500=2X1 5M) | ||||
| 66 | 500247Z | 6.18 | 7.48 | |
| Cord (cord Armor D8.8) | ||||
| 66A | 500450Z | 31.63 | 38.27 | |
| No information available, not orderable | ||||
| 66B | 500453Z | |||
| No longer available, no replacement | ||||
| 66C | 500435Z | |||
| Thrust Washer | ||||
| 67 | 306981 | 1.04 | 1.26 | |
| Felt Washer | ||||
| 68 | 937033 | 1.04 | 1.26 | |
| Fan | ||||
| 69 | 319657 | 10.20 | 12.34 | |
| BEARING HOUSING WITH COMPLETE BEARING | ||||
| 70A | 320246 | 10.65 | 12.89 | |
| Bushing | ||||
| 71 | 320247 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 501 | 937913Z | |||
| No information available, not orderable | ||||
| 502 | 937917Z | |||
| Carbon Brush (auto Stop Type) (1 Pair) For Sin,ma | ||||
| 601A | 999074 | 14.40 | 17.42 | |
| No information available, not orderable | ||||
| 602 | 994275 | |||
| No information available, not orderable | ||||
| 603 | 994276 | |||
| No information available, not orderable | ||||
| 604 | 994277 | |||
| No information available, not orderable | ||||
| 605 | 994278 | |||
| No information available, not orderable | ||||
| 606 | 310337 | |||
