Here you will find all available parts and drawings of the 'Hikoki G23MRUA'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

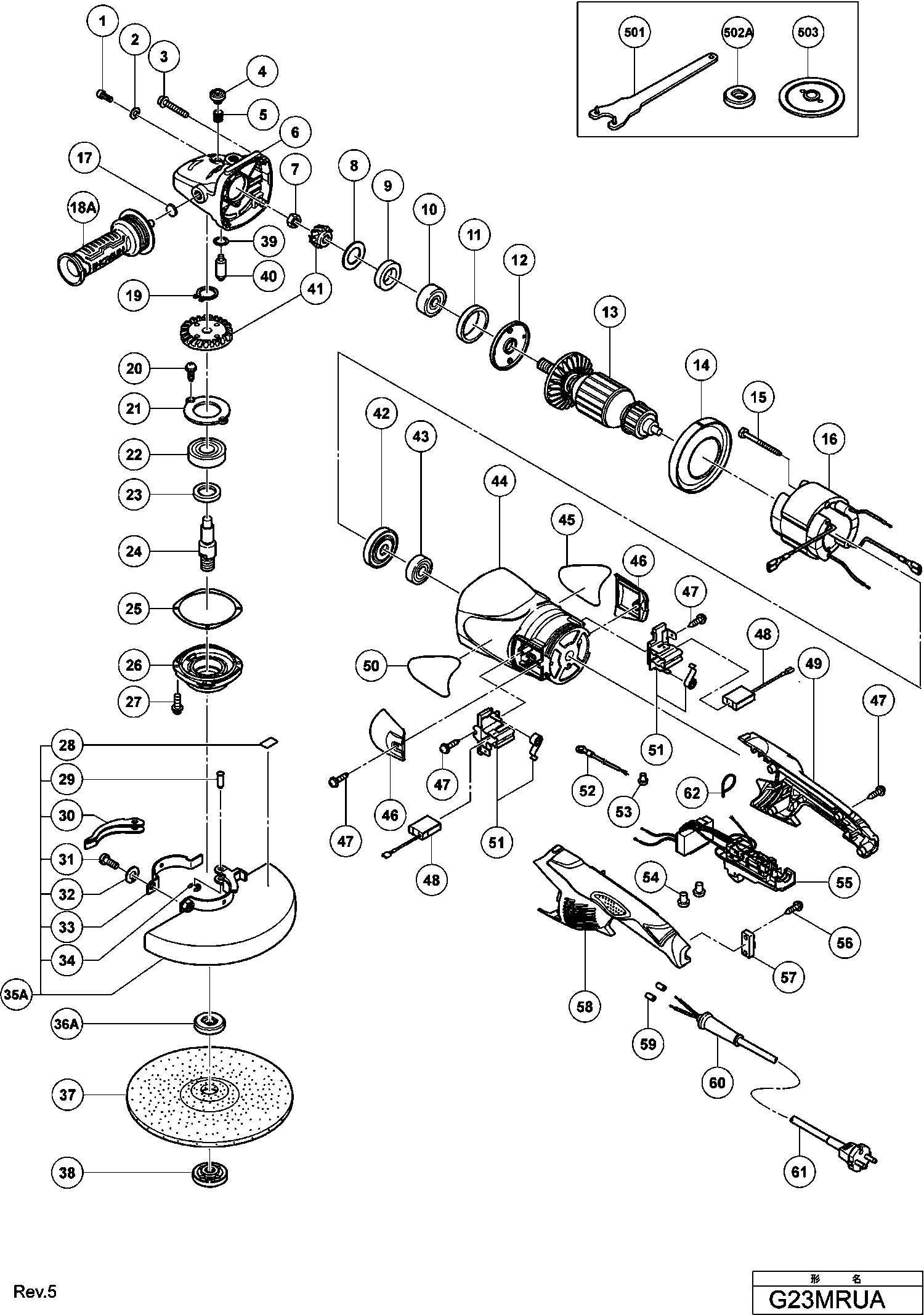

Technical drawing of model Hikoki G23MRUA
Spare parts list of model Hikoki G23MRUA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Seal Lock Hex. Socket Hd. Bolt M5x14 | ||||
| 1 | 984509 | 1.05 | 1.27 | |
| Spring Washer M5 (10 pieces) | ||||
| 2 | 949454 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt (w/flange) M5x30 | ||||
| 3 | 313585 | 2.40 | 2.90 | |
| Pushing Button | ||||
| 4 | 306888 | 1.04 | 1.26 | |
| Spring | ||||
| 5 | 320219 | 1.35 | 1.63 | |
| Gear Cover | ||||
| 6 | 322544 | 38.11 | 46.12 | |
| Special Nut M10 | ||||
| 7 | 320226 | 1.35 | 1.63 | |
| Seal Washer | ||||
| 8 | 320221 | 1.35 | 1.63 | |
| Felt Packing | ||||
| 9 | 320222 | 1.35 | 1.63 | |
| Ball Bearing 6301ddcmps2l | ||||
| 10 | 6301DD | 6.75 | 8.17 | |
| Rubber Ring (b) | ||||
| 11 | 994208 | 1.04 | 1.26 | |
| Bearing Cover (a) | ||||
| 12 | 320220 | 2.55 | 3.09 | |
| ARMATURE 220 -230 VOLT | ||||
| 13 | 360777E | 82.64 | 99.99 | |
| Armature 220v-230v | ||||
| 13 | 360594E | 77.00 | 93.17 | |
| Fan Guide | ||||
| 14 | 320215 | 1.35 | 1.63 | |
| Screw D5x75 (old 963454z) | ||||
| 15 | 984271 | 1.04 | 1.26 | |
| Stator 230v-240v | ||||
| 16 | 340846E | 49.36 | 59.73 | |
| Felt Washer | ||||
| 17 | 937033 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 18A | 336864 | |||
| Spring Washer D12 (10 pieces) | ||||
| 19 | 939542 | 1.50 | 1.82 | |
| Machine Screw M5x10 (10 Pcs.) For Irl | ||||
| 20 | 949236 | 1.05 | 1.27 | |
| Seal Lock Screw (w/sp. Washer) M5x10 | ||||
| 20A | 992038 | 1.04 | 1.26 | |
| Bearing Cover (b) | ||||
| 21 | 320229 | 1.35 | 1.63 | |
| Ball Bearing 6302ddcmps2l | ||||
| 22 | 6302DD | 8.85 | 10.71 | |
| Felt Packing | ||||
| 23 | 990852 | 1.04 | 1.26 | |
| Spindle Ass'y | ||||
| 24 | 320234 | 6.96 | 8.42 | |
| Seal Plate | ||||
| 25 | 320228 | 1.35 | 1.63 | |
| Gear-box cover | ||||
| 26 | 320227 | 4.96 | 6.00 | |
| Hex. Socket Hd. Bolt (w/flange) M5x16 | ||||
| 27 | 994192 | 1.04 | 1.26 | |
| Label | ||||
| 28 | 311492 | 1.20 | 1.45 | |
| Set Pin | ||||
| 29 | 321546 | 3.00 | 3.63 | |
| Lever | ||||
| 30 | 321545 | 3.00 | 3.63 | |
| Bolt M8x22 | ||||
| 31 | 306887 | 1.05 | 1.27 | |
| Spring Washer M8 (10 Pcs.) | ||||
| 32 | 949457 | 1.05 | 1.27 | |
| Set Piece | ||||
| 33 | 321544 | 1.50 | 1.82 | |
| Ring | ||||
| 34 | 673489 | 1.04 | 1.26 | |
| Wheel Guard Ass'y Includ.32-38 For Europe | ||||
| 35A | 337225 | 14.03 | 16.97 | |
| Wheel Washer (b) For Aus | ||||
| 36 | 937908Z | 28.60 | 34.61 | |
| No information available, not orderable | ||||
| 36A | 376202 | |||
| No information available, not orderable | ||||
| 37 | 316825 | |||
| No information available, not orderable | ||||
| 38 | 937909Z | |||
| O-ring | ||||
| 39 | 320218 | 1.20 | 1.45 | |
| Lock Pin | ||||
| 40 | 306890 | 1.80 | 2.18 | |
| Gear And Pinion Set | ||||
| 41 | 330032 | 20.90 | 25.29 | |
| Dust Seal | ||||
| 42 | 320216 | 1.35 | 1.63 | |
| Ball Bearing 6000vvcmps2l | ||||
| 43 | 6000VV | 6.15 | 7.44 | |
| Housing (old 322543) | ||||
| 44 | 323224 | 29.15 | 35.27 | |
| BRUSH COVER | ||||
| 46 | 322547 | 1.35 | 1.63 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 47 | 305812 | 1.04 | 1.26 | |
| Auto-stop Carbon Brushes (2 Pieces) | ||||
| 48 | 999089 | 9.30 | 11.25 | |
| Carbon Brush (1 Pair) | ||||
| 48 | 999061 | 4.20 | 5.08 | |
| Handle (b) | ||||
| 49 | 322546 | 10.78 | 13.04 | |
| Brush Holder Set | ||||
| 51 | 322323 | 4.96 | 6.00 | |
| Internal Wiring 270l | ||||
| 52 | 330216 | 1.05 | 1.27 | |
| Connector 50091 (10 Pcs.) | ||||
| 53 | 959140 | 3.30 | 3.99 | |
| Connector 50092 (10 Pcs.) | ||||
| 54 | 959141 | 3.75 | 4.54 | |
| Controller Switch 250v On Lock Type | ||||
| 55 | 335122 | 53.35 | 64.55 | |
| No information available, not orderable | ||||
| 56 | 984750 | |||
| Cord Clip | ||||
| 57 | 960266 | 1.04 | 1.26 | |
| Handle (a) | ||||
| 58 | 322545 | 10.78 | 13.04 | |
| Threaded cable sleeve | ||||
| 59 | 981373 | 1.05 | 1.27 | |
| Cord Armor D10.7 | ||||
| 60 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| 60 | 958049 | 1.04 | 1.26 | |
| Cord 5m 2 X 1,5 H07rn-f (w/o plug) | ||||
| 61 | 500460Z | 37.26 | 45.09 | |
| Band | ||||
| 62 | 331759 | 1.73 | 2.09 | |
| Wire Band | ||||
| 62A | 313505 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 501 | 325491 | |||
| No information available, not orderable | ||||
| 502A | 376202 | |||
| No information available, not orderable | ||||
| 503 | 937917Z | |||
| Pipe Handle Set Includ.602 | ||||
| 601 | 323993 | 63.66 | 77.03 | |
| Bolt | ||||
| 602 | 985597 | 2.85 | 3.45 | |
| No information available, not orderable | ||||
| 603 | 310337 | |||
| No information available, not orderable | ||||
| 604 | 332797 | |||
| No information available, not orderable | ||||
| 605 | 323713 | |||
