Here you will find all available parts and drawings of the 'Hikoki G18SRU'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

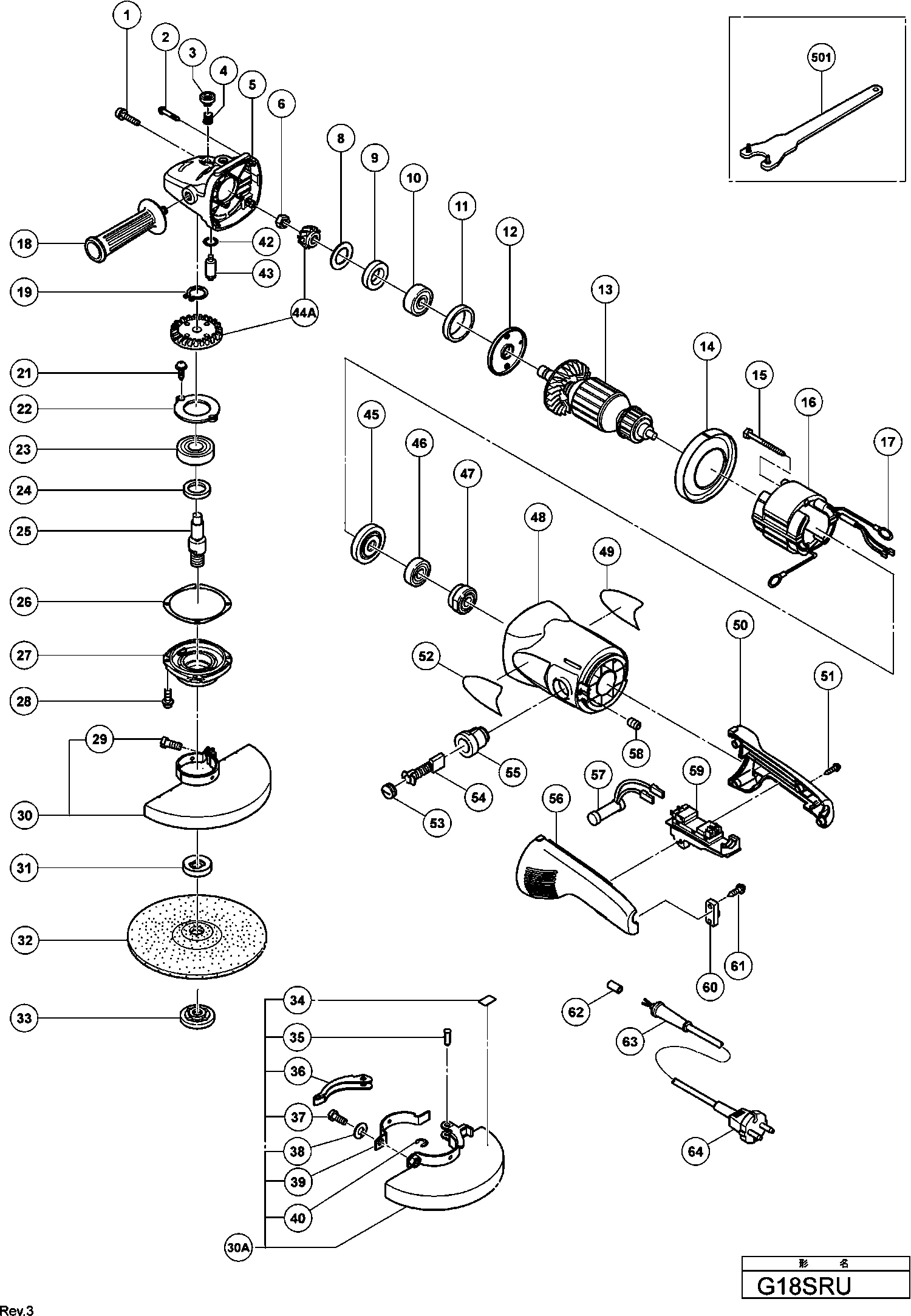

Technical drawing of model Hikoki G18SRU
Spare parts list of model Hikoki G18SRU
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 315636 | |||
| Tapping Screw (w/flange) D5x35 (black) | ||||
| 2 | 323209 | 1.35 | 1.63 | |
| Pushing Button | ||||
| 3 | 306888 | 1.04 | 1.26 | |
| Spring | ||||
| 4 | 320219 | 1.35 | 1.63 | |
| Gear Cover Ass'y Includ.4,5,17,39,40 | ||||
| 5 | 320217 | 17.76 | 21.49 | |
| Special Nut M10 | ||||
| 6 | 320226 | 1.35 | 1.63 | |
| Seal Washer | ||||
| 8 | 320221 | 1.35 | 1.63 | |
| Felt Packing | ||||
| 9 | 320222 | 1.35 | 1.63 | |
| Ball Bearing 6301vvcmps2l | ||||
| 10 | 6301VV | 8.55 | 10.35 | |
| Rubber Ring (b) | ||||
| 11 | 994208 | 1.04 | 1.26 | |
| Bearing Cover (a) | ||||
| 12 | 320220 | 2.55 | 3.09 | |
| Armature 230v | ||||
| 13 | 360762E | 67.65 | 81.86 | |
| Fan Guide | ||||
| 14 | 320215 | 1.35 | 1.63 | |
| Hex. Hd. Tapping Screw D5x60 | ||||
| 15 | 961501 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 16 | 340664E | 41.11 | 49.75 | |
| Brush holder connector | ||||
| 17 | 958032 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 18 | 937981 | |||
| Spring Washer D12 (10 pieces) | ||||
| 19 | 939542 | 1.50 | 1.82 | |
| Machine Screw M5x10 (10 Pcs.) For Irl | ||||
| 21 | 949236 | 1.05 | 1.27 | |
| Seal Lock Screw (w/sp. Washer) M5x10 | ||||
| 21A | 992038 | 1.04 | 1.26 | |
| Bearing Cover (b) | ||||
| 22 | 320229 | 1.35 | 1.63 | |
| Ball Bearing 6302vvcmps2l | ||||
| 23 | 6302VV | 9.30 | 11.25 | |
| Felt Packing | ||||
| 24 | 990852 | 1.04 | 1.26 | |
| Spindle Ass'y | ||||
| 25 | 320234 | 6.96 | 8.42 | |
| Seal Plate | ||||
| 26 | 320228 | 1.35 | 1.63 | |
| Gear-box cover | ||||
| 27 | 320227 | 4.96 | 6.00 | |
| Hex. Socket Hd. Bolt (w/flange) M5x16 | ||||
| 28 | 994192 | 1.04 | 1.26 | |
| Bolt M8x22 | ||||
| 29 | 306887 | 1.05 | 1.27 | |
| Wheel Guard Ass'y | ||||
| 30 | 306124 | 9.90 | 11.98 | |
| Protective Cover 180mm | ||||
| 30A | 337226 | 14.40 | 17.42 | |
| No information available, not orderable | ||||
| 31 | 376202 | |||
| No information available, not orderable | ||||
| 32 | 316824 | |||
| No information available, not orderable | ||||
| 33 | 937909Z | |||
| Label | ||||
| 34 | 311492 | 1.20 | 1.45 | |
| Set Pin | ||||
| 35 | 321546 | 3.00 | 3.63 | |
| Lever | ||||
| 36 | 321545 | 3.00 | 3.63 | |
| Bolt M8x22 | ||||
| 37 | 306887 | 1.05 | 1.27 | |
| Spring Washer M8 (10 Pcs.) | ||||
| 38 | 949457 | 1.05 | 1.27 | |
| Set Piece | ||||
| 39 | 321544 | 1.50 | 1.82 | |
| Ring | ||||
| 40 | 673489 | 1.04 | 1.26 | |
| O-ring | ||||
| 42 | 320218 | 1.20 | 1.45 | |
| Lock Pin | ||||
| 43 | 306890 | 1.80 | 2.18 | |
| Gear And Pinion Set | ||||
| 44A | 330032 | 20.90 | 25.29 | |
| Dust Seal | ||||
| 45 | 320216 | 1.35 | 1.63 | |
| Ball Bearing 6000vvcmps2l | ||||
| 46 | 6000VV | 6.15 | 7.44 | |
| Bearing Bushing | ||||
| 47 | 321536 | 11.55 | 13.98 | |
| Housing Ass'y Includ.47,55,58 | ||||
| 48 | 325640 | 55.14 | 66.72 | |
| Handle Cover | ||||
| 50 | 325641 | 7.73 | 9.35 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 51 | 305812 | 1.04 | 1.26 | |
| Brush Cap | ||||
| 53 | 940540 | 1.04 | 1.26 | |
| Carbon Brush (auto Stop Type) (1 Pair) For Sin,ma | ||||
| 54 | 999074 | 14.40 | 17.42 | |
| Carbon Brush (1 Pair) | ||||
| 54 | 999044 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 55 | 980487 | 5.68 | 6.87 | |
| Handle (a) | ||||
| 56 | 325642 | 7.28 | 8.80 | |
| Resistor | ||||
| 57 | 320236 | 10.44 | 12.63 | |
| Hex Adjustment Screw M5x8 | ||||
| 58 | 938477 | 1.05 | 1.27 | |
| Switch | ||||
| 59 | 320235 | 30.60 | 37.03 | |
| Cord Clip | ||||
| 60 | 960266 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 61 | 984750 | |||
| Threaded cable sleeve | ||||
| 62 | 981373 | 1.05 | 1.27 | |
| Cord Armor D10.7 | ||||
| 63 | 940778 | 2.10 | 2.54 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 64 | 500247Z | 6.18 | 7.48 | |
| No information available, not orderable | ||||
| 501 | 325491 | |||
| Pipe Handle Set Includ.602 | ||||
| 601 | 323993 | 63.66 | 77.03 | |
| Bolt | ||||
| 602 | 985597 | 2.85 | 3.45 | |
| No information available, not orderable | ||||
| 603 | 310337 | |||
| No information available, not orderable | ||||
| 604 | 332795 | |||
| No information available, not orderable | ||||
| 605 | 332796 | |||
