Here you will find all available parts and drawings of the 'Hikoki G18SH'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

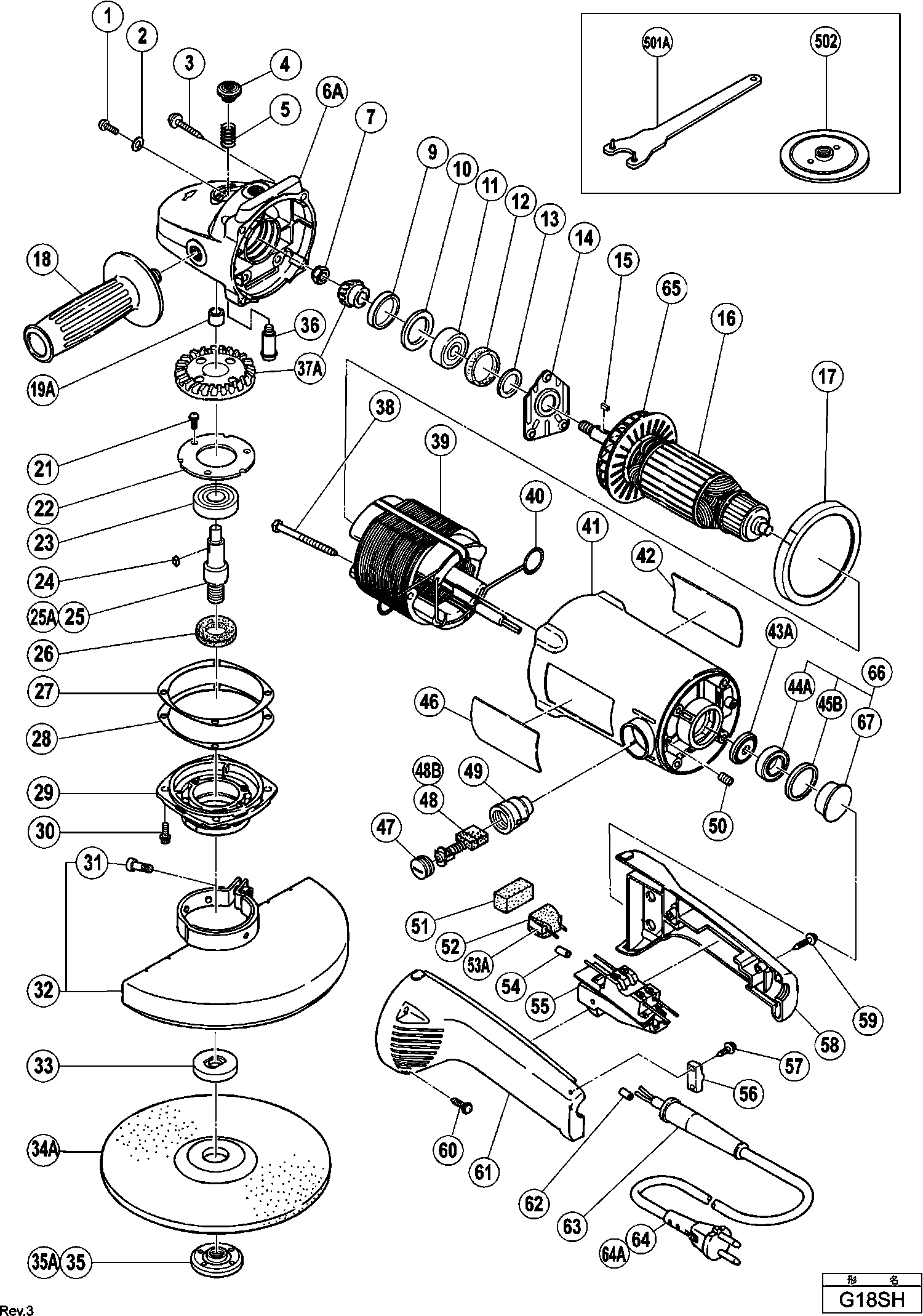

Technical drawing of model Hikoki G18SH
Spare parts list of model Hikoki G18SH
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Machine Screw M5X14 (10 pieces) | ||||
| 1 | 949238 | 1.05 | 1.27 | |
| Spring Washer M5 (10 pieces) | ||||
| 2 | 949454 | 1.04 | 1.26 | |
| SCREW | ||||
| 3 | 301654 | 1.05 | 1.27 | |
| Pushing Button | ||||
| 4 | 306888 | 1.04 | 1.26 | |
| Spring | ||||
| 5 | 306889 | 1.04 | 1.26 | |
| Gear Cover Ass'y Includ.4,5,19a,36,64 | ||||
| 6A | 306105 | 21.04 | 25.46 | |
| U-nut M8 | ||||
| 7 | 946228 | 1.04 | 1.26 | |
| Seal Ring (a) | ||||
| 9 | 306107 | 1.05 | 1.27 | |
| Washer (a) | ||||
| 10 | 306113 | 1.04 | 1.26 | |
| Ball Bearing 6301ddcmps2l | ||||
| 11 | 6301DD | 6.75 | 8.17 | |
| Rubber Ring (b) | ||||
| 12 | 994208 | 1.04 | 1.26 | |
| Felt Packing | ||||
| 13 | 990864 | 1.04 | 1.26 | |
| Bearing Holder | ||||
| 14 | 306106 | 1.35 | 1.63 | |
| Feather Key 3x3x10 | ||||
| 15 | 940533 | 1.20 | 1.45 | |
| Armature 230v | ||||
| 16 | 360288E | 84.29 | 101.99 | |
| Air-deflector Ring | ||||
| 17 | 306103 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 18 | 937981 | |||
| Needle Bearing (hk1212fm) | ||||
| 19A | 331360 | 9.30 | 11.25 | |
| Seal Lock Screw (w/sp. Washer) M5x10 | ||||
| 21 | 992038 | 1.04 | 1.26 | |
| Bearing Cover | ||||
| 22 | 937035 | 1.04 | 1.26 | |
| Ball Bearing 6302ddcmps2l | ||||
| 23 | 6302DD | 8.85 | 10.71 | |
| Feather Key 4x4x8 Since 9.2000 | ||||
| 24 | 980809 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 25 | 990857 | |||
| No longer available, no replacement | ||||
| 25A | 994218 | |||
| Felt Packing | ||||
| 26 | 990852 | 1.04 | 1.26 | |
| Gasket | ||||
| 27 | 306112 | 1.35 | 1.63 | |
| Thrust Washer | ||||
| 28 | 306981 | 1.04 | 1.26 | |
| Inner Cover | ||||
| 29 | 306111 | 6.90 | 8.35 | |
| Hex. Socket Hd. Bolt (w/flange) M5x16 | ||||
| 30 | 994192 | 1.04 | 1.26 | |
| Bolt M8x22 | ||||
| 31 | 306887 | 1.05 | 1.27 | |
| Wheel Guard Ass'y | ||||
| 32 | 306124 | 9.90 | 11.98 | |
| No information available, not orderable | ||||
| 33 | 937908Z | |||
| No information available, not orderable | ||||
| 34A | 316824 | |||
| No information available, not orderable | ||||
| 35 | 937929Z | |||
| No information available, not orderable | ||||
| 35A | 994155 | |||
| Lock Pin | ||||
| 36 | 306890 | 1.80 | 2.18 | |
| Gear Set | ||||
| 37A | 332119 | 22.83 | 27.62 | |
| Hex. Hd. Tapping Screw D5x60 | ||||
| 38 | 961501 | 1.04 | 1.26 | |
| Stator Ass'y 240v Includ.40 | ||||
| 39 | 340262F | 72.89 | 88.19 | |
| Stator 220v-230v | ||||
| 39 | 340262G | 56.24 | 68.05 | |
| Brush holder connector | ||||
| 40 | 958032 | 1.04 | 1.26 | |
| Housing Ass'y Includ.49,50 | ||||
| 41 | 306812 | 19.39 | 23.46 | |
| Dust Seal | ||||
| 43A | 310998 | 1.05 | 1.27 | |
| Ball Bearing 6000vvcmps2l | ||||
| 44A | 6000VV | 6.15 | 7.44 | |
| Rubber Ring (a) | ||||
| 45B | 994202 | 1.05 | 1.27 | |
| Brush Cap | ||||
| 47 | 940540 | 1.04 | 1.26 | |
| Carbon Brush (1 Pair) | ||||
| 48 | 999044 | 4.50 | 5.44 | |
| Carbon Brush (auto Stop Type) (1 Pair) For Sin,ma | ||||
| 48B | 999074 | 14.40 | 17.42 | |
| Brush Holder | ||||
| 49 | 980487 | 5.68 | 6.87 | |
| Hex Adjustment Screw M5x8 | ||||
| 50 | 938477 | 1.05 | 1.27 | |
| Dust Packing | ||||
| 51 | 306117 | 1.04 | 1.26 | |
| Support (b) For Noise Suppressor | ||||
| 52 | 306114 | 1.04 | 1.26 | |
| Tube (d) | ||||
| 54 | 961820 | 1.05 | 1.27 | |
| Switch | ||||
| 55 | 306116 | 20.90 | 25.29 | |
| Cord Clip | ||||
| 56 | 960266 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 57 | 984750 | |||
| Handle (b) | ||||
| 58 | 306119 | 5.10 | 6.17 | |
| Tapping Screw (w/flange) D4x25 (black) | ||||
| 59 | 304035 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D5x25 (black) | ||||
| 60 | 305558 | 1.04 | 1.26 | |
| Handle (a) | ||||
| 61 | 306118 | 5.40 | 6.53 | |
| Threaded cable sleeve | ||||
| 62 | 981373 | 1.05 | 1.27 | |
| Cord Armor D10.7 | ||||
| 63 | 940778 | 2.10 | 2.54 | |
| Cable gland D8.2 (old 958049z) | ||||
| 63 | 958049 | 1.04 | 1.26 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 64 | 500247Z | 6.18 | 7.48 | |
| No information available, not orderable | ||||
| 64A | 500438Z | |||
| Fan | ||||
| 65 | 319657 | 10.20 | 12.34 | |
| BEARING HOUSING WITH COMPLETE BEARING | ||||
| 66 | 320246 | 10.65 | 12.89 | |
| Bushing | ||||
| 67 | 320247 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 501A | 325491 | |||
| No information available, not orderable | ||||
| 502 | 937917Z | |||
| Carbon Brush (auto Stop Type) (1 Pair) For Sin,ma | ||||
| 601A | 999074 | 14.40 | 17.42 | |
| No information available, not orderable | ||||
| 602A | 316824 | |||
| No information available, not orderable | ||||
| 603 | 305459 | |||
| No information available, not orderable | ||||
| 604 | 305460 | |||
| No information available, not orderable | ||||
| 605 | 305461 | |||
| No information available, not orderable | ||||
| 606 | 307009 | |||
| No information available, not orderable | ||||
| 607 | 310337 | |||
