Here you will find all available parts and drawings of the 'Hikoki G18DSL2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

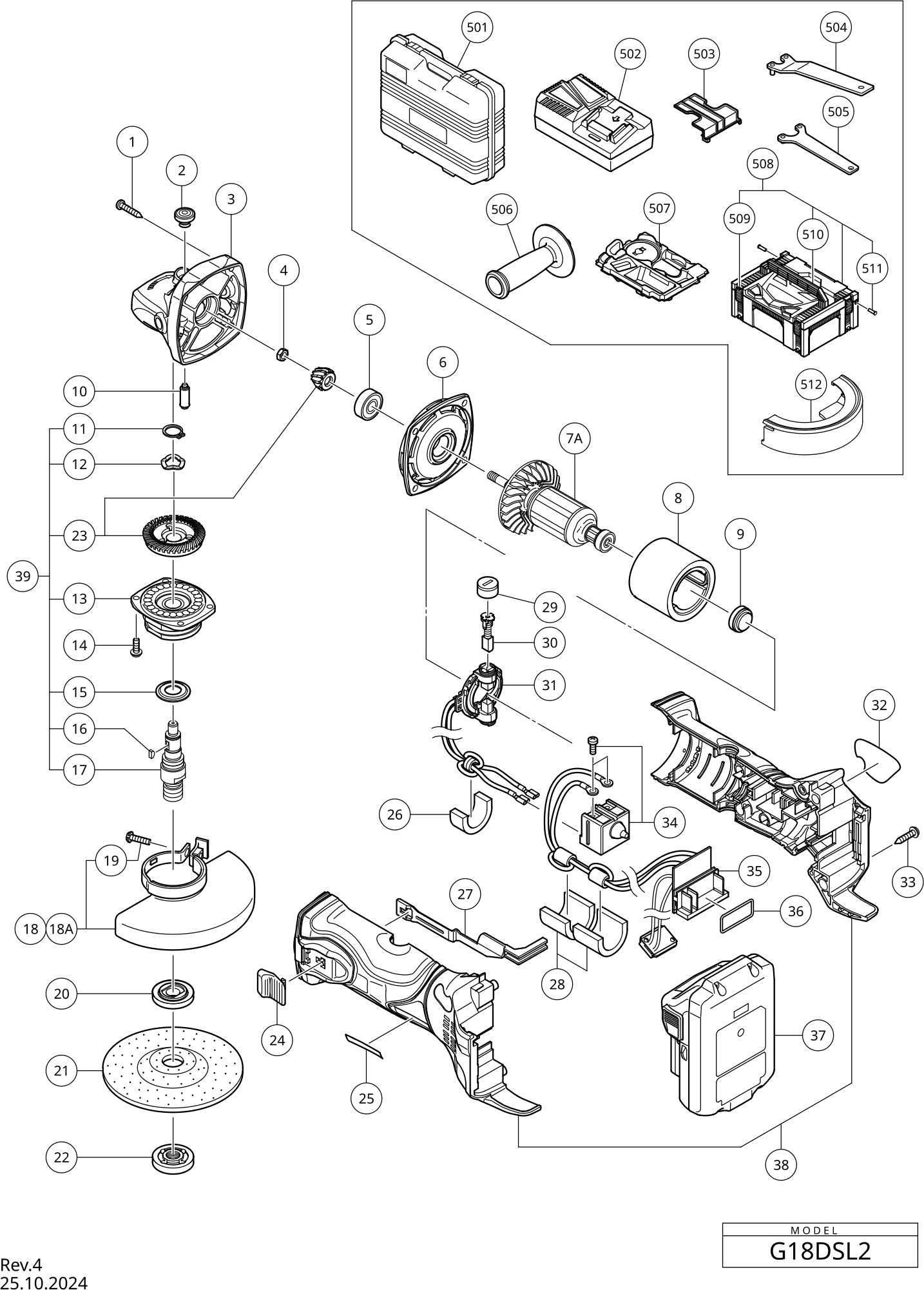

Technical drawing of model Hikoki G18DSL2
Spare parts list of model Hikoki G18DSL2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spindle M14 | ||||
| *17 | 328359 | 4.20 | 5.08 | |
| Wheel Guard Ass'y Includ.16 | ||||
| *18 | 370066 | 3.30 | 3.99 | |
| Guard | ||||
| *18 | 338845 | 2.55 | 3.09 | |
| Guard | ||||
| *18 | 338848 | 2.40 | 2.90 | |
| BESCHERMKAP (OUD 338845) | ||||
| *18A | 382258 | 2.94 | 3.56 | |
| WHEEL GUARD (LABEL) ASS'Y | ||||
| *18A | 382259 | 2.70 | 3.27 | |
| No information available, not orderable | ||||
| *20 | 376067 | |||
| No information available, not orderable | ||||
| *21 | 316822 | |||
| No information available, not orderable | ||||
| *22 | 339579 | |||
| Brush Block | ||||
| *31 | 328202 | 7.05 | 8.53 | |
| No information available, not orderable | ||||
| *37 | 376029 | |||
| No information available, not orderable | ||||
| *504 | 313933 | |||
| No information available, not orderable | ||||
| *505 | 938332Z | |||
| CUTTING GUARD CLIP | ||||
| *512 | 381203 | 2.22 | 2.69 | |
| CUTTING GUARD CLIP | ||||
| *512 | 381202 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| *602 | 937825Z | |||
| No information available, not orderable | ||||
| *605 | 314097 | |||
| No information available, not orderable | ||||
| *606 | 314065 | |||
| No information available, not orderable | ||||
| *607 | 314099 | |||
| No information available, not orderable | ||||
| *608 | 314100 | |||
| No information available, not orderable | ||||
| *609 | 314101 | |||
| No information available, not orderable | ||||
| *610 | 314102 | |||
| No information available, not orderable | ||||
| *611 | 314103 | |||
| No information available, not orderable | ||||
| *612 | 314104 | |||
| No information available, not orderable | ||||
| *613 | 314061 | |||
| TAPSCHROEF D4X25 | ||||
| 1 | 377006 | 1.00 | 1.21 | |
| Pushing Button | ||||
| 2 | 301944 | 1.04 | 1.26 | |
| TANDWIELHUIS | ||||
| 3 | 376707 | 8.52 | 10.31 | |
| Special Nut M6 | ||||
| 4 | 309191 | 1.04 | 1.26 | |
| Ball Bearing 608ss | ||||
| 5 | 338337 | 2.25 | 2.72 | |
| LAGERHOUDER | ||||
| 6 | 376709 | 1.00 | 1.21 | |
| ANKER | ||||
| 7A | 361148 | 17.54 | 21.22 | |
| MAGNEET | ||||
| 8 | 376708 | 9.36 | 11.33 | |
| Rubber Ring | ||||
| 9 | 328201 | 1.05 | 1.27 | |
| Lock Pin | ||||
| 10 | 301943 | 1.65 | 2.00 | |
| Retaining Ring For D11 Shaft Till 9.2012 | ||||
| 11 | 316487 | 1.65 | 2.00 | |
| Ring | ||||
| 12 | 316486 | 1.65 | 2.00 | |
| Inner Cover | ||||
| 13 | 338849 | 3.00 | 3.63 | |
| Seal Lock Screw (w/washer) M4x12 | ||||
| 14 | 328628 | 1.05 | 1.27 | |
| Washer (a) | ||||
| 15 | 328185 | 1.05 | 1.27 | |
| Woodruff Key | ||||
| 16 | 302047 | 1.05 | 1.27 | |
| Machine Screw (w/sp. Washer) M5x16(black | ||||
| 19 | 308386 | 1.05 | 1.27 | |
| TANDWIELSET | ||||
| 23 | 377005 | 5.10 | 6.17 | |
| Slide Knob | ||||
| 24 | 314428 | 1.04 | 1.26 | |
| TREKSTANG (OUD 328199) | ||||
| 27 | 377004 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 28 | 339343 | |||
| Brush Cap | ||||
| 29 | 328200 | 2.10 | 2.54 | |
| Carbon Brush 5x6x11.5 (1 Pair) | ||||
| 30 | 999101 | 2.70 | 3.27 | |
| Tapping Screw (w/flange) D4x20 | ||||
| 33 | 339250 | 1.04 | 1.26 | |
| Switch | ||||
| 34 | 373565 | 4.65 | 5.63 | |
| CONTROLLER TERMINAL SET | ||||
| 35 | 376711 | 15.34 | 18.56 | |
| O-ring (s-22) | ||||
| 36 | 306353 | 1.04 | 1.26 | |
| BEHUIZING SET (A+B) (OUD 373150) | ||||
| 38 | 377254 | 11.28 | 13.65 | |
| PACKING GLAND GEAR ASS'Y NEW | ||||
| 39 | 381643 | 10.74 | 13.00 | |
| No information available, not orderable | ||||
| 501 | 339041 | |||
| Battery Cover | ||||
| 503 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 506 | 994322 | |||
| No information available, not orderable | ||||
| 507 | 337113 | |||
| No information available, not orderable | ||||
| 508 | 336471 | |||
| No information available, not orderable | ||||
| 509 | 336472 | |||
| No information available, not orderable | ||||
| 510 | 336473 | |||
| No information available, not orderable | ||||
| 511 | 336474 | |||
| No information available, not orderable | ||||
| 614 | 332785 | |||
| No information available, not orderable | ||||
| 615 | 302098 | |||
| No information available, not orderable | ||||
| 616 | 302099 | |||
| WHEELNUT FOR 11MM CUT-OFF WHEEL | ||||
| 617 | 984646 | 3.96 | 4.79 | |
| Washer Nut M10xp1.5 | ||||
| 618 | 935513 | 4.20 | 5.08 | |
| RING | ||||
| 619 | 936548 | 2.58 | 3.12 | |
| No information available, not orderable | ||||
| 620 | 936558Z | |||
| No information available, not orderable | ||||
| 621 | 332788 | |||
| No information available, not orderable | ||||
| 622 | 336865 | |||
