Here you will find all available parts and drawings of the 'Hikoki G18DBBL'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

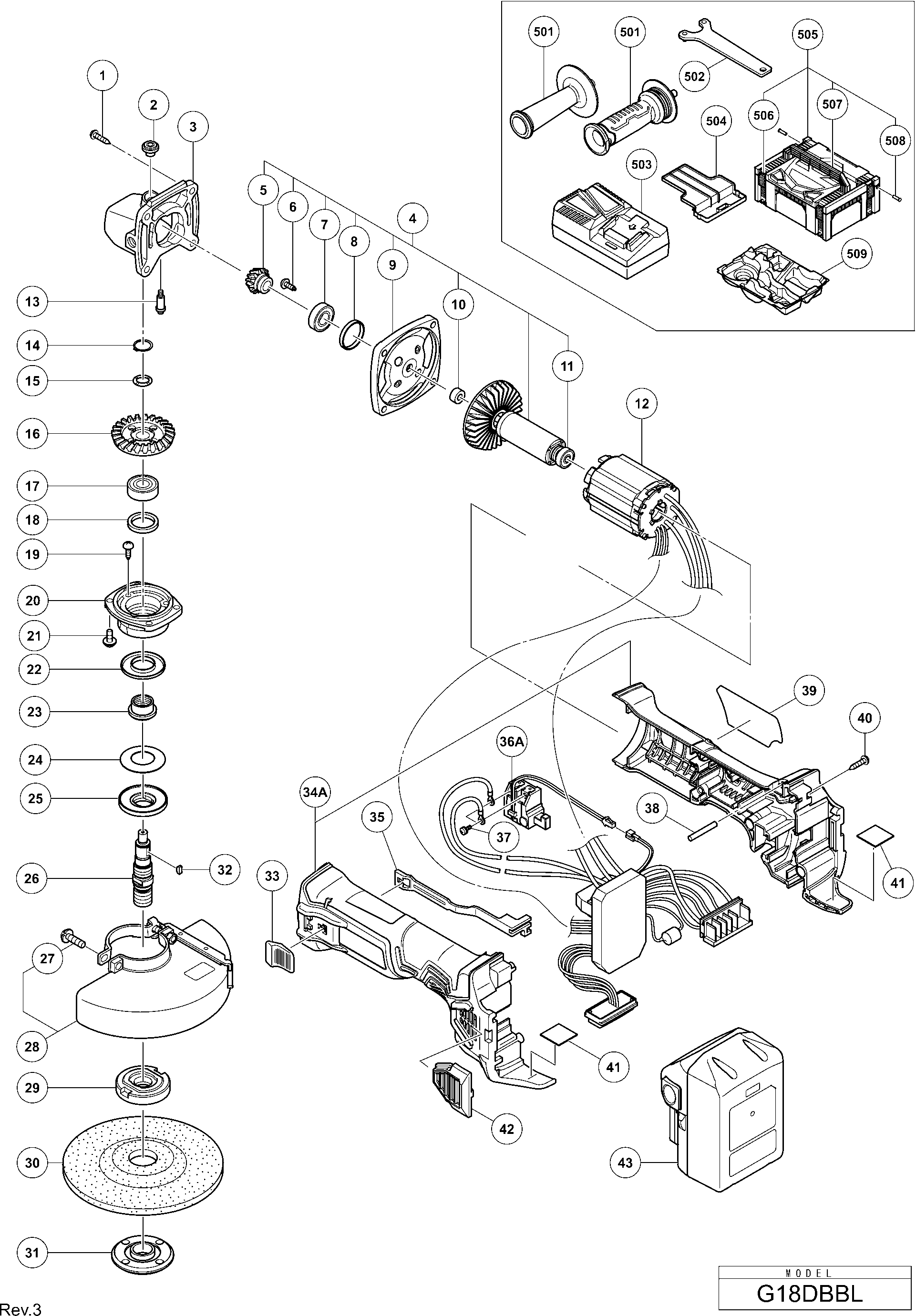

Technical drawing of model Hikoki G18DBBL
Spare parts list of model Hikoki G18DBBL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tapping Screw (w/flange) D4x23 (black) | ||||
| 1 | 328643 | 1.05 | 1.27 | |
| Pushing Button | ||||
| 2 | 301944 | 1.04 | 1.26 | |
| Gear Cover | ||||
| 3 | 339183 | 14.99 | 18.13 | |
| Rotor Inner Cover Set Includ.5-11 | ||||
| 4 | 360991 | 125.68 | 152.07 | |
| Pinion (1) | ||||
| 5 | 371811 | 4.65 | 5.63 | |
| Slotted Head Screw (seal Lock) M4 | ||||
| 6 | 371814 | 1.04 | 1.26 | |
| Ball Bearing (1) | ||||
| 7 | 371033 | 3.15 | 3.81 | |
| Rubber Ring (a) | ||||
| 8 | 328453 | 1.80 | 2.18 | |
| Inner Cover | ||||
| 9 | 371816 | 7.50 | 9.08 | |
| Distance Ring (a) | ||||
| 10 | 371927 | 1.04 | 1.26 | |
| Ball Bearing 625dd | ||||
| 11 | 333826 | 5.10 | 6.17 | |
| Wiring Ass'y Includ.36,37 | ||||
| 12 | 371684 | 121.83 | 147.41 | |
| Lock Pin | ||||
| 13 | 301943 | 1.65 | 2.00 | |
| Retaining Ring For D11 Shaft Till 9.2012 | ||||
| 14 | 316487 | 1.65 | 2.00 | |
| Ring | ||||
| 15 | 316486 | 1.65 | 2.00 | |
| Gear | ||||
| 16 | 328364 | 11.70 | 14.16 | |
| Ball Bearing 6001dducmps2s (old 980925) | ||||
| 17 | 6001DD | 6.45 | 7.80 | |
| Felt Packing | ||||
| 18 | 372126 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 19 | 301936 | |||
| PACKING GLAND | ||||
| 20 | 372124 | 2.70 | 3.27 | |
| Seal Lock Screw (w/sp. Washer) M4x12 | ||||
| 21 | 307127 | 1.05 | 1.27 | |
| Fringer | ||||
| 22 | 372183 | 1.04 | 1.26 | |
| SLEEVE (B) | ||||
| 23 | 371672 | 3.45 | 4.17 | |
| BELLEVILLE SPRING (B) | ||||
| 24 | 371673 | 8.40 | 10.16 | |
| SUPPORT BODY (B) | ||||
| 25 | 371674 | 1.35 | 1.63 | |
| Spindle (e) | ||||
| 26 | 371685 | 6.45 | 7.80 | |
| Slotted Plus Screw M5 | ||||
| 27 | 338868 | 1.04 | 1.26 | |
| Toolless Wheel Guard 115mm Includ.27 | ||||
| 28 | 338579 | 6.75 | 8.17 | |
| Toolless Wheel Guard 125mm Includ.27 | ||||
| 28 | 333840 | 6.15 | 7.44 | |
| Wheel Washer (c) | ||||
| 29 | 371677 | 4.35 | 5.26 | |
| No information available, not orderable | ||||
| 30 | 316822 | |||
| No information available, not orderable | ||||
| 31 | 339579 | |||
| Woodruff Key | ||||
| 32 | 302047 | 1.05 | 1.27 | |
| Slide Knob | ||||
| 33 | 314428 | 1.04 | 1.26 | |
| HOUSING SET (A+B) NEW | ||||
| 34A | 373739 | 25.44 | 30.78 | |
| Slide Bar | ||||
| 35 | 371682 | 1.04 | 1.26 | |
| Switch (1) | ||||
| 36A | 371322 | 12.30 | 14.88 | |
| Machine Screw (w/washer) M3.5x6 | ||||
| 37 | 307887 | 1.04 | 1.26 | |
| Pin | ||||
| 38 | 338869 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 40 | 301653 | 1.04 | 1.26 | |
| Rubber Cushion (b) | ||||
| 41 | 338871 | 1.04 | 1.26 | |
| Filter | ||||
| 42 | 338870 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 43 | 335790 | |||
| Side Handle G13sr3 | ||||
| 501 | 318312 | 7.50 | 9.08 | |
| No information available, not orderable | ||||
| 502 | 938332Z | |||
| Battery Cover | ||||
| 504 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 505 | 336471 | |||
| No information available, not orderable | ||||
| 506 | 336472 | |||
| No information available, not orderable | ||||
| 507 | 336473 | |||
| No information available, not orderable | ||||
| 508 | 336474 | |||
| No information available, not orderable | ||||
| 509 | 338872 | |||
| No information available, not orderable | ||||
| 601 | 937826Z | |||
| No information available, not orderable | ||||
| 602 | 937825Z | |||
| No information available, not orderable | ||||
| 603 | 332785 | |||
| No information available, not orderable | ||||
| 604 | 314095 | |||
| No information available, not orderable | ||||
| 605 | 314096 | |||
| No information available, not orderable | ||||
| 606 | 314097 | |||
| No information available, not orderable | ||||
| 607 | 314098 | |||
| No information available, not orderable | ||||
| 608 | 314099 | |||
| No information available, not orderable | ||||
| 609 | 314100 | |||
| No information available, not orderable | ||||
| 610 | 314101 | |||
| No information available, not orderable | ||||
| 611 | 314102 | |||
| No information available, not orderable | ||||
| 612 | 314103 | |||
| No information available, not orderable | ||||
| 613 | 314104 | |||
| No information available, not orderable | ||||
| 614 | 314105 | |||
| No information available, not orderable | ||||
| 615 | 314062 | |||
| No information available, not orderable | ||||
| 616 | 314063 | |||
| No information available, not orderable | ||||
| 617 | 314064 | |||
| No information available, not orderable | ||||
| 618 | 314065 | |||
| No information available, not orderable | ||||
| 619 | 314066 | |||
| No information available, not orderable | ||||
| 620 | 314067 | |||
| No information available, not orderable | ||||
| 621 | 314068 | |||
| No information available, not orderable | ||||
| 622 | 314069 | |||
| No information available, not orderable | ||||
| 623 | 314070 | |||
| No information available, not orderable | ||||
| 624 | 314071 | |||
| No information available, not orderable | ||||
| 625 | 314072 | |||
