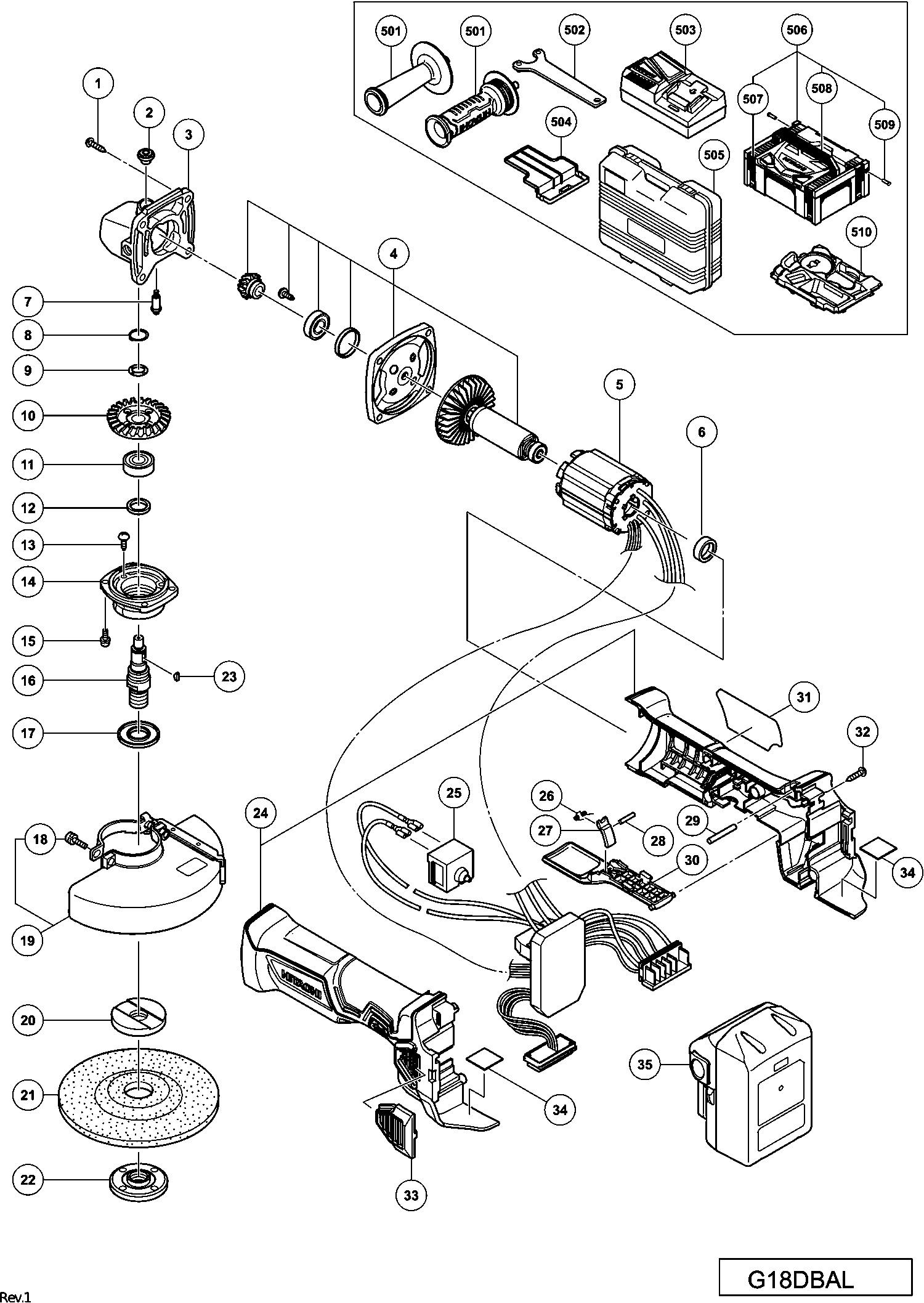

Technical drawing of model Hikoki G18DBAL
Spare parts list of model Hikoki G18DBAL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spindle M14 | ||||
| *16 | 328359 | 4.20 | 5.08 | |
| Toolless Wheel Guard 115mm Includ.27 | ||||
| *19 | 338579 | 6.75 | 8.17 | |
| Toolless Wheel Guard 125mm Includ.27 | ||||
| *19 | 333840 | 6.15 | 7.44 | |
| No information available, not orderable | ||||
| *21 | 316822 | |||
| No information available, not orderable | ||||
| *35 | 336385 | |||
| Side Handle G13sr3 | ||||
| *501 | 318312 | 7.50 | 9.08 | |
| Tapping Screw (w/flange) D4x23 (black) | ||||
| 1 | 328643 | 1.05 | 1.27 | |
| Pushing Button | ||||
| 2 | 301944 | 1.04 | 1.26 | |
| Gear Cover | ||||
| 3 | 339183 | 14.99 | 18.13 | |
| Rotor Inner Cover Set Includ.5-11 | ||||
| 4 | 360991 | 125.68 | 152.07 | |
| Rotor Inner Cover Set Includ.5-11 | ||||
| 4A | 360991 | 125.68 | 152.07 | |
| Wiring (18v Single) Includ.25 | ||||
| 5 | 339227 | 154.83 | 187.34 | |
| Socket | ||||
| 6 | 338867 | 1.80 | 2.18 | |
| Lock Pin | ||||
| 7 | 301943 | 1.65 | 2.00 | |
| Retaining Ring For D11 Shaft Till 9.2012 | ||||
| 8 | 316487 | 1.65 | 2.00 | |
| Ring | ||||
| 9 | 316486 | 1.65 | 2.00 | |
| Gear | ||||
| 10 | 328364 | 11.70 | 14.16 | |
| Ball Bearing 6001vv | ||||
| 11 | 6001VV | 6.60 | 7.99 | |
| Felt Packing | ||||
| 12 | 301946 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 13 | 301936 | |||
| Slotted Hd. Screw (Seal Lock) M4x10 | ||||
| 13A | 314430 | 1.05 | 1.27 | |
| Inner Cover | ||||
| 14 | 328198 | 3.15 | 3.81 | |
| Seal Lock Screw (w/sp. Washer) M4x12 | ||||
| 15 | 307127 | 1.05 | 1.27 | |
| Spindle M14 | ||||
| 16 | 328359 | 4.20 | 5.08 | |
| Fringer | ||||
| 17 | 301945 | 1.05 | 1.27 | |
| Slotted Plus Screw M5 | ||||
| 18 | 338868 | 1.04 | 1.26 | |
| Toolless Wheel Guard 115mm Includ.27 | ||||
| 19 | 338579 | 6.75 | 8.17 | |
| Toolless Wheel Guard 125mm Includ.27 | ||||
| 19 | 333840 | 6.15 | 7.44 | |
| No information available, not orderable | ||||
| 20 | 937817Z | |||
| No information available, not orderable | ||||
| 20A | 376067 | |||
| No information available, not orderable | ||||
| 21 | 316822 | |||
| No information available, not orderable | ||||
| 22 | 937923P | |||
| No longer available, no replacement | ||||
| 22A | 339580 | |||
| Woodruff Key | ||||
| 23 | 302047 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 24 | 338866 | |||
| HOUSING (C+D) (OLD 338866) | ||||
| 24A | 373738 | 26.54 | 32.11 | |
| HOUSING (C+D) (OLD 338866) | ||||
| 24B | 373738 | 26.54 | 32.11 | |
| No longer available, no replacement | ||||
| 25 | 329057 | |||
| Switch | ||||
| 25A | 373565 | 4.65 | 5.63 | |
| Spring | ||||
| 26 | 337874 | 1.95 | 2.36 | |
| Lock Lever | ||||
| 27 | 337873 | 1.04 | 1.26 | |
| Pin | ||||
| 28 | 339032 | 1.04 | 1.26 | |
| Pin | ||||
| 29 | 338869 | 1.04 | 1.26 | |
| Paddle Lever | ||||
| 30 | 337872 | 1.04 | 1.26 | |
| Paddle Lever | ||||
| 30A | 371694 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 32 | 301653 | 1.04 | 1.26 | |
| Filter | ||||
| 33 | 338870 | 1.05 | 1.27 | |
| Rubber Cushion (b) | ||||
| 34 | 338871 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 35 | 338891 | |||
| No information available, not orderable | ||||
| 35A | 371750 | |||
| Pinion (1) | ||||
| 39 | 371811 | 4.65 | 5.63 | |
| Slotted Head Screw (seal Lock) M4 | ||||
| 40 | 371814 | 1.04 | 1.26 | |
| Ball Bearing (1) | ||||
| 41 | 371033 | 3.15 | 3.81 | |
| Rubber Ring (a) | ||||
| 42 | 328453 | 1.80 | 2.18 | |
| Inner Cover | ||||
| 43 | 371816 | 7.50 | 9.08 | |
| Ball Bearing 625dd | ||||
| 44 | 333826 | 5.10 | 6.17 | |
| Distance Ring (a) | ||||
| 45 | 371927 | 1.04 | 1.26 | |
| Side Handle G13sr3 | ||||
| 501 | 318312 | 7.50 | 9.08 | |
| No information available, not orderable | ||||
| 502 | 938332Z | |||
| Battery Cover | ||||
| 504 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 505 | 337867 | |||
| No information available, not orderable | ||||
| 506 | 336471 | |||
| No information available, not orderable | ||||
| 507 | 336472 | |||
| No information available, not orderable | ||||
| 508 | 336473 | |||
| No information available, not orderable | ||||
| 509 | 336474 | |||
| No information available, not orderable | ||||
| 510 | 338872 | |||
| No information available, not orderable | ||||
| 601 | 332788 | |||
| No information available, not orderable | ||||
| 602 | 332787 | |||
| Ring | ||||
| 603 | 339151 | 3.90 | 4.72 | |
| No information available, not orderable | ||||
| 604 | 338497 | |||
| No information available, not orderable | ||||
| 605 | 332785 | |||
| No information available, not orderable | ||||
| 606 | 937826Z | |||
| No information available, not orderable | ||||
| 607 | 938318 | |||
| No information available, not orderable | ||||
| 608 | 937825Z | |||
| No information available, not orderable | ||||
| 609 | 938317 | |||
| No information available, not orderable | ||||
| 610 | 314095 | |||
| No information available, not orderable | ||||
| 611 | 314096 | |||
| No information available, not orderable | ||||
| 612 | 314097 | |||
| No information available, not orderable | ||||
| 613 | 314098 | |||
| No information available, not orderable | ||||
| 614 | 314099 | |||
| No information available, not orderable | ||||
| 615 | 314100 | |||
| No information available, not orderable | ||||
| 616 | 314101 | |||
| No information available, not orderable | ||||
| 617 | 314102 | |||
| No information available, not orderable | ||||
| 618 | 314103 | |||
| No information available, not orderable | ||||
| 619 | 314104 | |||
| No information available, not orderable | ||||
| 620 | 314105 | |||
| No information available, not orderable | ||||
| 621 | 314062 | |||
| No information available, not orderable | ||||
| 622 | 314063 | |||
| No information available, not orderable | ||||
| 623 | 314064 | |||
| No information available, not orderable | ||||
| 624 | 314065 | |||
| No information available, not orderable | ||||
| 625 | 314066 | |||
| No information available, not orderable | ||||
| 626 | 314067 | |||
| No information available, not orderable | ||||
| 627 | 314068 | |||
| No information available, not orderable | ||||
| 628 | 314069 | |||
| No information available, not orderable | ||||
| 629 | 314070 | |||
| No information available, not orderable | ||||
| 630 | 314071 | |||
| No information available, not orderable | ||||
| 631 | 314072 | |||
