Here you will find all available parts and drawings of the 'Hikoki G15YF'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

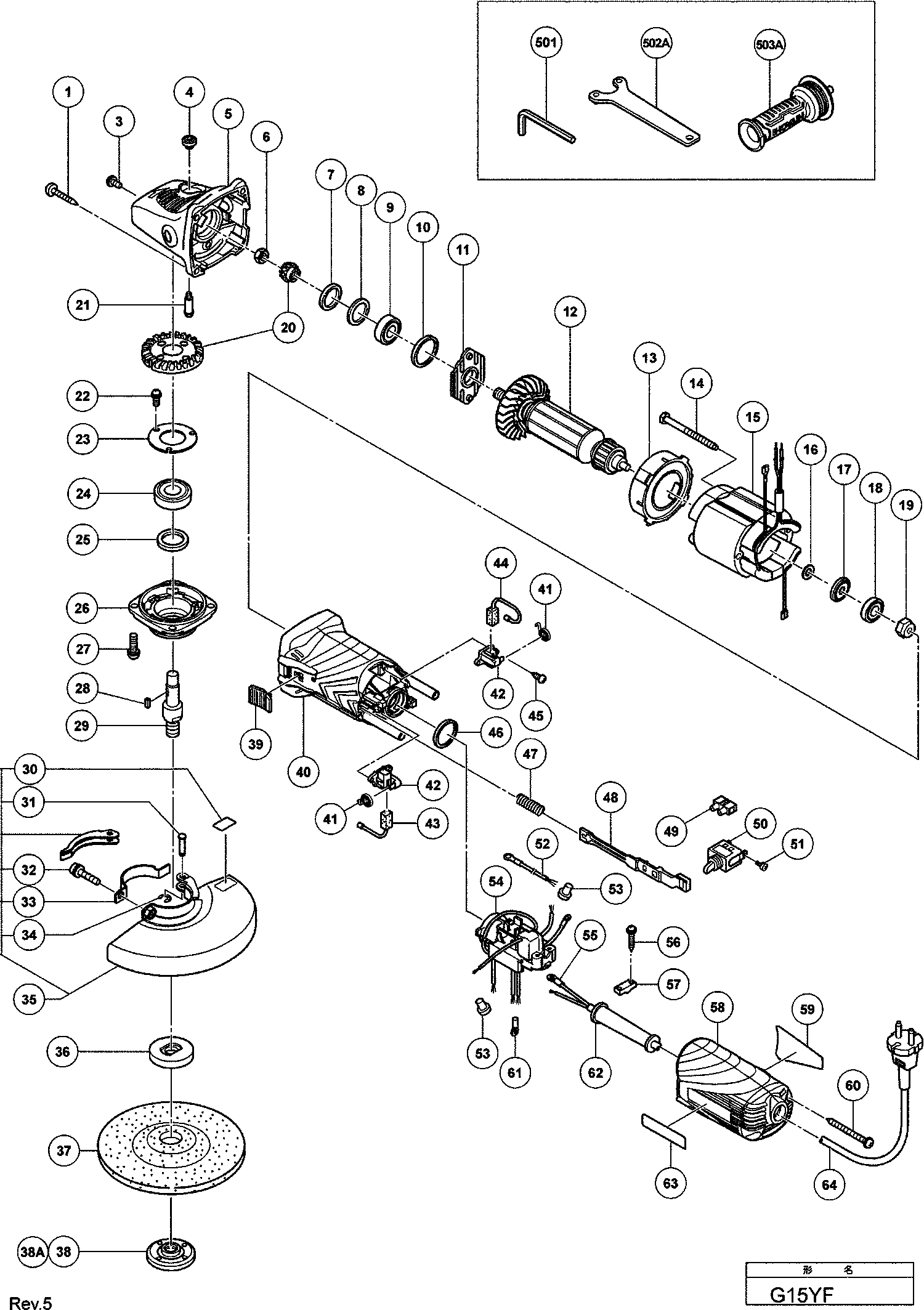

Technical drawing of model Hikoki G15YF
Spare parts list of model Hikoki G15YF
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tapping Screw D5x25 (black) | ||||
| 1 | 320523 | 1.35 | 1.63 | |
| SEAL LOCK SCREW M4X10 | ||||
| 3 | 303255 | 1.04 | 1.26 | |
| Pushing Button | ||||
| 4 | 301944 | 1.04 | 1.26 | |
| Gear Cover | ||||
| 5 | 321737 | 36.44 | 44.09 | |
| Special Nut M6 | ||||
| 6 | 309191 | 1.04 | 1.26 | |
| Seal Ring (a) | ||||
| 7 | 308543 | 1.04 | 1.26 | |
| Washer (c) | ||||
| 8 | 980866 | 1.04 | 1.26 | |
| Ball bearing 629t12ddc3ps2-l | ||||
| 9 | 629T12 | 9.83 | 11.89 | |
| Rubber Ring | ||||
| 10 | 957754 | 1.20 | 1.45 | |
| Bearing Cover | ||||
| 11 | 321734 | 1.35 | 1.63 | |
| Armature 230v-240v | ||||
| 12 | 360870E | 50.88 | 61.56 | |
| Fan Guide | ||||
| 13 | 321732 | 1.35 | 1.63 | |
| Hex. Hd. Tapping Screw D4x70 | ||||
| 14 | 982021 | 1.04 | 1.26 | |
| Stator Ass'y 220v-240v | ||||
| 15 | 340749E | 24.61 | 29.78 | |
| Spring retaining ring | ||||
| 16 | 311737 | 1.04 | 1.26 | |
| Dust Seal (a) | ||||
| 17 | 311435 | 1.04 | 1.26 | |
| Ball Bearing 608vvc2ps2l | ||||
| 18 | 608VVM | 5.70 | 6.90 | |
| Magnet | ||||
| 19 | 325475 | 4.65 | 5.63 | |
| Gear Ass'y | ||||
| 20 | 311486 | 34.51 | 41.76 | |
| Lock Pin | ||||
| 21 | 301943 | 1.65 | 2.00 | |
| Seal Lock Screw (w/sp. Washer) M4x8 | ||||
| 22 | 991207 | 1.04 | 1.26 | |
| Bearing Cover (b) | ||||
| 23 | 936680 | 1.04 | 1.26 | |
| Ball Bearing 6201ddcmps2l | ||||
| 24 | 6201DD | 6.30 | 7.62 | |
| Felt Packing | ||||
| 25 | 308546 | 1.04 | 1.26 | |
| Inner Cover | ||||
| 26 | 308545 | 7.35 | 8.89 | |
| Seal Lock Screw (w/sp. Washer) M5x16 | ||||
| 27 | 307046 | 1.04 | 1.26 | |
| Feather Key 3x3x8 | ||||
| 28 | 944109 | 1.70 | 2.06 | |
| Spindle Ass'y | ||||
| 29 | 994301 | 14.25 | 17.24 | |
| Label | ||||
| 30 | 311492 | 1.20 | 1.45 | |
| Set Pin Till 11.2014 | ||||
| 31 | 311744 | 1.20 | 1.45 | |
| Hex. Socket Hd. Bolt (w/washers) M5x20 | ||||
| 32 | 316107 | 1.80 | 2.18 | |
| Bracket for protective cover | ||||
| 33 | 311491 | 4.65 | 5.63 | |
| Retaining Ring (e-type) For D2.5 Shaft | ||||
| 34 | 874759 | 1.04 | 1.26 | |
| Wheel Guard Ass'y (toolless Type) Includ.32 | ||||
| 35A | 337233 | 13.65 | 16.52 | |
| No information available, not orderable | ||||
| 36 | 937817Z | |||
| No information available, not orderable | ||||
| 37 | 316823 | |||
| No information available, not orderable | ||||
| 38B | 339579 | |||
| Switch Button | ||||
| 39 | 330810 | 1.05 | 1.27 | |
| Spring | ||||
| 41 | 308536 | 1.65 | 2.00 | |
| Brush Holder | ||||
| 42 | 308535 | 6.15 | 7.44 | |
| Carbon Brush (1 Pair) | ||||
| 43 | 999088 | 4.50 | 5.44 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 44 | 999076 | 14.40 | 17.42 | |
| Tapping Screw D3x10 | ||||
| 45 | 306945 | 1.04 | 1.26 | |
| Rubber Ring | ||||
| 46 | 995662 | 1.04 | 1.26 | |
| Spring | ||||
| 47 | 314429 | 1.04 | 1.26 | |
| Slide Bar | ||||
| 48 | 330811 | 1.05 | 1.27 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 49 | 938307 | 2.13 | 2.57 | |
| SCHAKELAAR | ||||
| 50 | 314603 | 11.88 | 14.37 | |
| Machine Screw (w/washer) M3.5x6 | ||||
| 51 | 305499 | 1.05 | 1.27 | |
| Internal wire | ||||
| 52 | 331932 | 3.45 | 4.17 | |
| Connector 50091 (10 Pcs.) | ||||
| 53 | 959140 | 3.30 | 3.99 | |
| Controller 220v-240v | ||||
| 54 | 330816 | 54.45 | 65.88 | |
| connecting terminal | ||||
| 55 | 980063 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 56 | 984750 | |||
| Cord Clip | ||||
| 57 | 937631 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x50 (black) | ||||
| 60 | 331933 | 1.80 | 2.18 | |
| Terminal | ||||
| 61 | 311741 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 62 | 953327 | |||
| Cord (cord Armor D8.8) For Pan | ||||
| 64 | 500447Z | 6.60 | 7.99 | |
| No information available, not orderable | ||||
| 501 | 944458 | |||
| No information available, not orderable | ||||
| 502A | 938332Z | |||
| No information available, not orderable | ||||
| 503A | 336865 | |||
| No information available, not orderable | ||||
| 601 | 310338 | |||
| No information available, not orderable | ||||
| 602 | 332793 | |||
| No information available, not orderable | ||||
| 603 | 332794 | |||
