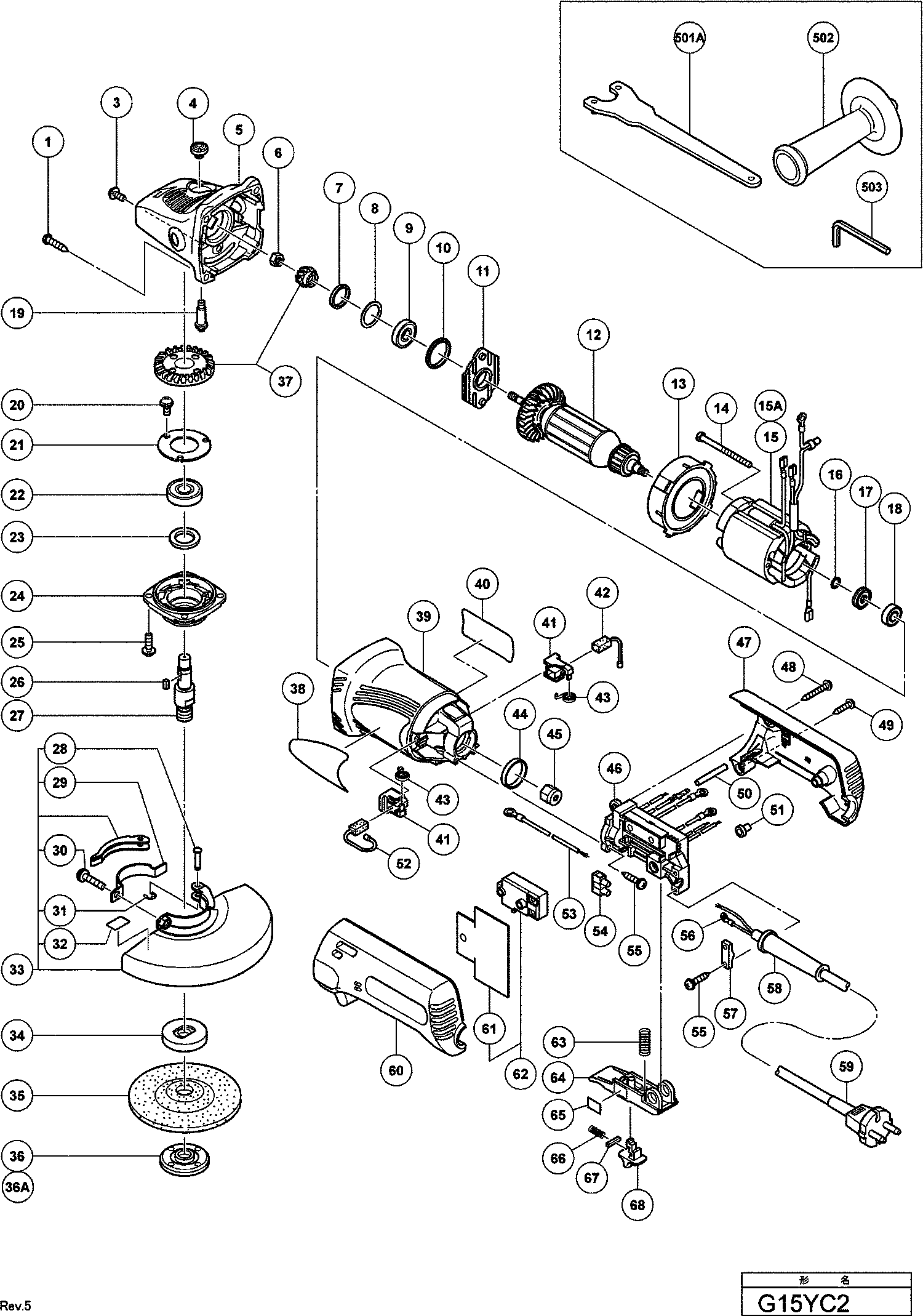

Technical drawing of model Hikoki G15YC2
Spare parts list of model Hikoki G15YC2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| *59 | 500247Z | 6.18 | 7.48 | |
| Lever Action Seal For Bel,ger,esp | ||||
| *65 | 308557 | 1.05 | 1.27 | |
| Lever Action Seal | ||||
| *65 | 308558 | 1.05 | 1.27 | |
| Lock Lever | ||||
| *68 | 308555 | 1.50 | 1.82 | |
| Lock Lever | ||||
| *68 | 308556 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 1 | 937807 | |||
| SEAL LOCK SCREW M4X10 | ||||
| 3 | 303255 | 1.04 | 1.26 | |
| Pushing Button | ||||
| 4 | 301944 | 1.04 | 1.26 | |
| Gear Cover | ||||
| 5 | 321737 | 36.44 | 44.09 | |
| Special Nut M6 | ||||
| 6 | 309191 | 1.04 | 1.26 | |
| Seal Ring (a) | ||||
| 7 | 308543 | 1.04 | 1.26 | |
| Washer (c) | ||||
| 8 | 980866 | 1.04 | 1.26 | |
| Ball bearing 629t12ddc3ps2-l | ||||
| 9 | 629T12 | 9.83 | 11.89 | |
| Rubber Ring | ||||
| 10 | 957754 | 1.20 | 1.45 | |
| Bearing Cover | ||||
| 11 | 321734 | 1.35 | 1.63 | |
| Armature 230v-240v | ||||
| 12 | 360870E | 50.88 | 61.56 | |
| Fan Guide | ||||
| 13 | 321732 | 1.35 | 1.63 | |
| Hex. Hd. Tapping Screw D4x70 | ||||
| 14 | 982021 | 1.04 | 1.26 | |
| Stator 230v-240v | ||||
| 15A | 340823E | 19.80 | 23.96 | |
| Spring retaining ring | ||||
| 16 | 311737 | 1.04 | 1.26 | |
| Dust Seal (a) | ||||
| 17 | 311435 | 1.04 | 1.26 | |
| Ball Bearing 608vvc2ps2l | ||||
| 18 | 608VVM | 5.70 | 6.90 | |
| Lock Pin | ||||
| 19 | 301943 | 1.65 | 2.00 | |
| Seal Lock Screw (w/sp. Washer) M4x8 | ||||
| 20 | 991207 | 1.04 | 1.26 | |
| Bearing Cover (b) | ||||
| 21 | 936680 | 1.04 | 1.26 | |
| Ball Bearing 6201ddcmps2l | ||||
| 22 | 6201DD | 6.30 | 7.62 | |
| Felt Packing | ||||
| 23 | 308546 | 1.04 | 1.26 | |
| Inner Cover | ||||
| 24 | 308545 | 7.35 | 8.89 | |
| Seal Lock Screw (w/sp. Washer) M5x16 | ||||
| 25 | 307046 | 1.04 | 1.26 | |
| Feather Key 3x3x8 | ||||
| 26 | 944109 | 1.70 | 2.06 | |
| Spindle Ass'y | ||||
| 27 | 994301 | 14.25 | 17.24 | |
| Set Pin Till 11.2014 | ||||
| 28 | 311744 | 1.20 | 1.45 | |
| Bracket for protective cover | ||||
| 29 | 311491 | 4.65 | 5.63 | |
| Hex. Socket Hd. Bolt (w/washers) M5x20 | ||||
| 30 | 316107 | 1.80 | 2.18 | |
| Retaining Ring (e-type) For D2.5 Shaft | ||||
| 31 | 874759 | 1.04 | 1.26 | |
| Label | ||||
| 32 | 311492 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 33 | 311490 | |||
| Wheel Guard Ass'y (toolless Type) Includ.32 | ||||
| 33A | 337233 | 13.65 | 16.52 | |
| No information available, not orderable | ||||
| 34 | 937817Z | |||
| No information available, not orderable | ||||
| 35 | 316823 | |||
| No information available, not orderable | ||||
| 36 | 994324 | |||
| No information available, not orderable | ||||
| 36A | 337329 | |||
| No information available, not orderable | ||||
| 36C | 339579 | |||
| Gear Ass'y | ||||
| 37 | 311486 | 34.51 | 41.76 | |
| Housing | ||||
| 39 | 321731 | 12.43 | 15.03 | |
| Brush Holder | ||||
| 41 | 317810 | 4.80 | 5.81 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 42 | 999076 | 14.40 | 17.42 | |
| Spring | ||||
| 43 | 308536 | 1.65 | 2.00 | |
| Rubber Ring | ||||
| 44 | 321733 | 1.35 | 1.63 | |
| Magnet | ||||
| 45 | 318721 | 17.60 | 21.30 | |
| Controller 230v-240v | ||||
| 46 | 334273 | 15.40 | 18.63 | |
| Tail Cover (b) | ||||
| 47 | 334504 | 4.35 | 5.26 | |
| Tapping Screw (w/flange) D4x35 (black) | ||||
| 48 | 303694 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 49 | 301653 | 1.04 | 1.26 | |
| Sumi Tube W3f2 | ||||
| 50 | 334505 | 1.80 | 2.18 | |
| Connector 50091 (10 Pcs.) | ||||
| 51 | 959140 | 3.30 | 3.99 | |
| Carbon Brush (1 Pair) | ||||
| 52 | 999088 | 4.50 | 5.44 | |
| Internal wire | ||||
| 53 | 334508 | 1.95 | 2.36 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 54 | 938307 | 2.13 | 2.57 | |
| No information available, not orderable | ||||
| 55 | 984750 | |||
| connecting terminal | ||||
| 56 | 980063 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 57 | 960266 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 58 | 953327 | |||
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 59 | 500247Z | 6.18 | 7.48 | |
| Tail Cover (a) | ||||
| 60 | 321738 | 4.96 | 6.00 | |
| Dust Seal | ||||
| 61 | 308553 | 1.04 | 1.26 | |
| Switch Ass'y Includ.61 | ||||
| 62 | 321099 | 15.54 | 18.80 | |
| Spring | ||||
| 63 | 983595 | 1.04 | 1.26 | |
| Paddle Lever | ||||
| 64 | 308554 | 2.25 | 2.72 | |
| Lever Action Seal | ||||
| 65 | 308558 | 1.05 | 1.27 | |
| Lever Action Seal For Bel,ger,esp | ||||
| 65 | 308557 | 1.05 | 1.27 | |
| Spring (f) | ||||
| 66 | 301631 | 1.04 | 1.26 | |
| Feather Key 3x3x15 | ||||
| 67 | 982696 | 1.04 | 1.26 | |
| Lock Lever | ||||
| 68 | 308555 | 1.50 | 1.82 | |
| Lock Lever | ||||
| 68 | 308556 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 501A | 325491 | |||
| No information available, not orderable | ||||
| 501B | 376127 | |||
| No information available, not orderable | ||||
| 502 | 994322 | |||
| Side Handle G13sr3 | ||||
| 502A | 318312 | 7.50 | 9.08 | |
| No information available, not orderable | ||||
| 503 | 944458 | |||
| No information available, not orderable | ||||
| 601 | 310338 | |||
| No information available, not orderable | ||||
| 602 | 332793 | |||
| No information available, not orderable | ||||
| 603 | 332794 | |||
| No information available, not orderable | ||||
| 604 | 306914 | |||
| No information available, not orderable | ||||
| 605 | 306915 | |||
| No information available, not orderable | ||||
| 606 | 306916 | |||
