Here you will find all available parts and drawings of the 'Hikoki G15YC'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

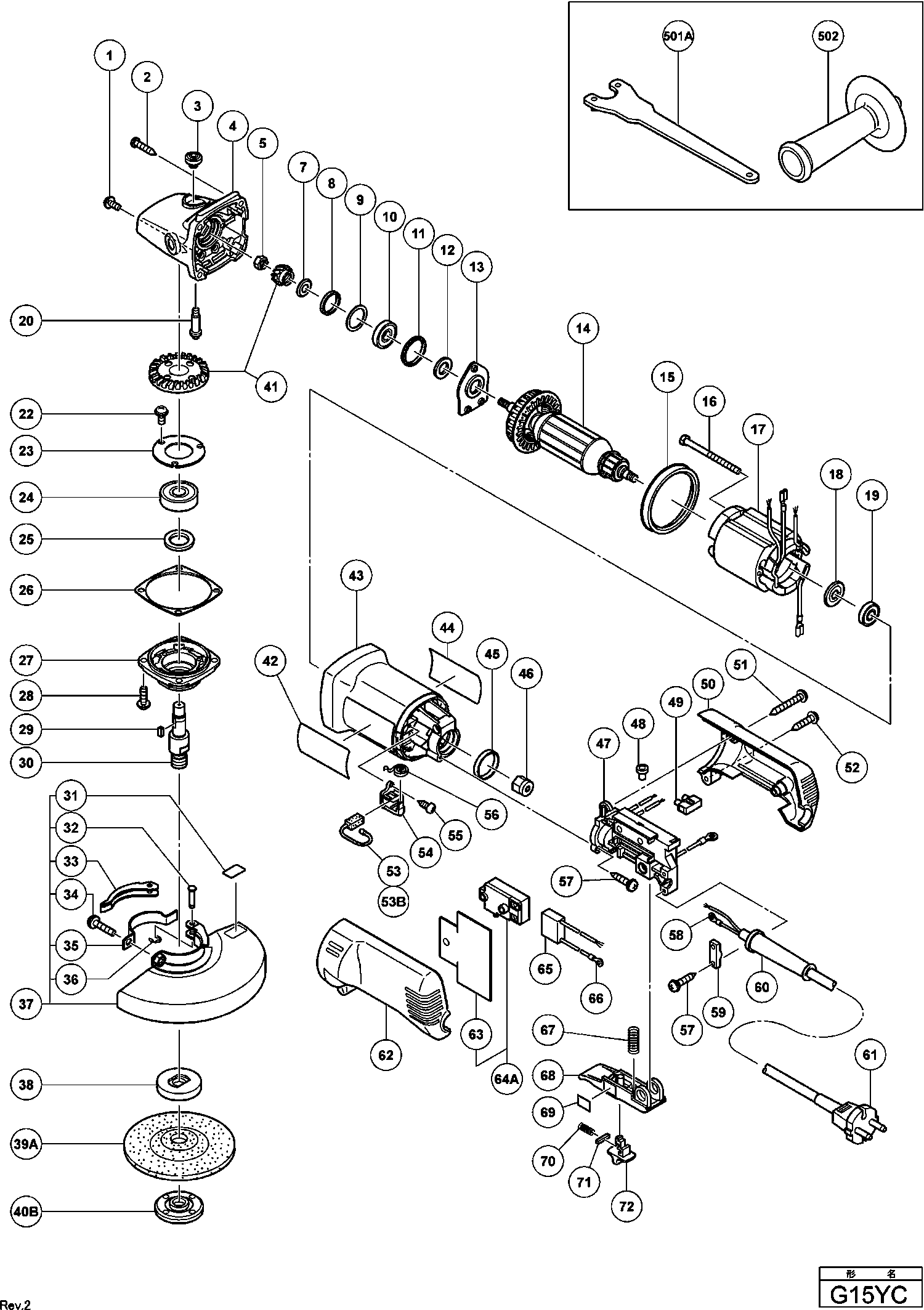

Technical drawing of model Hikoki G15YC
Spare parts list of model Hikoki G15YC
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SEAL LOCK SCREW M4X10 | ||||
| 1 | 303255 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 2 | 937807 | |||
| Pushing Button | ||||
| 3 | 301944 | 1.04 | 1.26 | |
| Gear Cover | ||||
| 4 | 308542 | 21.73 | 26.29 | |
| Special Nut M6 | ||||
| 5 | 309191 | 1.04 | 1.26 | |
| SEALING WASHER | ||||
| 7 | 311489 | 1.04 | 1.26 | |
| Seal Ring (a) | ||||
| 8 | 308543 | 1.04 | 1.26 | |
| Washer (c) | ||||
| 9 | 980866 | 1.04 | 1.26 | |
| Ball bearing 629t12ddc3ps2-l | ||||
| 10 | 629T12 | 9.83 | 11.89 | |
| Rubber Ring | ||||
| 11 | 957754 | 1.20 | 1.45 | |
| Felt | ||||
| 12 | 994320 | 1.04 | 1.26 | |
| Bearing Cover | ||||
| 13 | 308538 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 14 | 360373E | |||
| Fan Guide | ||||
| 15 | 308537 | 1.50 | 1.82 | |
| Hex. Hd. Tapping Screw D4x70 | ||||
| 16 | 982021 | 1.04 | 1.26 | |
| Field | ||||
| 17 | 340296E | 32.01 | 38.74 | |
| Dust Seal (a) Till 2.1995 | ||||
| 18 | 956387 | 2.10 | 2.54 | |
| Ball Bearing 608vvc2ps2l | ||||
| 19 | 608VVM | 5.70 | 6.90 | |
| Lock Pin | ||||
| 20 | 301943 | 1.65 | 2.00 | |
| Seal Lock Screw (w/sp. Washer) M4x8 | ||||
| 22 | 991207 | 1.04 | 1.26 | |
| Bearing Cover (b) | ||||
| 23 | 936680 | 1.04 | 1.26 | |
| Ball Bearing 6201ddcmps2l | ||||
| 24 | 6201DD | 6.30 | 7.62 | |
| Felt Packing | ||||
| 25 | 308546 | 1.04 | 1.26 | |
| Seal Packing | ||||
| 26 | 308547 | 1.04 | 1.26 | |
| Inner Cover | ||||
| 27 | 308545 | 7.35 | 8.89 | |
| Seal Lock Screw (w/sp. Washer) M5x16 | ||||
| 28 | 307046 | 1.04 | 1.26 | |
| Feather Key 3x3x8 | ||||
| 29 | 944109 | 1.70 | 2.06 | |
| Spindle Ass'y | ||||
| 30 | 994301 | 14.25 | 17.24 | |
| Label | ||||
| 31 | 311492 | 1.20 | 1.45 | |
| Set Pin Till 11.2014 | ||||
| 32 | 311744 | 1.20 | 1.45 | |
| Lever | ||||
| 33 | 311743 | 5.75 | 6.96 | |
| Machine Screw (w/washers) M5x25 (black) | ||||
| 34 | 880734 | 1.04 | 1.26 | |
| Bracket for protective cover | ||||
| 35 | 311491 | 4.65 | 5.63 | |
| Retaining Ring (e-type) For D2.5 Shaft | ||||
| 36 | 874759 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 37 | 311490 | |||
| No information available, not orderable | ||||
| 38 | 937817Z | |||
| No information available, not orderable | ||||
| 39A | 316823 | |||
| No information available, not orderable | ||||
| 40B | 320974 | |||
| Gear Ass'y | ||||
| 41 | 311486 | 34.51 | 41.76 | |
| Housing | ||||
| 43 | 308559 | 10.35 | 12.52 | |
| Rubber Ring | ||||
| 45 | 995662 | 1.04 | 1.26 | |
| Magnet (old 995665) | ||||
| 46 | 302062 | 6.51 | 7.88 | |
| Controller | ||||
| 47 | 308552 | 145.89 | 176.52 | |
| 110 VOLT CONTROLLER | ||||
| 47 | 308550 | 114.29 | 138.29 | |
| Connector 50091 (10 Pcs.) | ||||
| 48 | 959140 | 3.30 | 3.99 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 49 | 938307 | 2.13 | 2.57 | |
| No information available, not orderable | ||||
| 50 | 308549 | |||
| Tapping Screw (w/flange) D4x35 (black) | ||||
| 51 | 303694 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 52 | 301653 | 1.04 | 1.26 | |
| Carbon Brush (1 Pair) | ||||
| 53 | 999088 | 4.50 | 5.44 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 53A | 999076 | 14.40 | 17.42 | |
| Brush Holder | ||||
| 54 | 308535 | 6.15 | 7.44 | |
| Tapping Screw D3x10 | ||||
| 55 | 306945 | 1.04 | 1.26 | |
| Spring | ||||
| 56 | 308536 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 57 | 984750 | |||
| connecting terminal | ||||
| 58 | 980063 | 1.04 | 1.26 | |
| Terminal For Cord | ||||
| 58 | 992810 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 59 | 960266 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 60 | 938051 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 61 | 500435Z | |||
| Rear handle (a) | ||||
| 62 | 308548 | 5.43 | 6.56 | |
| Dust Seal | ||||
| 63 | 308553 | 1.04 | 1.26 | |
| Switch Ass'y Includ.61 | ||||
| 64A | 321099 | 15.54 | 18.80 | |
| Noise Suppressor | ||||
| 65 | 994273 | 4.29 | 5.19 | |
| connecting terminal | ||||
| 66 | 980063 | 1.04 | 1.26 | |
| Spring | ||||
| 67 | 983595 | 1.04 | 1.26 | |
| Paddle Lever | ||||
| 68 | 308554 | 2.25 | 2.72 | |
| Lever Action Seal For Bel,ger,esp | ||||
| 69 | 308557 | 1.05 | 1.27 | |
| Lever Action Seal | ||||
| 69 | 308558 | 1.05 | 1.27 | |
| Spring (f) | ||||
| 70 | 301631 | 1.04 | 1.26 | |
| Feather Key 3x3x15 | ||||
| 71 | 982696 | 1.04 | 1.26 | |
| Lock Lever | ||||
| 72 | 308555 | 1.50 | 1.82 | |
| Lock Lever | ||||
| 72 | 308556 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 501A | 325491 | |||
| No information available, not orderable | ||||
| 502 | 994322 | |||
| No information available, not orderable | ||||
| 602 | 310338 | |||
| No information available, not orderable | ||||
| 603 | 332793 | |||
| No information available, not orderable | ||||
| 604 | 332794 | |||
