Here you will find all available parts and drawings of the 'Hikoki G14DMR'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

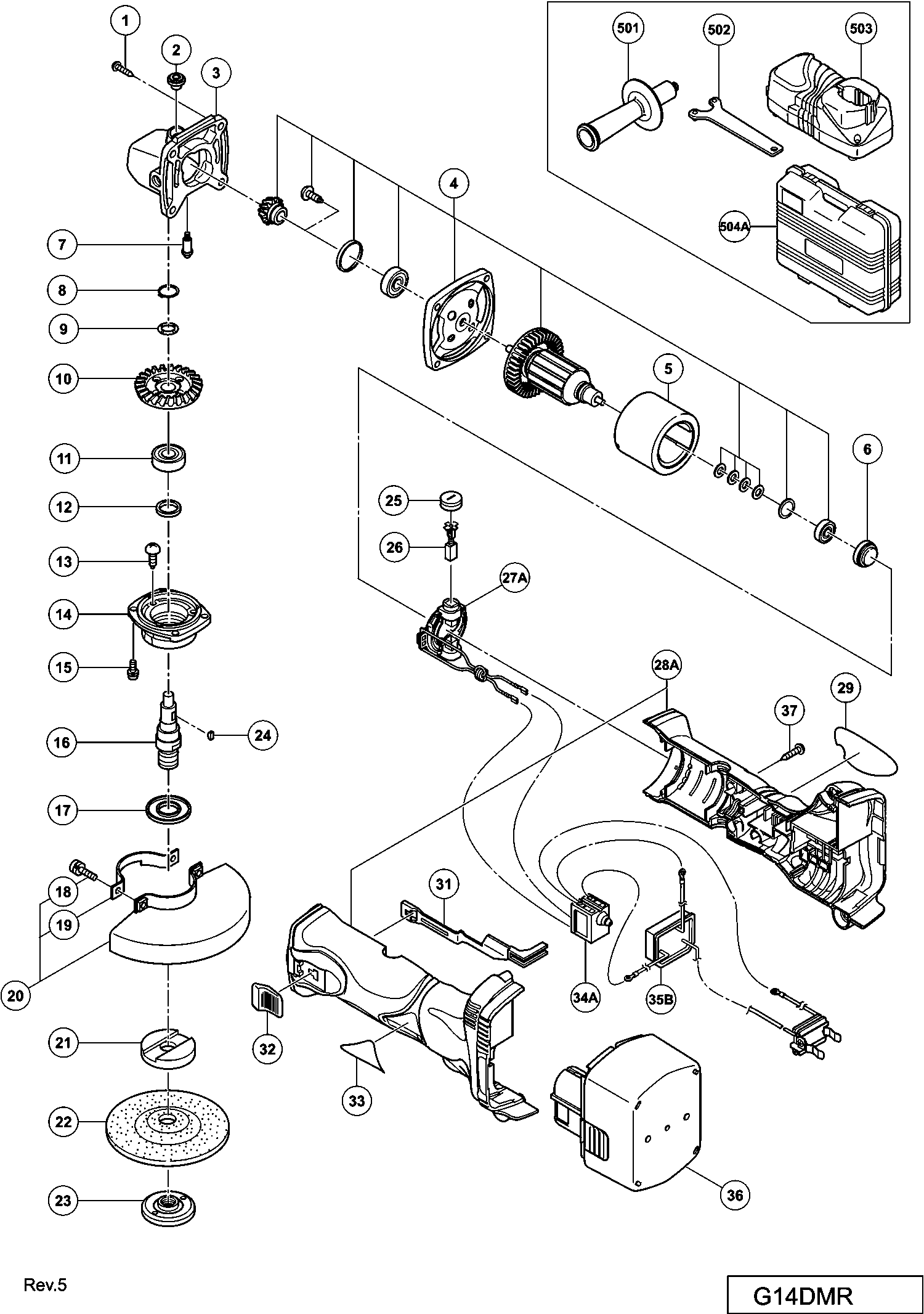

Technical drawing of model Hikoki G14DMR
Spare parts list of model Hikoki G14DMR
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tapping Screw (w/flange) D4x23 (black) | ||||
| 1 | 328643 | 1.05 | 1.27 | |
| Pushing Button | ||||
| 2 | 301944 | 1.04 | 1.26 | |
| Gear Cover Assembly Includ.2,7 | ||||
| 3 | 303078 | 9.00 | 10.89 | |
| Armature And Pinion Set | ||||
| 4 | 360803 | 81.68 | 98.83 | |
| Magnet | ||||
| 5 | 328195 | 18.84 | 22.79 | |
| Rubber Ring | ||||
| 6 | 328201 | 1.05 | 1.27 | |
| Lock Pin | ||||
| 7 | 301943 | 1.65 | 2.00 | |
| Retaining Ring For D11 Shaft Till 9.2012 | ||||
| 8 | 316487 | 1.65 | 2.00 | |
| Ring | ||||
| 9 | 316486 | 1.65 | 2.00 | |
| Gear | ||||
| 10 | 328196 | 11.70 | 14.16 | |
| Ball Bearing 6001vv | ||||
| 11 | 6001VV | 6.60 | 7.99 | |
| Felt Packing | ||||
| 12 | 301946 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 13 | 301936 | |||
| Inner Cover | ||||
| 14 | 328198 | 3.15 | 3.81 | |
| Seal Lock Screw (w/sp. Washer) M4x12 | ||||
| 15 | 307127 | 1.05 | 1.27 | |
| Spindle M14 | ||||
| 16 | 328359 | 4.20 | 5.08 | |
| Fringer | ||||
| 17 | 301945 | 1.05 | 1.27 | |
| Machine Screw (w/sp. Washer) M5x16(black | ||||
| 18 | 308386 | 1.05 | 1.27 | |
| Clamp Ring for Guard | ||||
| 19 | 301949 | 1.04 | 1.26 | |
| Guard | ||||
| 20 | 315492 | 12.75 | 15.43 | |
| No information available, not orderable | ||||
| 21 | 937817Z | |||
| No information available, not orderable | ||||
| 22 | 316821 | |||
| No information available, not orderable | ||||
| 23 | 994324 | |||
| Woodruff Key | ||||
| 24 | 302047 | 1.05 | 1.27 | |
| Brush Cap | ||||
| 25 | 328200 | 2.10 | 2.54 | |
| Carbon Brush 5x6x11.5 (1 Pair) | ||||
| 26 | 999054 | 6.45 | 7.80 | |
| Brush Block | ||||
| 27A | 334696 | 7.05 | 8.53 | |
| Complete housing | ||||
| 28A | 329059 | 45.65 | 55.24 | |
| No information available, not orderable | ||||
| 31 | 328199 | |||
| Slide Knob | ||||
| 32 | 314428 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 34A | 329057 | |||
| Controller Terminal Set | ||||
| 35B | 334593 | 41.80 | 50.58 | |
| No information available, not orderable | ||||
| 36 | 315130 | |||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 37 | 301653 | 1.04 | 1.26 | |
| Side Handle G13sr3 | ||||
| 501 | 318312 | 7.50 | 9.08 | |
| No information available, not orderable | ||||
| 502 | 938332Z | |||
| No information available, not orderable | ||||
| 504A | 339041 | |||
| No information available, not orderable | ||||
| 601 | 937826Z | |||
| No information available, not orderable | ||||
| 602 | 937825Z | |||
| No information available, not orderable | ||||
| 603 | 314095 | |||
| No information available, not orderable | ||||
| 604 | 314096 | |||
| No information available, not orderable | ||||
| 605 | 314097 | |||
| No information available, not orderable | ||||
| 606 | 314098 | |||
| No information available, not orderable | ||||
| 607 | 314099 | |||
| No information available, not orderable | ||||
| 608 | 314100 | |||
| No information available, not orderable | ||||
| 609 | 314101 | |||
| No information available, not orderable | ||||
| 610 | 314102 | |||
| No information available, not orderable | ||||
| 611 | 314103 | |||
| No information available, not orderable | ||||
| 612 | 314104 | |||
| No information available, not orderable | ||||
| 613 | 314105 | |||
| No information available, not orderable | ||||
| 614 | 332785 | |||
