Here you will find all available parts and drawings of the 'Hikoki G14DBL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

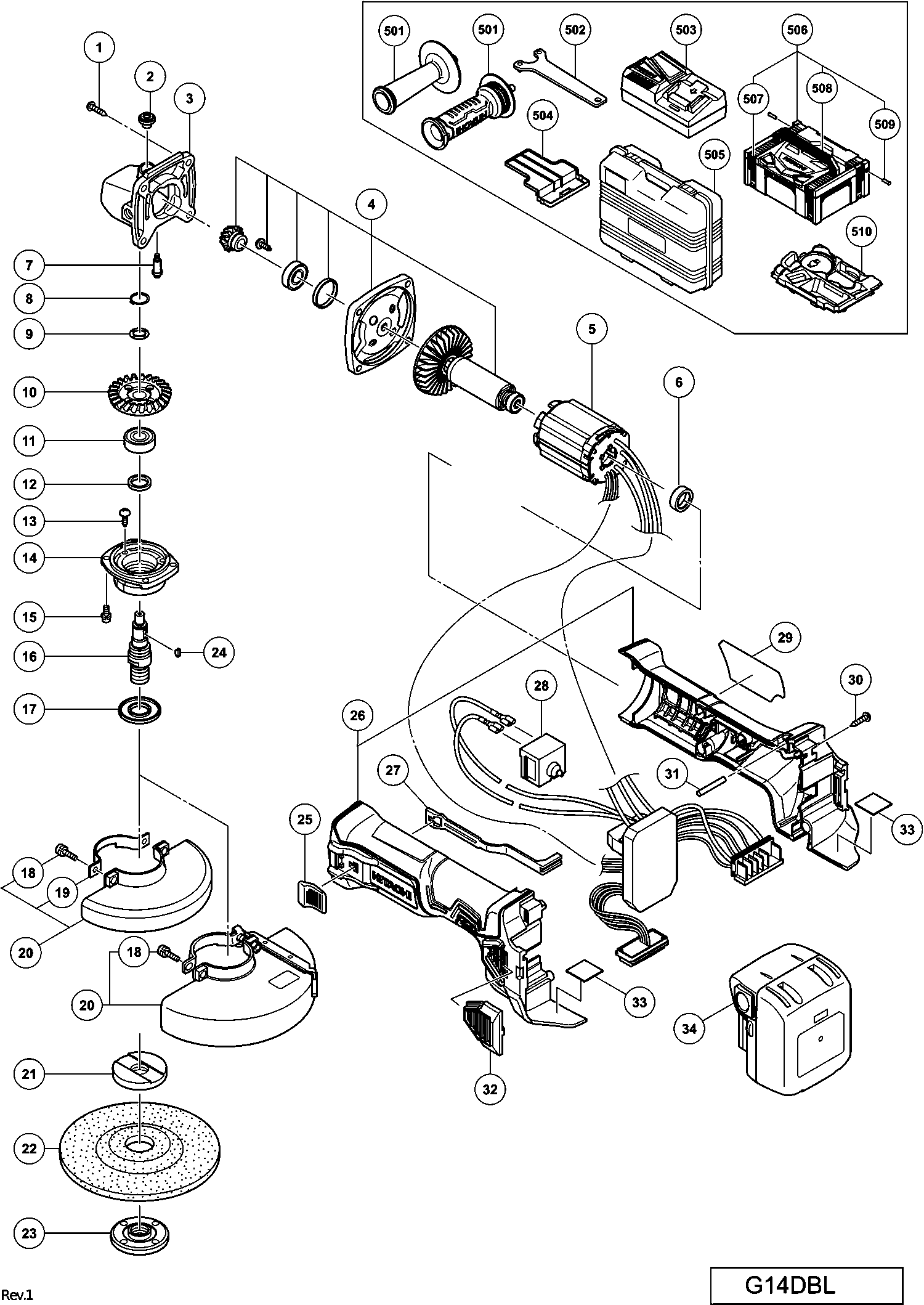

Technical drawing of model Hikoki G14DBL
Spare parts list of model Hikoki G14DBL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Machine Screw (w/sp. Washer) M5x16(black | ||||
| *18 | 308386 | 1.05 | 1.27 | |
| Slotted Plus Screw M5 | ||||
| *18 | 338868 | 1.04 | 1.26 | |
| Guard | ||||
| *20 | 315492 | 12.75 | 15.43 | |
| Guard | ||||
| *20 | 331766 | 10.80 | 13.07 | |
| Toolless Wheel Guard 125mm Includ.27 | ||||
| *20 | 333840 | 6.15 | 7.44 | |
| No information available, not orderable | ||||
| *22 | 316822 | |||
| Side Handle G13sr3 | ||||
| *501 | 318312 | 7.50 | 9.08 | |
| Tapping Screw (w/flange) D4x23 (black) | ||||
| 1 | 328643 | 1.05 | 1.27 | |
| Pushing Button | ||||
| 2 | 301944 | 1.04 | 1.26 | |
| Gear Cover | ||||
| 3 | 339183 | 14.99 | 18.13 | |
| Rotor Inner Cover Set Includ.5-11 | ||||
| 4 | 360991 | 125.68 | 152.07 | |
| Wiring Ass'y (14.4v Single) Includ.28 | ||||
| 5 | 337879 | 235.81 | 285.33 | |
| Socket | ||||
| 6 | 338867 | 1.80 | 2.18 | |
| Lock Pin | ||||
| 7 | 301943 | 1.65 | 2.00 | |
| Retaining Ring For D11 Shaft Till 9.2012 | ||||
| 8 | 316487 | 1.65 | 2.00 | |
| Ring | ||||
| 9 | 316486 | 1.65 | 2.00 | |
| Gear | ||||
| 10 | 328364 | 11.70 | 14.16 | |
| Ball Bearing 6001vv | ||||
| 11 | 6001VV | 6.60 | 7.99 | |
| Felt Packing | ||||
| 12 | 301946 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 13 | 301936 | |||
| Slotted Hd. Screw (Seal Lock) M4x10 | ||||
| 13A | 314430 | 1.05 | 1.27 | |
| Inner Cover | ||||
| 14 | 328198 | 3.15 | 3.81 | |
| Seal Lock Screw (w/sp. Washer) M4x12 | ||||
| 15 | 307127 | 1.05 | 1.27 | |
| Spindle M14 | ||||
| 16 | 328359 | 4.20 | 5.08 | |
| Fringer | ||||
| 17 | 301945 | 1.05 | 1.27 | |
| Machine Screw (w/sp. Washer) M5x16(black | ||||
| 18 | 308386 | 1.05 | 1.27 | |
| Slotted Plus Screw M5 | ||||
| 18 | 338868 | 1.04 | 1.26 | |
| Clamp Ring for Guard | ||||
| 19 | 301949 | 1.04 | 1.26 | |
| Guard | ||||
| 20 | 315492 | 12.75 | 15.43 | |
| Guard | ||||
| 20 | 331766 | 10.80 | 13.07 | |
| Toolless Wheel Guard 125mm Includ.27 | ||||
| 20 | 333840 | 6.15 | 7.44 | |
| No information available, not orderable | ||||
| 21 | 937817Z | |||
| No information available, not orderable | ||||
| 21A | 376067 | |||
| No information available, not orderable | ||||
| 22 | 316822 | |||
| No information available, not orderable | ||||
| 23 | 337329 | |||
| No information available, not orderable | ||||
| 23B | 339579 | |||
| Woodruff Key | ||||
| 24 | 302047 | 1.05 | 1.27 | |
| Slide Knob | ||||
| 25 | 314428 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 26 | 338859 | |||
| HOUSING SET (A+B) NEW | ||||
| 26A | 373744 | 26.54 | 32.11 | |
| HOUSING SET (A+B) NEW | ||||
| 26C | 373744 | 26.54 | 32.11 | |
| Slide Bar | ||||
| 27 | 337871 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 28 | 329057 | |||
| Switch | ||||
| 28A | 373565 | 4.65 | 5.63 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 30 | 301653 | 1.04 | 1.26 | |
| Pin | ||||
| 31 | 338869 | 1.04 | 1.26 | |
| Filter | ||||
| 32 | 338870 | 1.05 | 1.27 | |
| Rubber Cushion (b) | ||||
| 33 | 338871 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 34 | 336383 | |||
| No information available, not orderable | ||||
| 34A | 338888 | |||
| Pinion (1) | ||||
| 39 | 371811 | 4.65 | 5.63 | |
| Slotted Head Screw (seal Lock) M4 | ||||
| 40 | 371814 | 1.04 | 1.26 | |
| Ball Bearing (1) | ||||
| 41 | 371033 | 3.15 | 3.81 | |
| Rubber Ring (a) | ||||
| 42 | 328453 | 1.80 | 2.18 | |
| Inner Cover | ||||
| 43 | 371816 | 7.50 | 9.08 | |
| Ball Bearing 625dd | ||||
| 44 | 333826 | 5.10 | 6.17 | |
| Side Handle G13sr3 | ||||
| 501 | 318312 | 7.50 | 9.08 | |
| No information available, not orderable | ||||
| 502 | 938332Z | |||
| Battery Cover | ||||
| 504 | 329897 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 505 | 337867 | |||
| No information available, not orderable | ||||
| 506 | 336471 | |||
| No information available, not orderable | ||||
| 507 | 336472 | |||
| No information available, not orderable | ||||
| 508 | 336473 | |||
| No information available, not orderable | ||||
| 509 | 336474 | |||
| No information available, not orderable | ||||
| 510 | 338872 | |||
| No information available, not orderable | ||||
| 601 | 937826Z | |||
| No information available, not orderable | ||||
| 602 | 937825Z | |||
| No information available, not orderable | ||||
| 603 | 314095 | |||
| No information available, not orderable | ||||
| 604 | 314096 | |||
| No information available, not orderable | ||||
| 605 | 314097 | |||
| No information available, not orderable | ||||
| 606 | 314098 | |||
| No information available, not orderable | ||||
| 607 | 314099 | |||
| No information available, not orderable | ||||
| 608 | 314100 | |||
| No information available, not orderable | ||||
| 609 | 314101 | |||
| No information available, not orderable | ||||
| 610 | 314102 | |||
| No information available, not orderable | ||||
| 611 | 314103 | |||
| No information available, not orderable | ||||
| 612 | 314104 | |||
| No information available, not orderable | ||||
| 613 | 314105 | |||
| No information available, not orderable | ||||
| 614 | 332785 | |||
| No information available, not orderable | ||||
| 615 | 332788 | |||
| No information available, not orderable | ||||
| 616 | 332787 | |||
| Ring | ||||
| 617 | 339151 | 3.90 | 4.72 | |
| No information available, not orderable | ||||
| 618 | 338497 | |||
| No information available, not orderable | ||||
| 619 | 314062 | |||
| No information available, not orderable | ||||
| 620 | 314063 | |||
| No information available, not orderable | ||||
| 621 | 314064 | |||
| No information available, not orderable | ||||
| 622 | 314065 | |||
| No information available, not orderable | ||||
| 623 | 314066 | |||
| No information available, not orderable | ||||
| 624 | 314067 | |||
| No information available, not orderable | ||||
| 625 | 314068 | |||
| No information available, not orderable | ||||
| 626 | 314069 | |||
| No information available, not orderable | ||||
| 627 | 314070 | |||
| No information available, not orderable | ||||
| 628 | 314071 | |||
| No information available, not orderable | ||||
| 629 | 314072 | |||
