Here you will find all available parts and drawings of the 'Hikoki G13YF'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

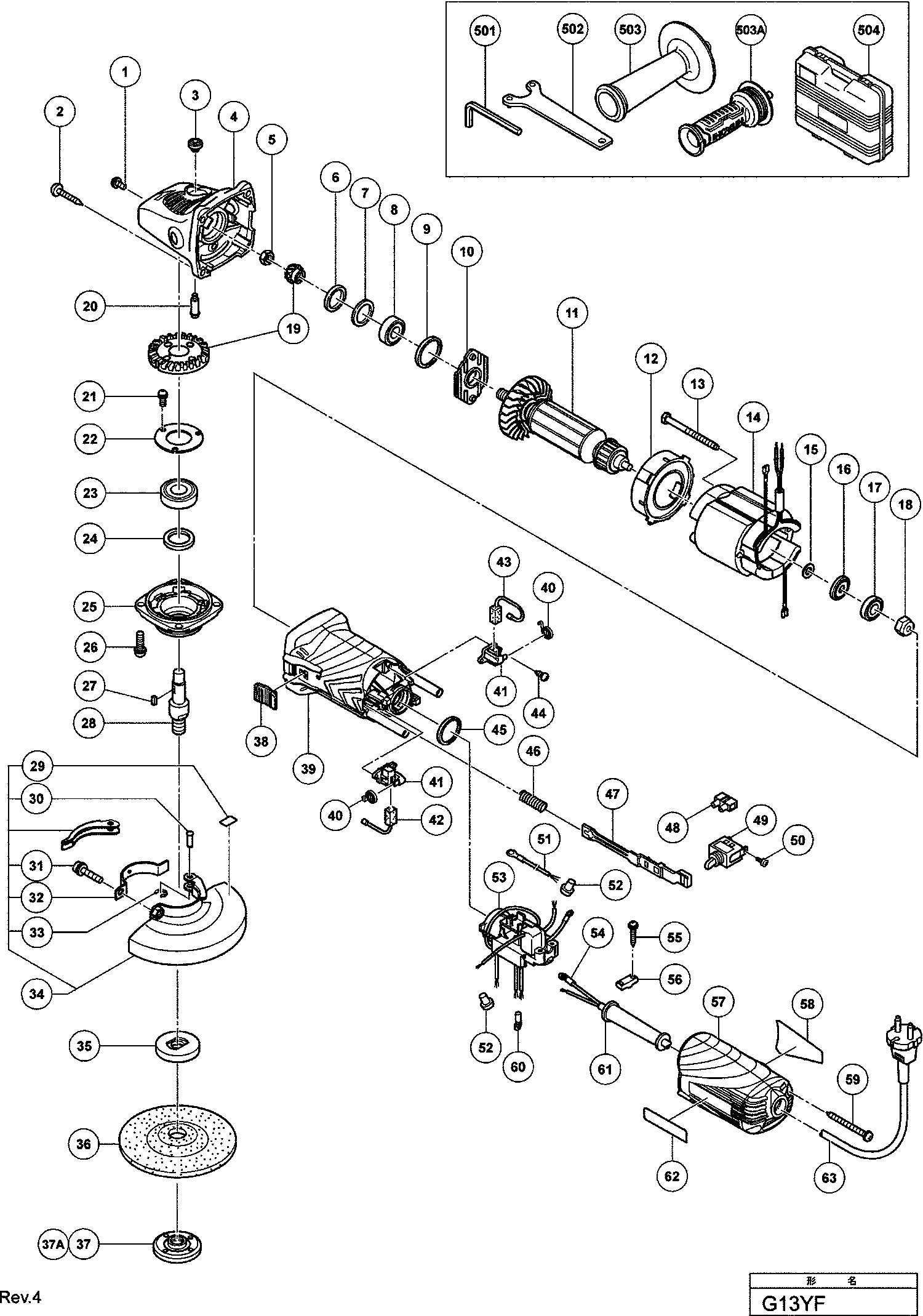

Technical drawing of model Hikoki G13YF
Spare parts list of model Hikoki G13YF
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| SEAL LOCK SCREW M4X10 | ||||
| 1 | 303255 | 1.04 | 1.26 | |
| Tapping Screw D5x25 (black) | ||||
| 2 | 320523 | 1.35 | 1.63 | |
| Pushing Button | ||||
| 3 | 301944 | 1.04 | 1.26 | |
| Gear Cover | ||||
| 4 | 321737 | 36.44 | 44.09 | |
| Nut M8 (10 Pcs.) | ||||
| 5 | 949558 | 1.05 | 1.27 | |
| Seal Ring (a) | ||||
| 6 | 308543 | 1.04 | 1.26 | |
| Washer (c) | ||||
| 7 | 980866 | 1.04 | 1.26 | |
| Ball bearing 629t12ddc3ps2-l | ||||
| 8 | 629T12 | 9.83 | 11.89 | |
| Rubber Ring | ||||
| 9 | 957754 | 1.20 | 1.45 | |
| Bearing Cover | ||||
| 10 | 321734 | 1.35 | 1.63 | |
| Armature 230v-240v | ||||
| 11 | 360869E | 50.88 | 61.56 | |
| ANKER 110 VOLT | ||||
| 11 | 360869C | 47.63 | 57.63 | |
| Fan Guide | ||||
| 12 | 321732 | 1.35 | 1.63 | |
| Hex. Hd. Tapping Screw D4x70 | ||||
| 13 | 982021 | 1.04 | 1.26 | |
| Stator Ass'y 220v-240v | ||||
| 14 | 340749E | 24.61 | 29.78 | |
| Spring retaining ring | ||||
| 15 | 311737 | 1.04 | 1.26 | |
| Dust Seal (a) | ||||
| 16 | 311435 | 1.04 | 1.26 | |
| Ball Bearing 608vvc2ps2l | ||||
| 17 | 608VVM | 5.70 | 6.90 | |
| Magnet | ||||
| 18 | 325475 | 4.65 | 5.63 | |
| Gear And Pinion Set | ||||
| 19 | 329054 | 16.36 | 19.80 | |
| Lock Pin | ||||
| 20 | 301943 | 1.65 | 2.00 | |
| Seal Lock Screw (w/sp. Washer) M4x8 | ||||
| 21 | 991207 | 1.04 | 1.26 | |
| Bearing Cover (b) | ||||
| 22 | 936680 | 1.04 | 1.26 | |
| Ball Bearing 6201ddcmps2l | ||||
| 23 | 6201DD | 6.30 | 7.62 | |
| Felt Packing | ||||
| 24 | 308546 | 1.04 | 1.26 | |
| Inner Cover | ||||
| 25 | 308545 | 7.35 | 8.89 | |
| Seal Lock Screw (w/sp. Washer) M5x16 | ||||
| 26 | 307046 | 1.04 | 1.26 | |
| Feather Key 3x3x8 | ||||
| 27 | 944109 | 1.70 | 2.06 | |
| Spindle Ass'y | ||||
| 28 | 994301 | 14.25 | 17.24 | |
| Label | ||||
| 29 | 311492 | 1.20 | 1.45 | |
| Set Pin Till 11.2014 | ||||
| 30 | 311744 | 1.20 | 1.45 | |
| Hex. Socket Hd. Bolt (w/washers) M5x20 | ||||
| 31 | 316107 | 1.80 | 2.18 | |
| Bracket for protective cover | ||||
| 32 | 311491 | 4.65 | 5.63 | |
| Retaining Ring (e-type) For D2.5 Shaft | ||||
| 33 | 874759 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 34 | 311742 | |||
| Wheel Guard Ass'y (toolless Type) Includ.31 | ||||
| 34A | 337232 | 13.35 | 16.15 | |
| No information available, not orderable | ||||
| 35 | 937817Z | |||
| No information available, not orderable | ||||
| 36 | 316822 | |||
| No information available, not orderable | ||||
| 37 | 994324 | |||
| No information available, not orderable | ||||
| 37A | 339579 | |||
| Switch Button | ||||
| 38 | 330810 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 39 | 330808 | |||
| Spring | ||||
| 40 | 308536 | 1.65 | 2.00 | |
| Brush Holder | ||||
| 41 | 308535 | 6.15 | 7.44 | |
| Carbon Brush (1 Pair) | ||||
| 42 | 999088 | 4.50 | 5.44 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 43 | 999076 | 14.40 | 17.42 | |
| Tapping Screw D3x10 | ||||
| 44 | 306945 | 1.04 | 1.26 | |
| Rubber Ring | ||||
| 45 | 995662 | 1.04 | 1.26 | |
| Spring | ||||
| 46 | 314429 | 1.04 | 1.26 | |
| Slide Bar | ||||
| 47 | 330811 | 1.05 | 1.27 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 48 | 938307 | 2.13 | 2.57 | |
| SCHAKELAAR | ||||
| 49 | 314603 | 11.88 | 14.37 | |
| Machine Screw (w/washer) M3.5x6 | ||||
| 50 | 305499 | 1.05 | 1.27 | |
| Internal wire | ||||
| 51 | 331932 | 3.45 | 4.17 | |
| Connector 50091 (10 Pcs.) | ||||
| 52 | 959140 | 3.30 | 3.99 | |
| Controller 220v-240v | ||||
| 53 | 330816 | 54.45 | 65.88 | |
| connecting terminal | ||||
| 54 | 980063 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 55 | 984750 | |||
| Cord Clip | ||||
| 56 | 937631 | 1.04 | 1.26 | |
| Tail Cover | ||||
| 57 | 331934 | 5.25 | 6.35 | |
| Tapping Screw (w/flange) D4x50 (black) | ||||
| 59 | 331933 | 1.80 | 2.18 | |
| Terminal | ||||
| 60 | 311741 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 61 | 953327 | |||
| Cord (cord Armor D8.8) For Uae (240v) | ||||
| 63 | 500461Z | 17.88 | 21.63 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 63 | 500447Z | 6.60 | 7.99 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 63 | 500247Z | 6.18 | 7.48 | |
| No information available, not orderable | ||||
| 501 | 944458 | |||
| No information available, not orderable | ||||
| 502 | 938332Z | |||
| No information available, not orderable | ||||
| 503 | 994322 | |||
| No information available, not orderable | ||||
| 503A | 336865 | |||
| No information available, not orderable | ||||
| 504 | 323712 | |||
| Handle Joint | ||||
| 505 | 370397 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 601 | 937825Z | |||
| No information available, not orderable | ||||
| 602 | 937826Z | |||
| No information available, not orderable | ||||
| 603 | 314062 | |||
| No information available, not orderable | ||||
| 604 | 314063 | |||
| No information available, not orderable | ||||
| 605 | 314064 | |||
| No information available, not orderable | ||||
| 606 | 314065 | |||
| No information available, not orderable | ||||
| 607 | 314066 | |||
| No information available, not orderable | ||||
| 608 | 314067 | |||
| No information available, not orderable | ||||
| 609 | 314068 | |||
| No information available, not orderable | ||||
| 610 | 314069 | |||
| No information available, not orderable | ||||
| 611 | 314070 | |||
| No information available, not orderable | ||||
| 612 | 314071 | |||
| No information available, not orderable | ||||
| 613 | 314072 | |||
| No information available, not orderable | ||||
| 614 | 310338 | |||
| No information available, not orderable | ||||
| 615 | 332787 | |||
| No information available, not orderable | ||||
| 616 | 332788 | |||
