Here you will find all available parts and drawings of the 'Hikoki G13YD'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

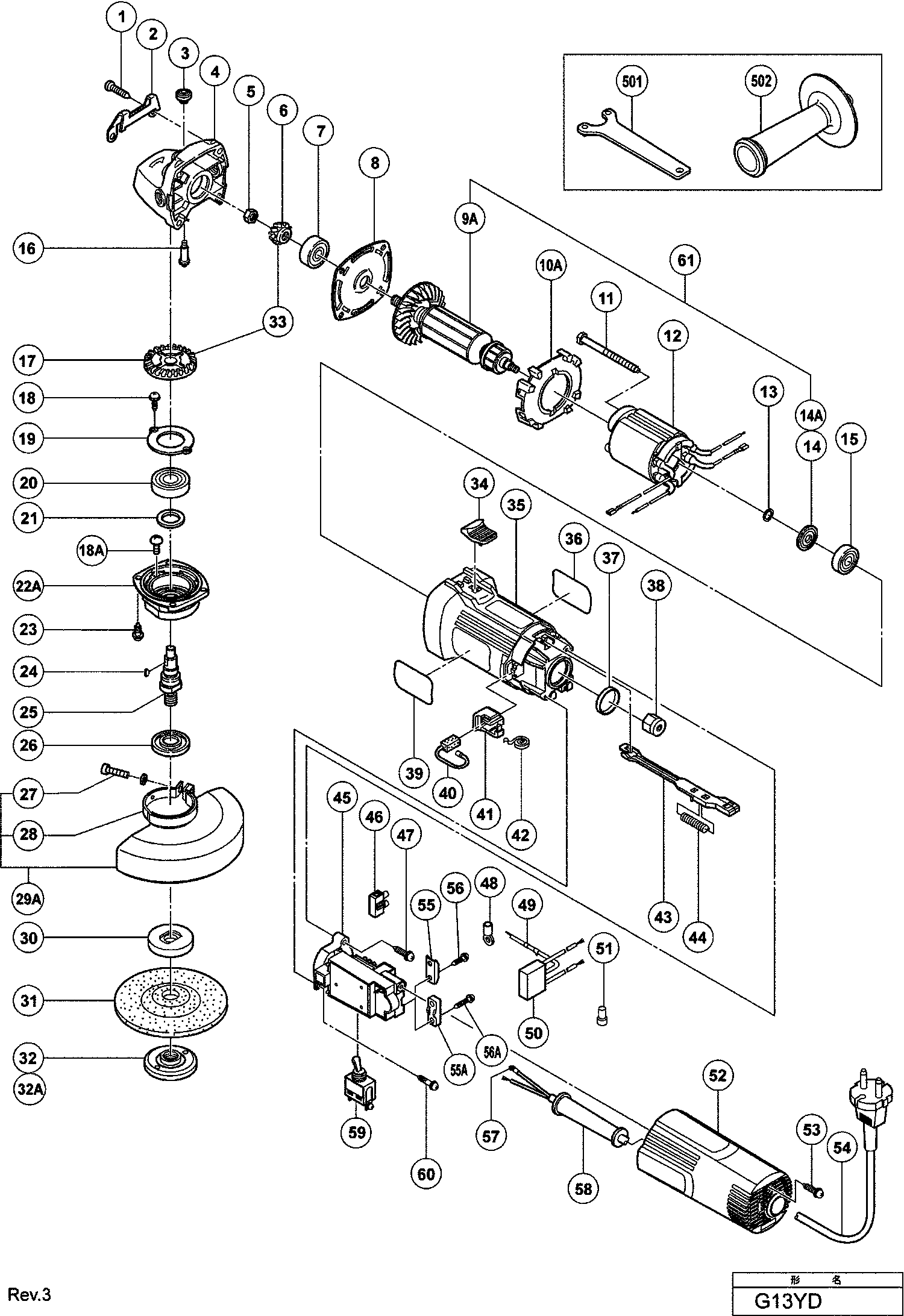

Technical drawing of model Hikoki G13YD
Spare parts list of model Hikoki G13YD
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 937807 | |||
| Guard Plate | ||||
| 2 | 317807 | 1.05 | 1.27 | |
| Pushing Button | ||||
| 3 | 301944 | 1.04 | 1.26 | |
| Gear Cover | ||||
| 4 | 316484 | 18.98 | 22.96 | |
| Special Nut M7 | ||||
| 5 | 301941 | 1.04 | 1.26 | |
| Pinion | ||||
| 6 | 316437 | 22.28 | 26.95 | |
| Ball Bearing 628vvc2ps2-l | ||||
| 7 | 628VVC | 11.85 | 14.34 | |
| Bearing Holder | ||||
| 8 | 316480 | 3.30 | 3.99 | |
| Armature 230v-240v Since 11.2004 | ||||
| 9A | 360540F | 52.94 | 64.05 | |
| Fan Guide | ||||
| 10A | 319898 | 1.05 | 1.27 | |
| Hex. Hd. Tapping Screw D4x70 | ||||
| 11 | 982021 | 1.04 | 1.26 | |
| Stator 230v | ||||
| 12 | 340484E | 17.75 | 21.48 | |
| Spring retaining ring | ||||
| 13 | 311737 | 1.04 | 1.26 | |
| Dust Seal Till 10.2004 | ||||
| 14 | 319386 | 1.65 | 2.00 | |
| Dust Seal | ||||
| 14A | 315877 | 1.05 | 1.27 | |
| Ball Bearing 608vvc2ps2l | ||||
| 15 | 608VVM | 5.70 | 6.90 | |
| Lock Pin | ||||
| 16 | 301943 | 1.65 | 2.00 | |
| Gear | ||||
| 17 | 316438 | 17.88 | 21.63 | |
| Seal Lock Screw (w/sp. Washer) M4x10 Till 09.2009 | ||||
| 18 | 997263 | 1.05 | 1.27 | |
| Slotted Hd. Screw (seal Lock) M4x8 | ||||
| 18A | 323556 | 1.05 | 1.27 | |
| Bearing Cover | ||||
| 19 | 316490 | 1.65 | 2.00 | |
| Ball Bearing 6201ddcmps2l | ||||
| 20 | 6201DD | 6.30 | 7.62 | |
| Felt Packing | ||||
| 21 | 301946 | 1.04 | 1.26 | |
| Packing Gland | ||||
| 22A | 333839 | 2.85 | 3.45 | |
| Seal Lock Screw (w/sp. Washer) M4x12 | ||||
| 23 | 307127 | 1.05 | 1.27 | |
| INSERT PIN 2,5X8 | ||||
| 24 | 940220 | 1.35 | 1.63 | |
| Spindle Ass'y | ||||
| 25 | 317804 | 9.30 | 11.25 | |
| Fringer | ||||
| 26 | 301945 | 1.05 | 1.27 | |
| Machine Screw M5x20 (10 pieces) | ||||
| 27 | 949241 | 1.35 | 1.63 | |
| Spring Washer M5 (10 pieces) | ||||
| 28 | 949454 | 1.04 | 1.26 | |
| Wheel Guard Ass'y Includ.27,28 | ||||
| 29A | 320192 | 14.16 | 17.14 | |
| No information available, not orderable | ||||
| 30 | 937817Z | |||
| No information available, not orderable | ||||
| 31 | 316822 | |||
| No information available, not orderable | ||||
| 32 | 994324 | |||
| No information available, not orderable | ||||
| 32A | 337329 | |||
| No information available, not orderable | ||||
| 32B | 339579 | |||
| Gear Ass'y Includ.6,17 | ||||
| 33 | 316436 | 36.16 | 43.76 | |
| Slide Knob | ||||
| 34 | 314428 | 1.04 | 1.26 | |
| Housing | ||||
| 35 | 317802 | 12.00 | 14.52 | |
| Rubber Ring | ||||
| 37 | 995662 | 1.04 | 1.26 | |
| Magnet | ||||
| 38 | 318721 | 17.60 | 21.30 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 40 | 999076 | 14.40 | 17.42 | |
| Brush Holder | ||||
| 41 | 317810 | 4.80 | 5.81 | |
| Spring | ||||
| 42 | 308536 | 1.65 | 2.00 | |
| Slide Bar | ||||
| 43 | 319370 | 1.05 | 1.27 | |
| Spring | ||||
| 44 | 314429 | 1.04 | 1.26 | |
| Controller | ||||
| 45 | 319897 | 119.63 | 144.75 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 46 | 938307 | 2.13 | 2.57 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 47 | 301653 | 1.04 | 1.26 | |
| Terminal | ||||
| 48 | 311741 | 1.04 | 1.26 | |
| Earth Terminal For Tpe | ||||
| 49 | 314854 | 1.50 | 1.82 | |
| Interference Suppressor | ||||
| 50 | 317491 | 7.35 | 8.89 | |
| Connector 50091 (10 Pcs.) | ||||
| 51 | 959140 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 52 | 319371 | |||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 53 | 301653 | 1.04 | 1.26 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 54 | 500447Z | 6.60 | 7.99 | |
| No information available, not orderable | ||||
| 55 | 930108 | |||
| Cord Clip | ||||
| 55A | 937631 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x12 Till 1.2001 | ||||
| 56 | 305720 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 56A | 984750 | |||
| connecting terminal | ||||
| 57 | 980063 | 1.04 | 1.26 | |
| Cord Armor D8.8 | ||||
| 58 | 380090 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 59 | 314603 | |||
| No information available, not orderable | ||||
| 60 | 984750 | |||
| Armature Ass'y 230v-240v Includ.14a Till 10.2004 | ||||
| 61 | 360705F | 64.98 | 78.62 | |
| No information available, not orderable | ||||
| 501 | 938332Z | |||
| No information available, not orderable | ||||
| 502 | 302142 | |||
| No information available, not orderable | ||||
| 502A | 994322 | |||
| No information available, not orderable | ||||
| 601 | 937825Z | |||
| No information available, not orderable | ||||
| 602 | 937826Z | |||
| No information available, not orderable | ||||
| 603 | 314062 | |||
| No information available, not orderable | ||||
| 604 | 314063 | |||
| No information available, not orderable | ||||
| 605 | 314064 | |||
| No information available, not orderable | ||||
| 606 | 314065 | |||
| No information available, not orderable | ||||
| 607 | 314066 | |||
| No information available, not orderable | ||||
| 608 | 314067 | |||
| No information available, not orderable | ||||
| 609 | 314068 | |||
| No information available, not orderable | ||||
| 610 | 314069 | |||
| No information available, not orderable | ||||
| 611 | 314070 | |||
| No information available, not orderable | ||||
| 612 | 314071 | |||
| No information available, not orderable | ||||
| 613 | 314072 | |||
| No information available, not orderable | ||||
| 614 | 310392 | |||
| No information available, not orderable | ||||
| 615 | 323712 | |||
| No information available, not orderable | ||||
| 616 | 332789 | |||
