Here you will find all available parts and drawings of the 'Hikoki G13SS2'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

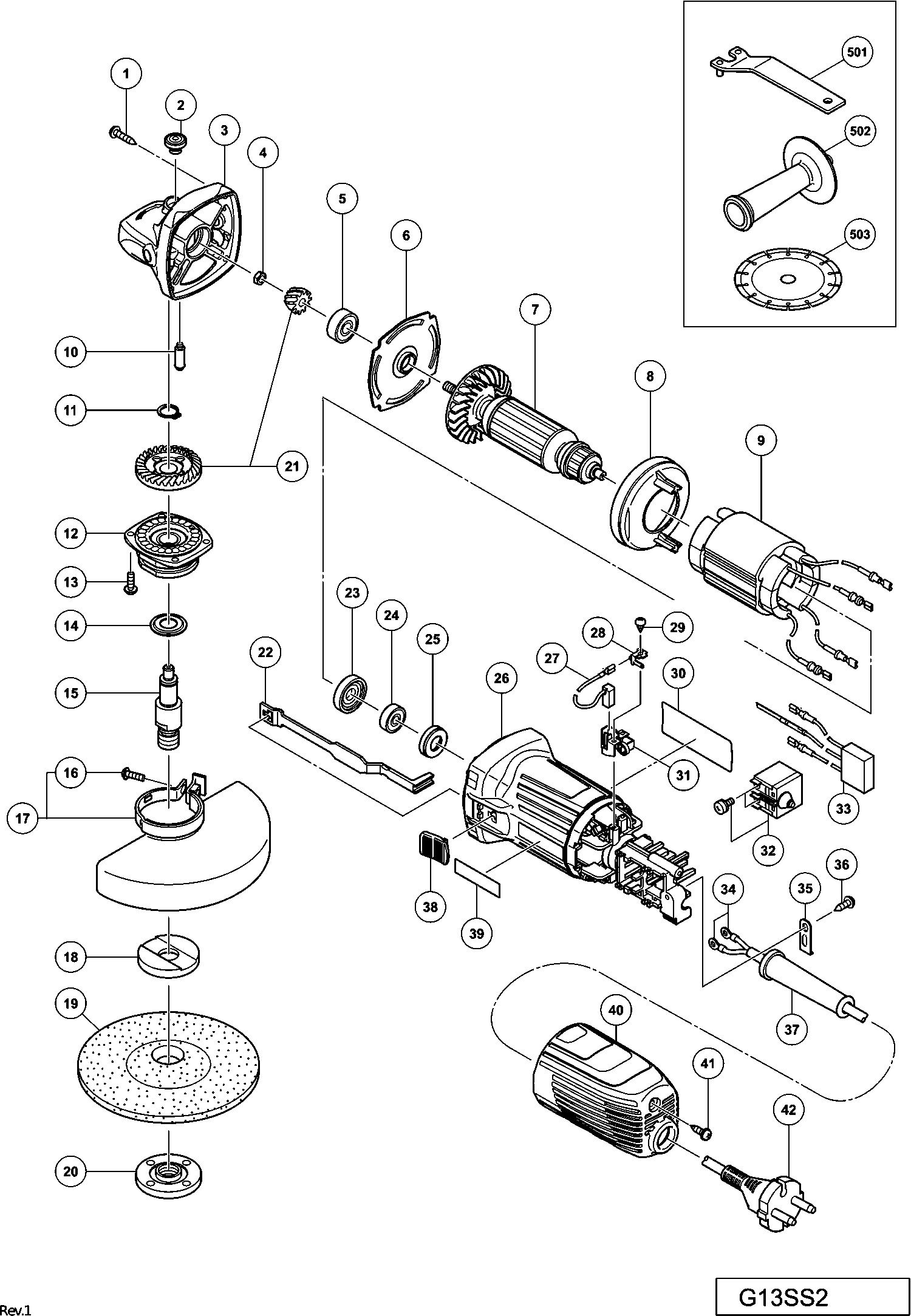

Technical drawing of model Hikoki G13SS2
Spare parts list of model Hikoki G13SS2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cord Clip | ||||
| *35 | 338334 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| *42 | 500468Z | |||
| Armature 230v-240v | ||||
| *7 | 361007E | 17.60 | 21.30 | |
| ANKER 110 VOLT | ||||
| *7 | 361007C | 16.44 | 19.89 | |
| Stator 220v-230v | ||||
| *9 | 340908E | 12.90 | 15.61 | |
| VELD 110-120 VOLT | ||||
| *9 | 340908D | 11.00 | 13.31 | |
| Tapping Screw (w/flange) D4x23 (black) | ||||
| 1 | 328643 | 1.05 | 1.27 | |
| Pushing Button | ||||
| 2 | 301944 | 1.04 | 1.26 | |
| Gear Cover | ||||
| 3 | 339146 | 6.90 | 8.35 | |
| Special Nut M6 | ||||
| 4 | 309191 | 1.04 | 1.26 | |
| Ball Bearing 608ss | ||||
| 5 | 338337 | 2.25 | 2.72 | |
| Bearing Holder | ||||
| 6 | 338850 | 1.04 | 1.26 | |
| Armature 230v-240v | ||||
| 7 | 361007E | 17.60 | 21.30 | |
| ANKER 110 VOLT | ||||
| 7 | 361007C | 16.44 | 19.89 | |
| Fan Guide | ||||
| 8 | 338853 | 1.04 | 1.26 | |
| Stator 220v-230v | ||||
| 9 | 340908E | 12.90 | 15.61 | |
| VELD 110-120 VOLT | ||||
| 9 | 340908D | 11.00 | 13.31 | |
| Lock Pin | ||||
| 10 | 301943 | 1.65 | 2.00 | |
| Retaining Ring For D11 Shaft Till 9.2012 | ||||
| 11 | 316487 | 1.65 | 2.00 | |
| Inner Cover | ||||
| 12A | 338849 | 3.00 | 3.63 | |
| Seal Lock Screw (w/washer) M4x12 | ||||
| 13 | 328628 | 1.05 | 1.27 | |
| Washer (a) | ||||
| 14 | 328185 | 1.05 | 1.27 | |
| Spindle Ass'y | ||||
| 15 | 330700 | 6.15 | 7.44 | |
| Machine Screw (w/sp. Washer) M5x16(black | ||||
| 16 | 308386 | 1.05 | 1.27 | |
| Guard | ||||
| 17 | 338845 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 18 | 937817Z | |||
| No information available, not orderable | ||||
| 18A | 376067 | |||
| No information available, not orderable | ||||
| 19 | 316822 | |||
| No information available, not orderable | ||||
| 20A | 339579 | |||
| GEAR AND SHAFT | ||||
| 21 | 328178 | 10.05 | 12.16 | |
| Slide Bar | ||||
| 22 | 338855 | 1.04 | 1.26 | |
| Dust Seal | ||||
| 23 | 321722 | 1.35 | 1.63 | |
| Ball Bearing 626zz | ||||
| 24 | 339145 | 1.50 | 1.82 | |
| Rubber Ring | ||||
| 25 | 309929 | 1.04 | 1.26 | |
| Housing | ||||
| 26 | 338851 | 3.90 | 4.72 | |
| Housing | ||||
| 26A | 338851 | 3.90 | 4.72 | |
| Carbon Brush (1 Pair) | ||||
| 27 | 999067 | 2.85 | 3.45 | |
| Tab Terminal | ||||
| 28 | 339185 | 1.04 | 1.26 | |
| Tapping Screw D3x8 | ||||
| 29 | 328210 | 1.20 | 1.45 | |
| Carbon Brush Holder | ||||
| 31 | 333844 | 2.10 | 2.54 | |
| Switch | ||||
| 32 | 339149 | 2.70 | 3.27 | |
| Noise Suppressor 220v-240v For Model (s) | ||||
| 33 | 339147 | 2.70 | 3.27 | |
| No information available, not orderable | ||||
| 33A | 377881 | |||
| connecting terminal | ||||
| 34 | 980063 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 35 | 338334 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 35A | 377882 | |||
| Tapping Screw (w/flange) D4x12 Till 1.2001 | ||||
| 36 | 305720 | 1.05 | 1.27 | |
| Cord Armor D8.8 | ||||
| 37 | 380090 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 37 | 938051 | 1.04 | 1.26 | |
| Cord Armor D8.8 | ||||
| 37A | 380090 | 1.04 | 1.26 | |
| Slide Switch Knob | ||||
| 38 | 338854 | 1.04 | 1.26 | |
| Tail Cover | ||||
| 40 | 338852 | 1.20 | 1.45 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 41 | 305812 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 42 | 500439Z | |||
| Ferrite Core Except For Sin,mal,uae | ||||
| 43 | 334379 | 4.65 | 5.63 | |
| No information available, not orderable | ||||
| 501 | 938332Z | |||
| No information available, not orderable | ||||
| 502A | 994322 | |||
| No information available, not orderable | ||||
| 601 | 994325 | |||
| No information available, not orderable | ||||
| 602 | 937825Z | |||
| No information available, not orderable | ||||
| 603 | 937826Z | |||
| No information available, not orderable | ||||
| 604 | 314062 | |||
| No information available, not orderable | ||||
| 605 | 314063 | |||
| No information available, not orderable | ||||
| 606 | 314064 | |||
| No information available, not orderable | ||||
| 607 | 314065 | |||
| No information available, not orderable | ||||
| 608 | 314066 | |||
| No information available, not orderable | ||||
| 609 | 314067 | |||
| No information available, not orderable | ||||
| 610 | 314068 | |||
| No information available, not orderable | ||||
| 611 | 314069 | |||
| No information available, not orderable | ||||
| 612 | 314070 | |||
| No information available, not orderable | ||||
| 613 | 314071 | |||
| No information available, not orderable | ||||
| 614 | 314072 | |||
| Liquid Packing | ||||
| 615 | 324688 | 40.84 | 49.41 | |
