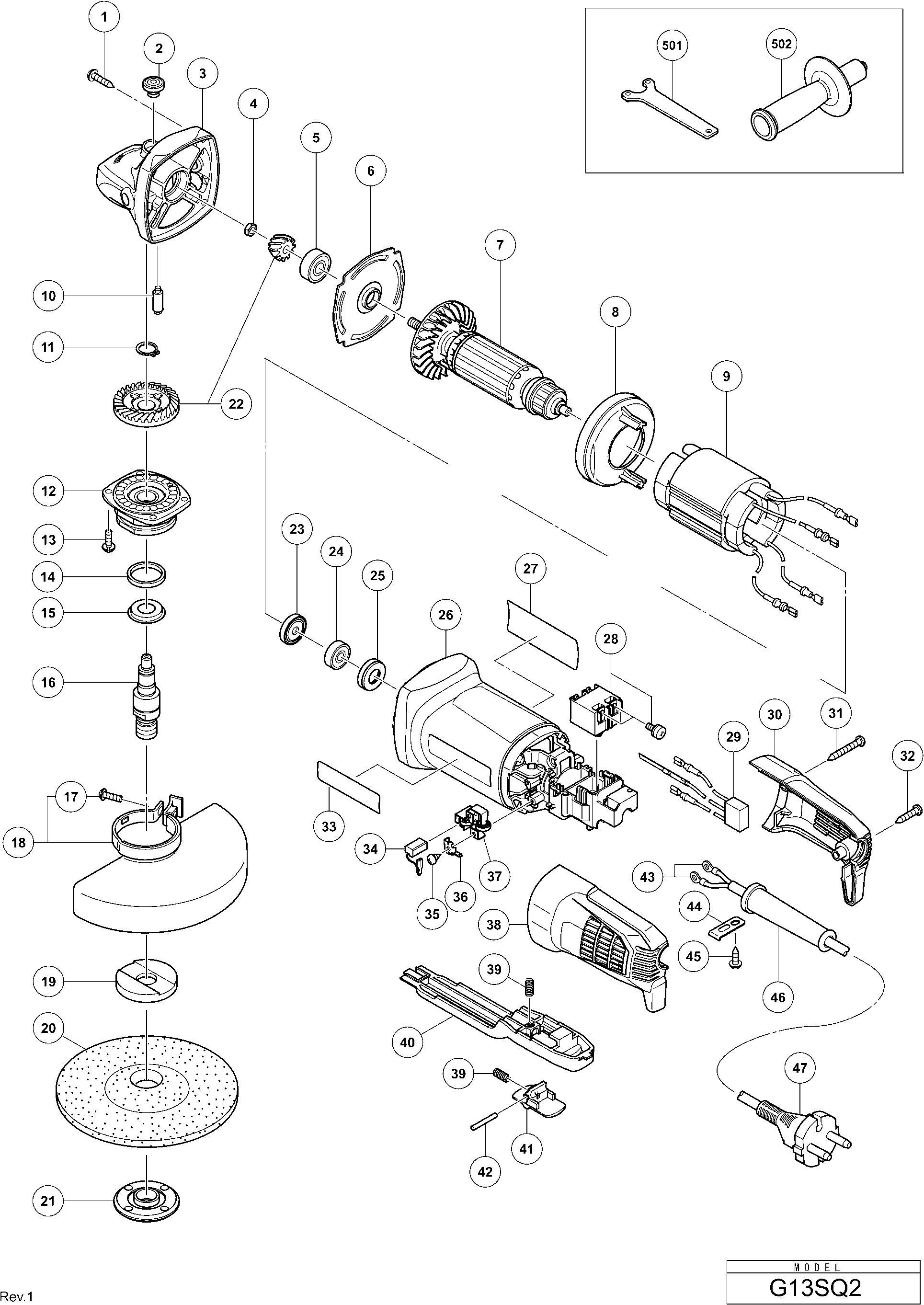

Technical drawing of model Hikoki G13SQ2
Spare parts list of model Hikoki G13SQ2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Guard | ||||
| *18 | 338845 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| *21 | 339579 | |||
| Cord Clip | ||||
| *44 | 338334 | 1.04 | 1.26 | |
| Cord 10.7 (USE 714500=2X1 5M) | ||||
| *47 | 500247Z | 6.18 | 7.48 | |
| ARMATURE 230 VOLT | ||||
| *7 | 361082F | 19.66 | 23.79 | |
| Armature Ass'y 240v | ||||
| *7 | 361082G | 19.39 | 23.46 | |
| ARMATURE 110 VOLT | ||||
| *7 | 361082B | 18.37 | 22.23 | |
| Field | ||||
| *9 | 340997E | 16.23 | 19.63 | |
| FIELD 110-120 VOLT | ||||
| *9 | 340997B | 15.12 | 18.30 | |
| Tapping Screw (w/flange) D4x23 (black) | ||||
| 1 | 328643 | 1.05 | 1.27 | |
| Pushing Button | ||||
| 2 | 301944 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 3 | 338332 | |||
| Special Nut M6 | ||||
| 4 | 309191 | 1.04 | 1.26 | |
| Ball Bearing 608ss | ||||
| 5 | 338337 | 2.25 | 2.72 | |
| Bearing Holder | ||||
| 6 | 338850 | 1.04 | 1.26 | |
| ARMATURE 230 VOLT | ||||
| 7 | 361082F | 19.66 | 23.79 | |
| Armature Ass'y 240v | ||||
| 7 | 361082G | 19.39 | 23.46 | |
| ARMATURE 110 VOLT | ||||
| 7 | 361082B | 18.37 | 22.23 | |
| Fan Guide | ||||
| 8 | 338853 | 1.04 | 1.26 | |
| Field | ||||
| 9 | 340997E | 16.23 | 19.63 | |
| FIELD 110-120 VOLT | ||||
| 9 | 340997B | 15.12 | 18.30 | |
| Lock Pin | ||||
| 10 | 301943 | 1.65 | 2.00 | |
| Retaining Ring For D11 Shaft Till 9.2012 | ||||
| 11 | 316487 | 1.65 | 2.00 | |
| Inner Cover | ||||
| 12 | 338849 | 3.00 | 3.63 | |
| Seal Lock Screw (w/washer) M4x12 | ||||
| 13 | 328628 | 1.05 | 1.27 | |
| VILTPAKKIING | ||||
| 14 | 373384 | 1.04 | 1.26 | |
| Fringer | ||||
| 15 | 373383 | 1.04 | 1.26 | |
| SPINDLE | ||||
| 16 | 373292 | 3.90 | 4.72 | |
| Machine Screw (w/sp. Washer) M5x16(black | ||||
| 17 | 308386 | 1.05 | 1.27 | |
| Guard | ||||
| 18 | 338845 | 2.55 | 3.09 | |
| PROTECTIVE COVER (OLD 338845) | ||||
| 18A | 382258 | 2.94 | 3.56 | |
| No information available, not orderable | ||||
| 19 | 937817Z | |||
| No information available, not orderable | ||||
| 19A | 376067 | |||
| No information available, not orderable | ||||
| 20 | 316822 | |||
| No information available, not orderable | ||||
| 21 | 937909Z | |||
| No information available, not orderable | ||||
| 21A | 373779 | |||
| Gear And Pinion Set | ||||
| 22 | 339265 | 7.26 | 8.79 | |
| Dust Seal | ||||
| 23 | 321722 | 1.35 | 1.63 | |
| Ball Bearing 626zz | ||||
| 24 | 339145 | 1.50 | 1.82 | |
| Rubber Ring | ||||
| 25 | 309929 | 1.04 | 1.26 | |
| HOUSING | ||||
| 26 | 373167 | 4.80 | 5.81 | |
| Switch | ||||
| 28 | 339149 | 2.70 | 3.27 | |
| Noise Suppressor W/noise Suppressor Band | ||||
| 29 | 373291 | 3.60 | 4.36 | |
| TAIL COVER (B) | ||||
| 30 | 373169 | 1.20 | 1.45 | |
| Tapping Screw (w/flange) D4x30 (black) | ||||
| 31 | 305490 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 32 | 301653 | 1.04 | 1.26 | |
| Carbon Brush (1 Pair) | ||||
| 34 | 999067 | 2.85 | 3.45 | |
| Tapping Screw D3x8 | ||||
| 35 | 328210 | 1.20 | 1.45 | |
| Tab Terminal | ||||
| 36 | 339185 | 1.04 | 1.26 | |
| Carbon Brush Holder | ||||
| 37 | 333844 | 2.10 | 2.54 | |
| TAIL COVER (A) | ||||
| 38 | 373168 | 1.20 | 1.45 | |
| SPRING | ||||
| 39 | 373175 | 1.04 | 1.26 | |
| Switch Lever | ||||
| 40 | 373170 | 1.05 | 1.27 | |
| OFF LOCK LEVER | ||||
| 41 | 373171 | 1.04 | 1.26 | |
| NEEDLE PIN | ||||
| 42 | 373173 | 1.04 | 1.26 | |
| connecting terminal | ||||
| 43 | 980063 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 44 | 338334 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x12 Till 1.2001 | ||||
| 45 | 305720 | 1.05 | 1.27 | |
| Cord Armor D10.1 | ||||
| 46 | 938051 | 1.04 | 1.26 | |
| Cord Armor D8.8 | ||||
| 46A | 380090 | 1.04 | 1.26 | |
| Cord 10.7 (USE 714500=2X1 5M) | ||||
| 47 | 500247Z | 6.18 | 7.48 | |
| Seal Lock Screw (w/sp. Washer) M4x10 | ||||
| 48 | 987201 | 1.05 | 1.27 | |
| Bearing Cover | ||||
| 49 | 316490 | 1.65 | 2.00 | |
| Ball Bearing 6201vv | ||||
| 50 | 6201VV | 6.45 | 7.80 | |
| Felt Packing | ||||
| 51 | 301946 | 1.04 | 1.26 | |
| PACKING GLAND NEW | ||||
| 52 | 380072 | 3.48 | 4.21 | |
| SHAFT | ||||
| 53 | 379927 | 2.46 | 2.98 | |
| No information available, not orderable | ||||
| 501 | 938332Z | |||
| Side Handle G13sr3 | ||||
| 502 | 318312 | 7.50 | 9.08 | |
| CUTTING GUARD CLIP | ||||
| 503 | 381203 | 2.22 | 2.69 | |
| No information available, not orderable | ||||
| 601 | 314062 | |||
| No information available, not orderable | ||||
| 602 | 314063 | |||
| No information available, not orderable | ||||
| 603 | 314064 | |||
| No information available, not orderable | ||||
| 604 | 314065 | |||
| No information available, not orderable | ||||
| 605 | 314066 | |||
| No information available, not orderable | ||||
| 606 | 314067 | |||
| No information available, not orderable | ||||
| 607 | 314068 | |||
| No information available, not orderable | ||||
| 608 | 314069 | |||
| No information available, not orderable | ||||
| 609 | 314070 | |||
| No information available, not orderable | ||||
| 610 | 314071 | |||
| No information available, not orderable | ||||
| 611 | 314072 | |||
| No information available, not orderable | ||||
| 612 | 937826Z | |||
| No information available, not orderable | ||||
| 613 | 937825Z | |||
