Here you will find all available parts and drawings of the 'Hikoki G13SP'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

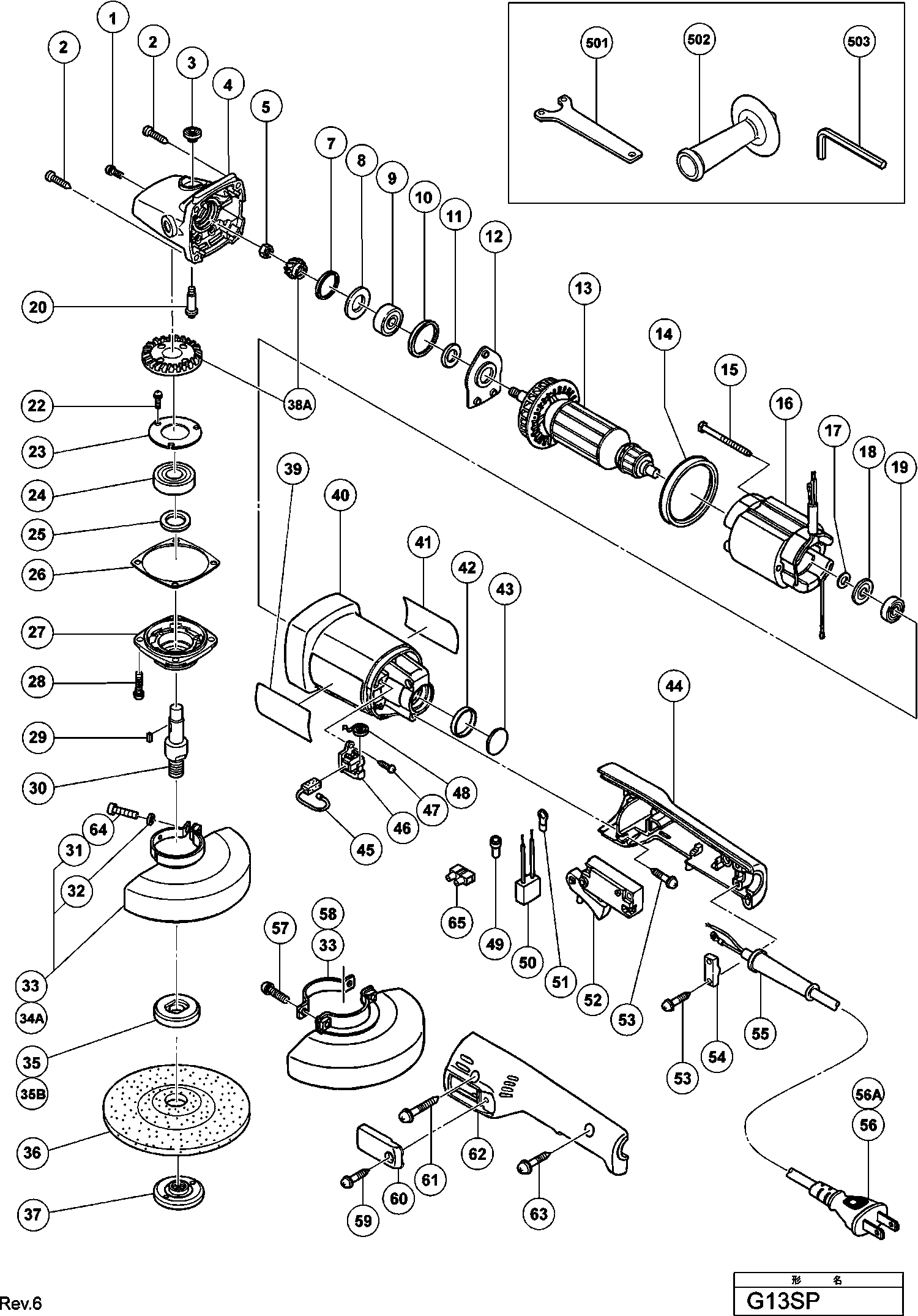

Technical drawing of model Hikoki G13SP
Spare parts list of model Hikoki G13SP
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *13 | 360375U | |||
| No information available, not orderable | ||||
| *16 | 340366D | |||
| No information available, not orderable | ||||
| *30 | 309562 | |||
| Machine Screw M5x20 (10 pieces) | ||||
| *31 | 949241 | 1.35 | 1.63 | |
| Spring Washer M5 (10 pieces) | ||||
| *32 | 949454 | 1.04 | 1.26 | |
| Terminal | ||||
| *51 | 311741 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| *55 | 953327 | |||
| SEAL LOCK SCREW M4X10 | ||||
| 1 | 303255 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 2 | 937807 | |||
| Pushing Button | ||||
| 3 | 301944 | 1.04 | 1.26 | |
| Gear Cover | ||||
| 4 | 308542 | 21.73 | 26.29 | |
| Special Nut M7 | ||||
| 5 | 301941 | 1.04 | 1.26 | |
| Seal Ring (a) | ||||
| 7 | 308543 | 1.04 | 1.26 | |
| Washer (c) | ||||
| 8 | 980866 | 1.04 | 1.26 | |
| Ball bearing 629t12ddc3ps2-l | ||||
| 9 | 629T12 | 9.83 | 11.89 | |
| Rubber Ring | ||||
| 10 | 957754 | 1.20 | 1.45 | |
| Felt | ||||
| 11 | 994320 | 1.04 | 1.26 | |
| Bearing Cover | ||||
| 12 | 308538 | 1.50 | 1.82 | |
| Armature 230v | ||||
| 13 | 360375E | 67.65 | 81.86 | |
| Fan Guide | ||||
| 14 | 308537 | 1.50 | 1.82 | |
| Hex. Hd. Tapping Screw D4x70 | ||||
| 15 | 982021 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 16 | 340366E | |||
| Spring retaining ring | ||||
| 17 | 311737 | 1.04 | 1.26 | |
| Dust Seal (a) | ||||
| 18 | 311435 | 1.04 | 1.26 | |
| Ball Bearing 608vvc2ps2l | ||||
| 19 | 608VVM | 5.70 | 6.90 | |
| Lock Pin | ||||
| 20 | 301943 | 1.65 | 2.00 | |
| Seal Lock Screw (w/sp. Washer) M4x8 | ||||
| 22 | 991207 | 1.04 | 1.26 | |
| Bearing Cover (b) | ||||
| 23 | 936680 | 1.04 | 1.26 | |
| Ball Bearing 6201ddcmps2l | ||||
| 24 | 6201DD | 6.30 | 7.62 | |
| Felt Packing | ||||
| 25 | 308546 | 1.04 | 1.26 | |
| Seal Packing | ||||
| 26 | 308547 | 1.04 | 1.26 | |
| Inner Cover | ||||
| 27 | 308545 | 7.35 | 8.89 | |
| Seal Lock Screw (w/sp. Washer) M5x16 | ||||
| 28 | 307046 | 1.04 | 1.26 | |
| Feather Key 3x3x8 | ||||
| 29 | 944109 | 1.70 | 2.06 | |
| Spindle Ass'y | ||||
| 30 | 994301 | 14.25 | 17.24 | |
| Machine Screw M5x20 (10 pieces) | ||||
| 31 | 949241 | 1.35 | 1.63 | |
| Spring Washer M5 (10 pieces) | ||||
| 32 | 949454 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 33 | 938302Z | |||
| Wheel Guard Ass'y Includ.27,28 | ||||
| 34A | 320192 | 14.16 | 17.14 | |
| No information available, not orderable | ||||
| 35 | 937817Z | |||
| No information available, not orderable | ||||
| 35C | 370449 | |||
| No information available, not orderable | ||||
| 36 | 316822 | |||
| No information available, not orderable | ||||
| 37 | 994155 | |||
| No information available, not orderable | ||||
| 37A | 339579 | |||
| Gear And Pinion Set | ||||
| 38A | 329054 | 16.36 | 19.80 | |
| Housing | ||||
| 40A | 308559 | 10.35 | 12.52 | |
| Rubber Ring | ||||
| 42 | 995662 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 43 | 313274 | |||
| No information available, not orderable | ||||
| 44 | 313275 | |||
| Carbon Brush (1 Pair) | ||||
| 45 | 999088 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 46 | 308535 | 6.15 | 7.44 | |
| Tapping Screw D3x10 | ||||
| 47 | 306945 | 1.04 | 1.26 | |
| Spring | ||||
| 48 | 308536 | 1.65 | 2.00 | |
| Connector 50091 (10 Pcs.) | ||||
| 49 | 959140 | 3.30 | 3.99 | |
| Capacitor | ||||
| 50 | 311935 | 3.30 | 3.99 | |
| Terminal | ||||
| 51 | 311741 | 1.04 | 1.26 | |
| connecting terminal | ||||
| 51 | 980063 | 1.04 | 1.26 | |
| Switch | ||||
| 52 | 313278 | 22.55 | 27.29 | |
| No information available, not orderable | ||||
| 53 | 984750 | |||
| Cord Clip | ||||
| 54 | 960266 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 55 | 938051 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 56 | 500201Z | |||
| No information available, not orderable | ||||
| 57 | 309563 | |||
| Clamp Ring for Guard | ||||
| 58 | 301949 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 59 | 309470 | |||
| No information available, not orderable | ||||
| 60 | 313277 | |||
| Tapping Screw (w/flange) D4x35 (black) | ||||
| 61 | 303694 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 62 | 313276 | |||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 63 | 301653 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 501 | 938332Z | |||
| No information available, not orderable | ||||
| 502 | 994322 | |||
| No information available, not orderable | ||||
| 601 | 994325 | |||
| No information available, not orderable | ||||
| 602 | 307007 | |||
| No information available, not orderable | ||||
| 603 | 994326 | |||
| No information available, not orderable | ||||
| 604 | 994327 | |||
| No information available, not orderable | ||||
| 605 | 994328 | |||
| No information available, not orderable | ||||
| 606 | 994329 | |||
| No information available, not orderable | ||||
| 607 | 310338 | |||
| No information available, not orderable | ||||
| 608 | 313689 | |||
| No information available, not orderable | ||||
| 609 | 313690 | |||
| No longer available, no replacement | ||||
| 610 | 311742 | |||
| Guard | ||||
| 610A | 337231 | 10.35 | 12.52 | |
| Label | ||||
| 611 | 311492 | 1.20 | 1.45 | |
| Set Pin Till 11.2014 | ||||
| 612 | 311744 | 1.20 | 1.45 | |
| Lever | ||||
| 613 | 311743 | 5.75 | 6.96 | |
| Bracket for protective cover | ||||
| 615 | 311491 | 4.65 | 5.63 | |
| Retaining Ring (e-type) For D2.5 Shaft | ||||
| 616 | 874759 | 1.04 | 1.26 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 617 | 999076 | 14.40 | 17.42 | |
| No information available, not orderable | ||||
| 618 | 332787 | |||
| No information available, not orderable | ||||
| 619 | 332788 | |||
| Hex. Socket Hd. Bolt (w/washers) M5x20 | ||||
| 620 | 316107 | 1.80 | 2.18 | |
