Here you will find all available parts and drawings of the 'Hikoki G13SD'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

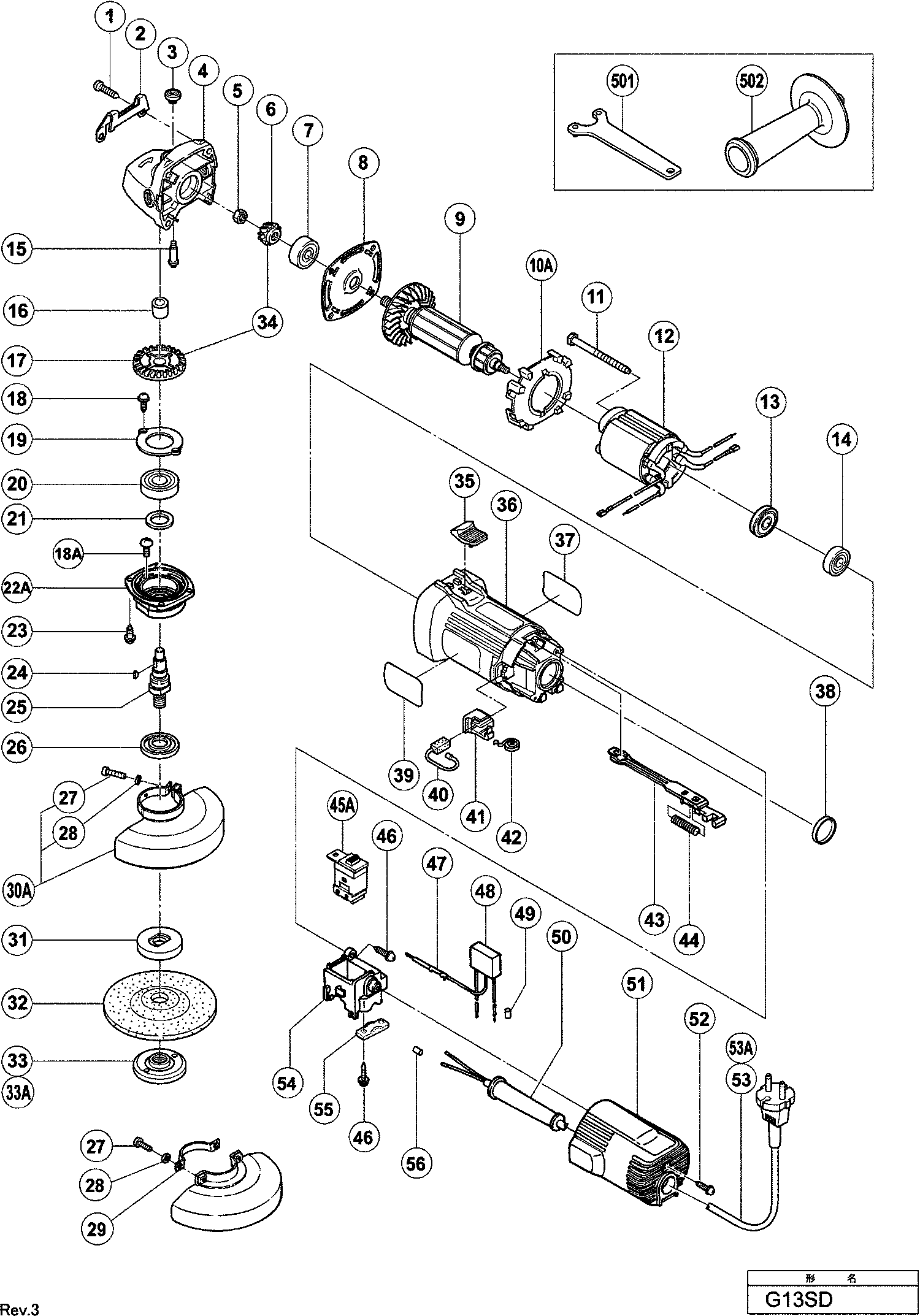

Technical drawing of model Hikoki G13SD
Spare parts list of model Hikoki G13SD
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Stator (a) 240v | ||||
| *12 | 340441F | 14.25 | 17.24 | |
| Stator 220v-230v | ||||
| *12 | 340441E | 14.03 | 16.97 | |
| Wheel Guard Ass'y Includ.27,28 | ||||
| *30A | 320192 | 14.16 | 17.14 | |
| No longer available, no replacement | ||||
| *53 | 500435Z | |||
| Armature 230v | ||||
| *9 | 360497E | 56.24 | 68.05 | |
| Armature 230v-240v | ||||
| *9 | 360497F | 56.24 | 68.05 | |
| No information available, not orderable | ||||
| 1 | 937807 | |||
| Guard Plate | ||||
| 2 | 317807 | 1.05 | 1.27 | |
| Pushing Button | ||||
| 3 | 301944 | 1.04 | 1.26 | |
| Gear Cover | ||||
| 4 | 316484 | 18.98 | 22.96 | |
| Special Nut M7 | ||||
| 5 | 301941 | 1.04 | 1.26 | |
| Pinion | ||||
| 6 | 316437 | 22.28 | 26.95 | |
| No information available, not orderable | ||||
| 6A | 378113 | |||
| Ball Bearing 628vvc2ps2-l | ||||
| 7 | 628VVC | 11.85 | 14.34 | |
| Bearing Holder | ||||
| 8 | 316480 | 3.30 | 3.99 | |
| Armature 230v-240v | ||||
| 9 | 360497F | 56.24 | 68.05 | |
| Armature 230v | ||||
| 9 | 360497E | 56.24 | 68.05 | |
| Fan Guide | ||||
| 10A | 319898 | 1.05 | 1.27 | |
| Hex. Hd. Tapping Screw D4x70 | ||||
| 11 | 982021 | 1.04 | 1.26 | |
| Stator (a) 240v | ||||
| 12 | 340441F | 14.25 | 17.24 | |
| Stator 220v-230v | ||||
| 12 | 340441E | 14.03 | 16.97 | |
| Dust Seal | ||||
| 13 | 315877 | 1.05 | 1.27 | |
| Ball Bearing 608vvc2ps2l | ||||
| 14 | 608VVM | 5.70 | 6.90 | |
| Lock Pin | ||||
| 15 | 301943 | 1.65 | 2.00 | |
| Needle Bearing Hk0709 | ||||
| 16 | 673422 | 6.15 | 7.44 | |
| Gear | ||||
| 17 | 316438 | 17.88 | 21.63 | |
| No information available, not orderable | ||||
| 17A | 378114 | |||
| Seal Lock Screw (w/sp. Washer) M4x10 Till 09.2009 | ||||
| 18 | 997263 | 1.05 | 1.27 | |
| Slotted Hd. Screw (seal Lock) M4x8 | ||||
| 18A | 323556 | 1.05 | 1.27 | |
| Bearing Cover | ||||
| 19 | 316490 | 1.65 | 2.00 | |
| Ball Bearing 6201ddcmps2l | ||||
| 20 | 6201DD | 6.30 | 7.62 | |
| Felt Packing | ||||
| 21 | 301946 | 1.04 | 1.26 | |
| Packing Gland | ||||
| 22A | 333838 | 3.00 | 3.63 | |
| Seal Lock Screw (w/sp. Washer) M4x12 | ||||
| 23 | 307127 | 1.05 | 1.27 | |
| Woodruff Key | ||||
| 24 | 302047 | 1.05 | 1.27 | |
| Spindle Ass'y | ||||
| 25 | 317804 | 9.30 | 11.25 | |
| Fringer | ||||
| 26 | 301945 | 1.05 | 1.27 | |
| Machine Screw M5x20 (10 pieces) | ||||
| 27 | 949241 | 1.35 | 1.63 | |
| Machine Screw M5x20 (10 pieces) | ||||
| 27S | 949241 | 1.35 | 1.63 | |
| Spring Washer M5 (10 pieces) | ||||
| 28 | 949454 | 1.04 | 1.26 | |
| Spring Washer M5 (10 pieces) | ||||
| 28S | 949454 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 29 | 938302Z | |||
| Wheel Guard Ass'y Includ.27,28 | ||||
| 30A | 320192 | 14.16 | 17.14 | |
| No information available, not orderable | ||||
| 31 | 937817Z | |||
| No information available, not orderable | ||||
| 32 | 316822 | |||
| No information available, not orderable | ||||
| 33 | 994324 | |||
| No information available, not orderable | ||||
| 33A | 337329 | |||
| No information available, not orderable | ||||
| 33B | 339579 | |||
| Gear Ass'y Includ.6,17 | ||||
| 34 | 316436 | 36.16 | 43.76 | |
| No information available, not orderable | ||||
| 34A | 378112 | |||
| Slide Knob | ||||
| 35 | 314428 | 1.04 | 1.26 | |
| Housing | ||||
| 36 | 317802 | 12.00 | 14.52 | |
| Rubber Ring | ||||
| 38 | 995662 | 1.04 | 1.26 | |
| Carbon Brush (1 Pair) | ||||
| 40 | 999088 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 41 | 317810 | 4.80 | 5.81 | |
| Spring | ||||
| 42 | 308536 | 1.65 | 2.00 | |
| Slide Bar | ||||
| 43 | 317806 | 1.05 | 1.27 | |
| Spring | ||||
| 44 | 314429 | 1.04 | 1.26 | |
| SLIDE SWITCH (2P PILLAR TYPE) (OLD 980778) | ||||
| 45A | 321208 | 12.87 | 15.57 | |
| No information available, not orderable | ||||
| 46 | 984750 | |||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 46A | 301653 | 1.04 | 1.26 | |
| Earth Terminal For Tpe | ||||
| 47 | 314854 | 1.50 | 1.82 | |
| Noise Suppressor | ||||
| 48 | 994273 | 4.29 | 5.19 | |
| Threaded cable sleeve | ||||
| 49 | 981373 | 1.05 | 1.27 | |
| Cord Armor D10.1 | ||||
| 50 | 938051 | 1.04 | 1.26 | |
| Tail Cover | ||||
| 51 | 317808 | 5.85 | 7.08 | |
| No information available, not orderable | ||||
| 52 | 307811 | |||
| Cord (cord Armor D8.8) For Saf | ||||
| 53 | 500237Z | 11.40 | 13.79 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 53 | 500447Z | 6.60 | 7.99 | |
| SNOER 10.7 (USE 714500=2X1 5M) | ||||
| 53A | 500247Z | 6.18 | 7.48 | |
| No information available, not orderable | ||||
| 54 | 317811 | |||
| Switch Holder Ass'y (Old 317811) | ||||
| 54A | 376969 | 1.05 | 1.27 | |
| Cord Clip | ||||
| 55 | 937631 | 1.04 | 1.26 | |
| Threaded cable sleeve | ||||
| 56 | 981373 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 501 | 938332Z | |||
| No information available, not orderable | ||||
| 502 | 302142 | |||
| No information available, not orderable | ||||
| 502A | 994322 | |||
| Handle Joint | ||||
| 602 | 994309 | 14.03 | 16.97 | |
| No information available, not orderable | ||||
| 603A | 325515 | |||
