Here you will find all available parts and drawings of the 'Hikoki G13SC2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

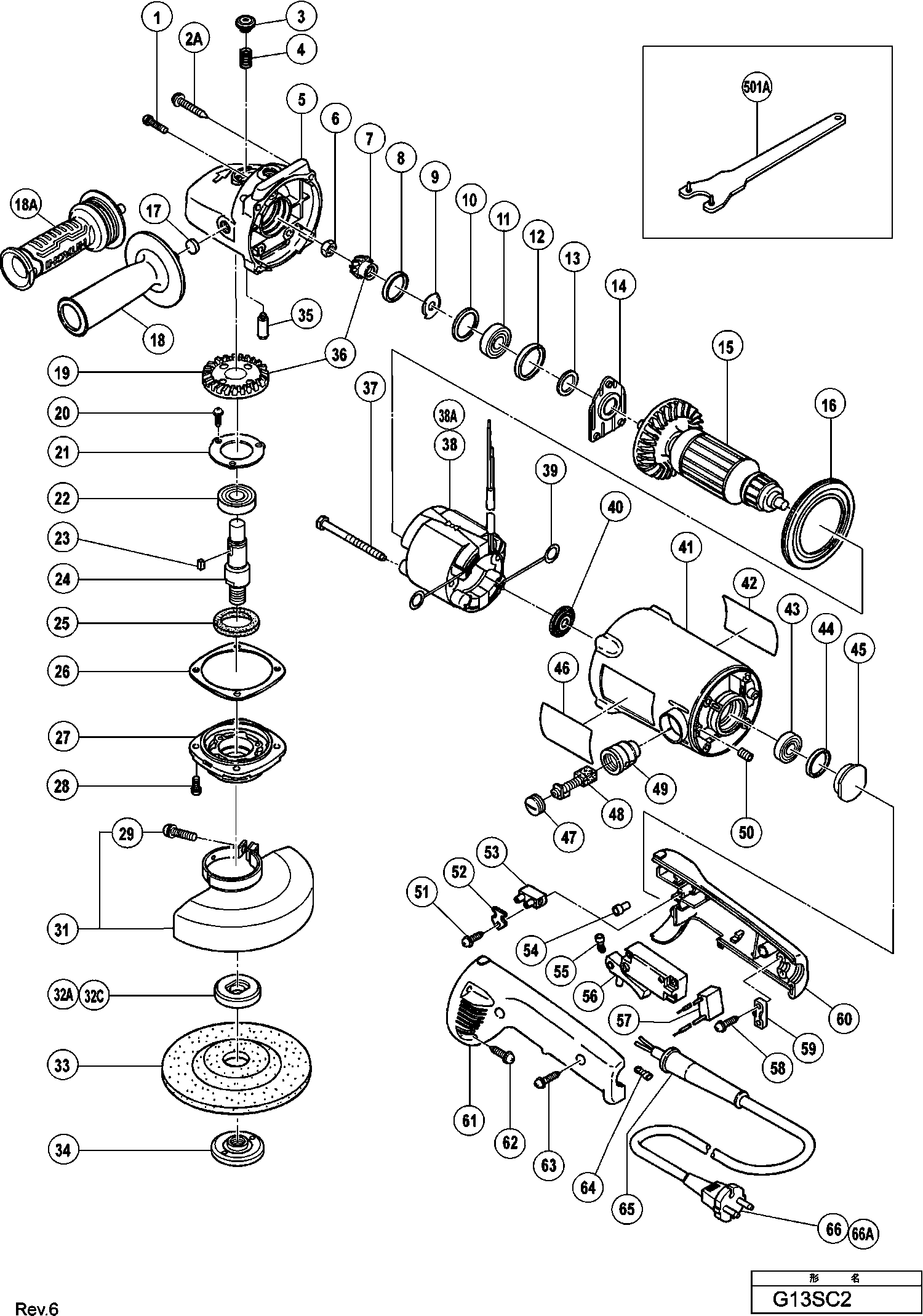

Technical drawing of model Hikoki G13SC2
Spare parts list of model Hikoki G13SC2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Armature Ass'y 240v | ||||
| *15 | 360433F | 99.41 | 120.29 | |
| Armature 220-230 Volt | ||||
| *15 | 360433E | 86.55 | 104.73 | |
| Spindle Ass'y | ||||
| *24 | 315088 | 13.93 | 16.85 | |
| No information available, not orderable | ||||
| *34 | 994155 | |||
| Stator Ass'y 240v Includ.39 | ||||
| *38 | 340383F | 34.10 | 41.26 | |
| Stator 220v-230v | ||||
| *38 | 340383E | 22.28 | 26.95 | |
| VELD 110-115 VOLT | ||||
| *38 | 340383C | 21.28 | 25.75 | |
| Switch | ||||
| *56 | 313278 | 22.55 | 27.29 | |
| Cord Armor D10.1 | ||||
| *65 | 938051 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| *66 | 500423Z | |||
| No information available, not orderable | ||||
| *66A | 323974 | |||
| SEAL LOCK SCREW M4X10 | ||||
| 1 | 303255 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D5x30 (black) | ||||
| 2A | 333713 | 1.80 | 2.18 | |
| Pushing Button | ||||
| 3 | 306888 | 1.04 | 1.26 | |
| Spring | ||||
| 4 | 306889 | 1.04 | 1.26 | |
| Gear Cover | ||||
| 5 | 315048 | 36.44 | 44.09 | |
| Lock Nut M8 (10 Pcs.) | ||||
| 6 | 949568 | 1.50 | 1.82 | |
| Gear | ||||
| 7 | 315084 | 11.93 | 14.43 | |
| Seal Ring (a) | ||||
| 8 | 315055 | 1.05 | 1.27 | |
| Washer (b) | ||||
| 9 | 315056 | 1.35 | 1.63 | |
| Ring | ||||
| 10 | 315054 | 1.20 | 1.45 | |
| Ball Bearing 6200ddcmps2l | ||||
| 11 | 6200DD | 6.00 | 7.26 | |
| Rubber Ring | ||||
| 12 | 315053 | 1.05 | 1.27 | |
| Felt Packing | ||||
| 13 | 315052 | 1.20 | 1.45 | |
| Bearing Cover (b) | ||||
| 14 | 315051 | 2.40 | 2.90 | |
| Armature Ass'y 240v | ||||
| 15 | 360433F | 99.41 | 120.29 | |
| Armature 220-230 Volt | ||||
| 15 | 360433E | 86.55 | 104.73 | |
| Fan Guide | ||||
| 16 | 315046 | 1.20 | 1.45 | |
| Felt Washer | ||||
| 17 | 315049 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 18 | 994322 | |||
| No information available, not orderable | ||||
| 18A | 336865 | |||
| No information available, not orderable | ||||
| 18B | 381403 | |||
| Gear | ||||
| 19 | 315085 | 31.89 | 38.58 | |
| Seal Lock Screw (w/sp. Washer) M4x10 | ||||
| 20 | 987201 | 1.05 | 1.27 | |
| Bearing Cover | ||||
| 21 | 937077 | 2.78 | 3.36 | |
| Ball Bearing 6202dd | ||||
| 22 | 6202DD | 6.75 | 8.17 | |
| Feather Key 3x3x10 | ||||
| 23 | 940533 | 1.20 | 1.45 | |
| Spindle Ass'y | ||||
| 24 | 315088 | 13.93 | 16.85 | |
| Felt Packing | ||||
| 25 | 315062 | 1.20 | 1.45 | |
| Gasket | ||||
| 26 | 315060 | 1.20 | 1.45 | |
| Gear-box cover | ||||
| 27 | 315061 | 9.44 | 11.42 | |
| No information available, not orderable | ||||
| 28 | 315636 | |||
| Machine Screw (w/washers) M5x20 (black) | ||||
| 29 | 995096 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M5x20 (10 Pcs.) For Europe | ||||
| 29A | 949757 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 31 | 320213 | |||
| Wheel Guard Ass'y (old 320213) | ||||
| 31A | 370411 | 9.00 | 10.89 | |
| No information available, not orderable | ||||
| 32A | 376202 | |||
| No information available, not orderable | ||||
| 32B | 376202 | |||
| Wheel Washer (c) For Pan (120v) | ||||
| 32C | 334456 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 32D | 370448 | |||
| No information available, not orderable | ||||
| 32E | 380066 | |||
| No information available, not orderable | ||||
| 33 | 316822 | |||
| No information available, not orderable | ||||
| 34 | 994155 | |||
| No information available, not orderable | ||||
| 34A | 373779 | |||
| Lock Pin | ||||
| 35 | 315050 | 2.40 | 2.90 | |
| Gear Ass'y Includ.7,19 | ||||
| 36 | 315083 | 41.00 | 49.61 | |
| Hex. Hd. Tapping Screw D5x60 | ||||
| 37 | 961501 | 1.04 | 1.26 | |
| Stator Ass'y 240v Includ.39 | ||||
| 38 | 340383F | 34.10 | 41.26 | |
| Stator 220v-230v | ||||
| 38 | 340383E | 22.28 | 26.95 | |
| VELD 110-115 VOLT | ||||
| 38 | 340383C | 21.28 | 25.75 | |
| No information available, not orderable | ||||
| 38A | 340383J | |||
| Brush Terminal | ||||
| 39 | 930703 | 2.40 | 2.90 | |
| Dust Seal for G13sc2 | ||||
| 40 | 315047 | 2.55 | 3.09 | |
| Housing | ||||
| 41 | 315090 | 36.44 | 44.09 | |
| Ball Bearing 608vvc2ps2l | ||||
| 43 | 608VVM | 5.70 | 6.90 | |
| Rubber Ring | ||||
| 44 | 315637 | 1.65 | 2.00 | |
| Bushing | ||||
| 45 | 315069 | 4.96 | 6.00 | |
| Brush Cap | ||||
| 47 | 945161 | 1.20 | 1.45 | |
| Carbon Brush (1 Pair) | ||||
| 48 | 999043 | 4.50 | 5.44 | |
| Brush Holder | ||||
| 49 | 958900 | 6.45 | 7.80 | |
| Hex Adjustment Screw M5x8 | ||||
| 50 | 938477 | 1.05 | 1.27 | |
| Hex. Socket Set Screw M4x6 Since 3.1986 | ||||
| 50 | 985114 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x12 Till 1.2001 | ||||
| 51 | 305720 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 52 | 315086 | |||
| Pillar Terminal Till 10.1999 For Aus | ||||
| 53 | 938307 | 2.13 | 2.57 | |
| Connector 50091 (10 Pcs.) | ||||
| 54 | 959140 | 3.30 | 3.99 | |
| Terminal | ||||
| 55 | 311741 | 1.04 | 1.26 | |
| Switch | ||||
| 56 | 313278 | 22.55 | 27.29 | |
| Switch | ||||
| 56 | 315101 | 20.49 | 24.79 | |
| Switch (1p Screw Type) Without Lock | ||||
| 56 | 320098 | 20.08 | 24.29 | |
| Noise Suppressor | ||||
| 57 | 930039 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 58 | 984750 | |||
| Cord Clip | ||||
| 59 | 937631 | 1.04 | 1.26 | |
| Handle (a) | ||||
| 60 | 315063 | 8.70 | 10.53 | |
| Handle (b) | ||||
| 61 | 315064 | 7.45 | 9.01 | |
| Tapping Screw (w/flange) D5x20 (black) | ||||
| 62 | 302089 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 63 | 302086 | 1.05 | 1.27 | |
| connecting terminal | ||||
| 64 | 980063 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 65 | 938051 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 66 | 500423Z | |||
| No information available, not orderable | ||||
| 66A | 323974 | |||
| No information available, not orderable | ||||
| 501A | 325491 | |||
| No information available, not orderable | ||||
| 501B | 376127 | |||
| No information available, not orderable | ||||
| 502 | 944458 | |||
| No information available, not orderable | ||||
| 601 | 994325 | |||
| No information available, not orderable | ||||
| 602 | 994326 | |||
| No information available, not orderable | ||||
| 603 | 994327 | |||
| No information available, not orderable | ||||
| 604 | 994328 | |||
| No information available, not orderable | ||||
| 605 | 994329 | |||
| No information available, not orderable | ||||
| 606 | 307007 | |||
| No information available, not orderable | ||||
| 607 | 310392 | |||
| No information available, not orderable | ||||
| 608 | 937907Z | |||
| Handle Joint | ||||
| 610 | 994309 | 14.03 | 16.97 | |
| No information available, not orderable | ||||
| 611 | 310337 | |||
| No information available, not orderable | ||||
| 612 | 332790 | |||
